ROSE MARY CAFE丨CHIASMUS PARTNERS

CHIASMUS建筑事务所 ,Release Time2025-01-23 16:16:00

Award(0)
Report(0)
Project information

Project Name: ROSE MARY CAFE

Architect: Chiamus Partners (Hyunho Lee, James Wei Ke, Chika Nomura)

Design Team: Yeongwoo Son, Seongyeol Lee, Narae Yang

Location: 25-15, 25-18 Sangjeok-dong, Sujeong-gu, Seongnam-si, Gyeonggi-do

Program: Type 2 Neighborhood Living Facility

Site Area: A lot 330, B lot 330

Building Area: A lot 197.53, B lot 196.32

Gross Floor Area: A lot 286.24 B lot 283.86

Building Scope: Above Ground 3 fls: 39m

Parking: 4 cars (each 2 cars)

Building to Land Ratio: A lot 59.69%, B lot 59.49%

Floor Area Ratio: A lot 87.10%, B lot 86.01%

Structure: Reinforced Structure

Exterior Finishing Exposed: Glass Curtainwall

Interior Finishing: Resin Mortar, Stucco

Structural Engineering: Joo Hyun Park (Cheil Structure Lab)

Construction: Coremsys, Inc

Mechanical and Electrical Engineering: SeungJin Eng. Inc

Design Period: 2020.09 – 2022.10.13

Construction Period: 2022.10.14 – 2024.4.30

Construction Budget: 7B USD

Client: Jae-eun Yu

Photography Credit: Namsun Lee

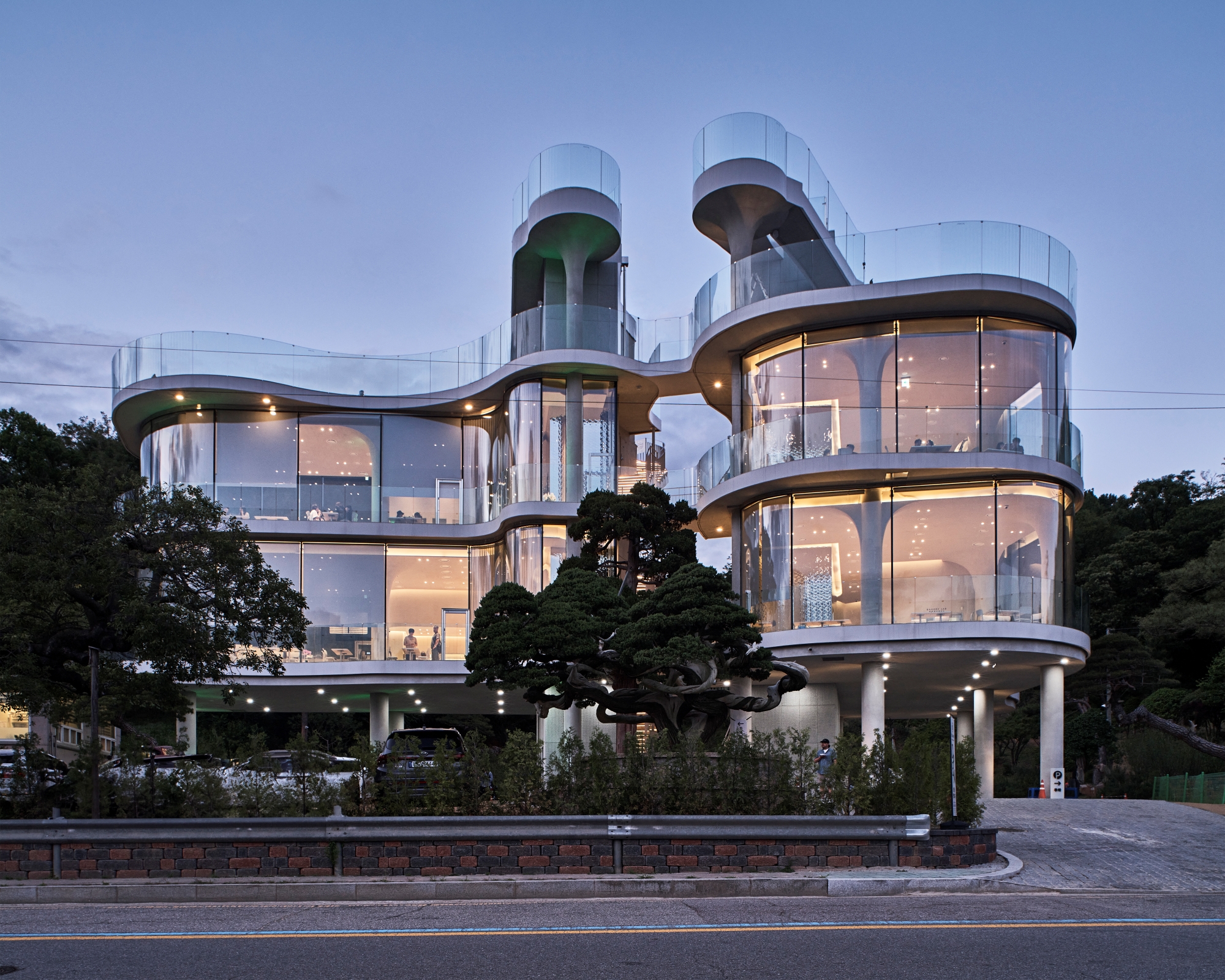

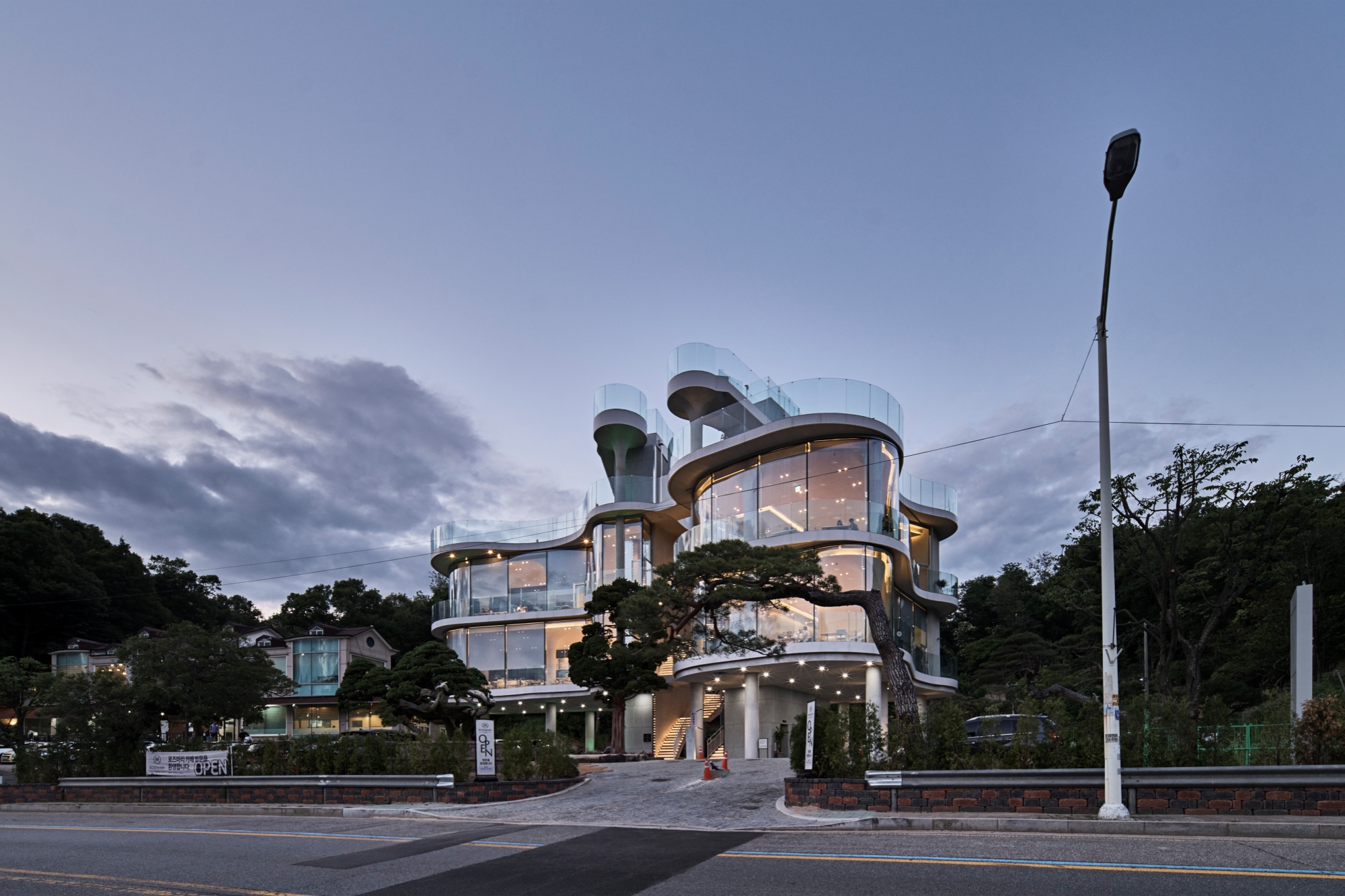

Cafe Rosemary is located next to Daewang Reservoir in Sangjeok-dong, Seongnam-si. It consists of two buildings of approximately 285㎡ on two floors, and the middle staircase is responsible for crossing the two buildings vertically and horizontally. As can be seen from the location of the stairs, the two buildings were divided by legal regulations, and the flow and connection of space was organically created like a spiral structure of DNA connecting the four spaces on the two floors and the rooftop space on the original two sites. For this purpose, six spaces are connected.

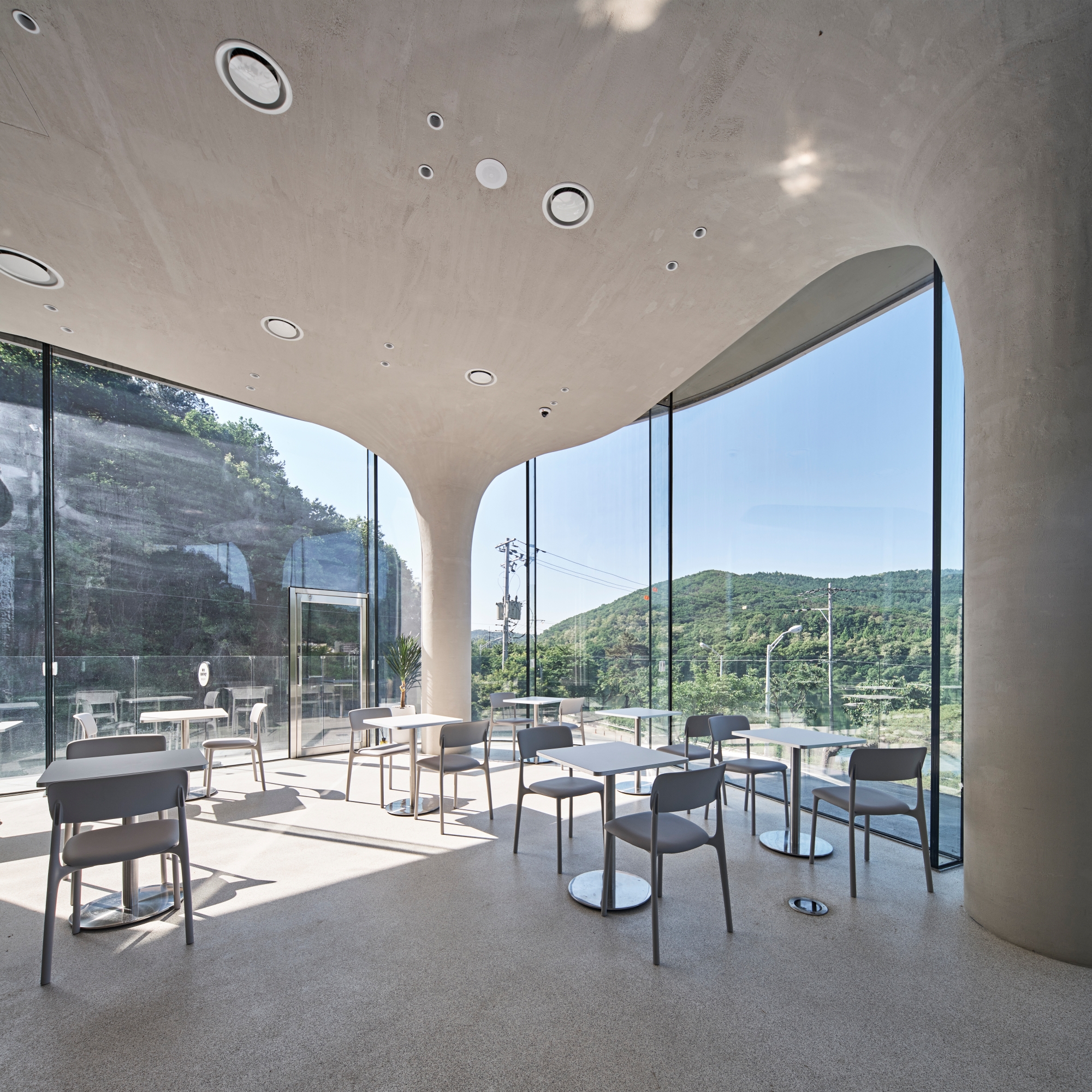

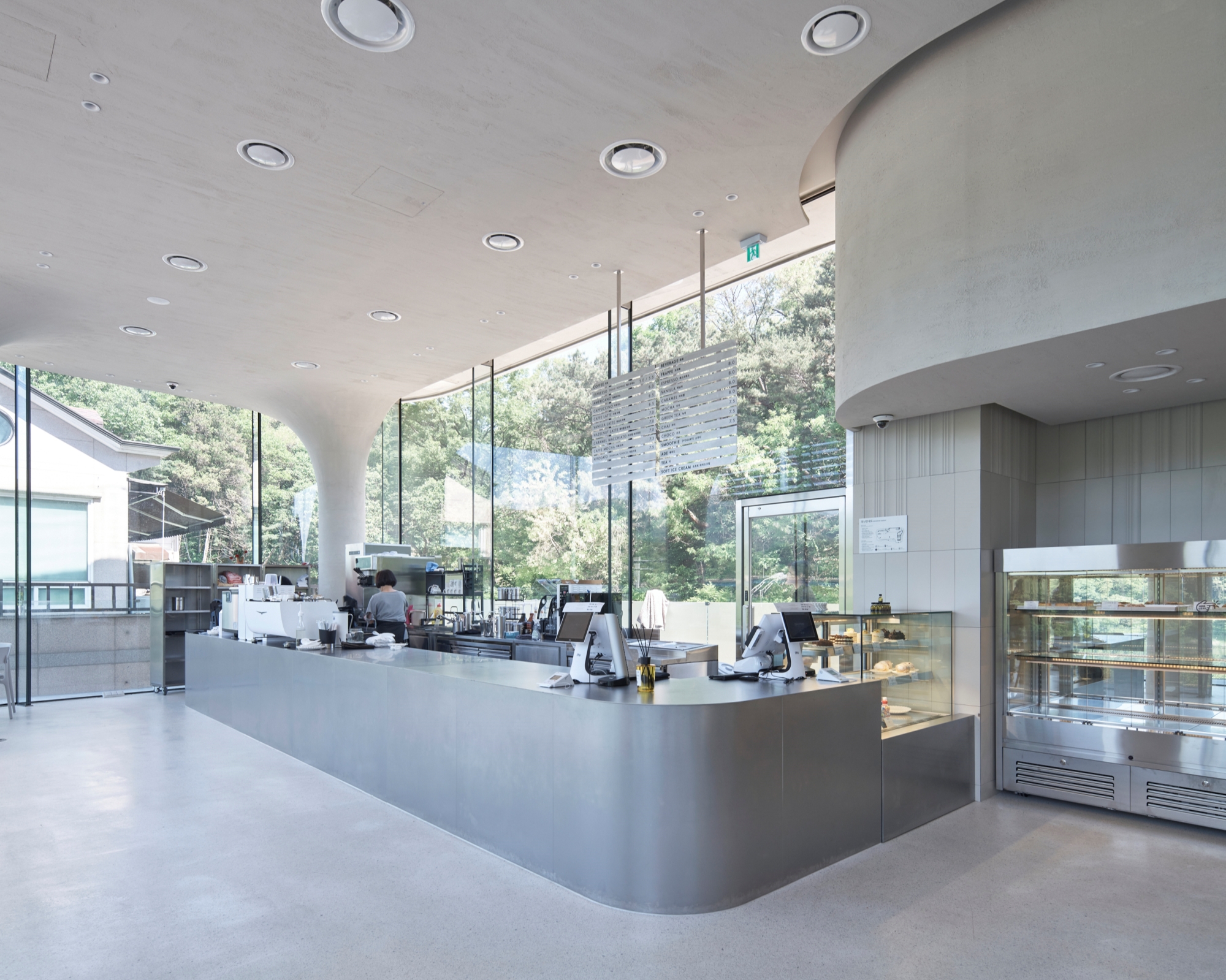

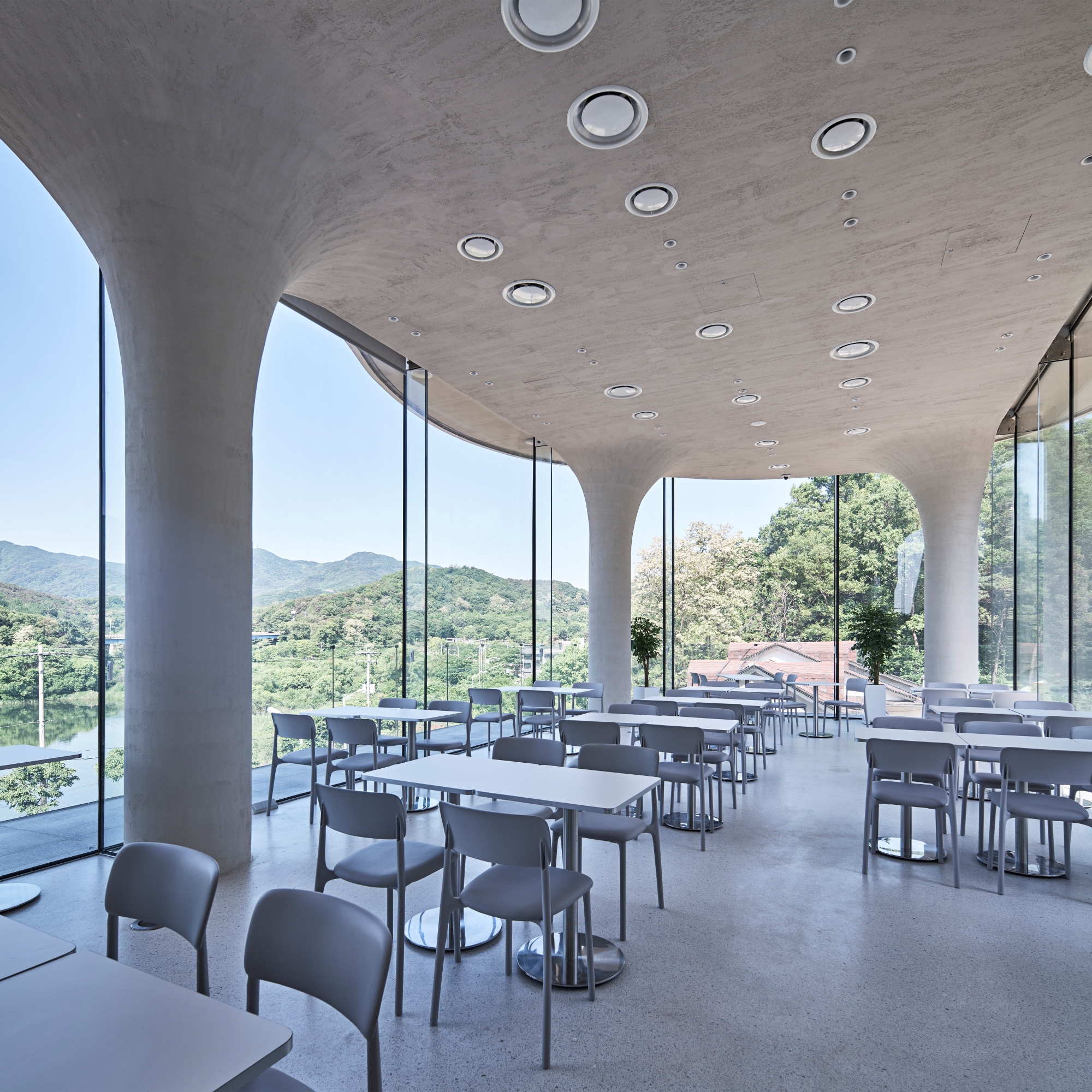

Each space was planned to be as exposed as possible to the view of Daewang Reservoir in front of the building and the forest of Inreungsan Mountain in the back. In order to maximize the space's intrusion into the nature of the front and back, the size of the surface facing the view was maximized through the curve of the façade, and the space was created to create a spatial effect like a pavilion that naturally intrudes into nature. The view frames of the secondary view formed in this way are structured in the form of a curved ceiling that matches the exterior of the building and a pillar with the ceiling flowing down. It is a curved surface on the elevation along with a curve on the plane, and is a curved surface without changes in interior and exterior materials. A single internal space shape was created.

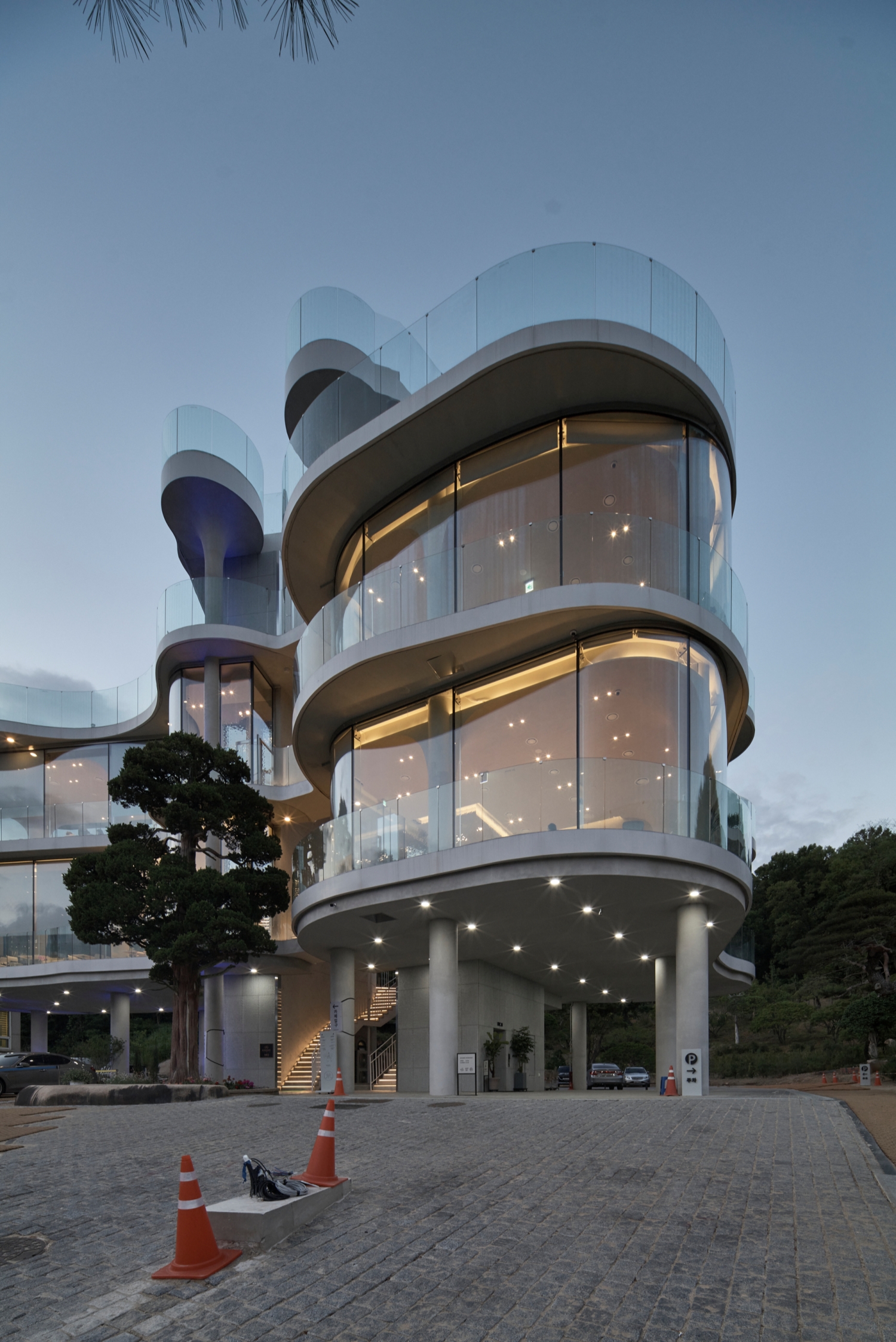

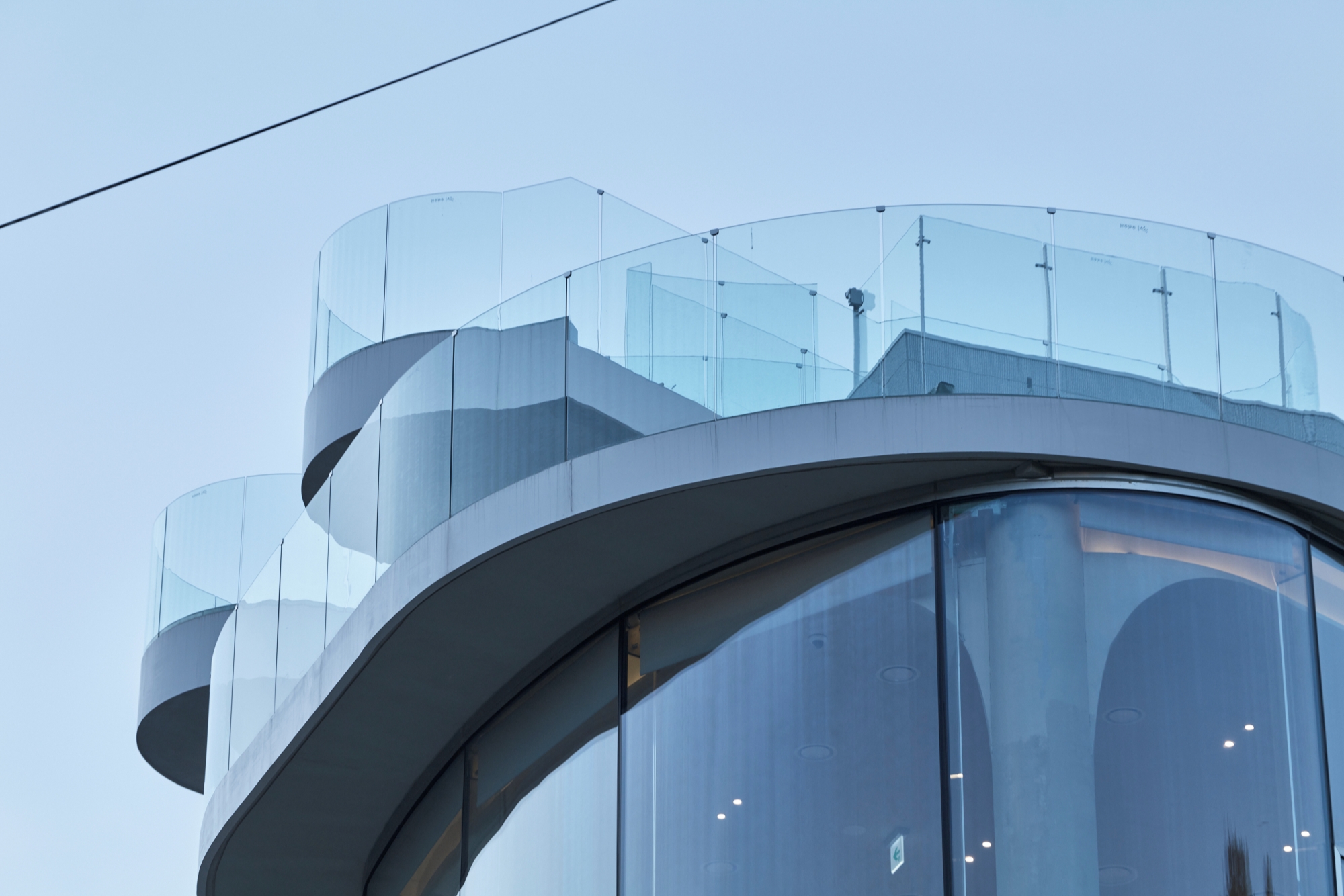

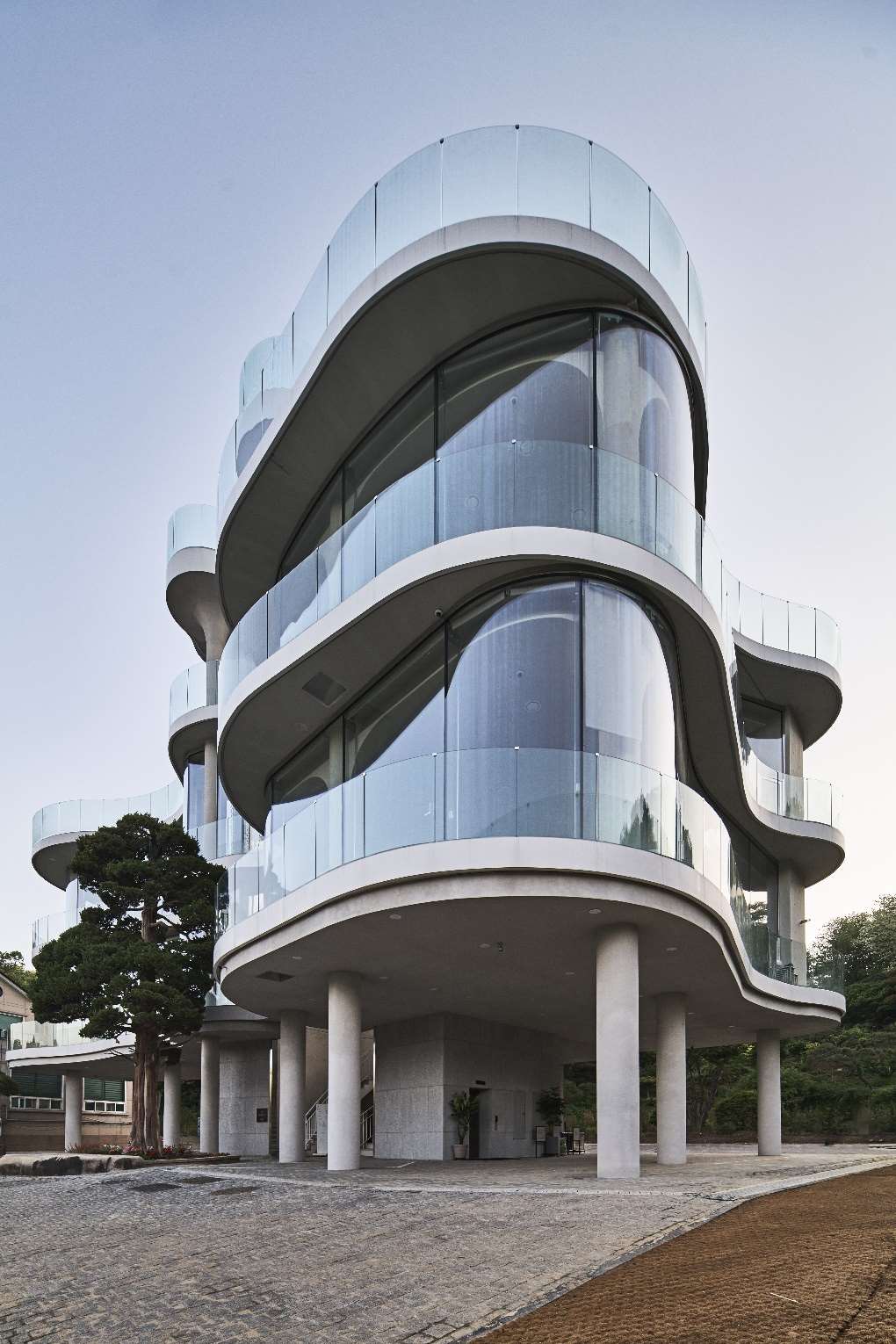

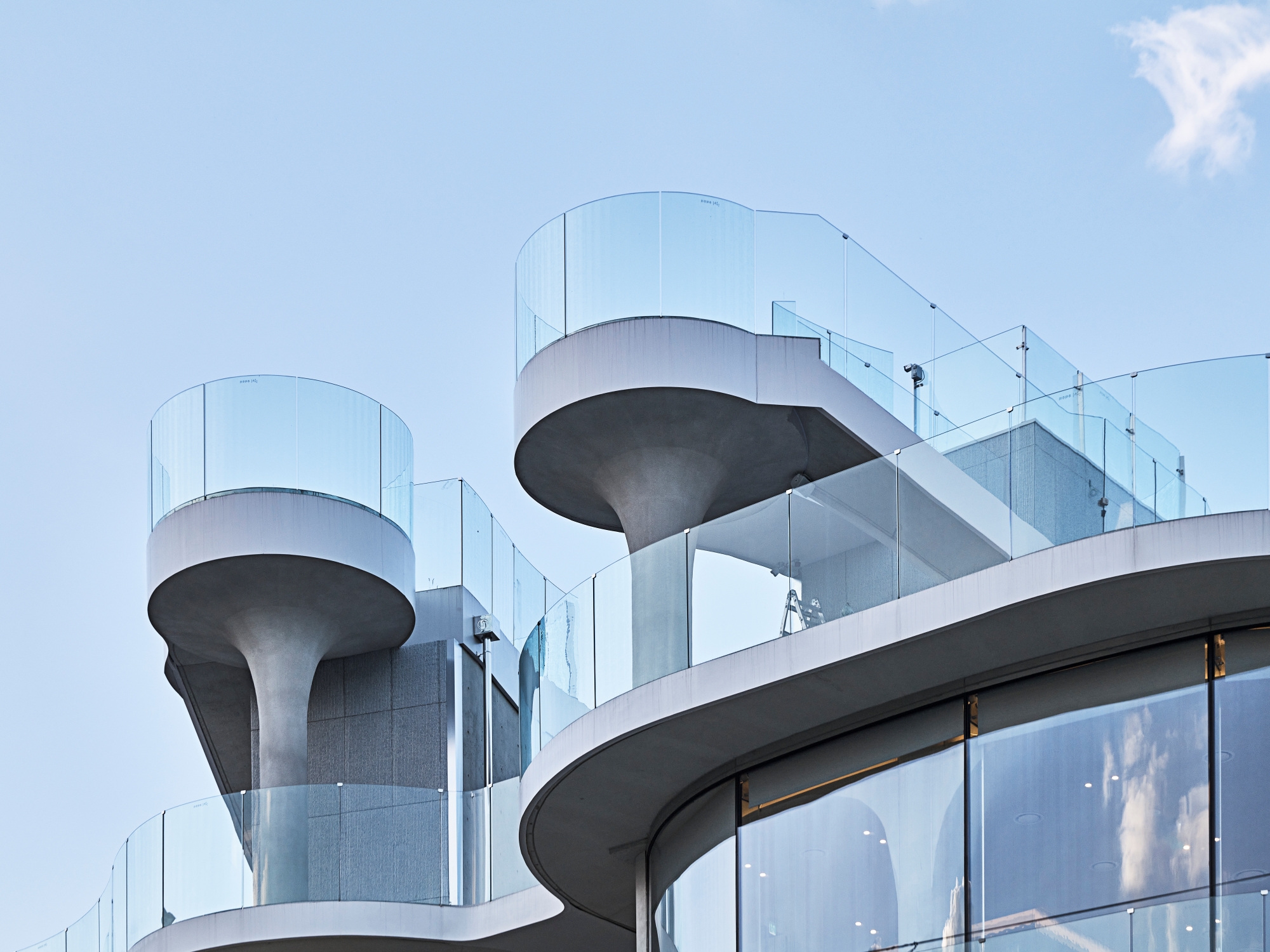

The exterior of Cafe Rosemary is an extension of the interior space, with three layers of curved balconies stacked on top of each other. It is a feature of the site located between nature, where the architectural context of the city is not connected, and the curved Daewang Reservoir and the sky of Cheonggyesan Mountain and Inreungsan Mountain. Between the lines created by the lines, we attempted to adapt them to the land context by borrowing the crystal glass curtain wall that reflects the transparent characteristics of water and the motif of layered fog clouds over the mountains.


The space was planned as a leisure space where the public can enjoy nature, and the space where people can enjoy nature by climbing up the pavilion omits functional requirements beyond an empty space thrown into nature.

Product gallery

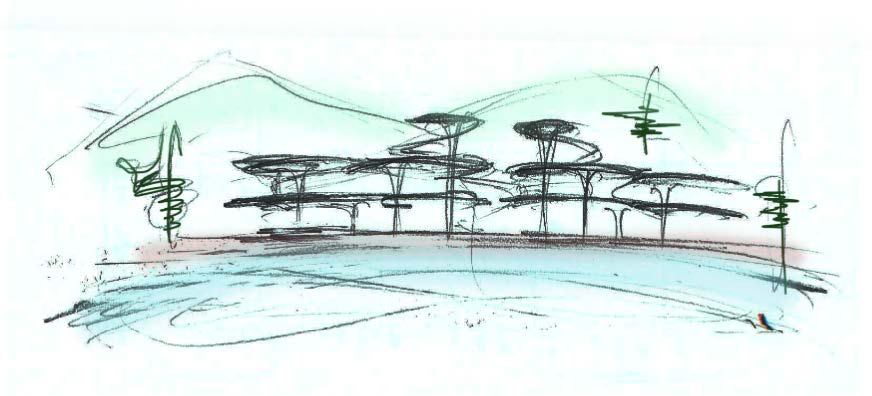

description text_rosemarycafe_chiasmuspartners.jpg
