NYE / SNEGLEHUSENE | BIG

BIG ，Release Time2022-11-15 09:53:00

Project information

Name: NYE / SNEGLEHUSENE

Code: NYE

Date: 28/09/2022

Program: Housing

Status: Completed

Size in m²: 9.500

Project type: Competition

Client: Tækker Group

Collaborators: Mads Gjesing, Cj Group, Spangenberg & Madsen, COWI

Location Text: Nye, Aarhus

Awards: Aarhus Kommunes Arkitekturpris 2022

PROJECT TEAM

Partners-in-Charge: Bjarke Ingels, Finn Nørkjær, David Zahle

Project Manager: Joos Jerne

Design Lead: Nanna Gyldholm Møller, Høgni Laksafoss

BIG Landscape: Alexa Haraga, Anders Fønss, Camille Inès Sophie Breuil, Giulia Genovese, Lasse Ryberg Hansen, Ulla Hornsyld

BIG Engineering: Andrea Hektor, Andreas Bak, Andrew Robert Coward, Bjarke Koch-Ørvad, Cecilie Søs Brandt-Olsen, Duncan Horswill, Ewa Zapiec, Ivaylo Ignatov, Jesper Kanstrup Petersen, Jonathan Otis Navntoft Russell, Kaoan Hengles De Lima, Kristoffer Negendahl, Mikki Seidenschnur, Peter Andres Ehvert, Timo Harboe Nielsen, Tristan Robert Harvey

Team: Norbert Nadudvari, Wiktor Kacprzak, Axelle Bosman, Liliane Wenner, Christine Mulvad, Joanna Jakubowska, Johanna Schneider, Richard Garth Howis, Xinying Zhang, Mikkel M. R. Stubgaard, Katarina Mácková, Sean Edmund Deering, Søren Aagaard, Pawel Bussold, Mantas Povilaika, Espen Vik, Lucian Tofan, Jesper Bo Jensen

Expand for more information

Copyright Notice: The content of this link is released by the copyright owner BIG. designverse owns the copyright of editing. Please do not reproduce the content of this link without authorization. Welcome to share this link.

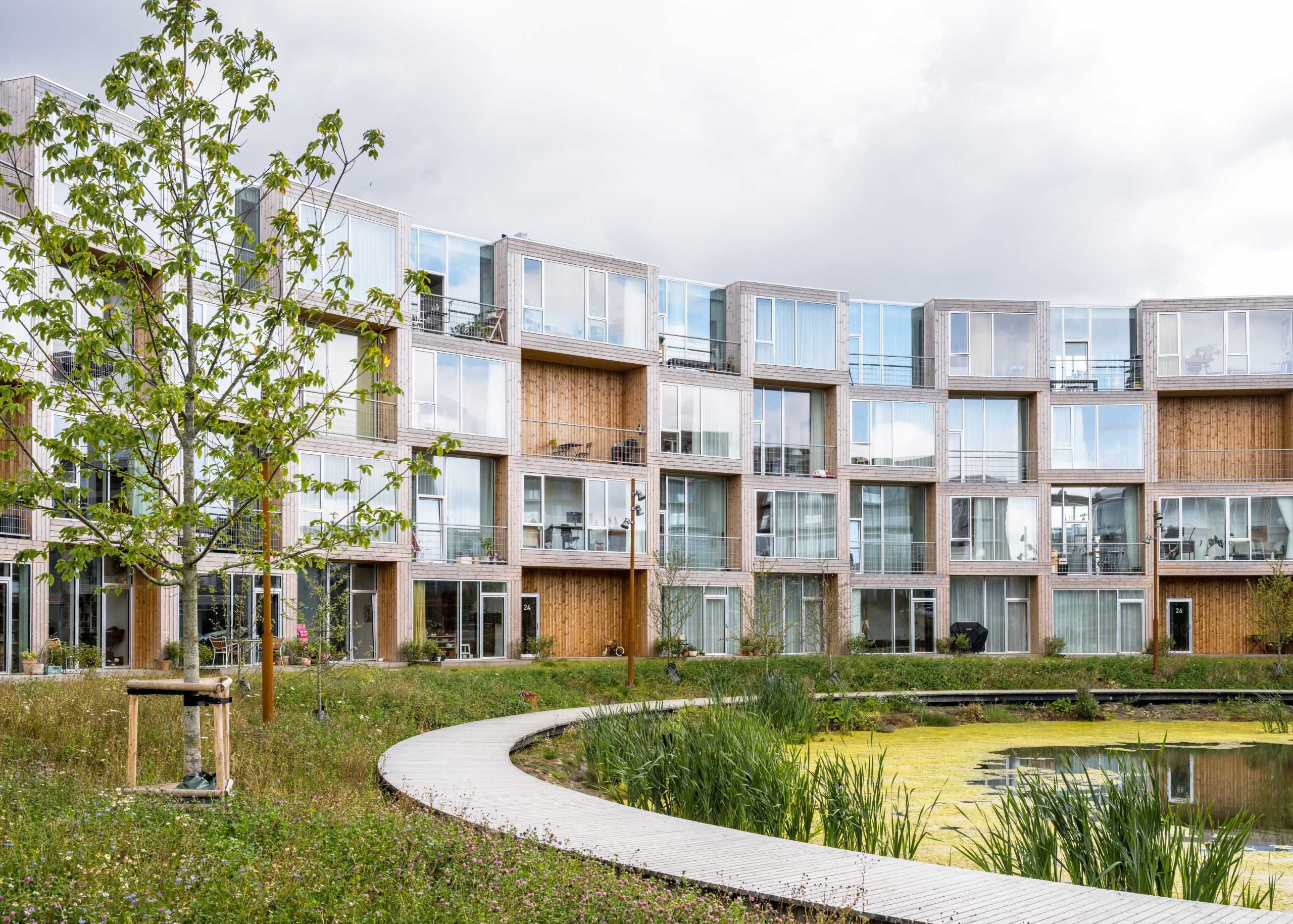

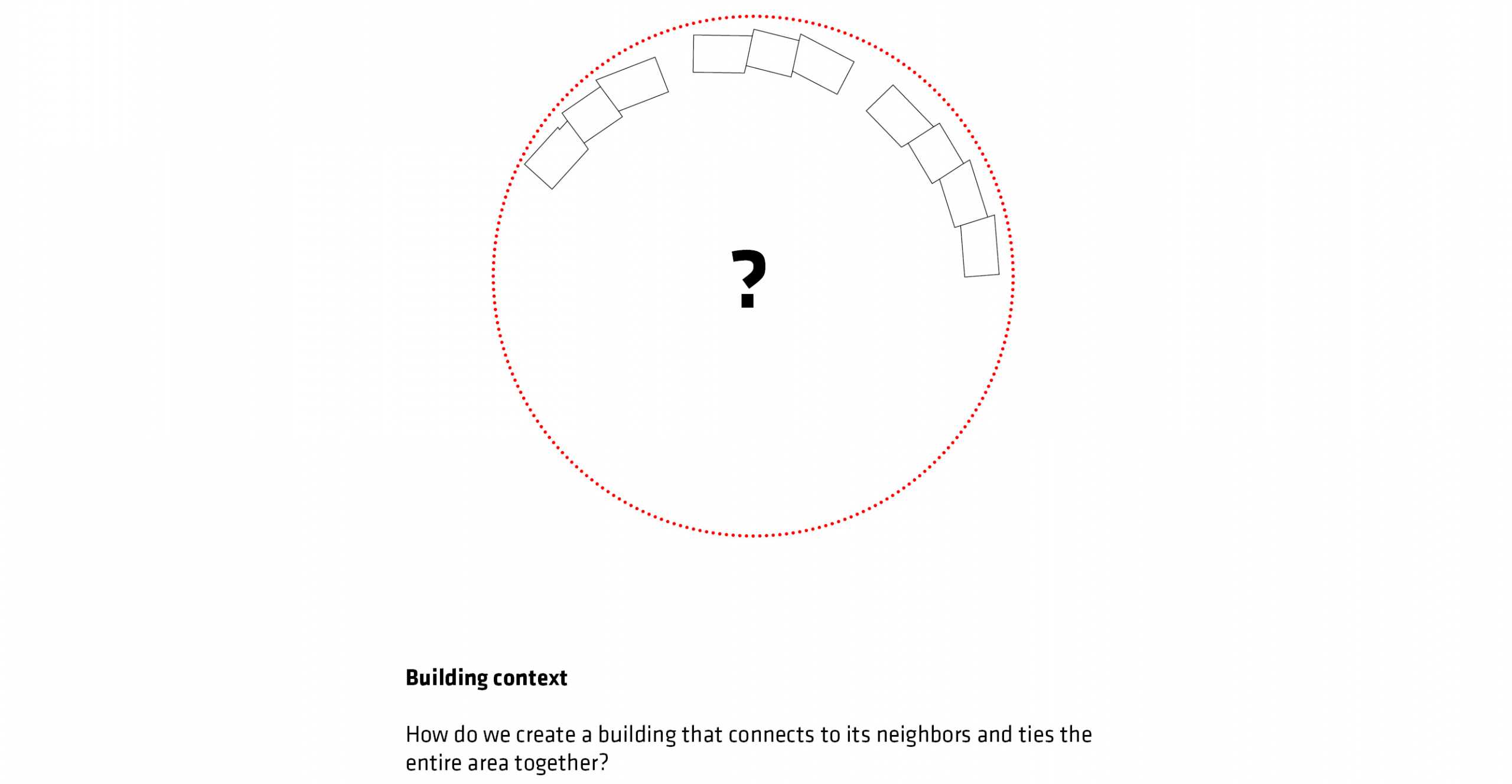

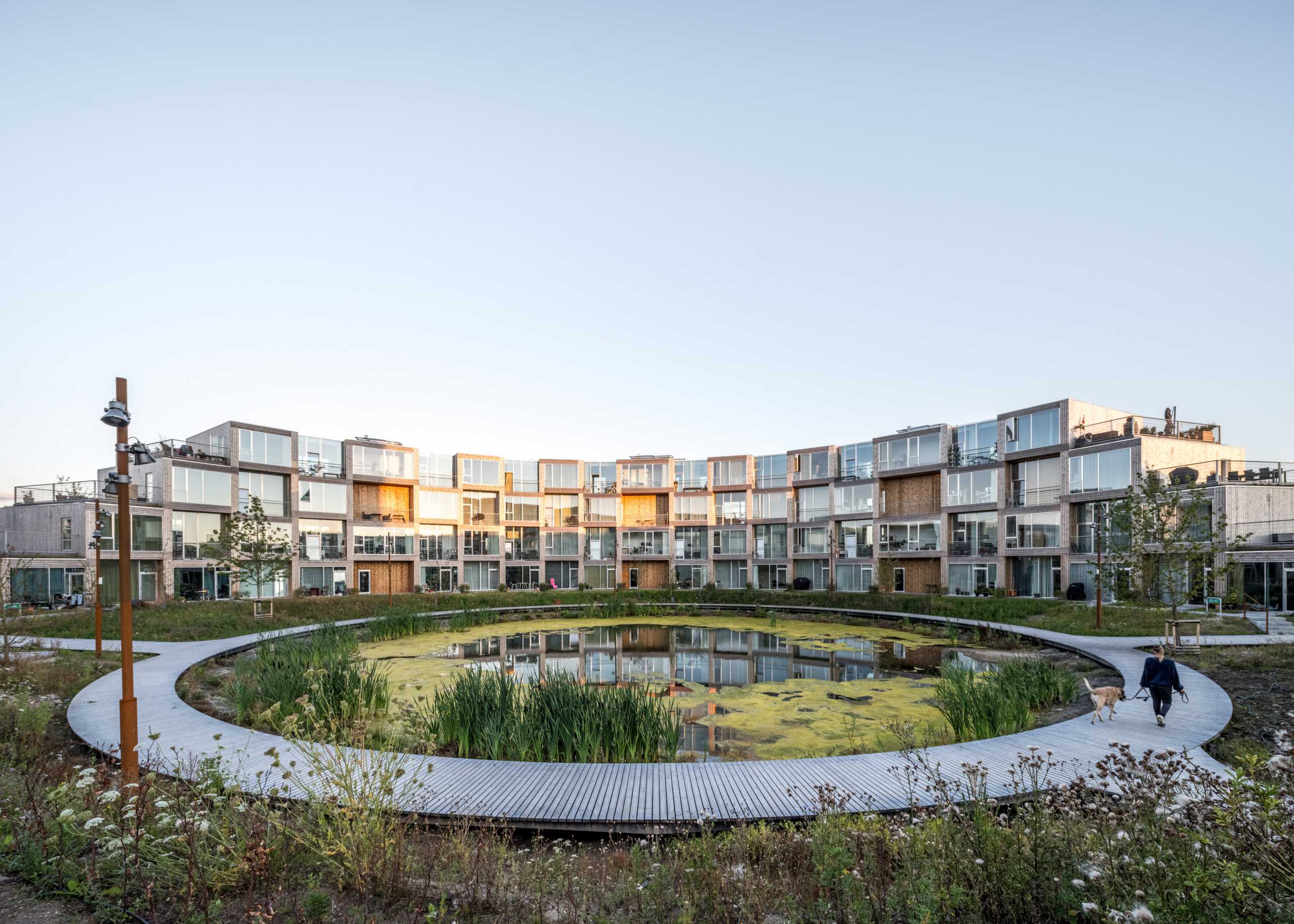

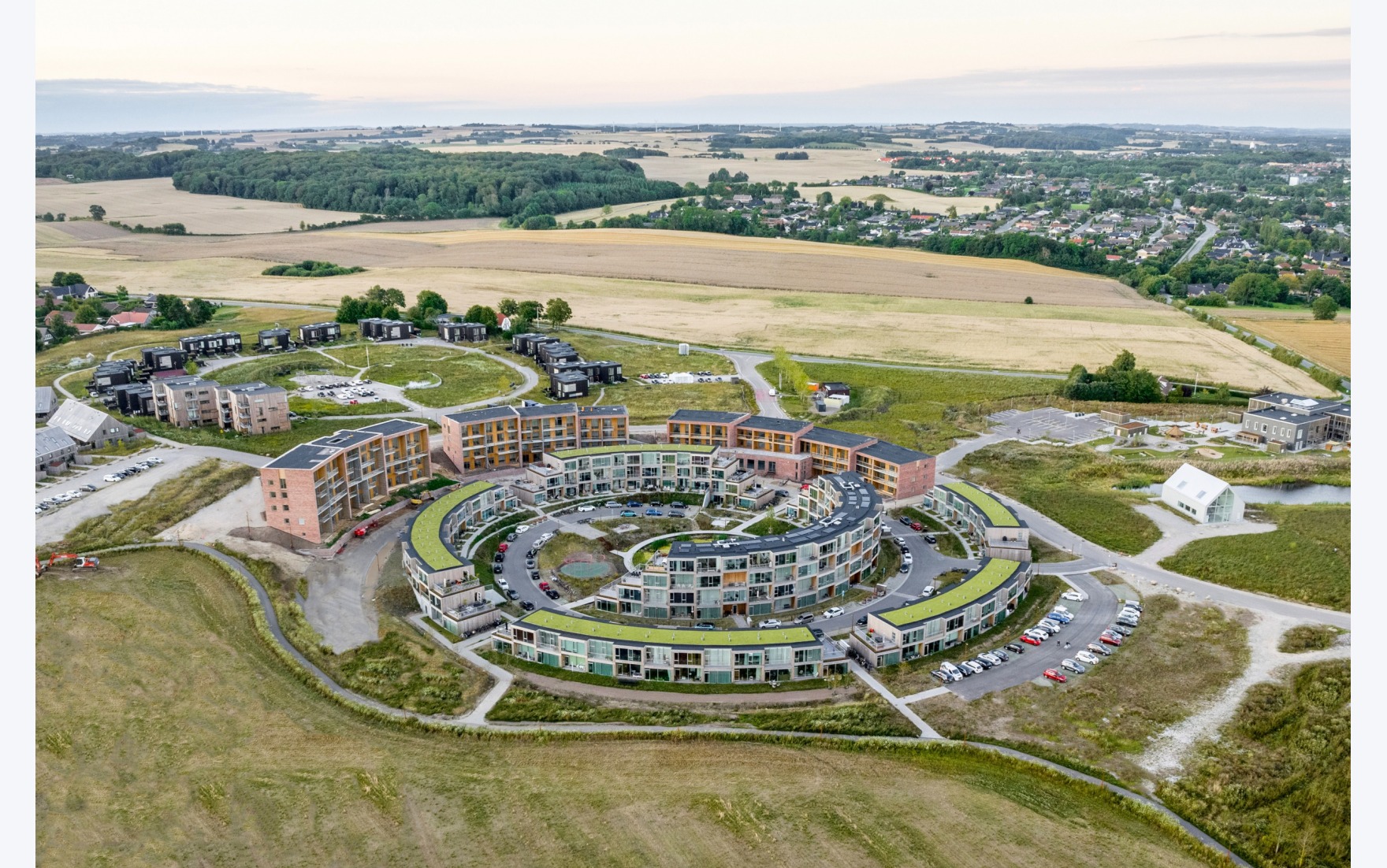

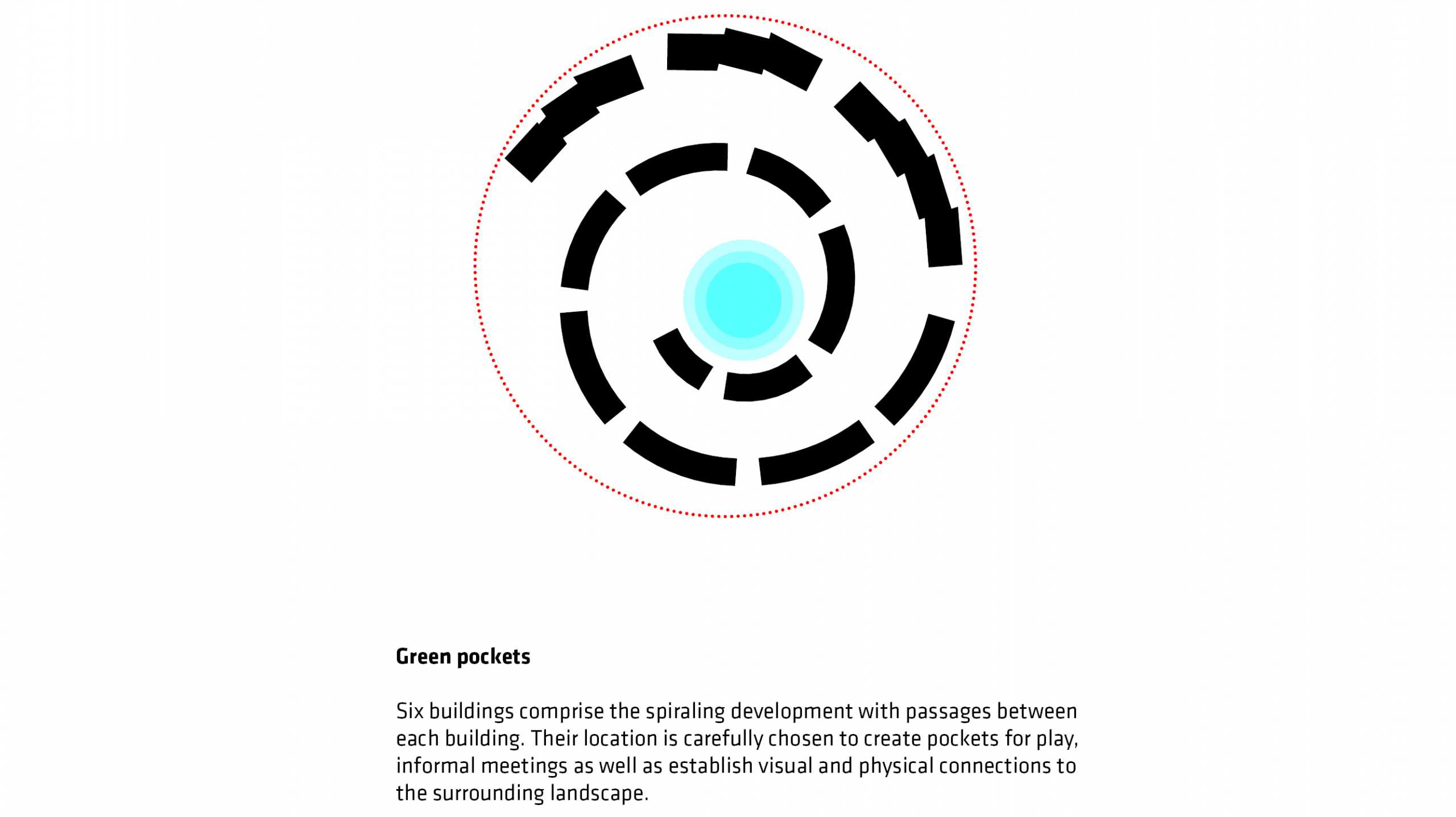

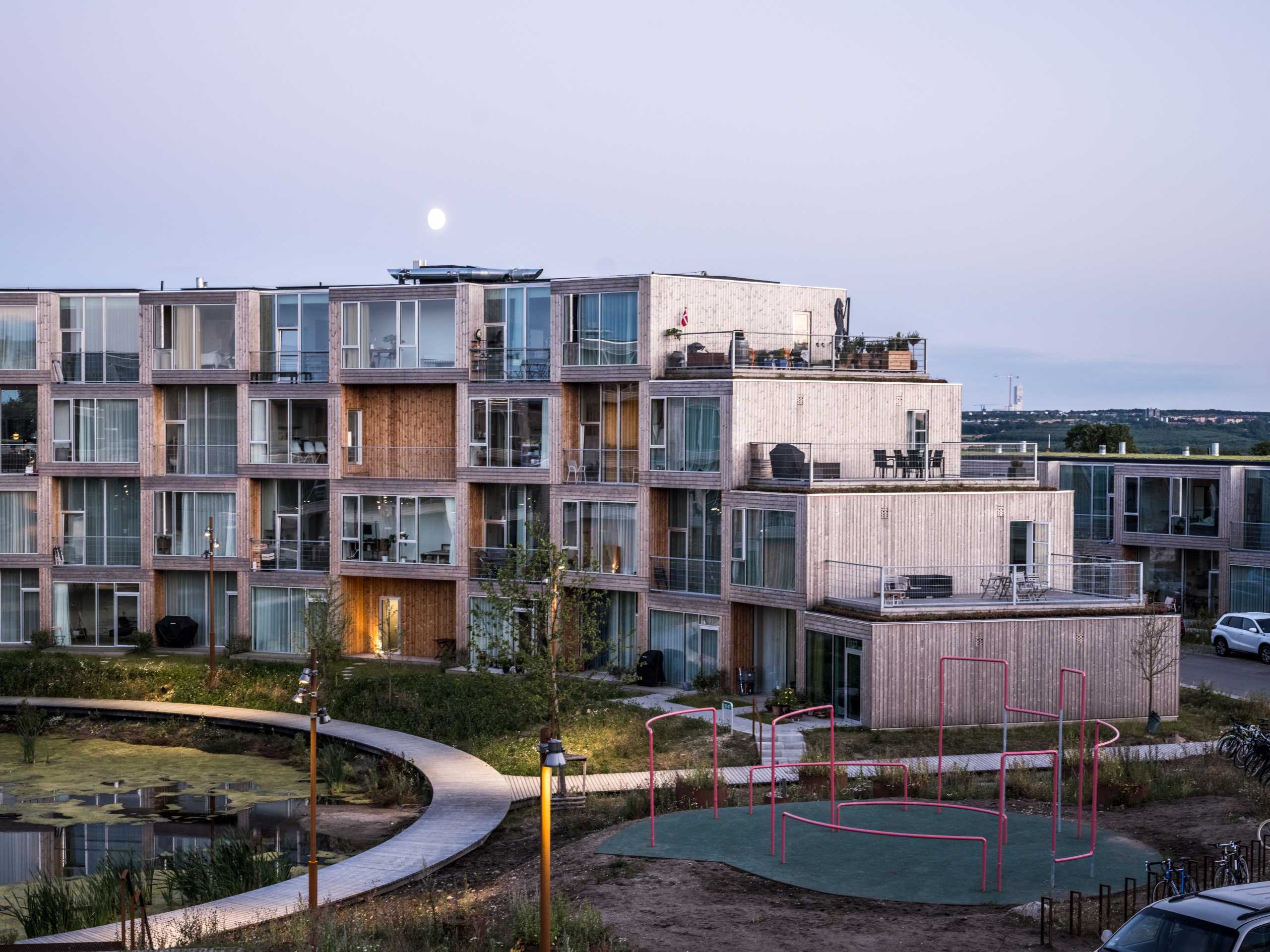

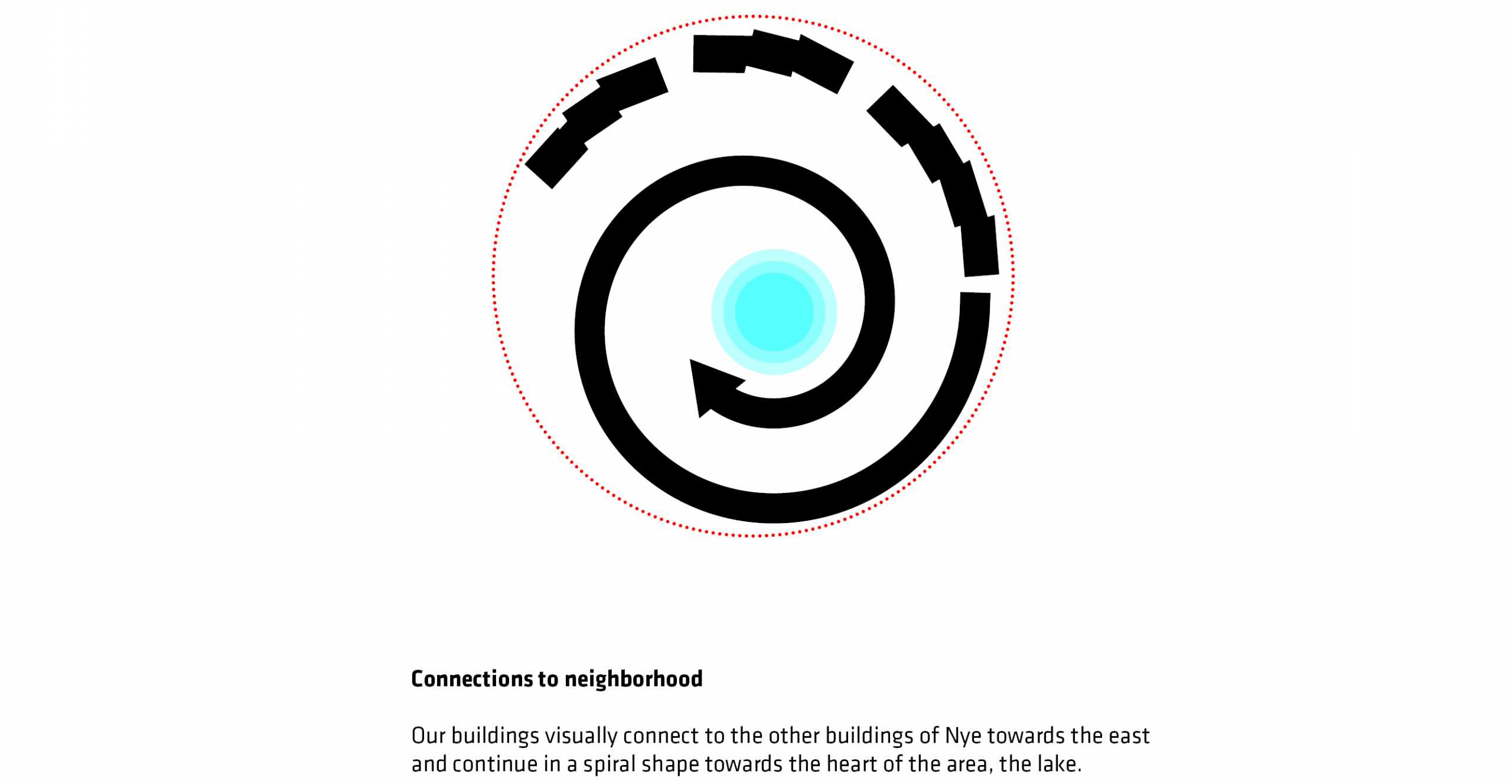

The ‘Sneglehusene’ are BIG’s contribution to the ambitious master plan of Nye, a neighborhood developed north of Denmark’s second largest city, Aarhus. Conceived as a porous wall, a total of six buildings gently curve around a pond and a green boardwalk at the heart of the development.

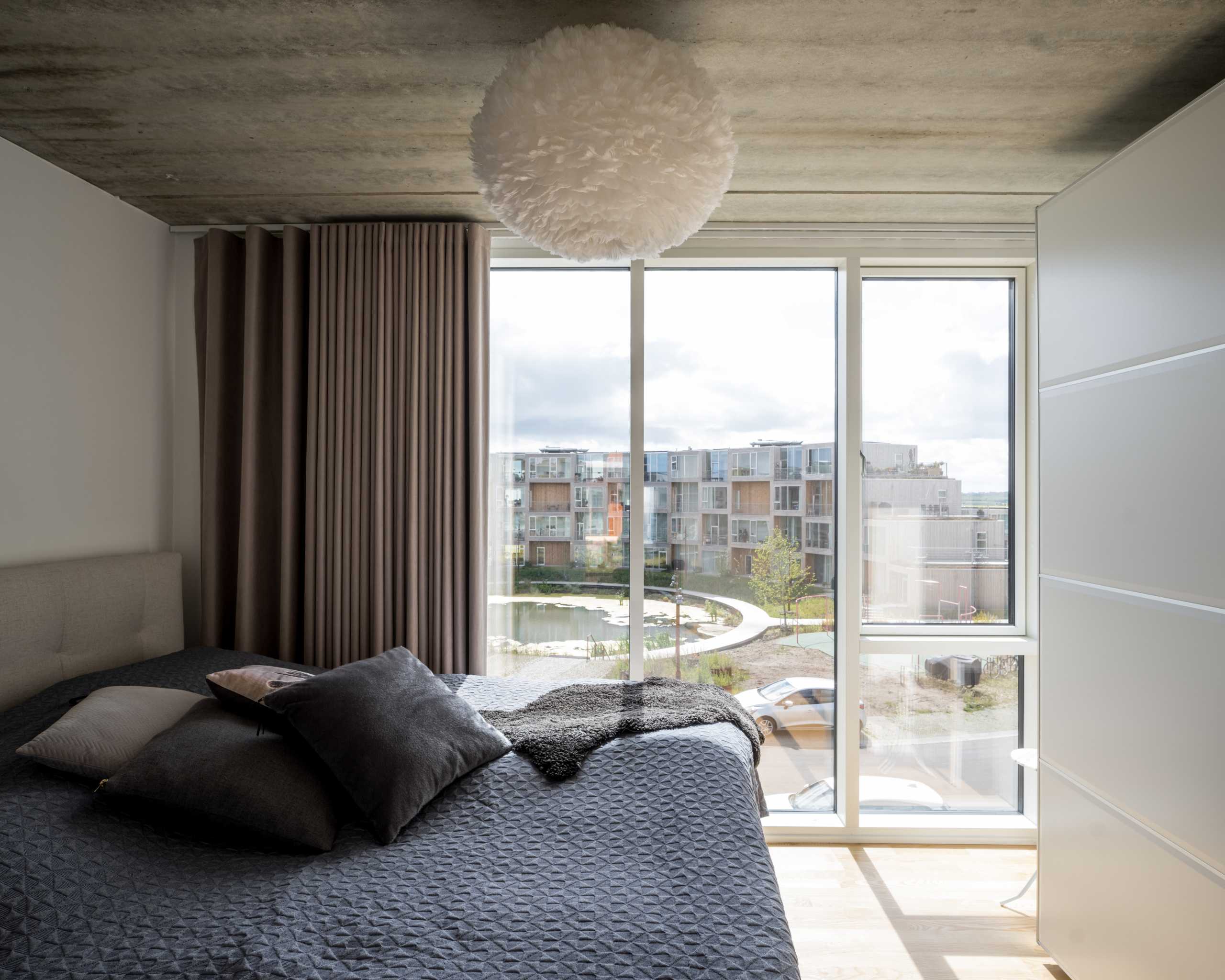

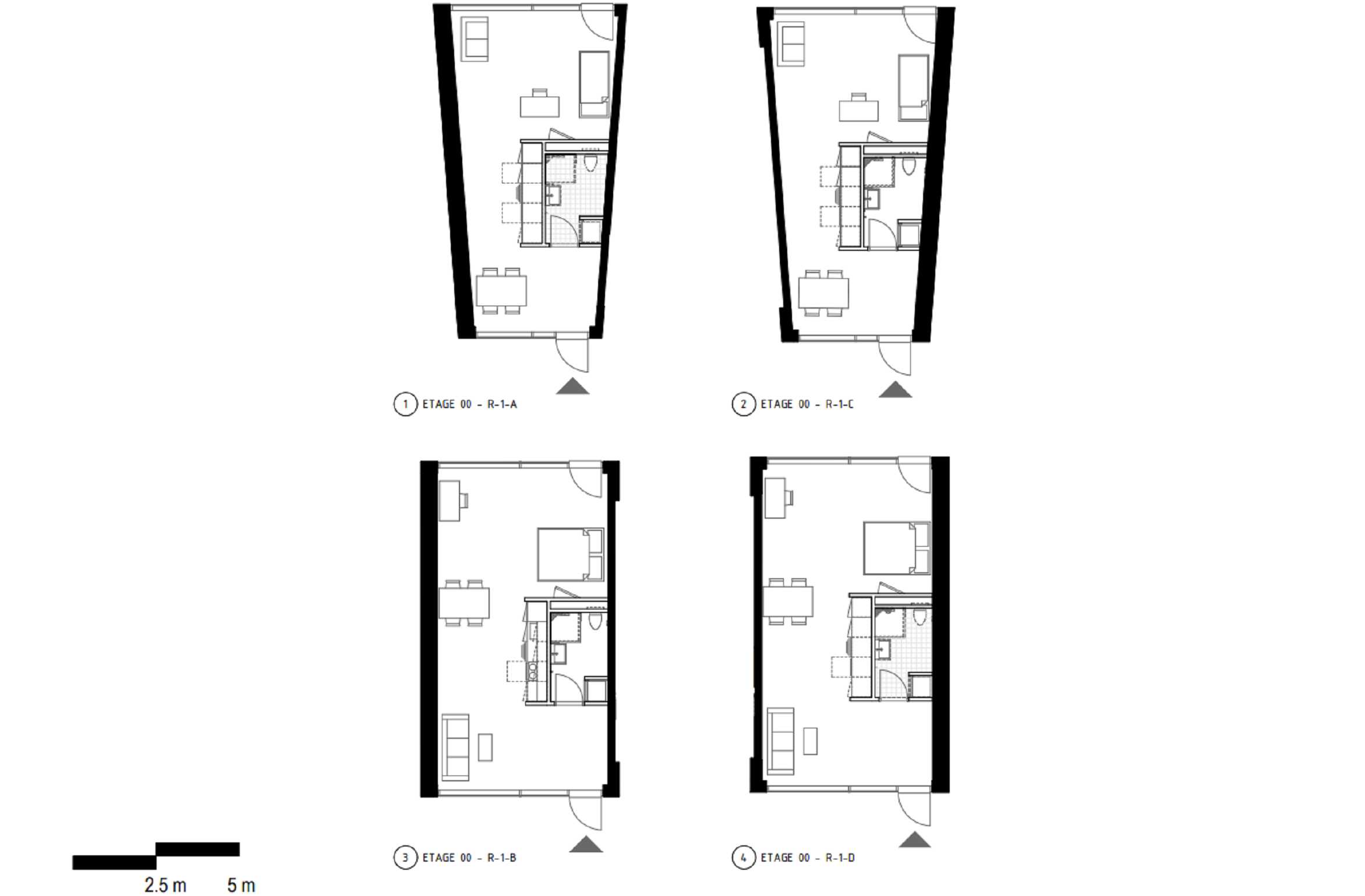

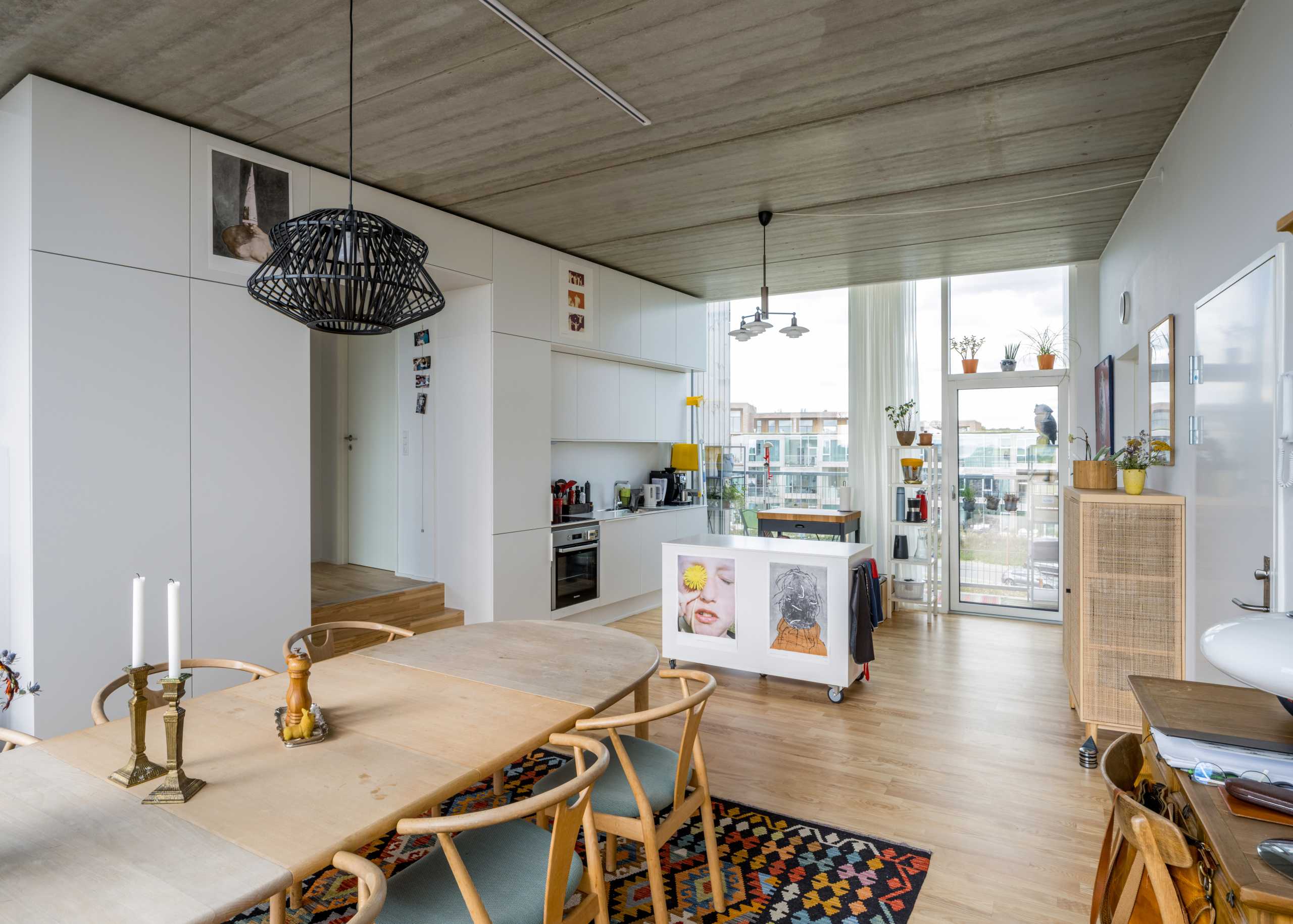

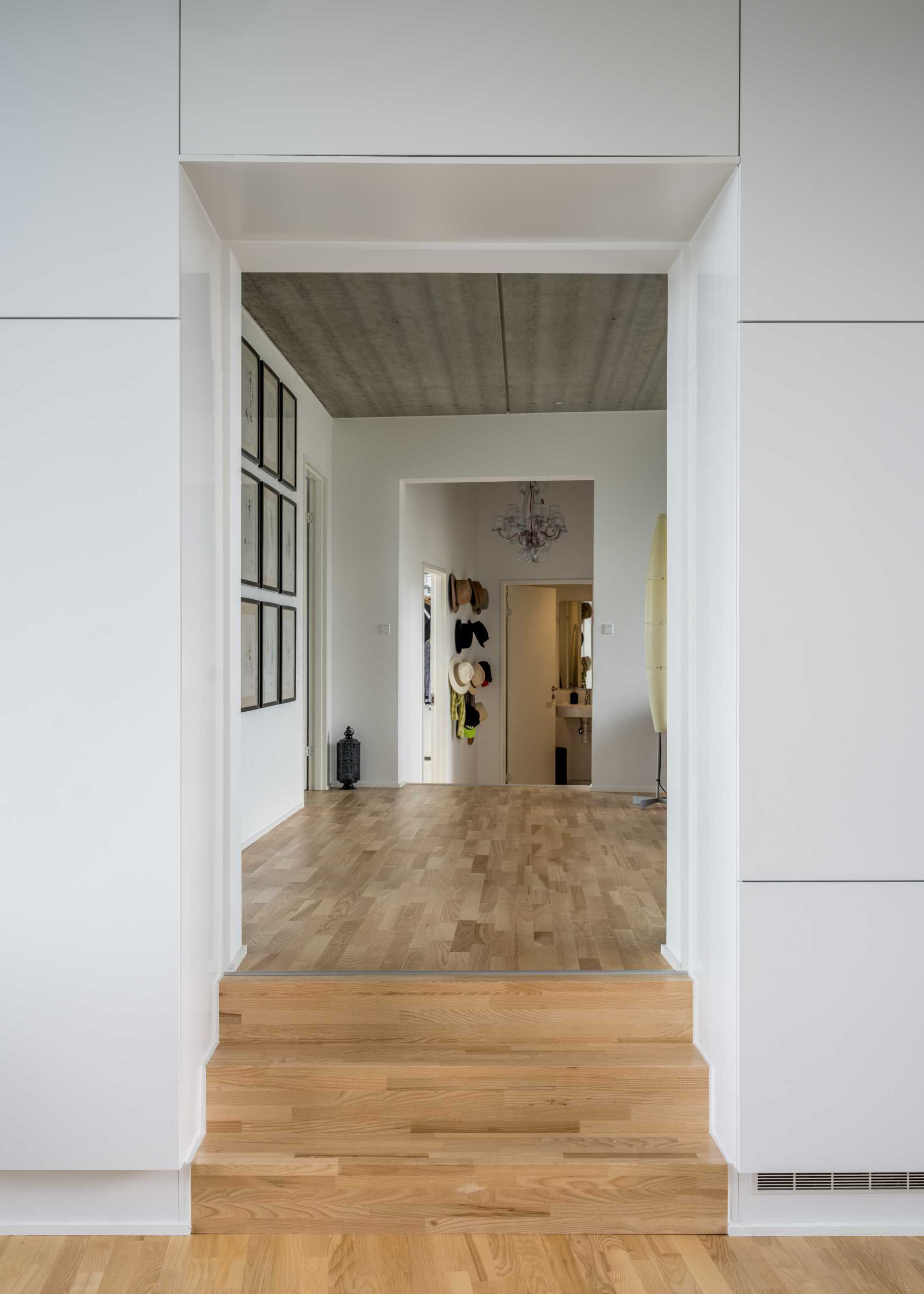

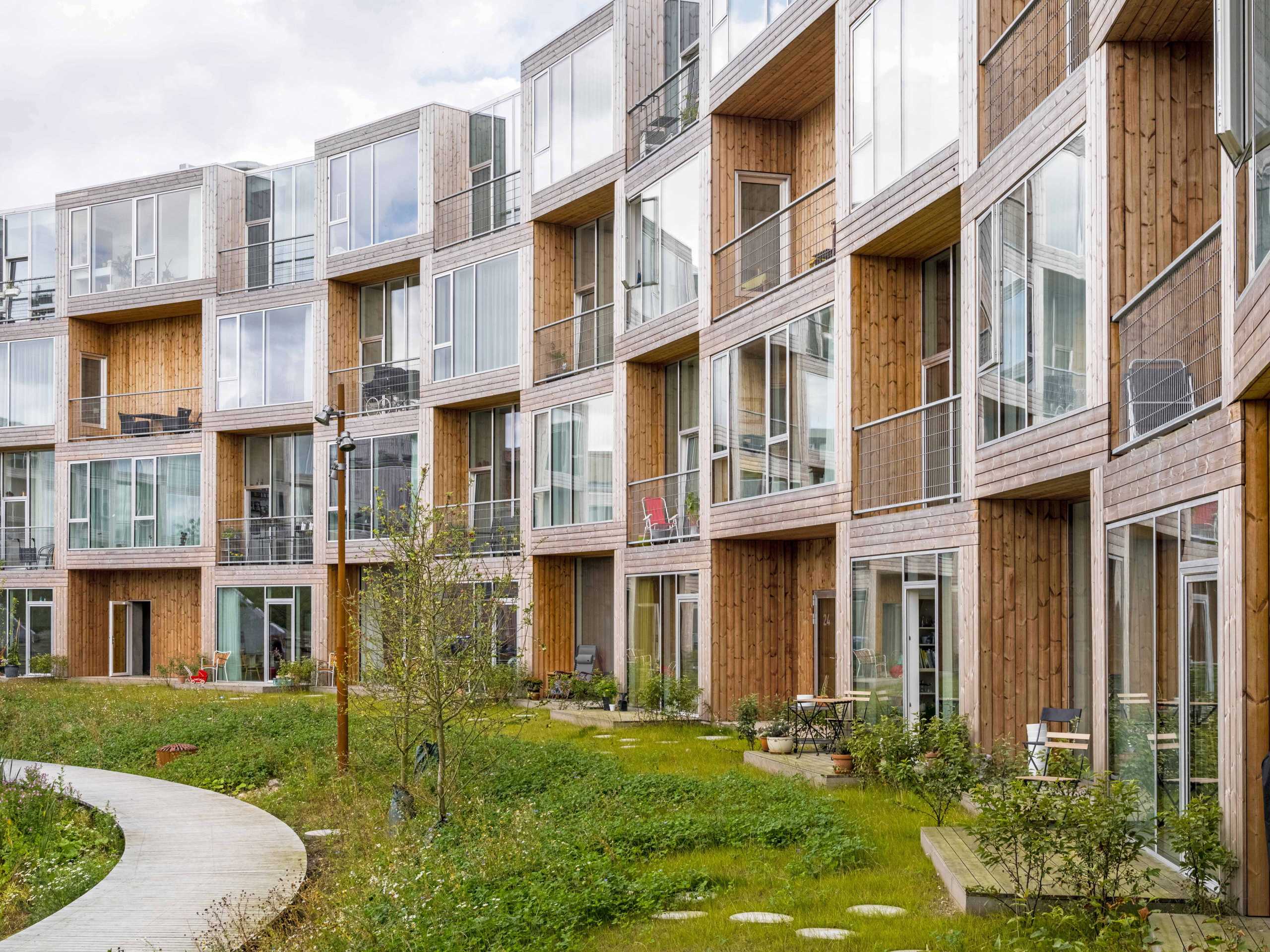

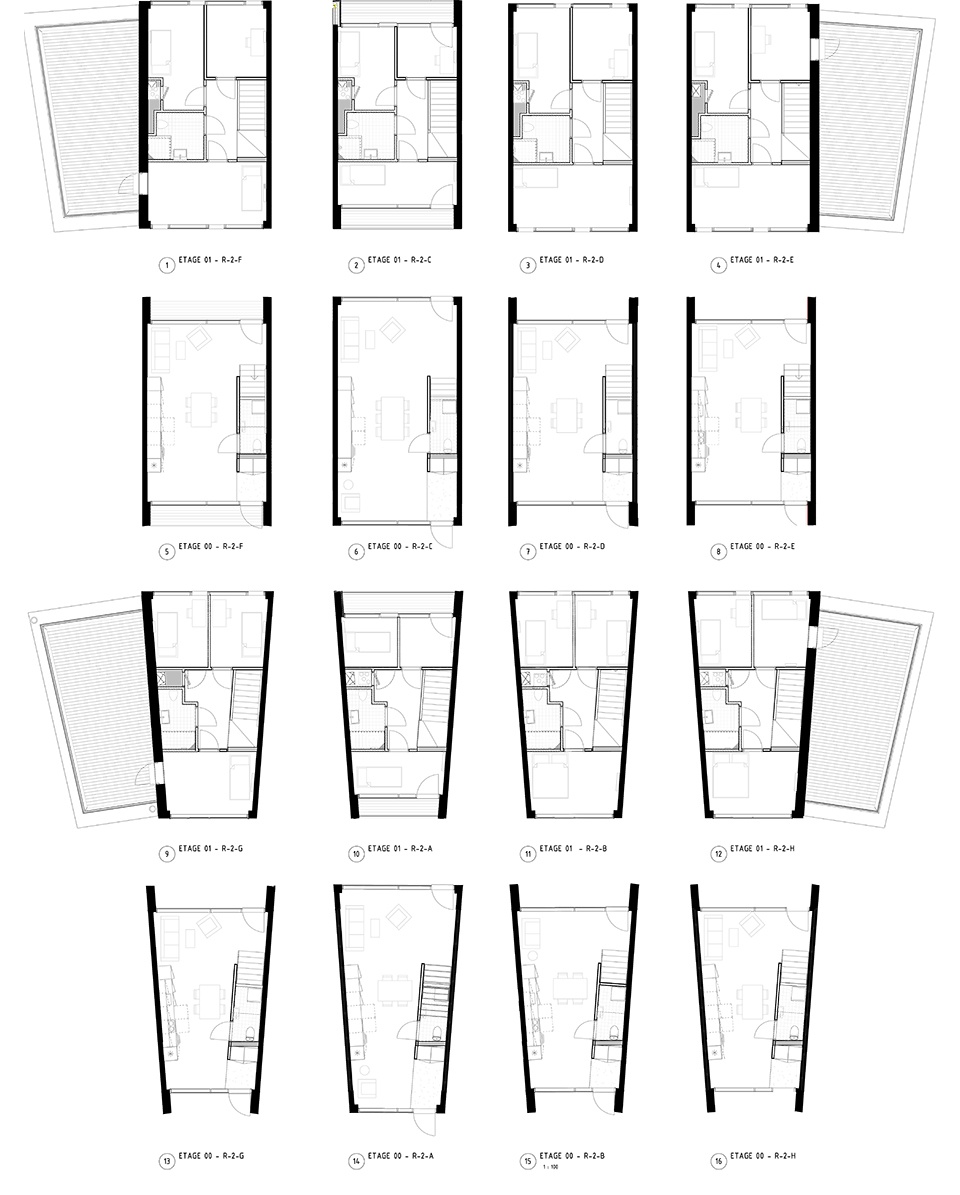

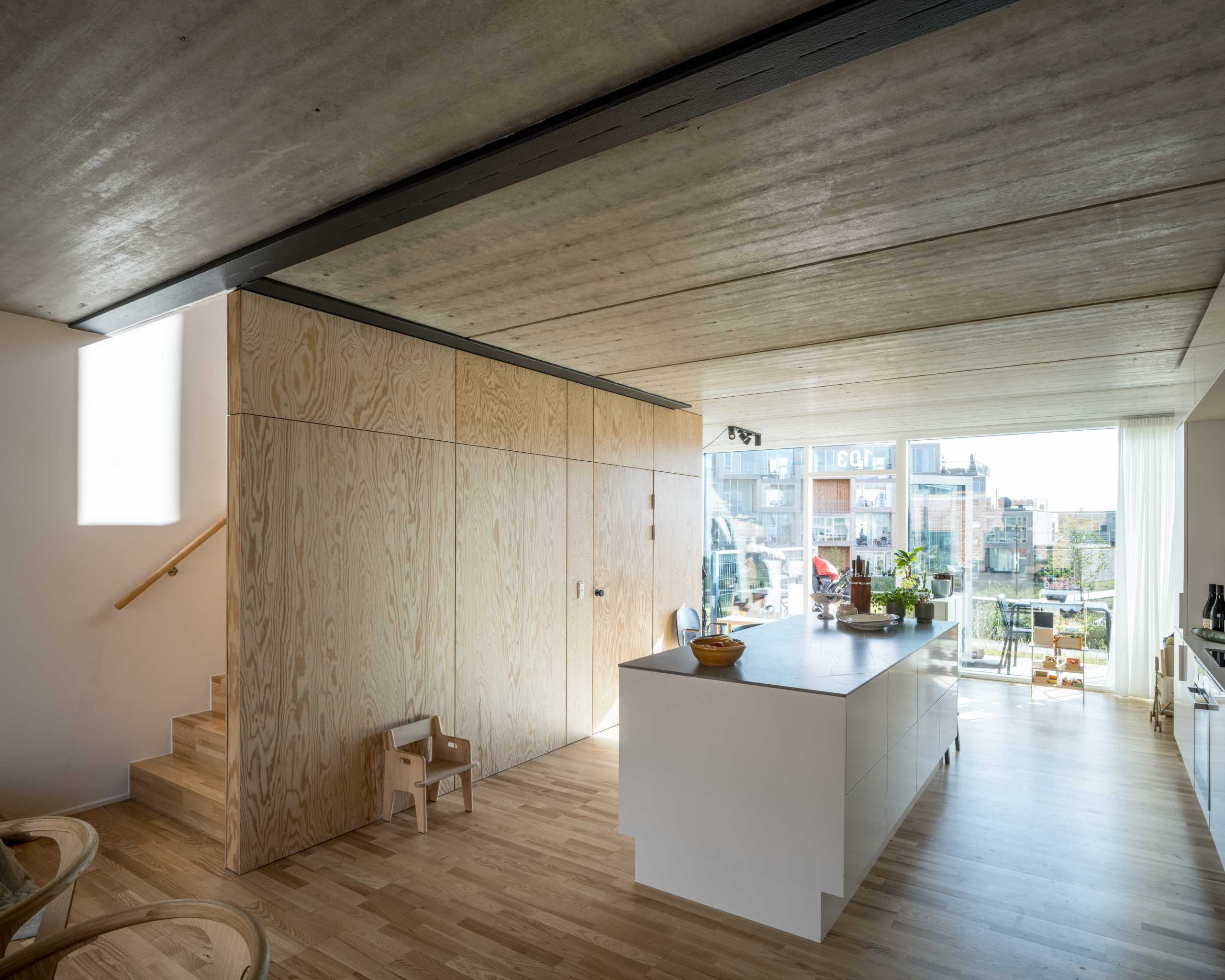

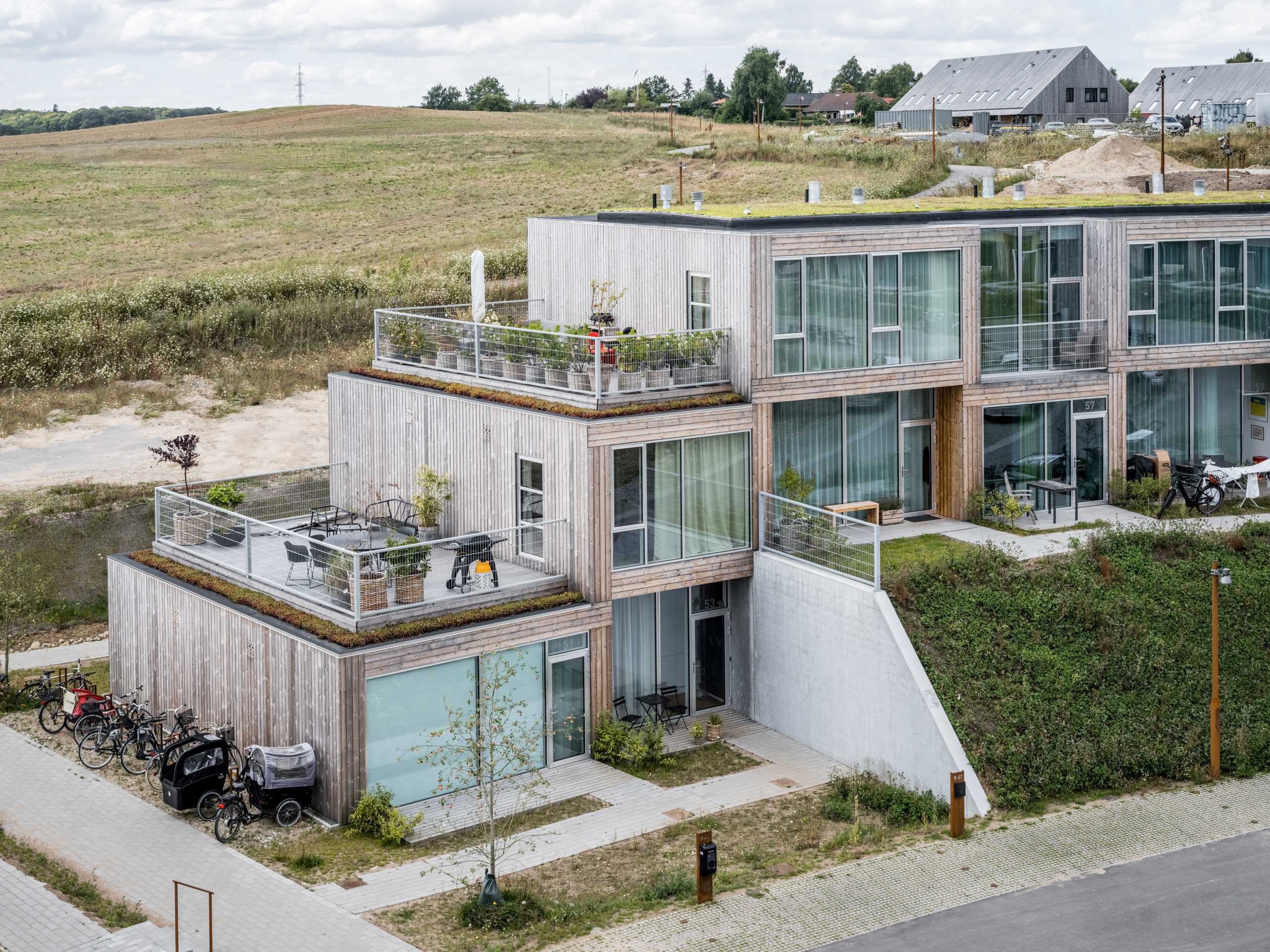

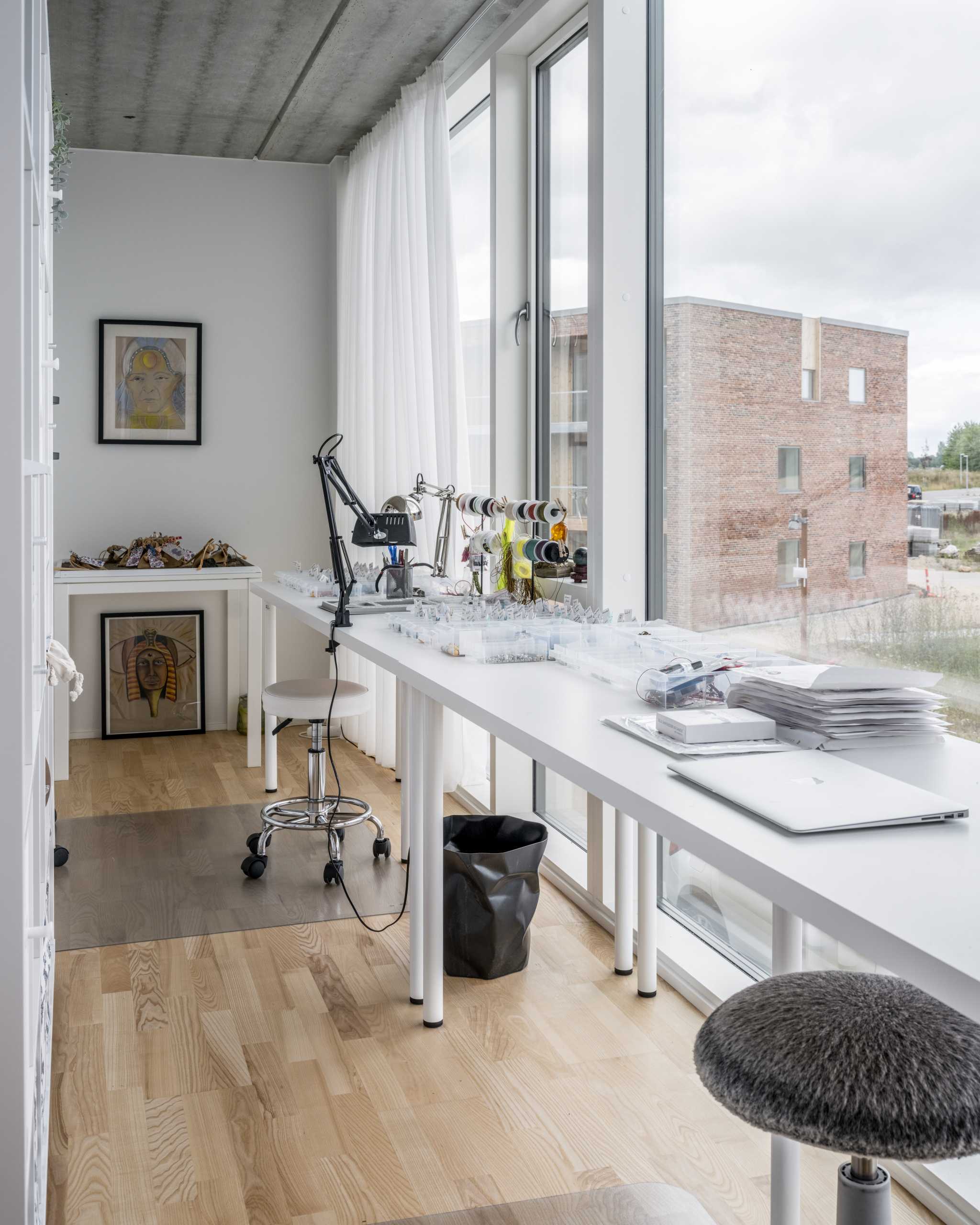

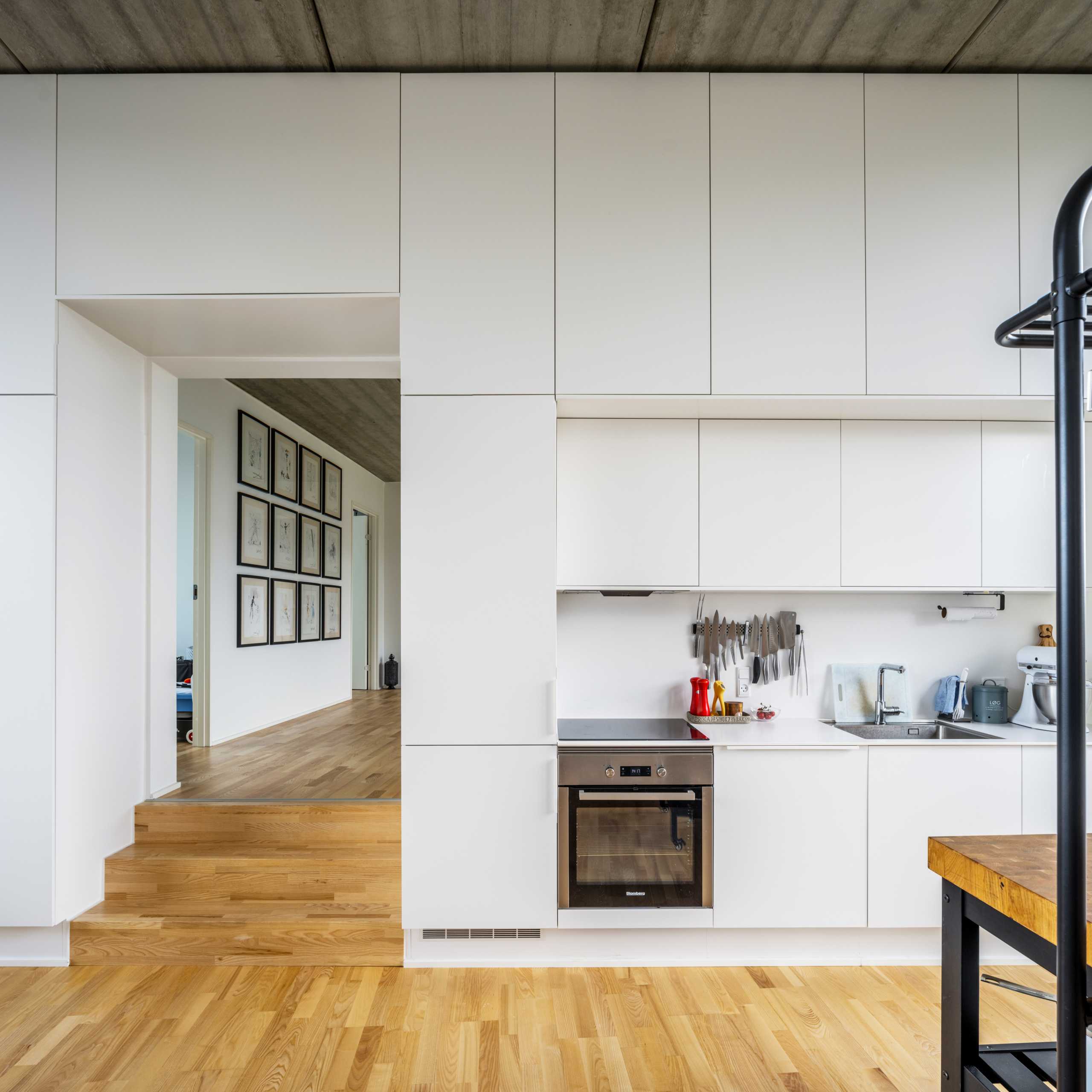

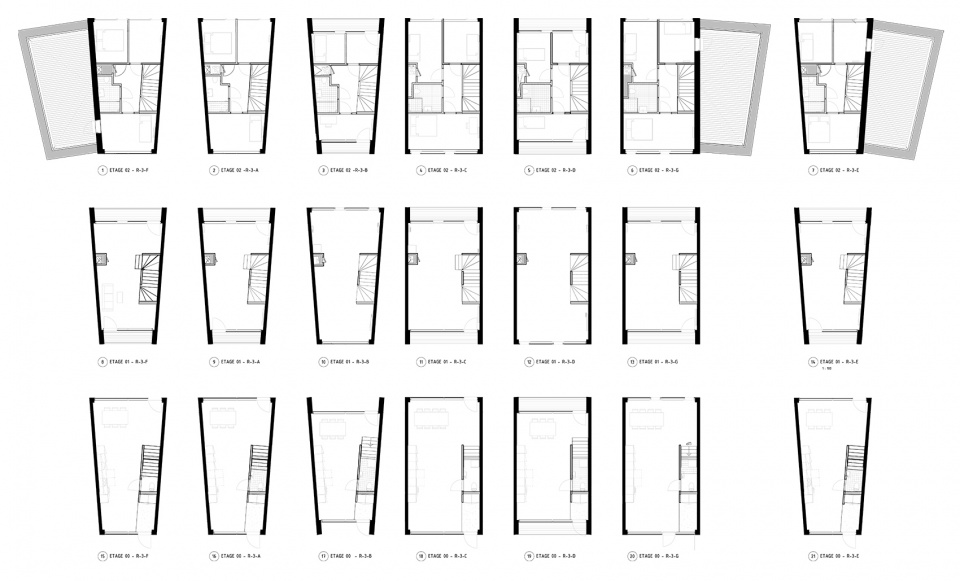

The ‘Sneglehusene’ consist of two kinds of stacked modules, which are repeated to create the characteristic checkered pattern. The modules have 2,5- and 3,5-meter ceilings, respectively, and their stacking create generous indoor spaces, floor-to-ceiling windows as well as an outdoor terrace in each home.

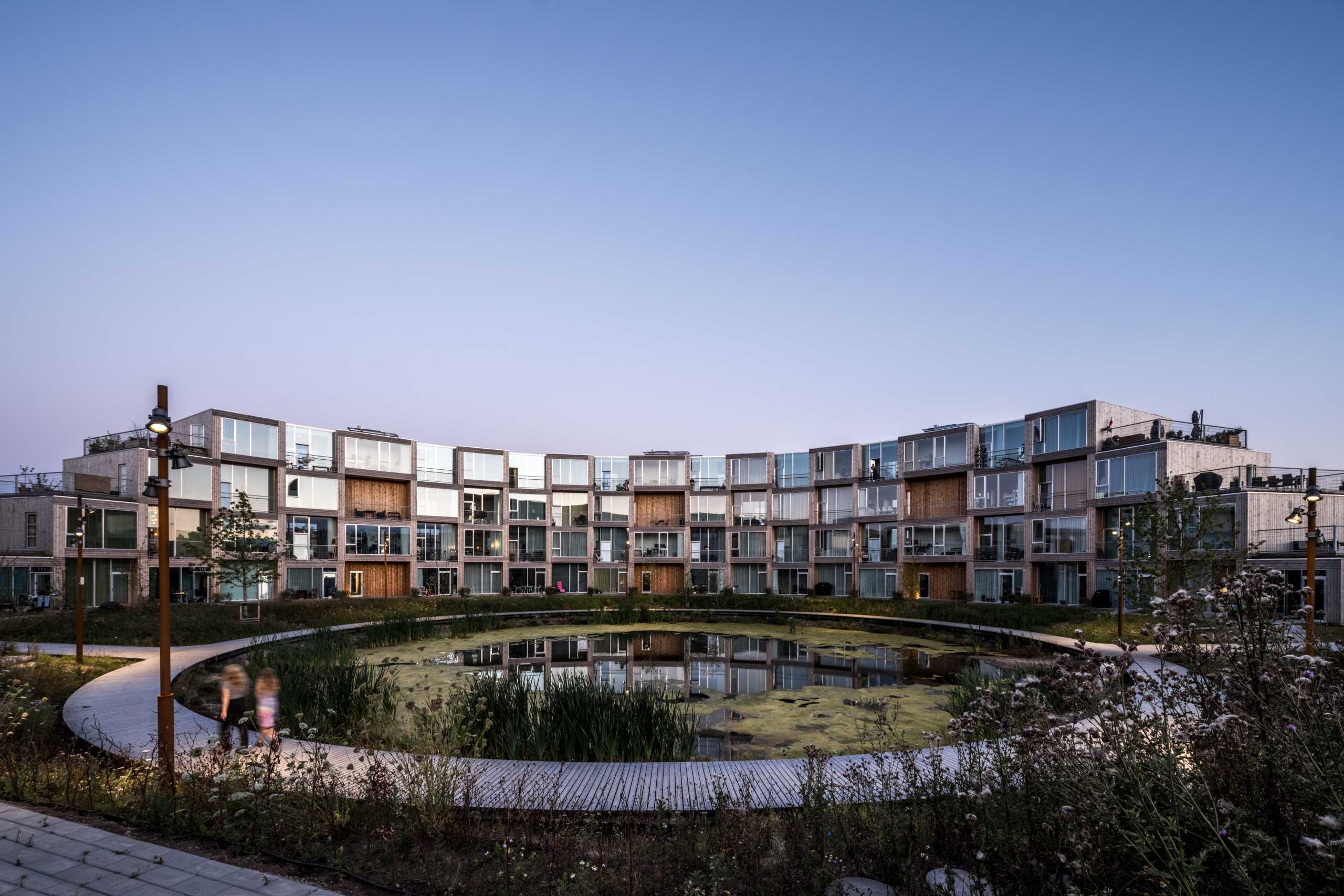

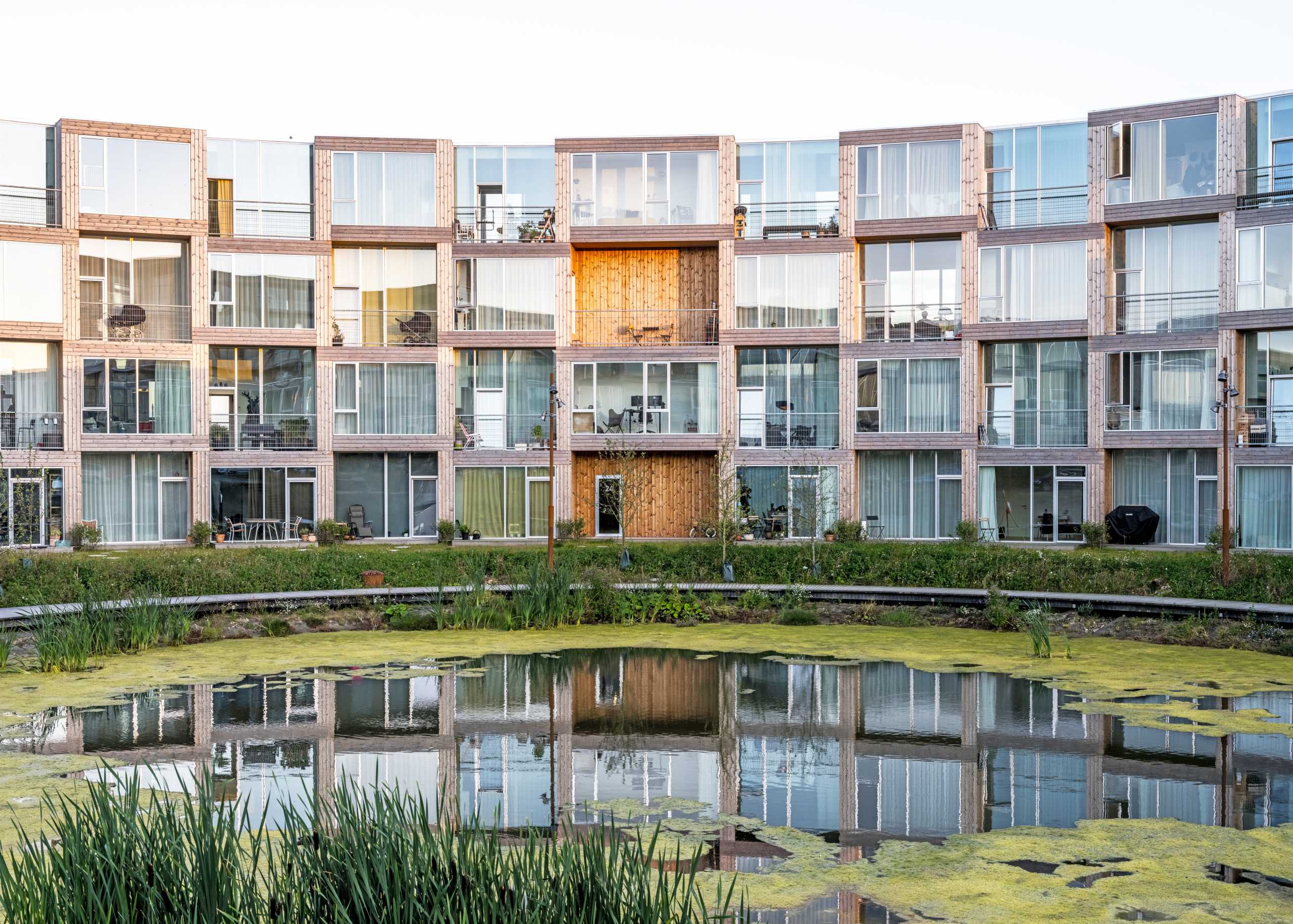

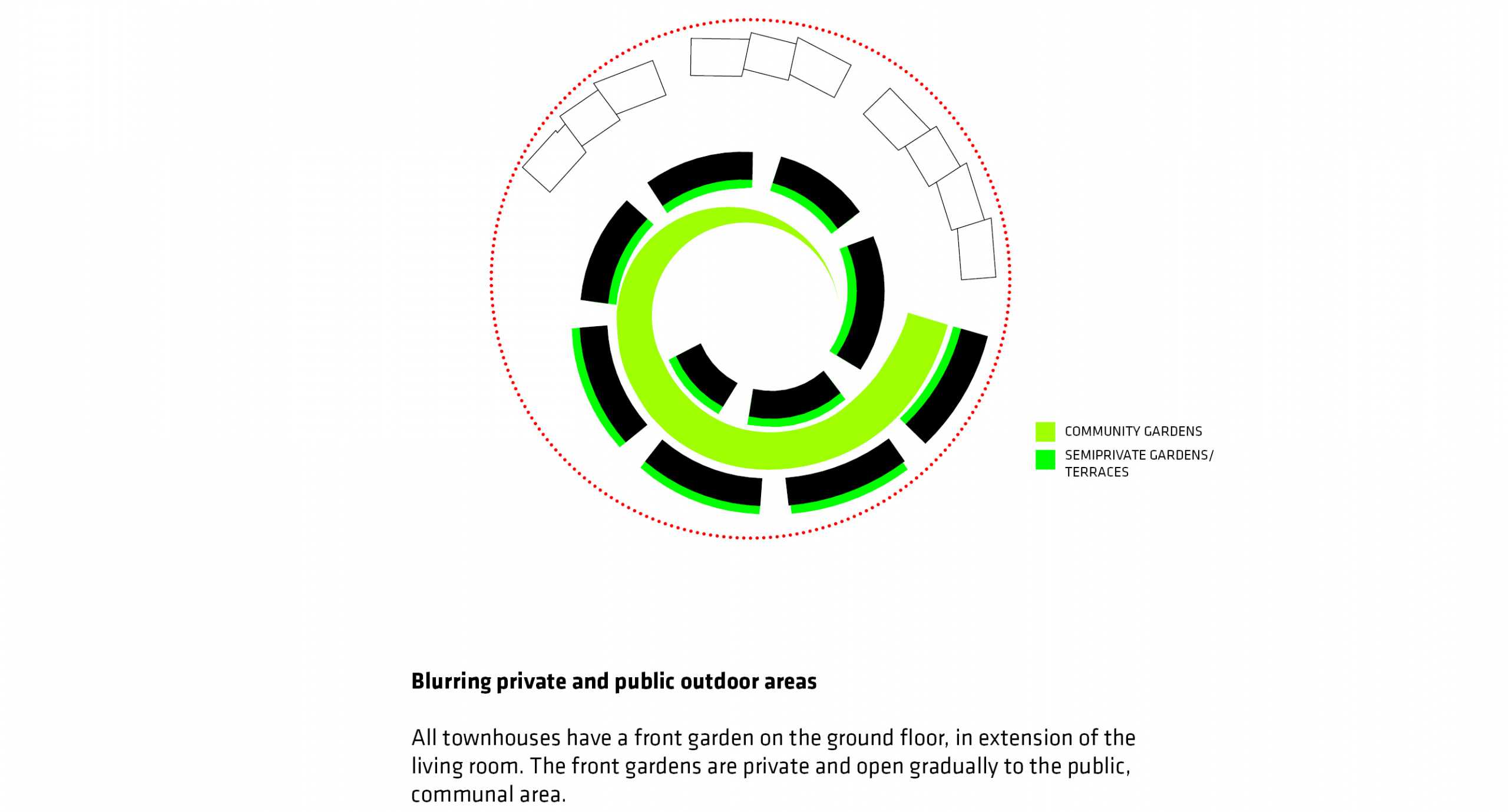

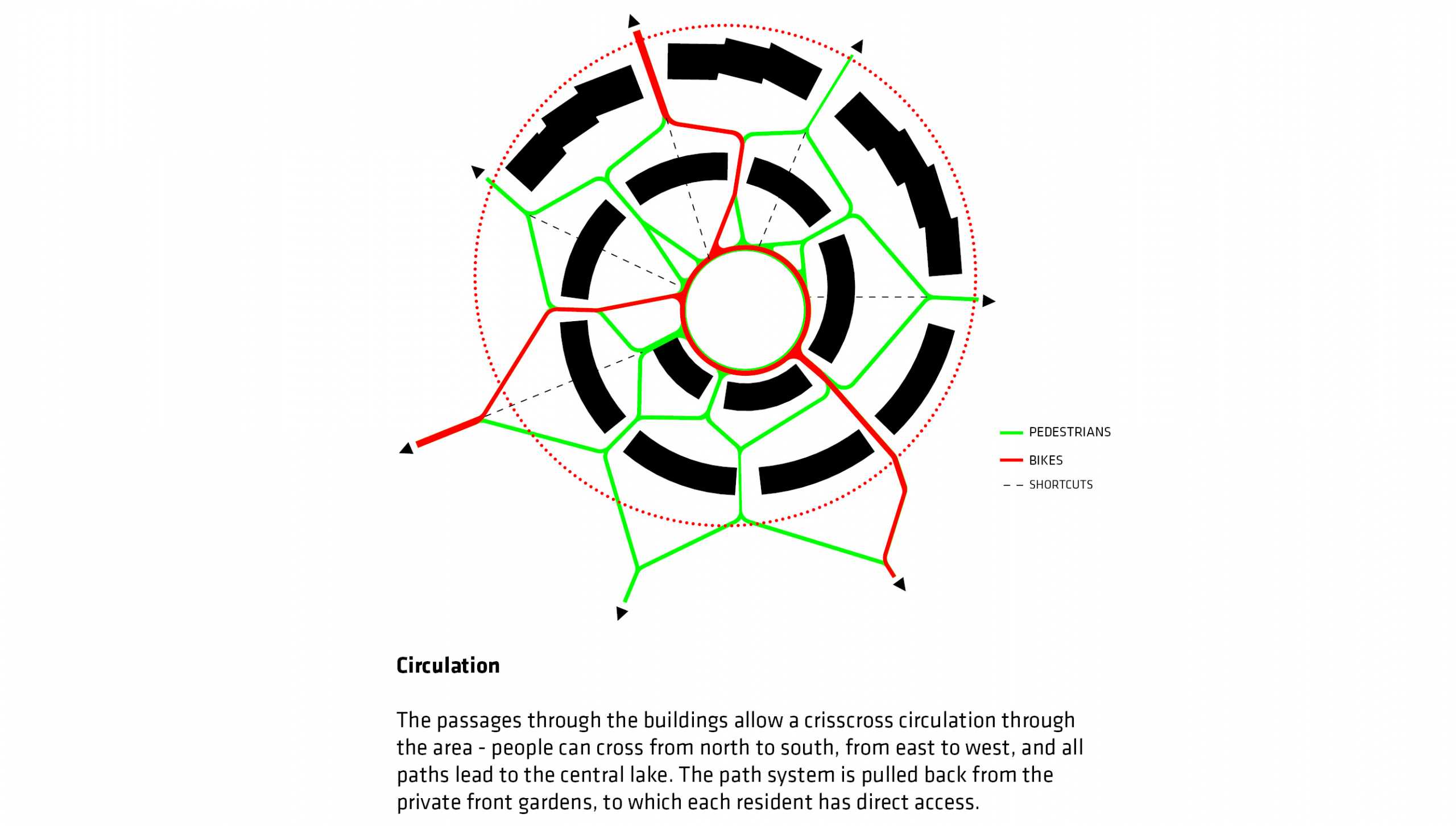

BIG Landscape has designed the landscape on ‘Sneglehusene’ site. Green paths and meeting points between the buildings offer comfortable pockets for small talk and play among neighbors. The center of the ‘Sneglehusene’ is marked by an artificial pond, defining a retreat for the community.

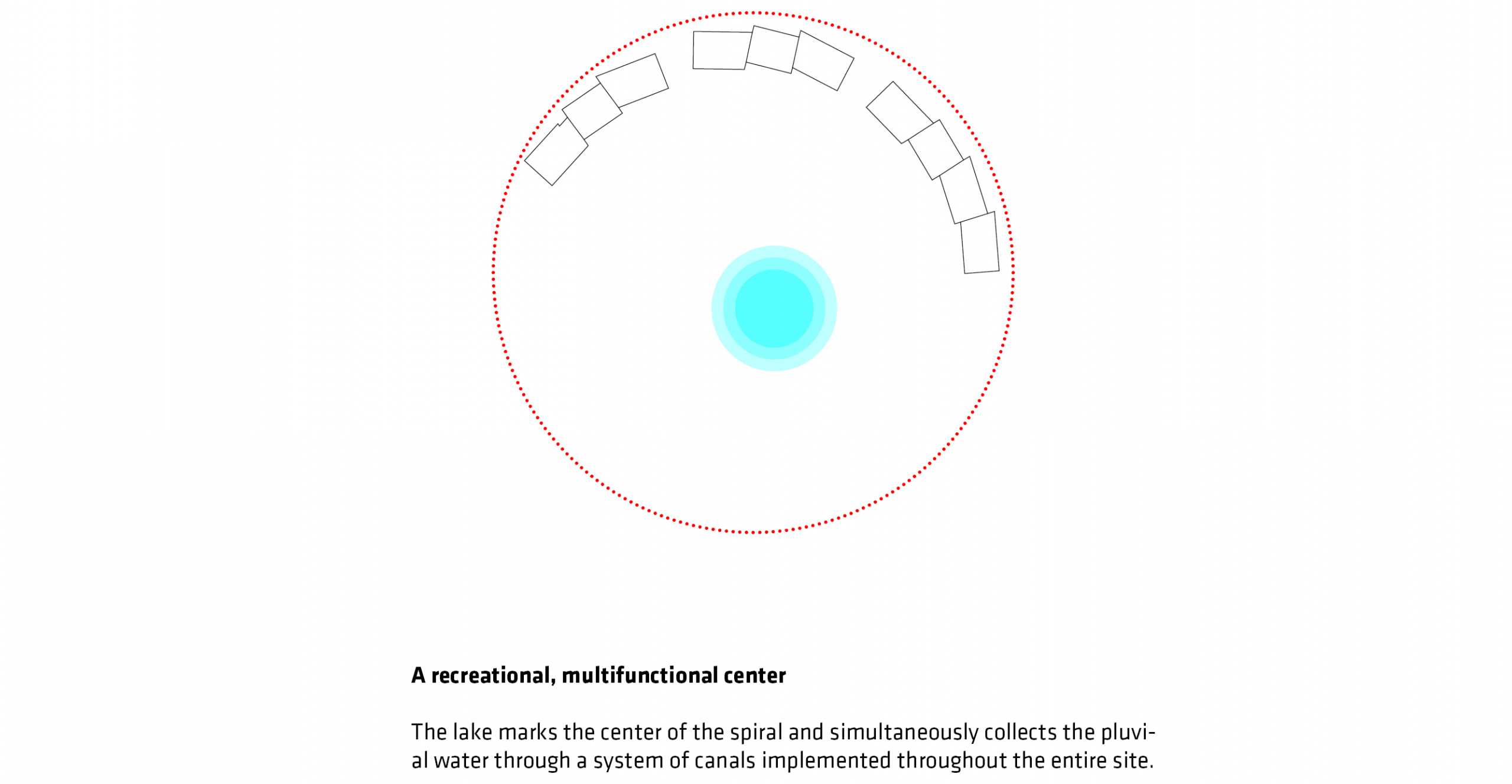

The pond manages rainwater runoff, which flows to it from canals integrated in the site. Furthermore, the pond is connected to a system for secunda water, developed and supervised by the local water plant, Aarhus Vand. The system reuses water, collected from the entire Nye neighborhood, cleans it and leads it back to all homes to be used for toilet flushes, rinsing clothes, etc.

The ‘Sneglehusene’ are BIG and Cj Group’s second collaboration. Following the success of the affordable ‘Dortheavej Residences’ in Copenhagen, Denmark, the team was granted a rare opportunity to further adapt and evolve the modular housing concept into an increasingly refined design for the neighborhood of Nye.

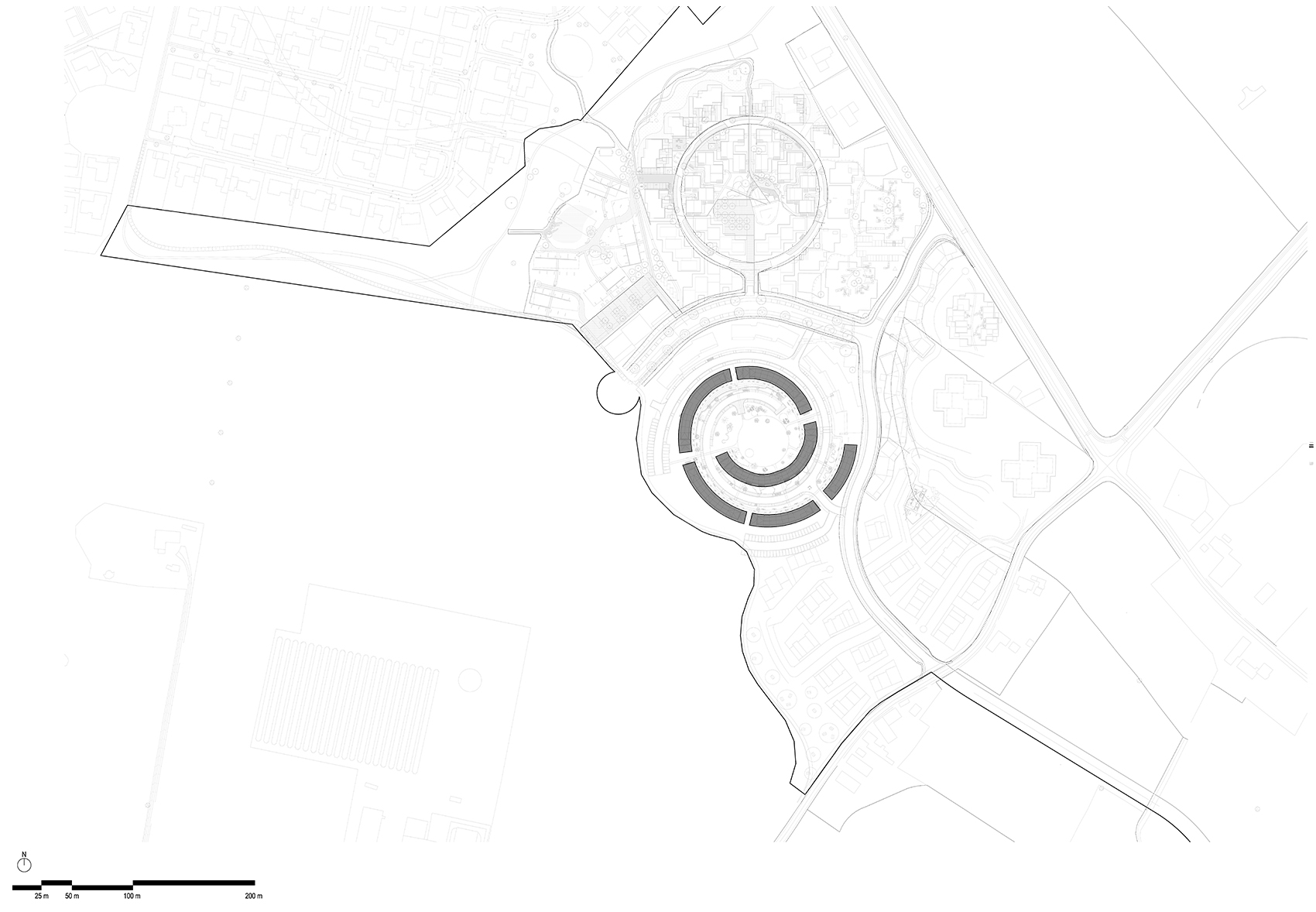

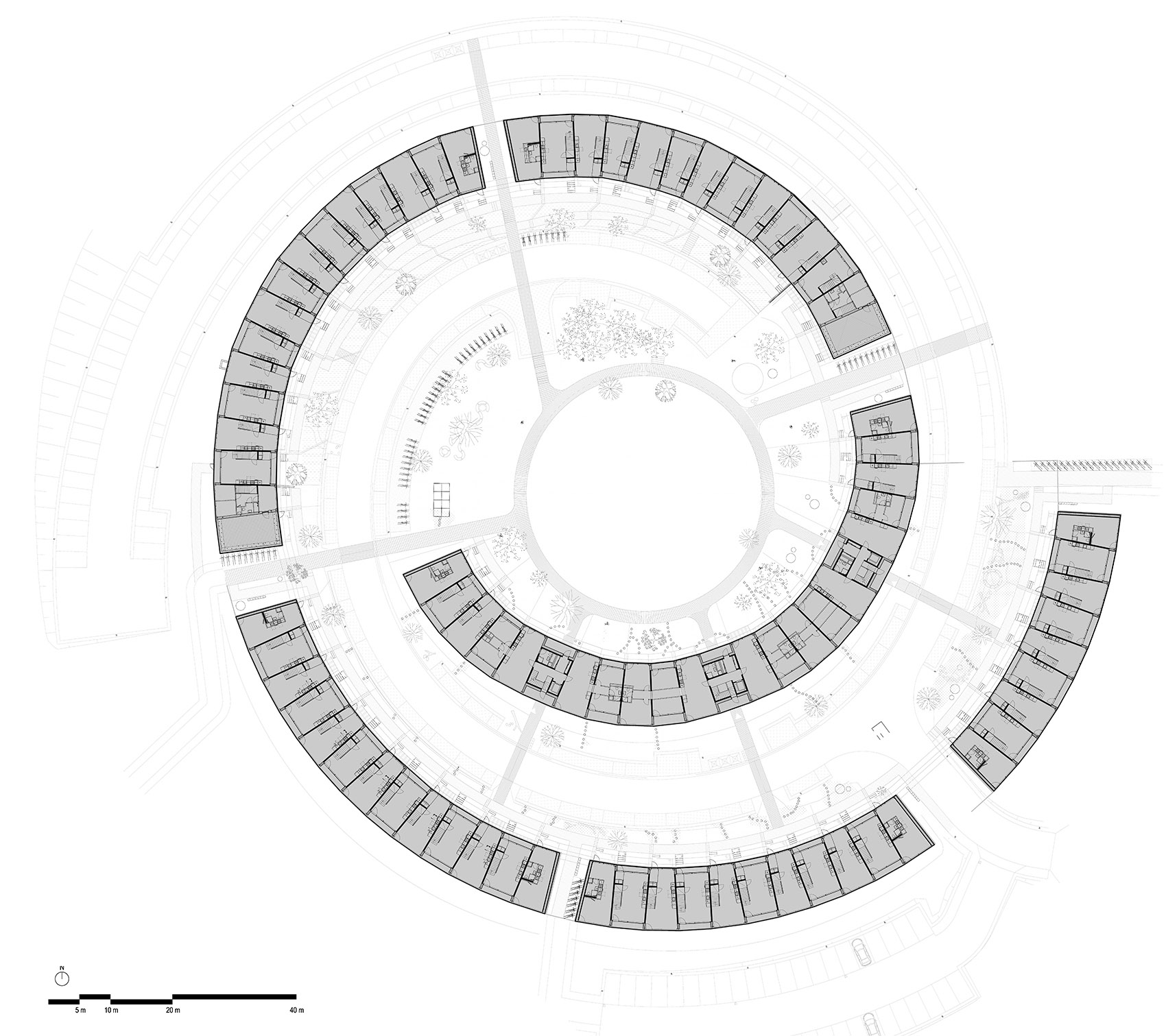

Site Plan ©BIG

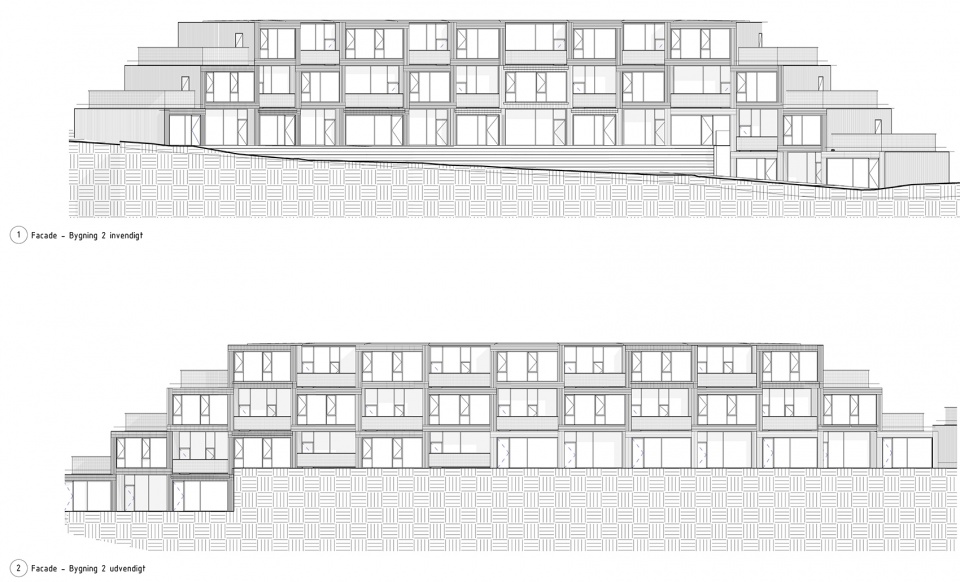

Elevation ©BIG
