Stöng - (Re)interpretation | SP(R)INT STUDIO

SP(R)INT STUDIO ,发布时间2025-12-31 10:32:00

奖项(0)
媒体报道(0)
项目工程信息

PROJECT NAME: Stöng - (Re)interpretation

LOCATION: Þjórsárdalur, Iceland

YEAR: 2017-2023 (design phase / archaeological excavation), end of 2024 (built)

CLIENT: The Cultural Heritage Agency of Iceland

PROGRAM: Shelter for ruins, observation deck, footbridge, sitting areas and landscaping

AREA: 4 ha + 385m² building surface

COST: N/A

ARCHITECTURE FIRM: SP(R)INT STUDIO

PRINCIPAL/LEAD ARCHITECT: Karl Kvaran

DESIGN TEAM: Karl Kvaran and Sahar Ghaderi

PROJECT MANAGEMENT: FSRE

STRUCTURAL CONSULTANTS: VSB Engineers

LANDSCAPE ARCHITECTURE: SP(R)INT STUDIO

CONSTRUCTOR: LANGELDUR ehf.

PHOTOGRAPHS: Studio CAPN

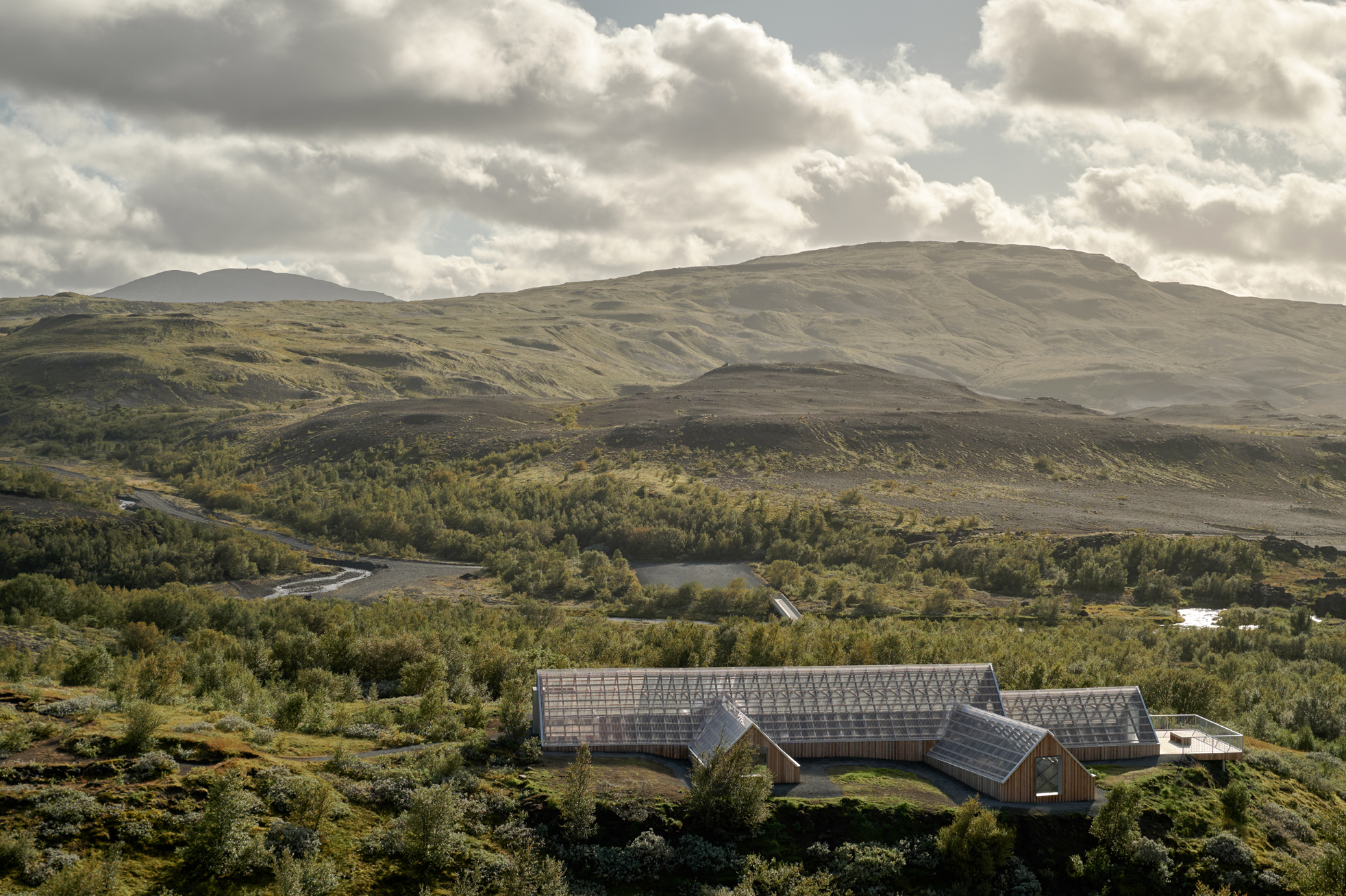

Within the volcanic landscape of Þjórsárdalur, the (re)interpretation of Stöng redefines engagement with one of Iceland’s key archaeological sites. Retaining the existing shelter, the project extends and transforms it through a sustainable and holistic vision, mediating between past and present.

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

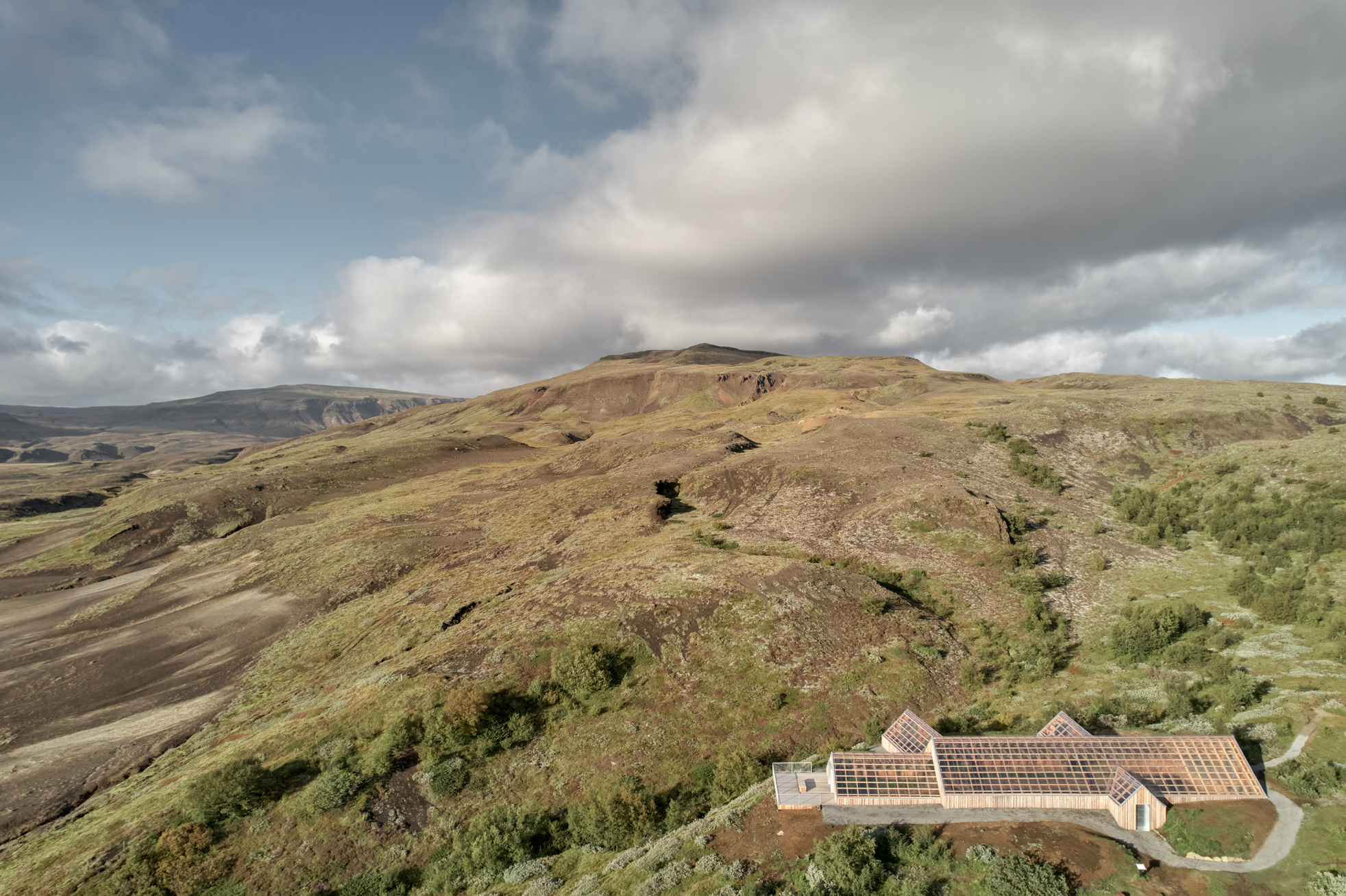

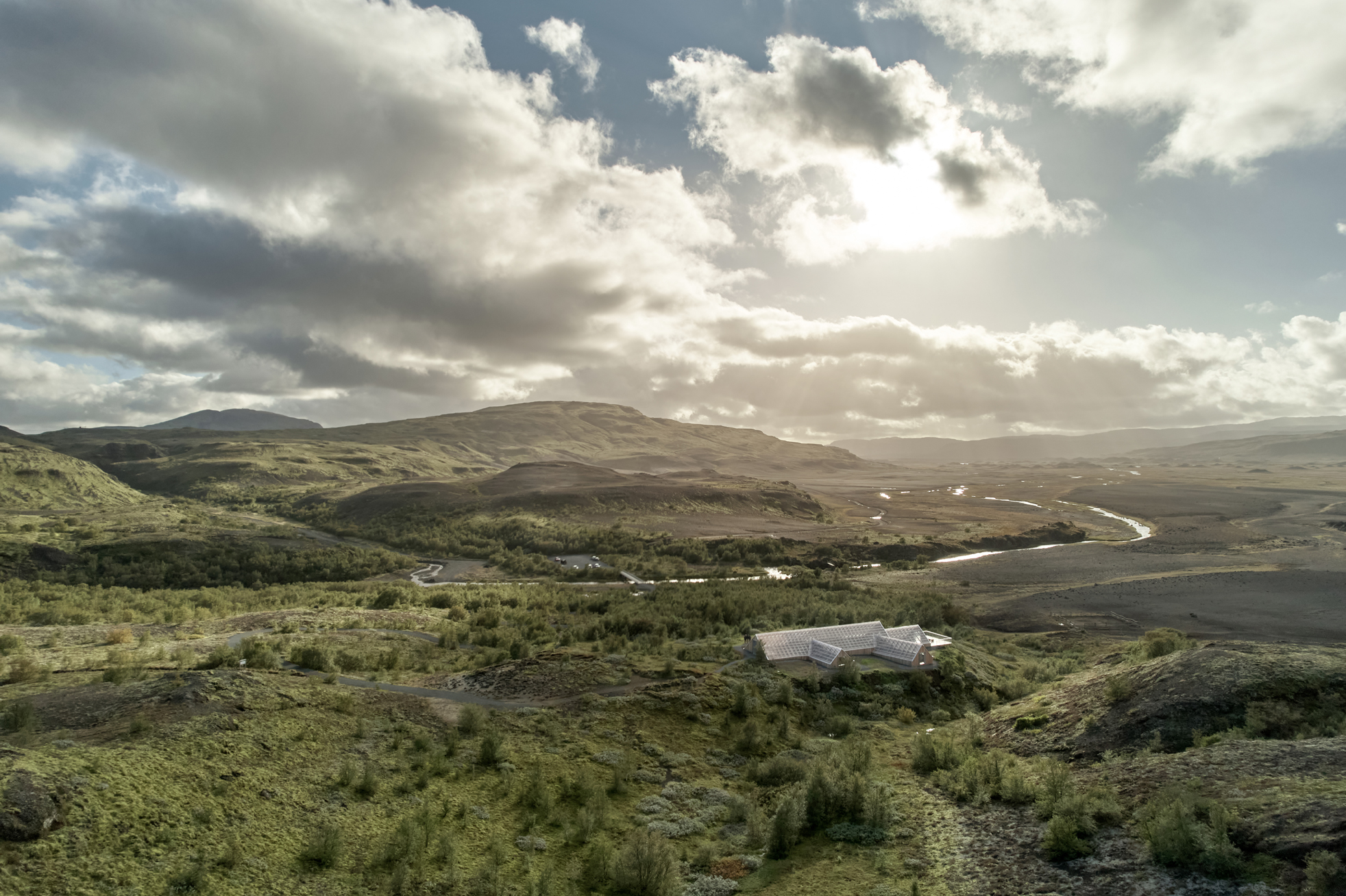

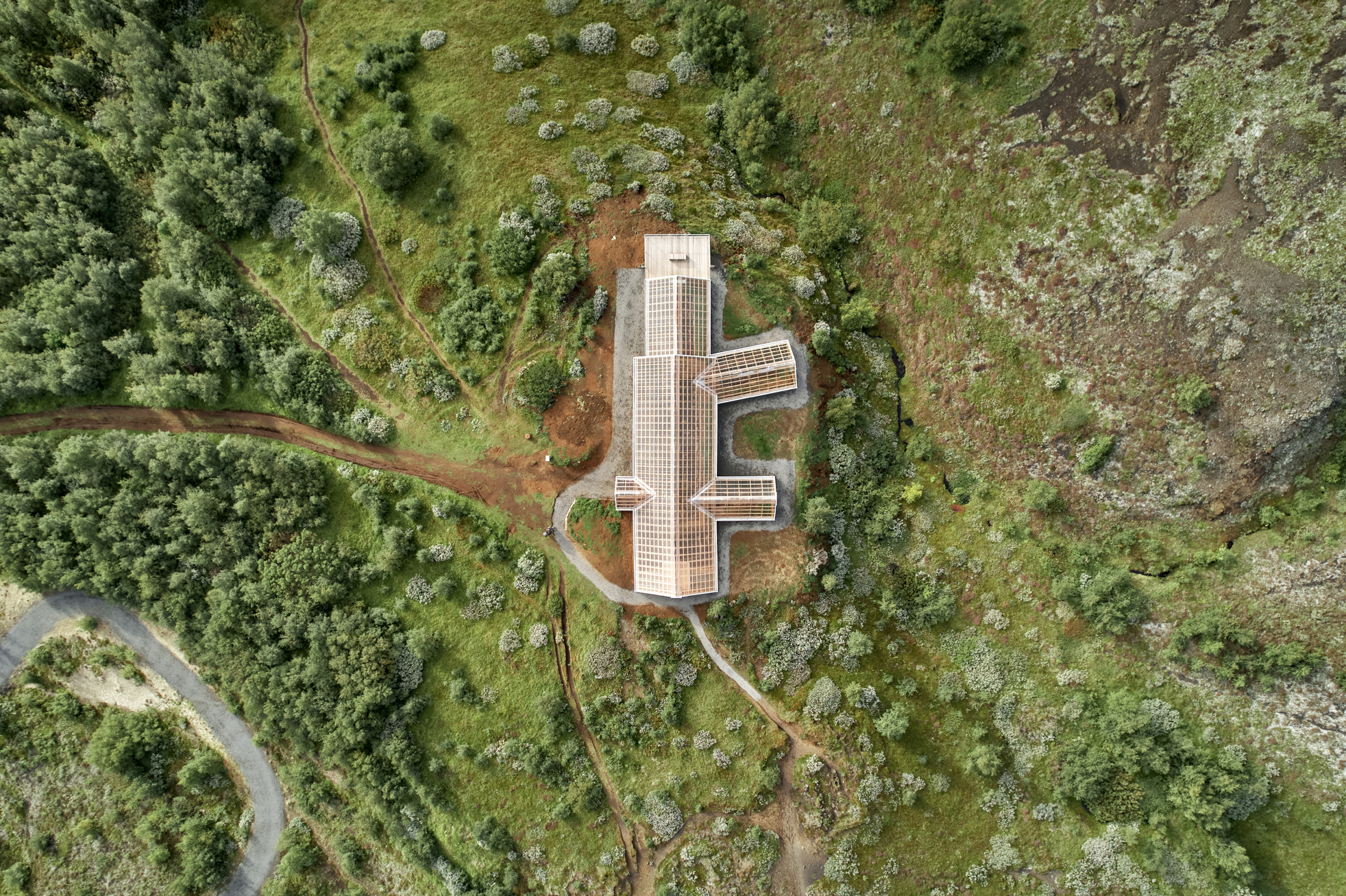

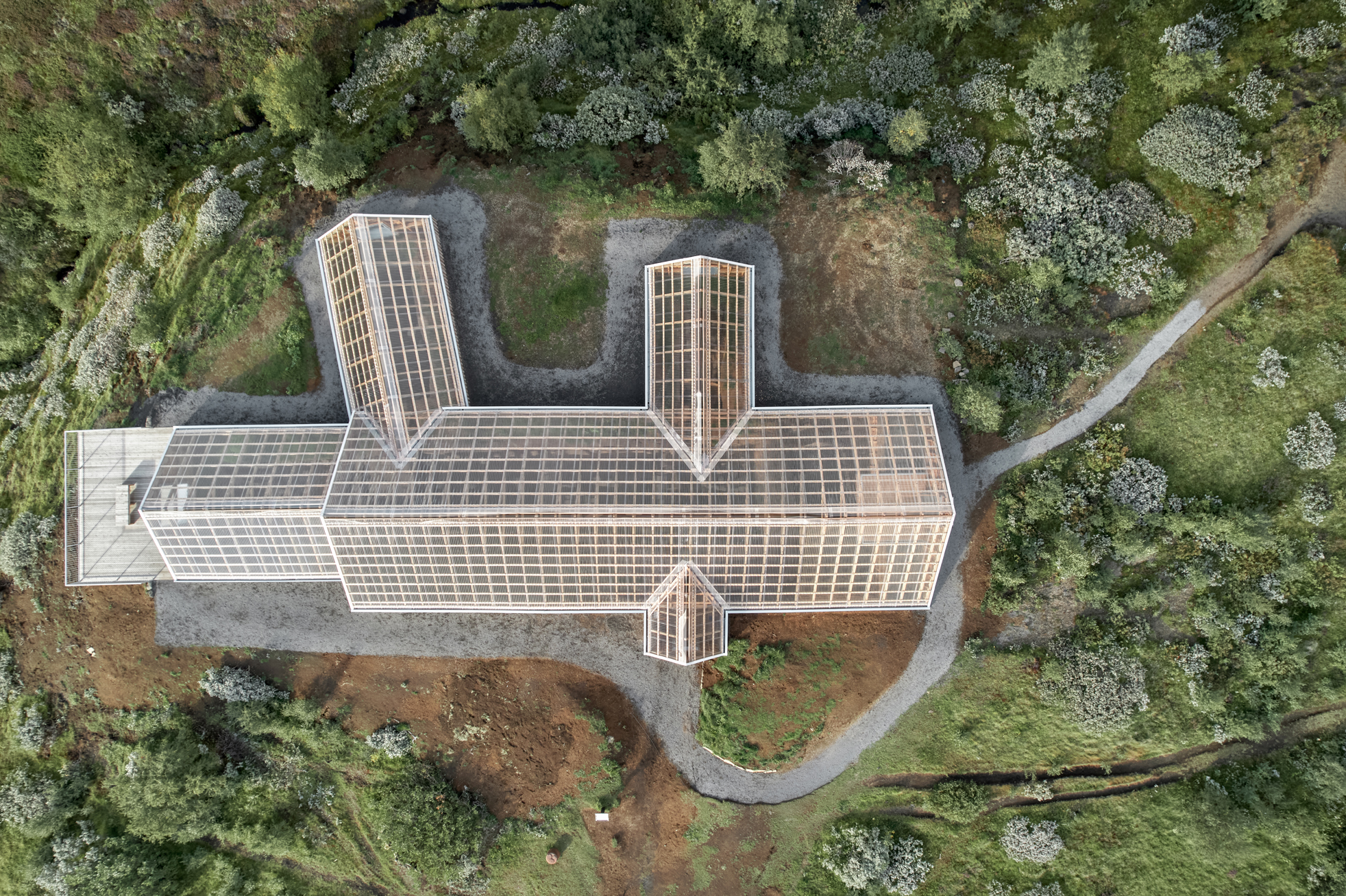

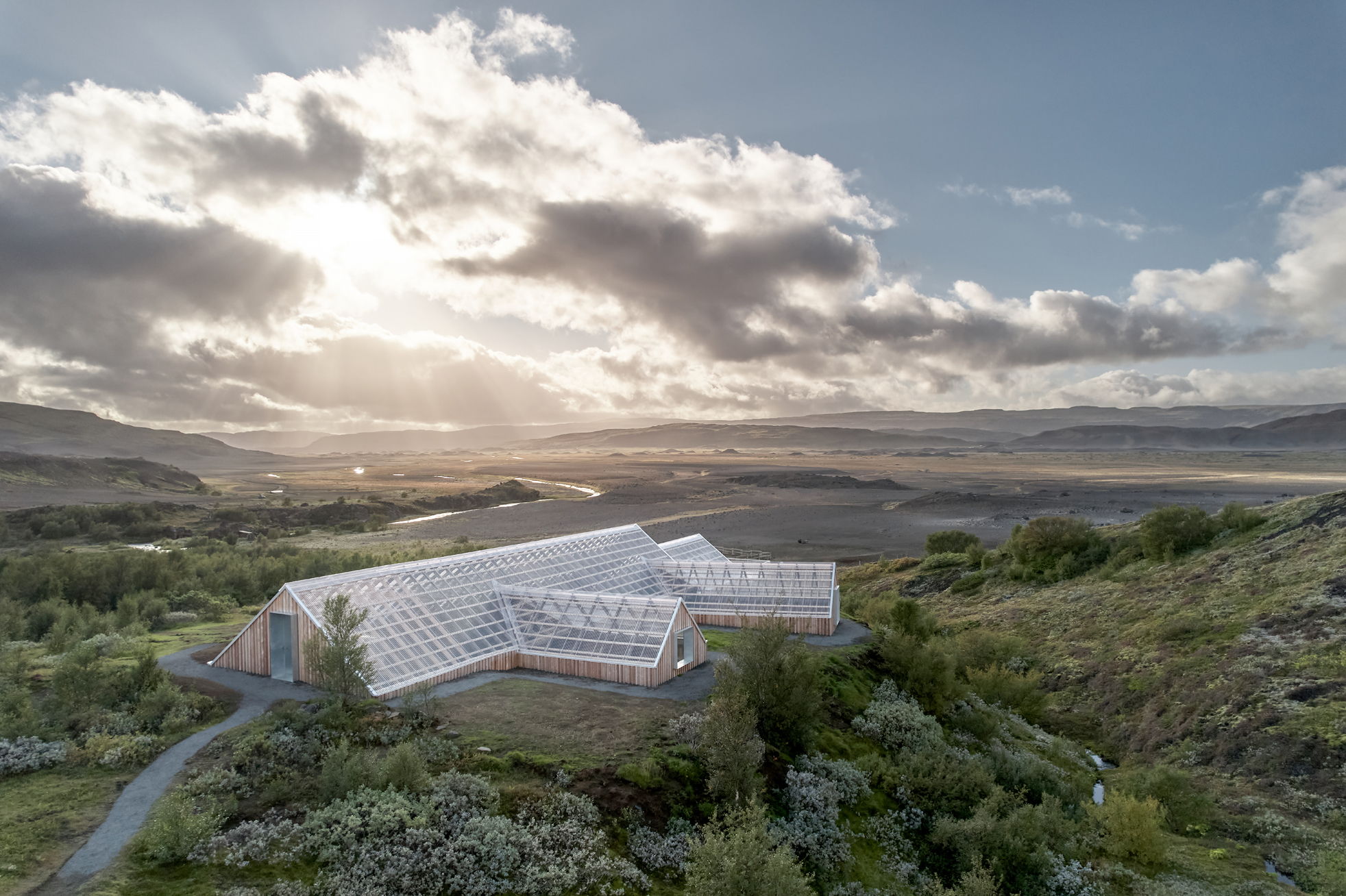

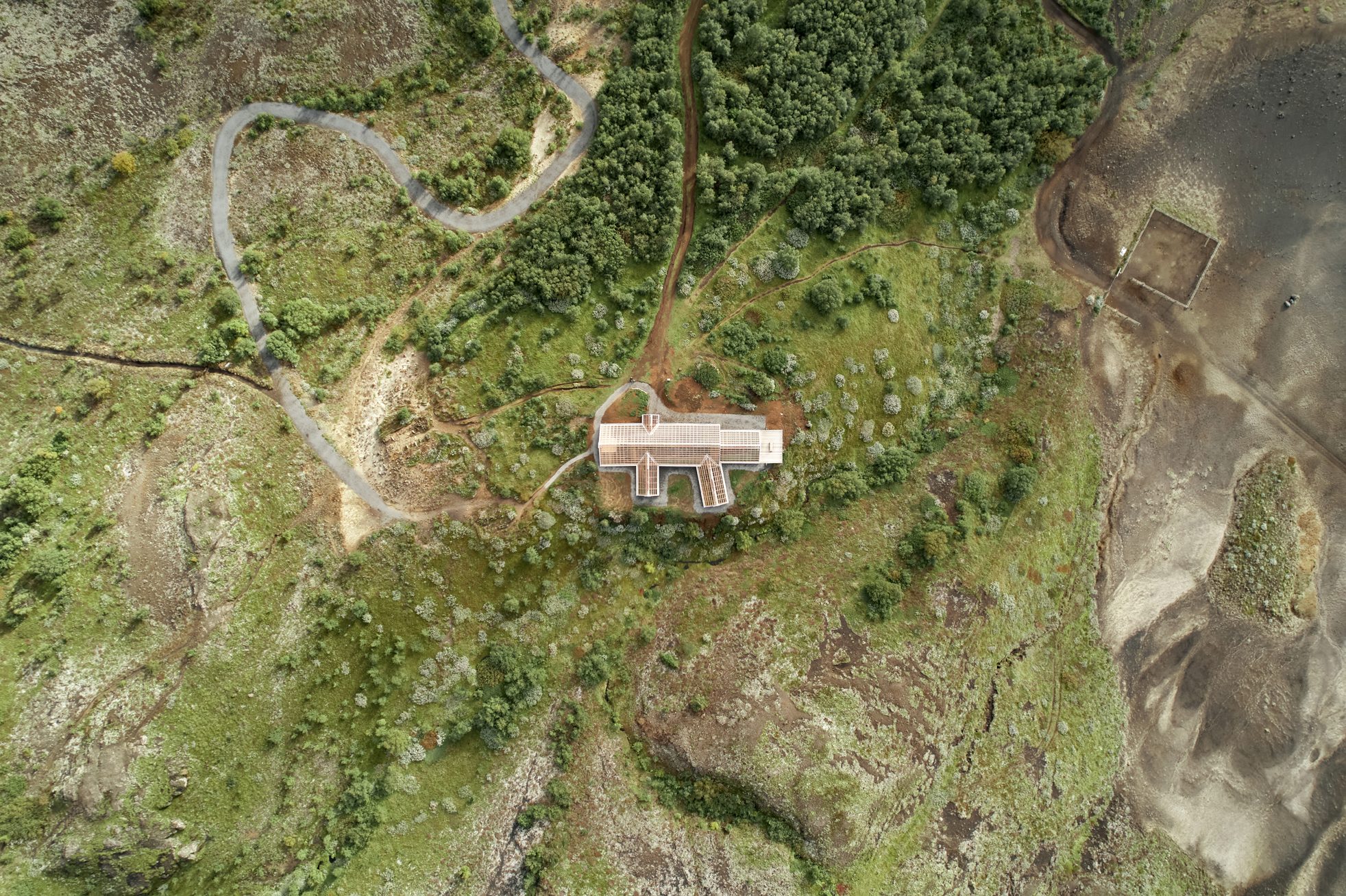

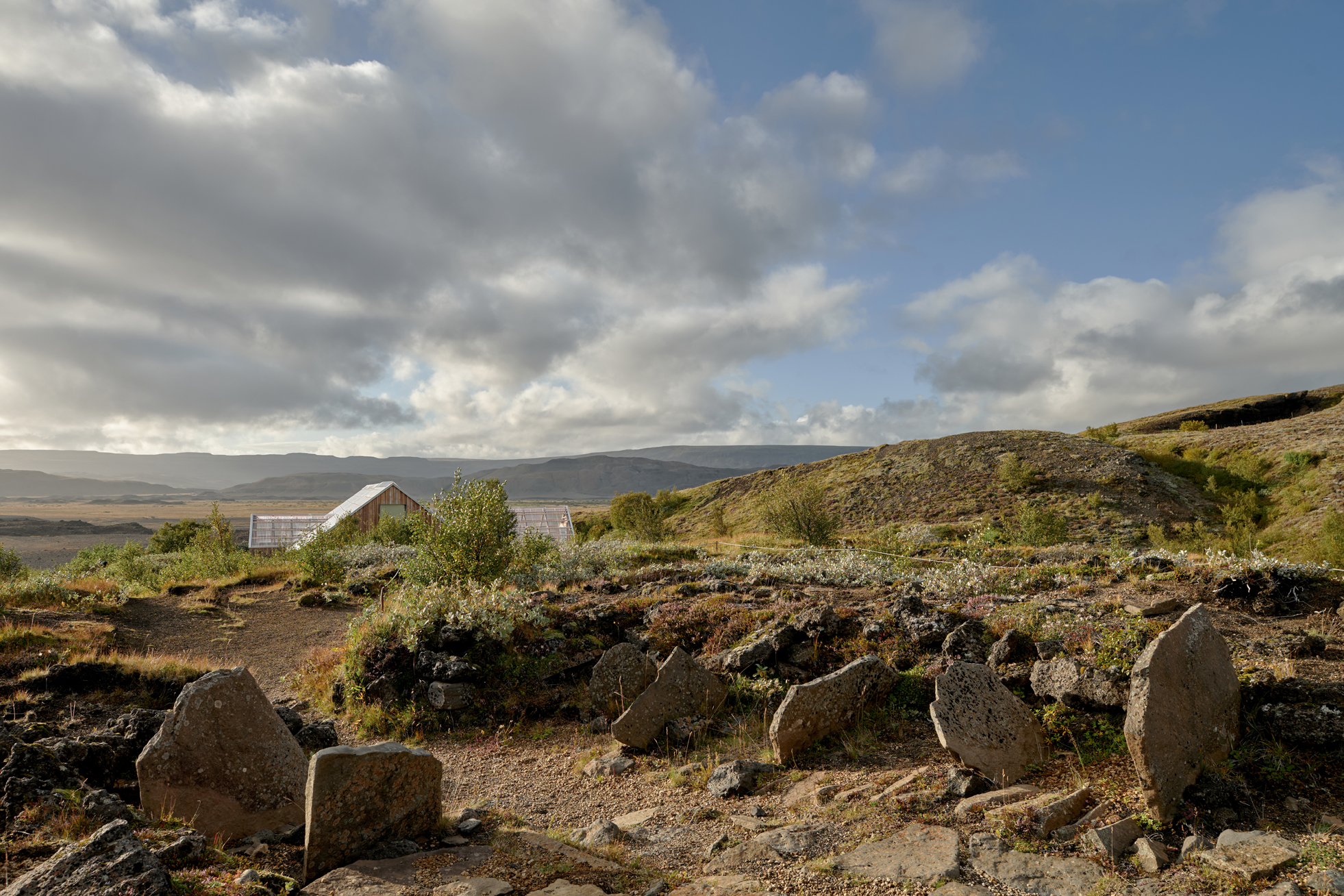

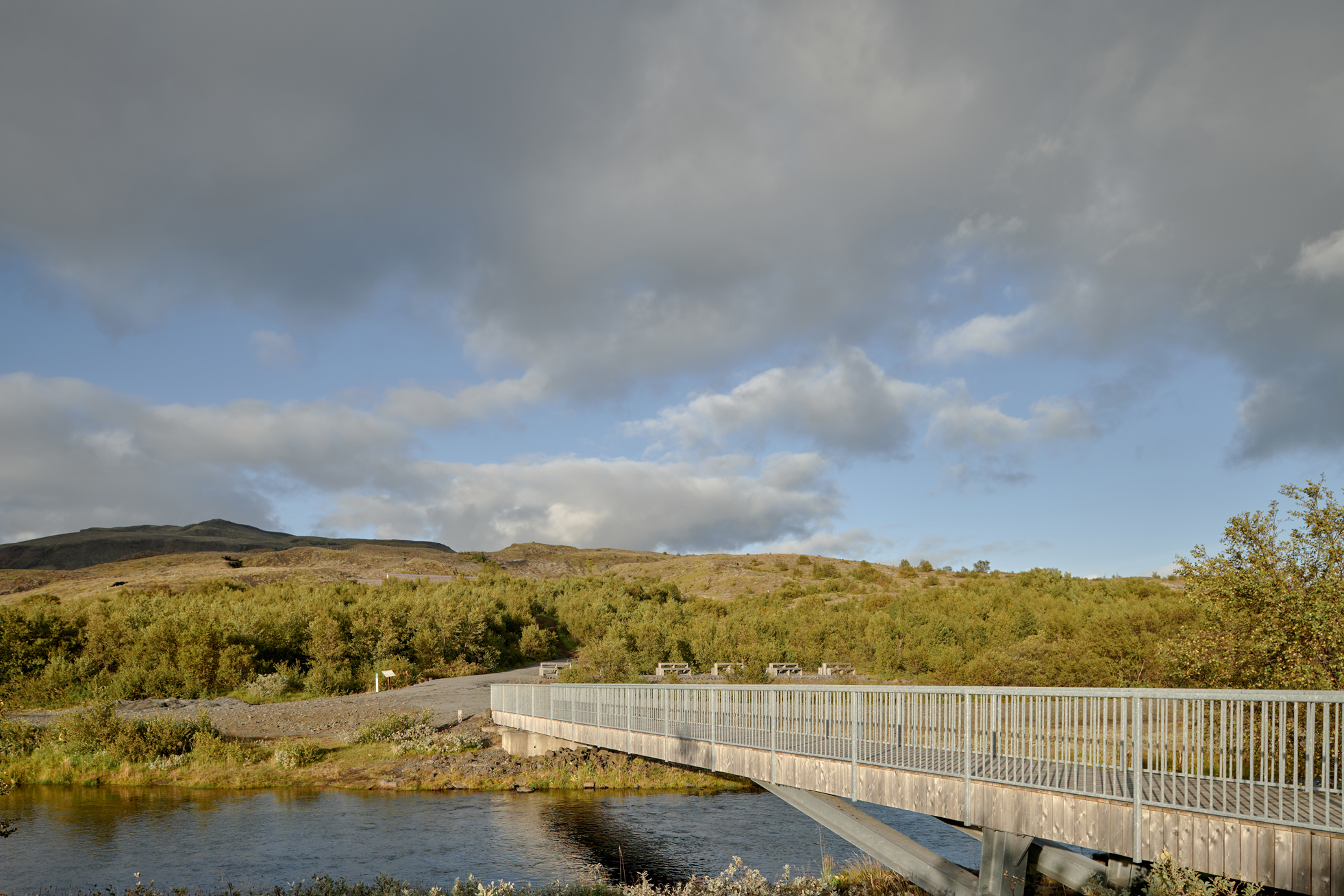

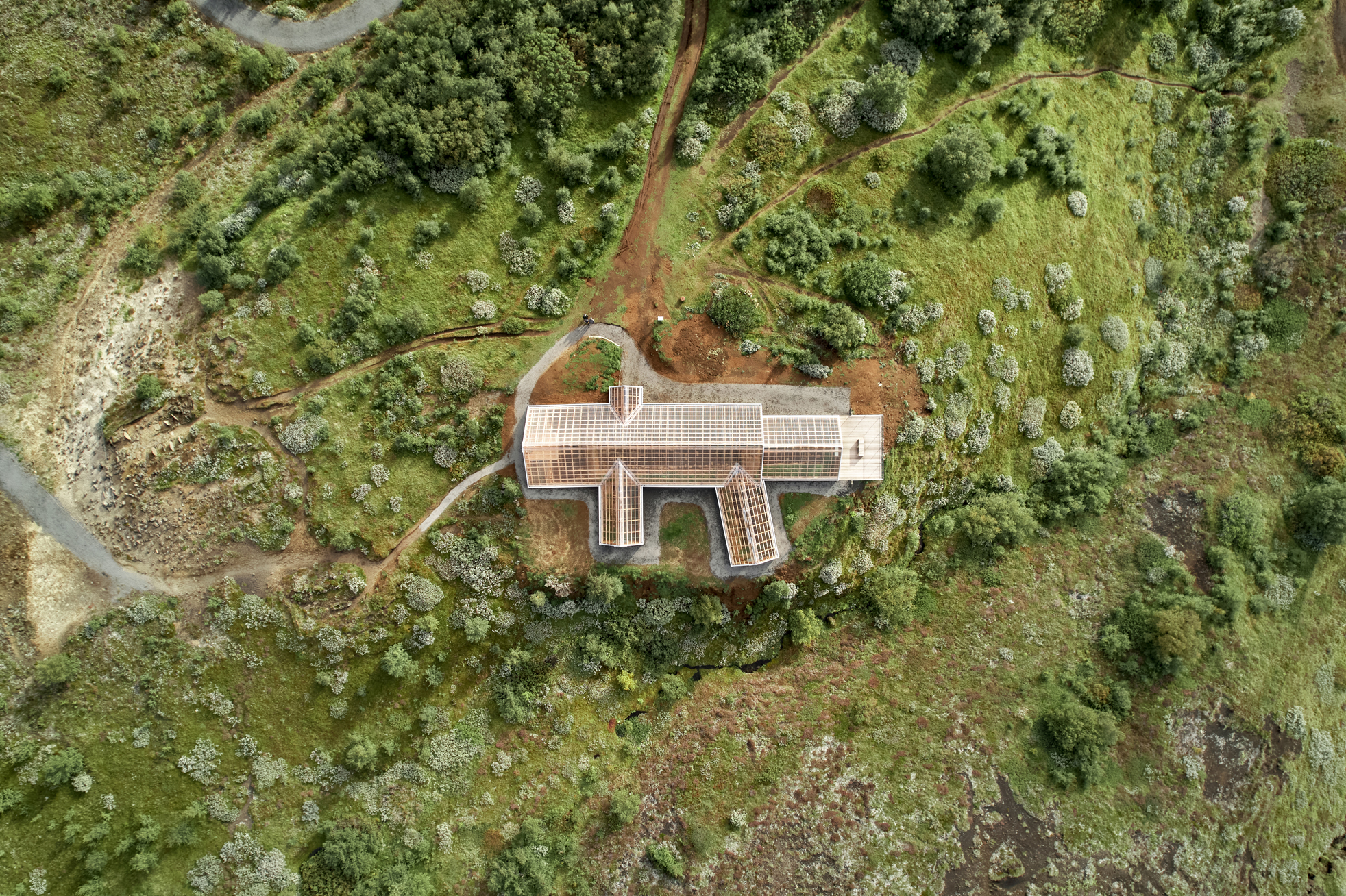

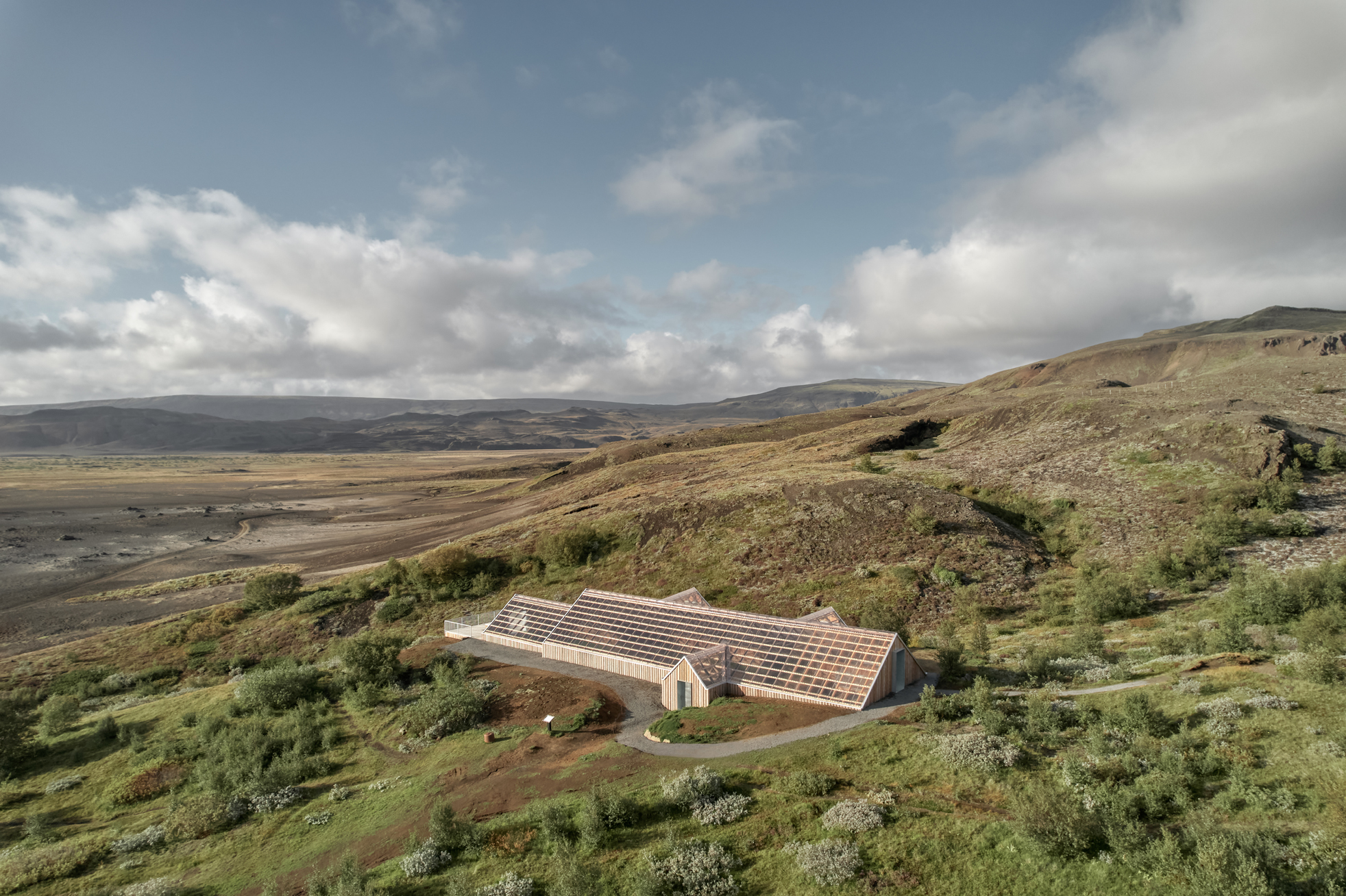

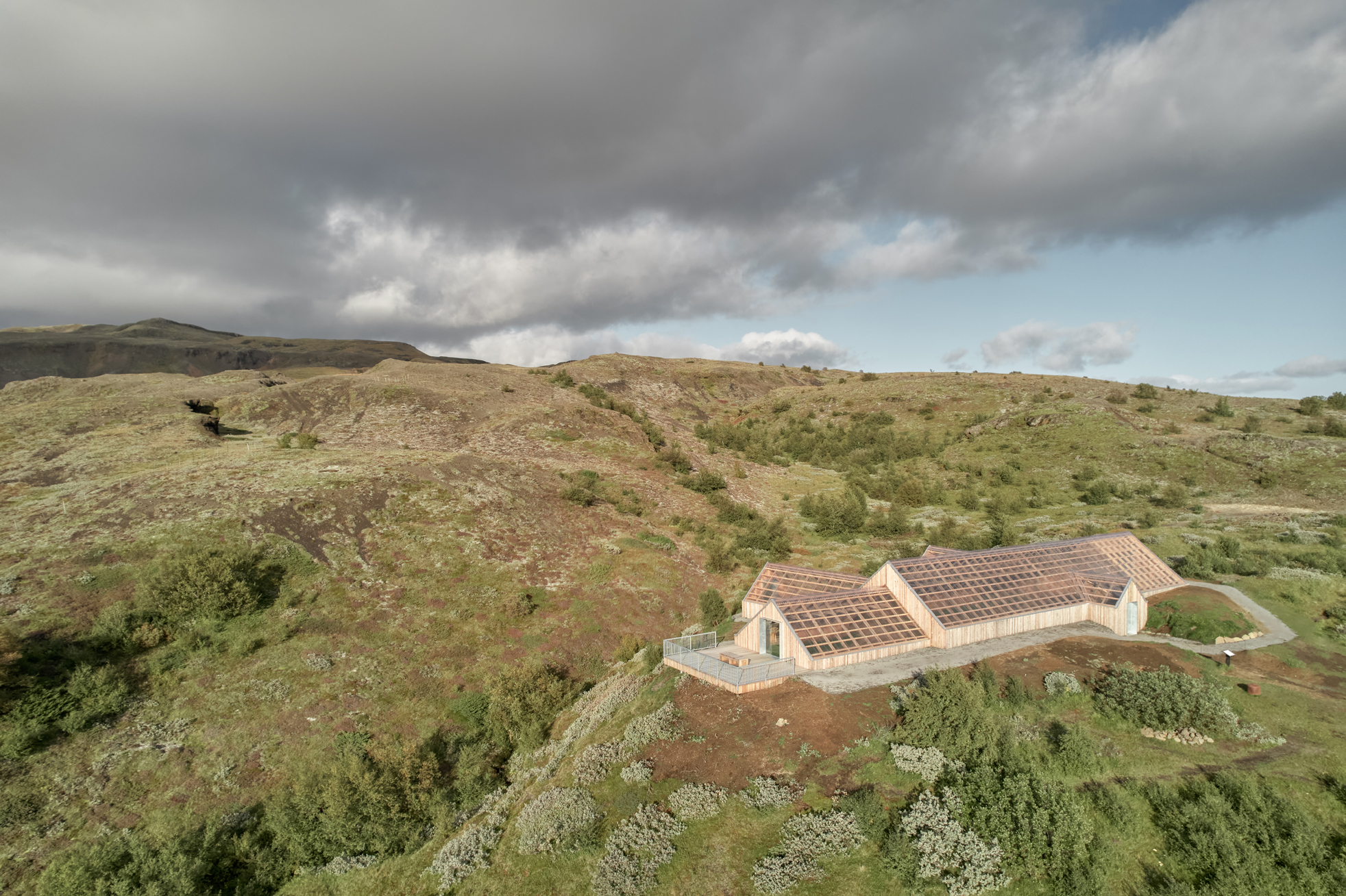

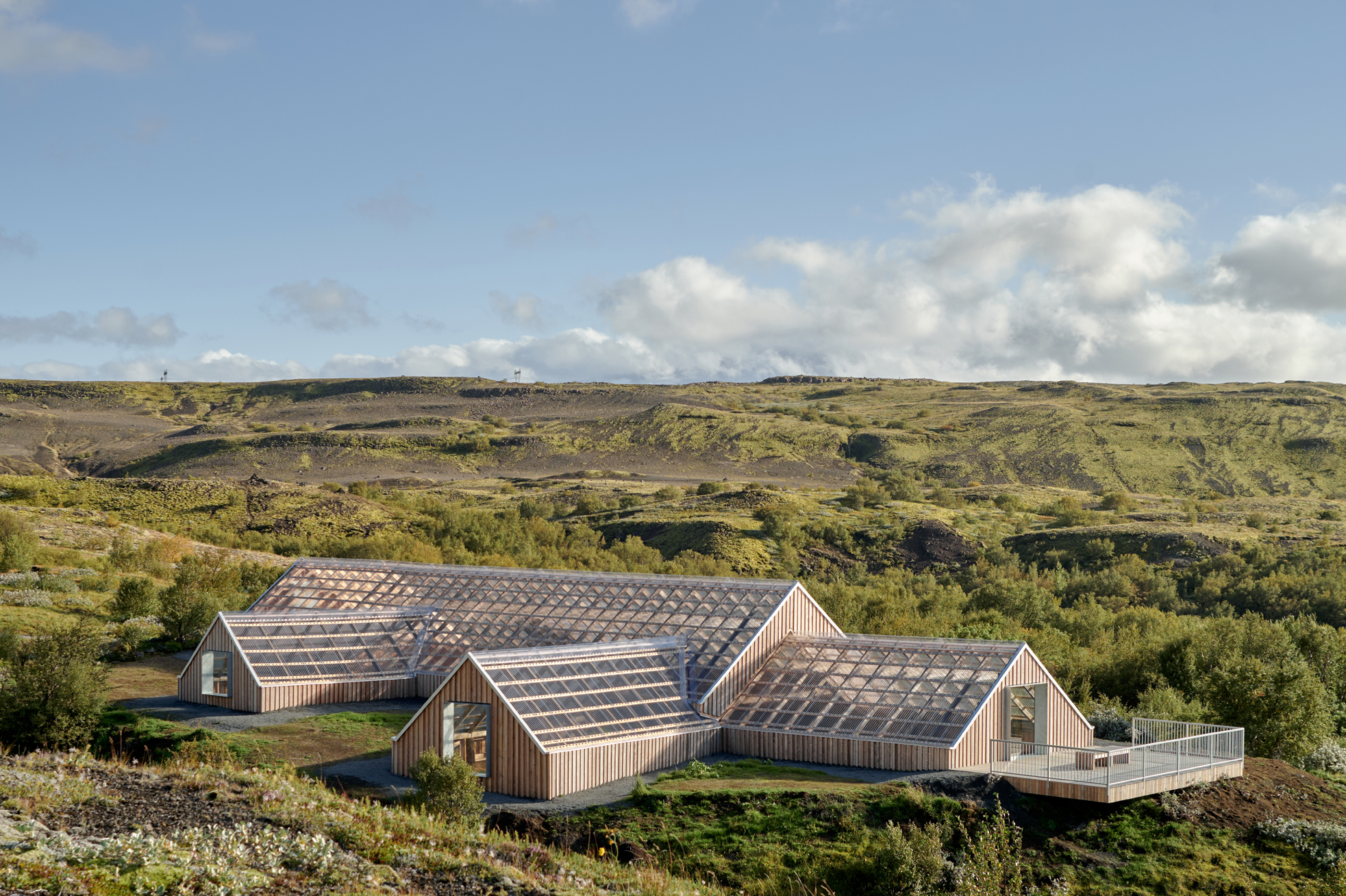

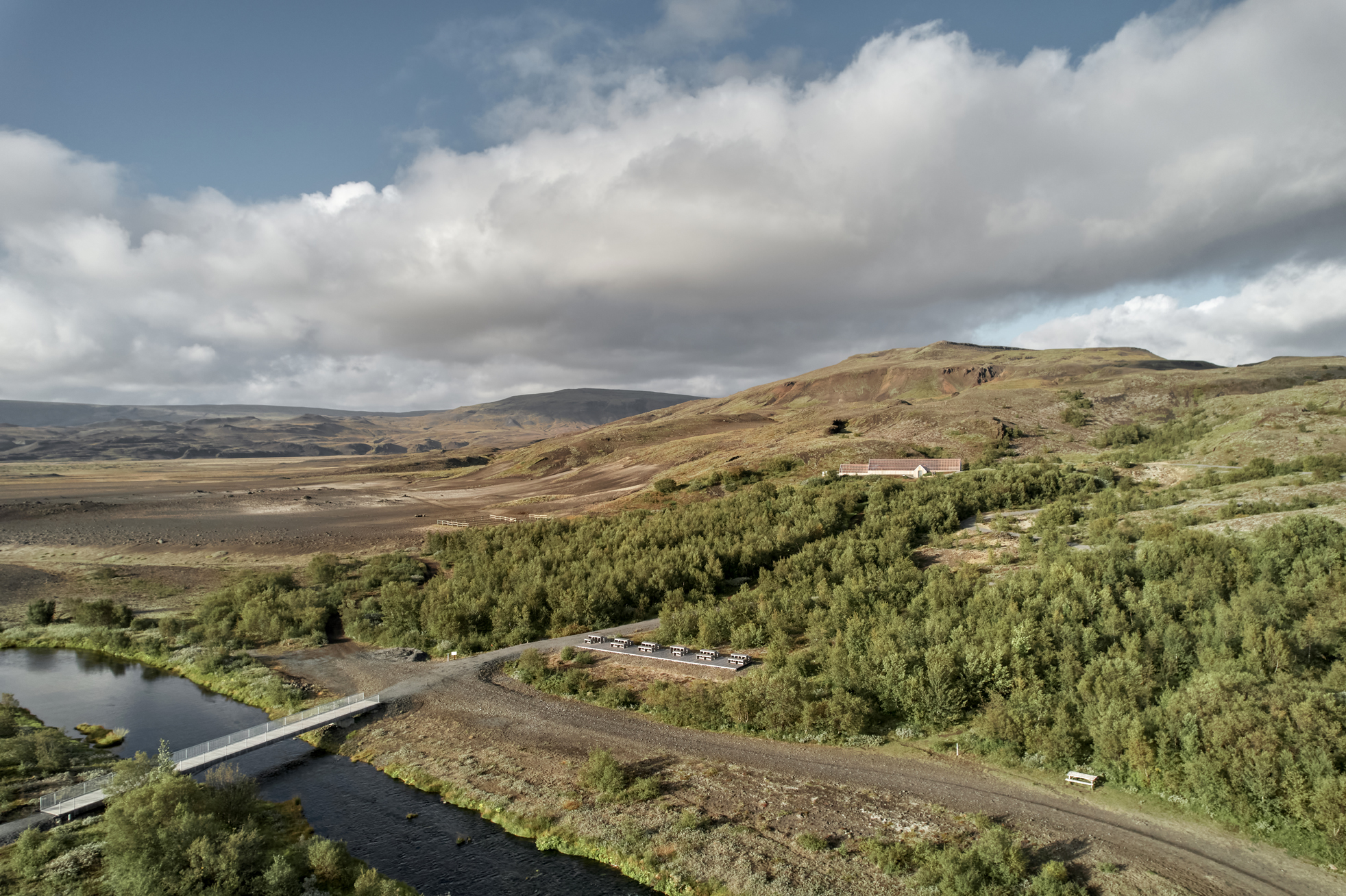

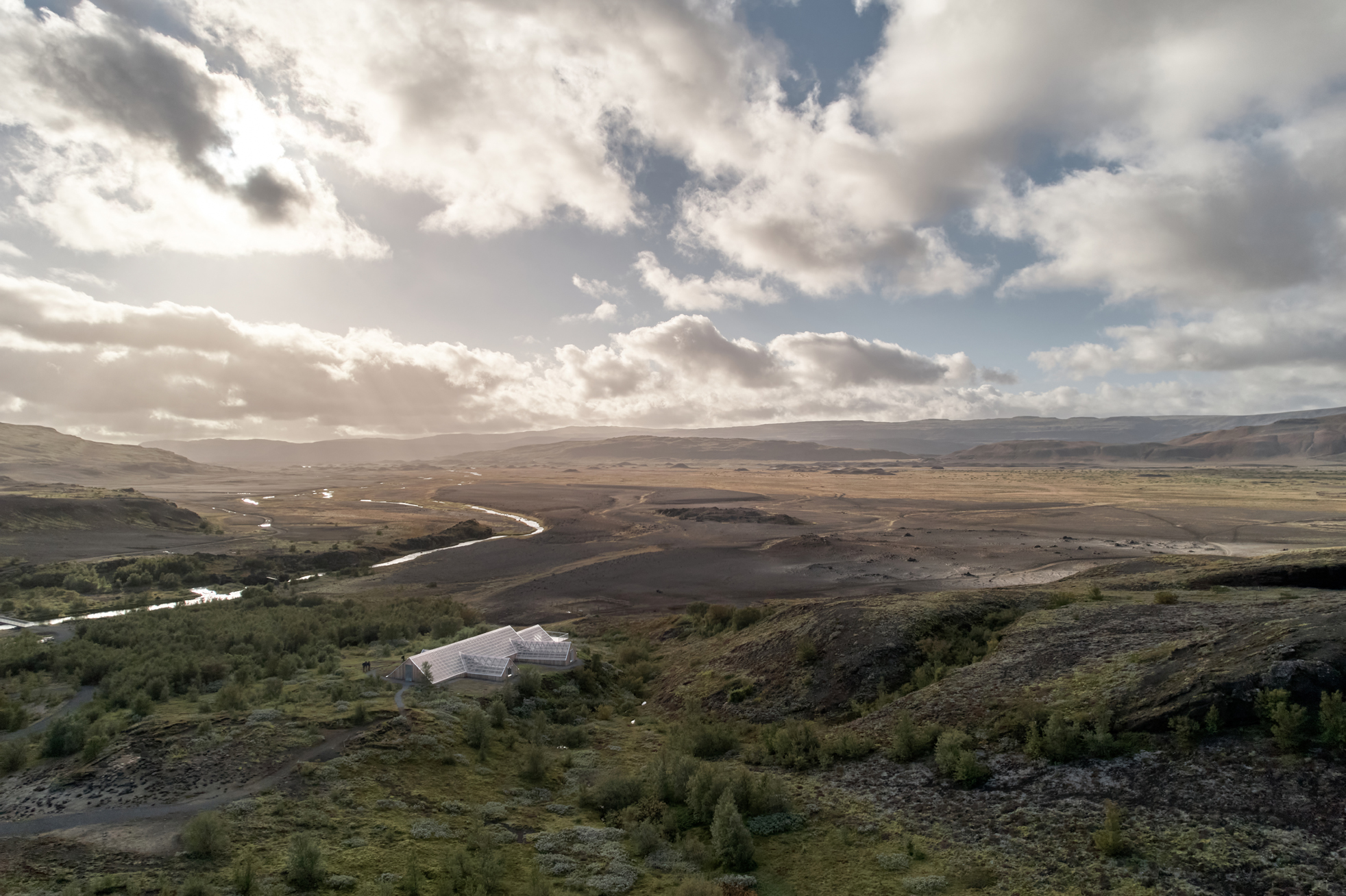

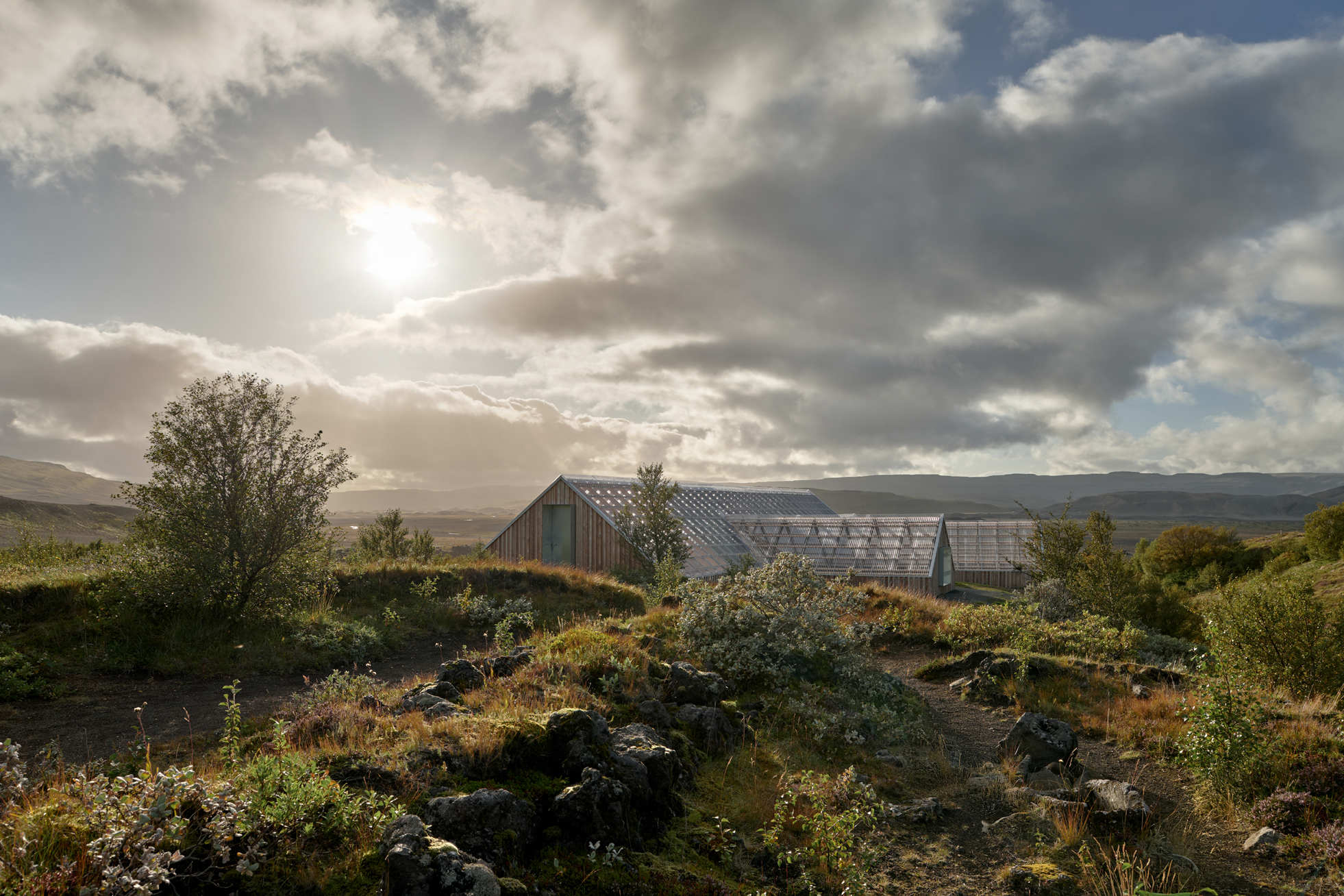

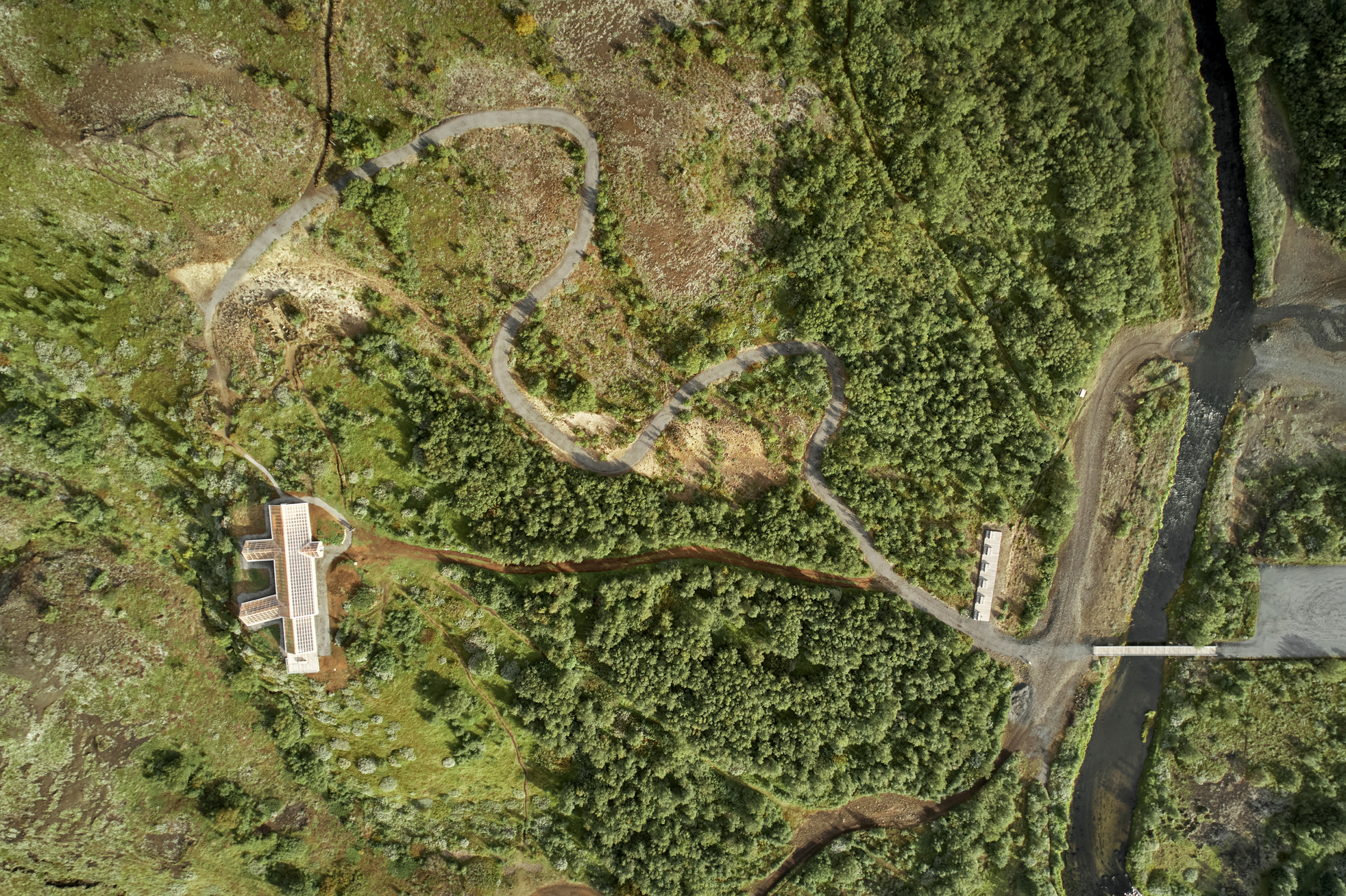

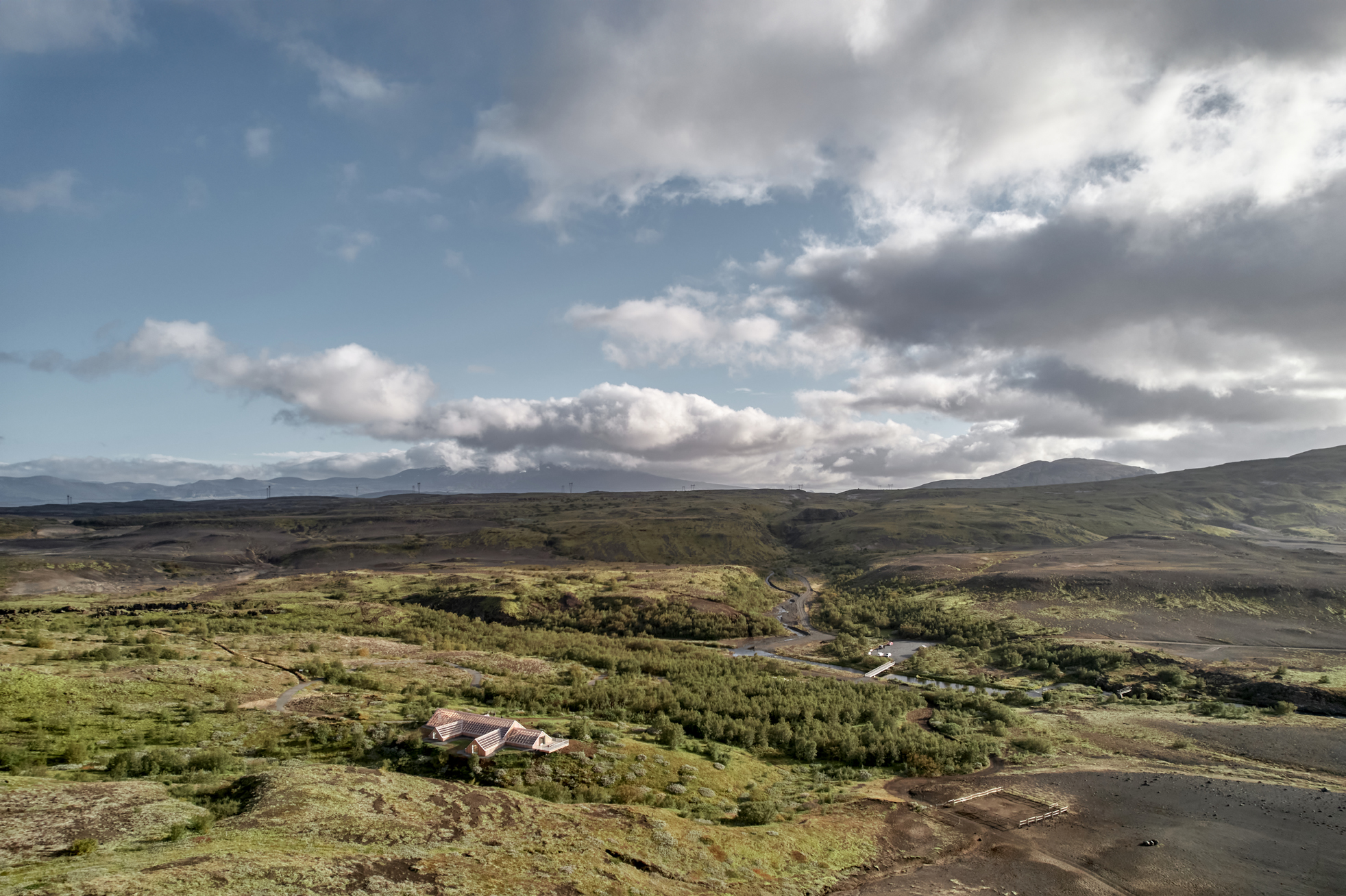

Situated atop the Þjórsárdalur valley, the adaptive reuse of Stöng adopts a holistic and interpretive approach, integrating a bridge, sitting area, visitor paths, and a protective shelter that respond sensitively to the natural terrain. Serving both archaeological excavation and public engagement with heritage, the project reuses existing structures to safeguard eleventh-century Viking-age ruins while improving accessibility. Built from larch wood, galvanized steel, and polycarbonate, it mediates permanence and transience, fostering a dialogue between heritage, materiality, and landscape.

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

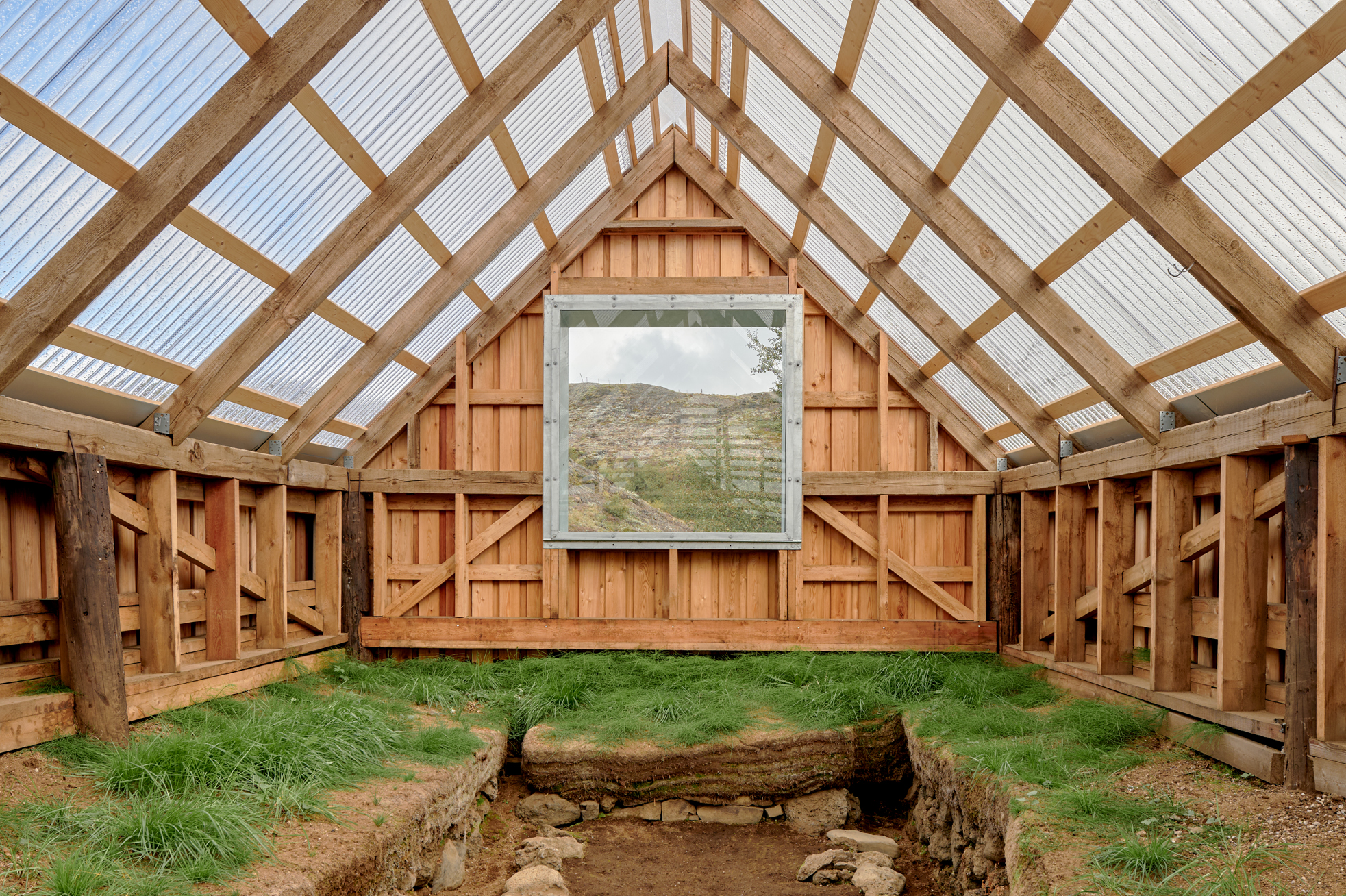

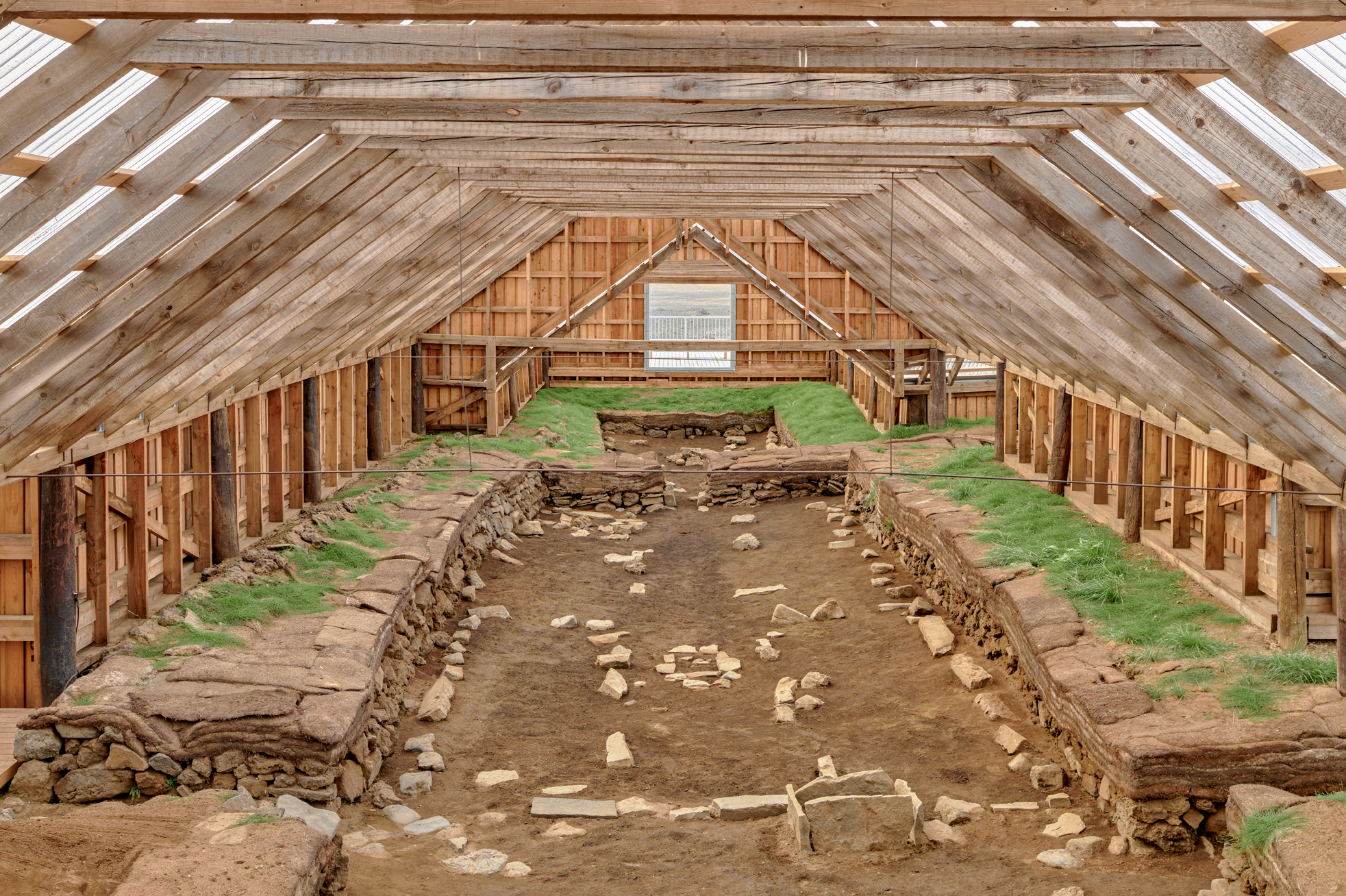

The concept at Stöng sought to reconcile fragility and permanence within one of Iceland’s most emblematic ruins, addressing three key challenges: the protection of fragile archaeological remains, the adaptation to a severe climate, and the improvement of visitor accessibility. The existing shelter, though deteriorated, provided a framework for reinterpretation rather than replacement. The design strategy emphasized reconfiguration, layering, and transparency, creating outdoor pathways and elevated platforms to preserve the ground while revealing the ruins. Building in the remote, untamed landscape added complexity, demanding a light and adaptable intervention. The shelter mediates between exposure and protection, integrating structure, light, and movement into a coherent spatial system. A holistic approach links the experience of the ruins with the surrounding terrain, guiding visitors through the landscape while ensuring preservation, continuity, and renewed understanding of the site.

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

© Studio CAPN

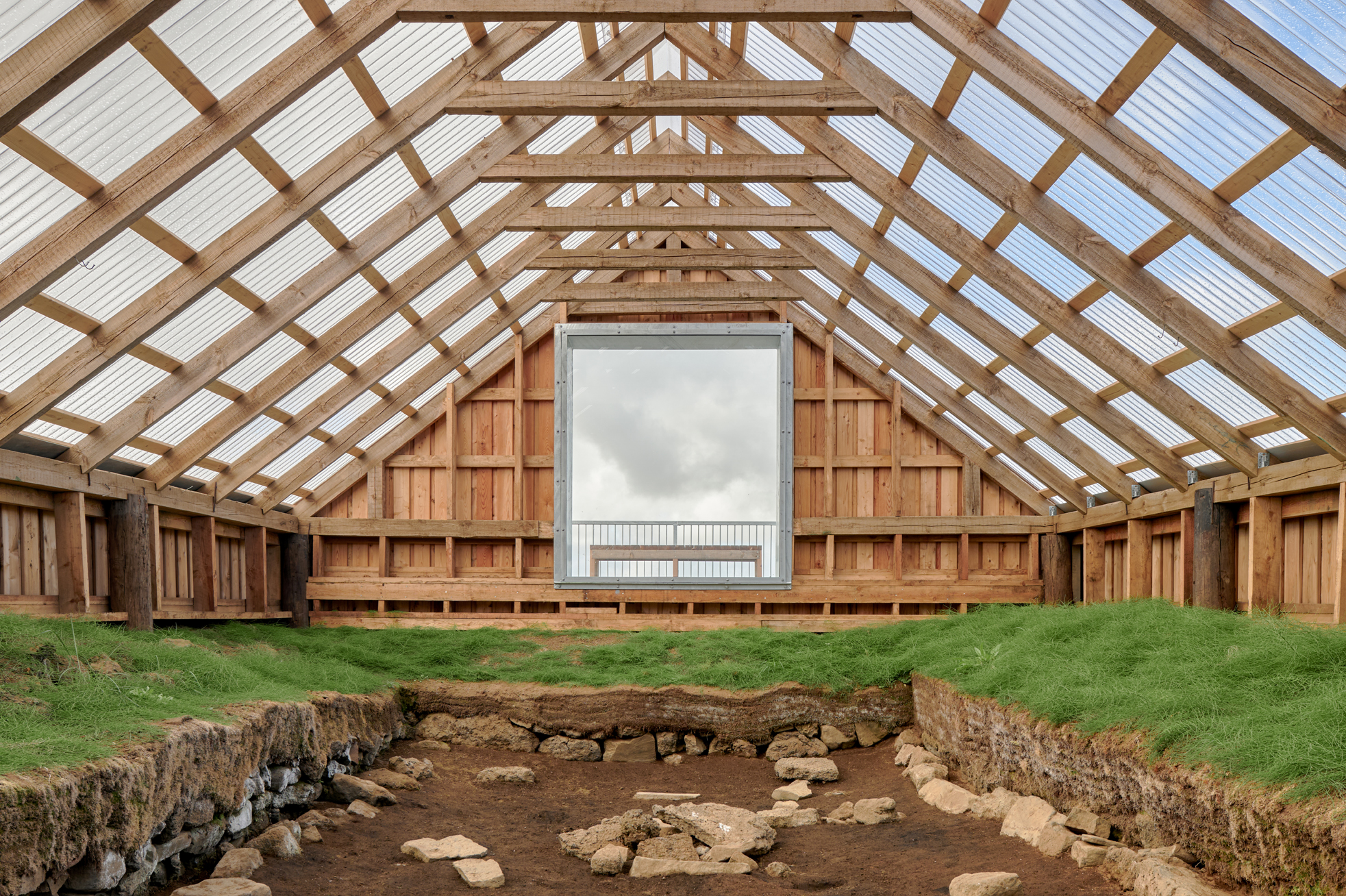

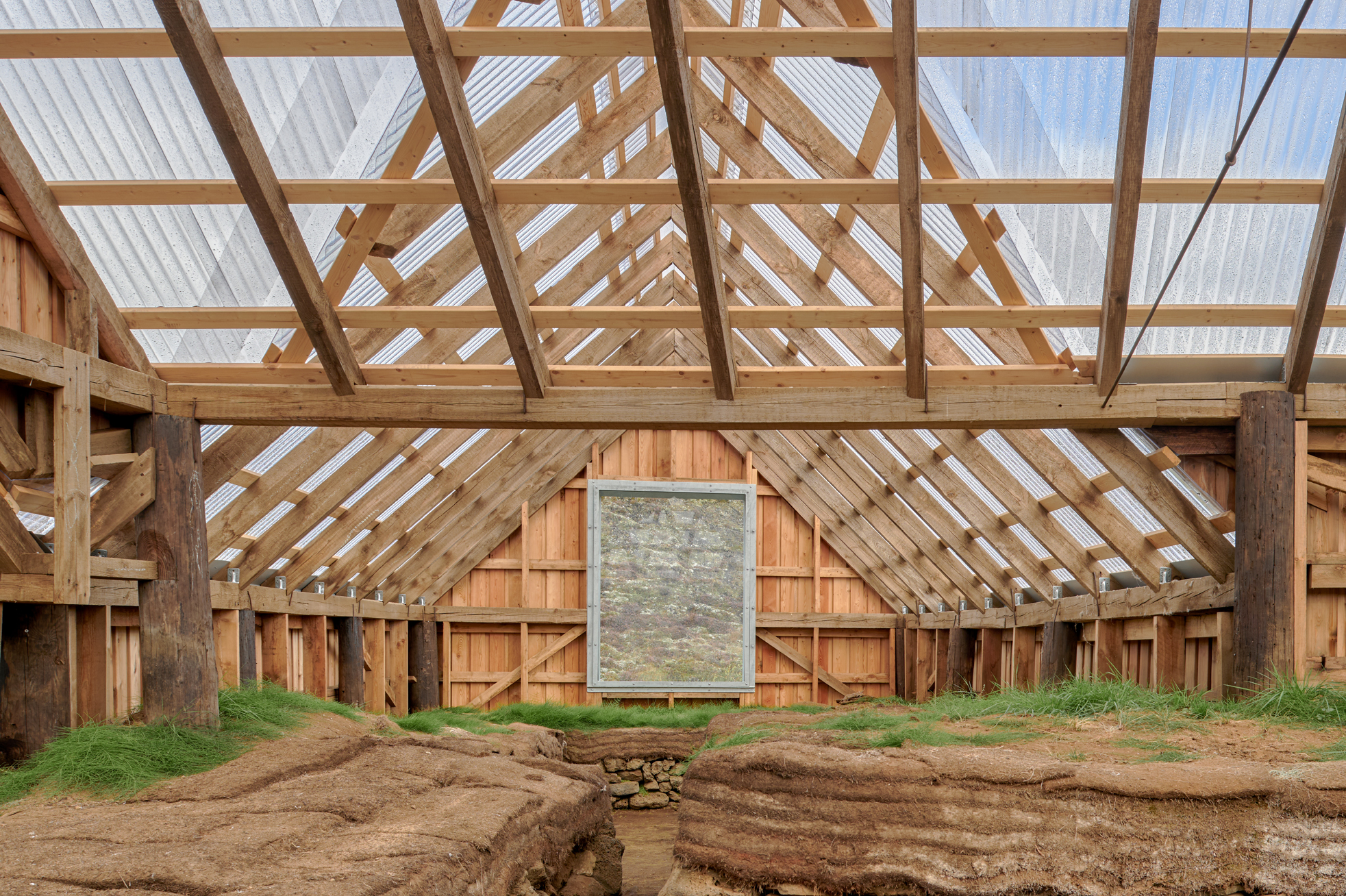

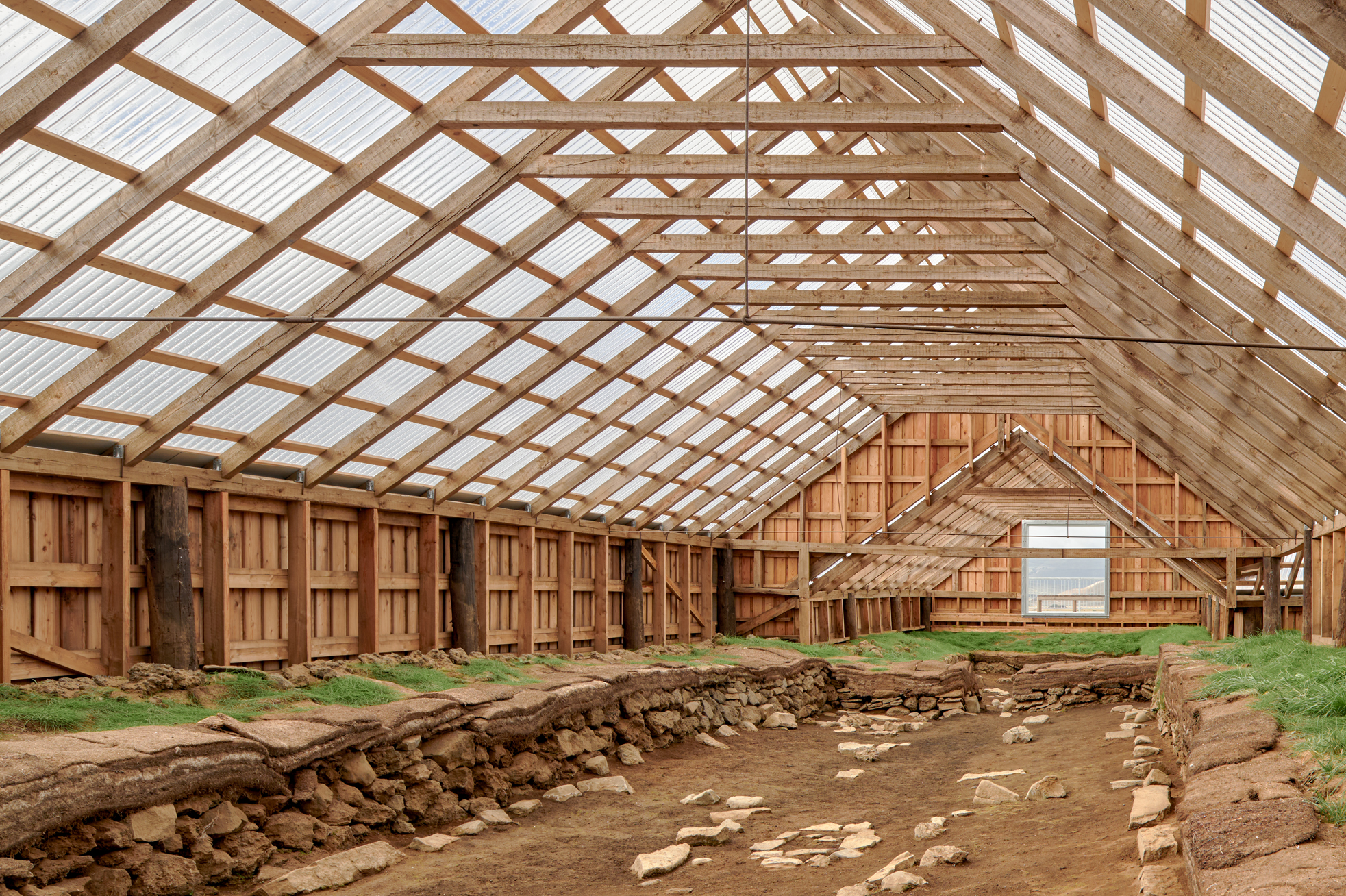

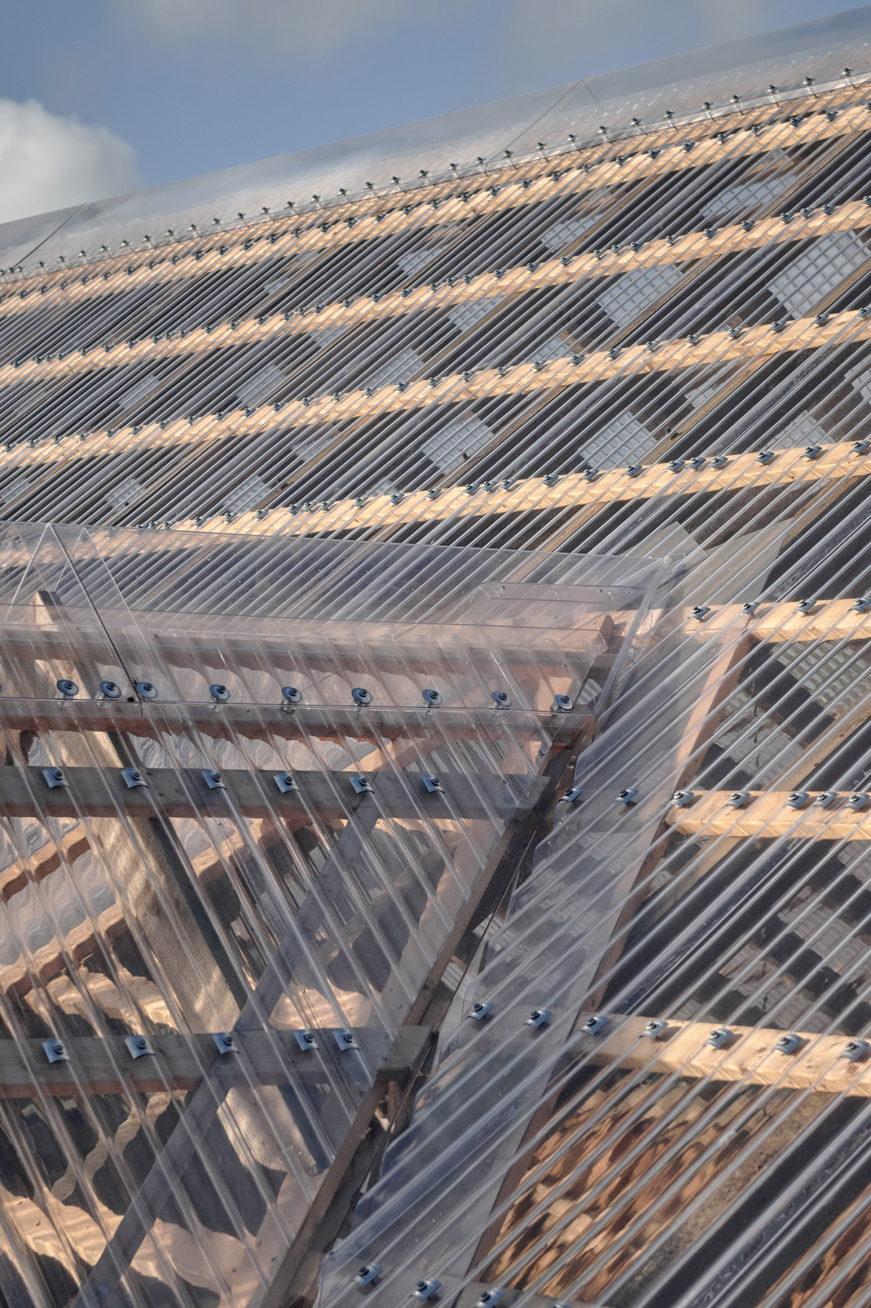

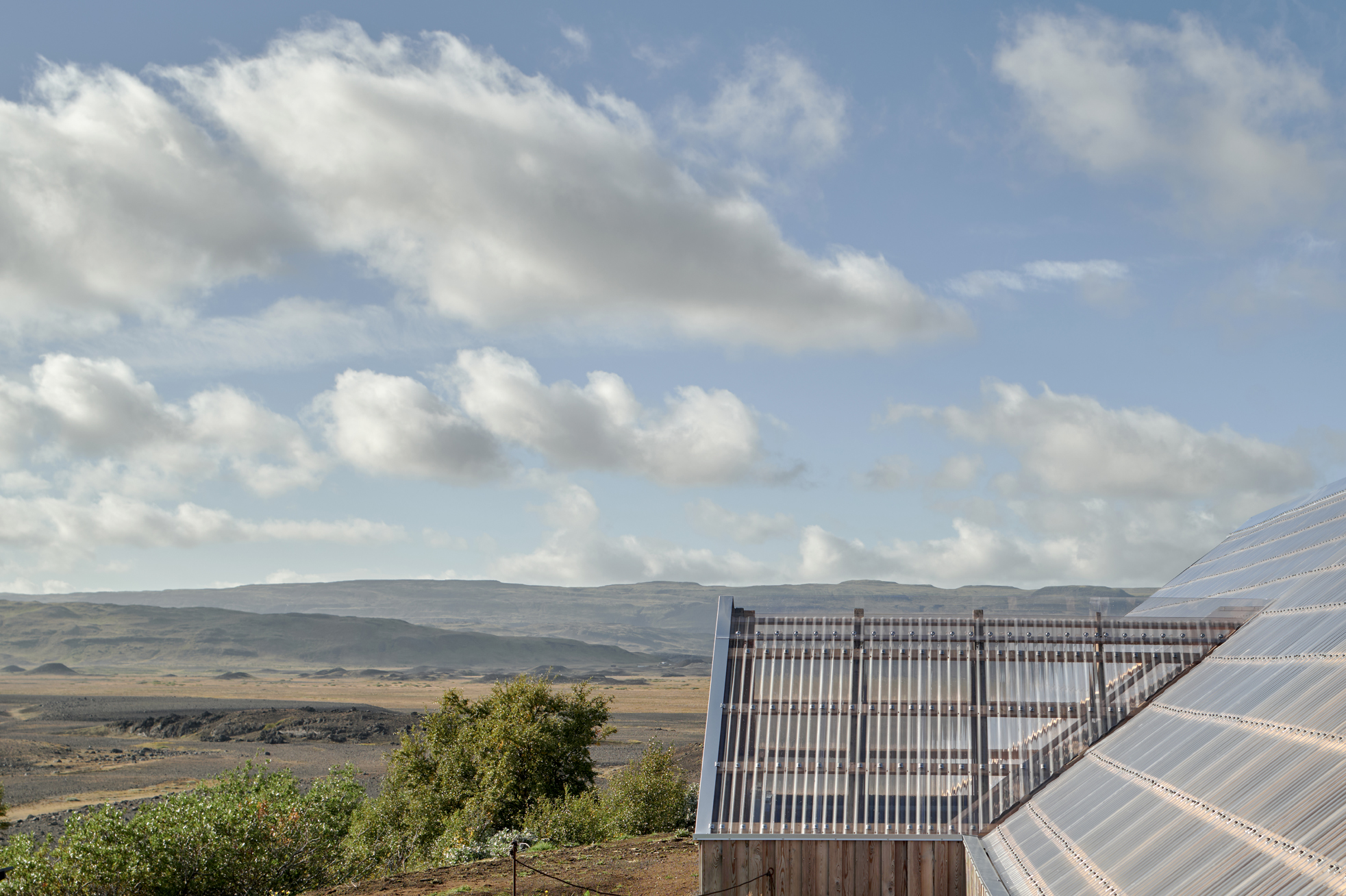

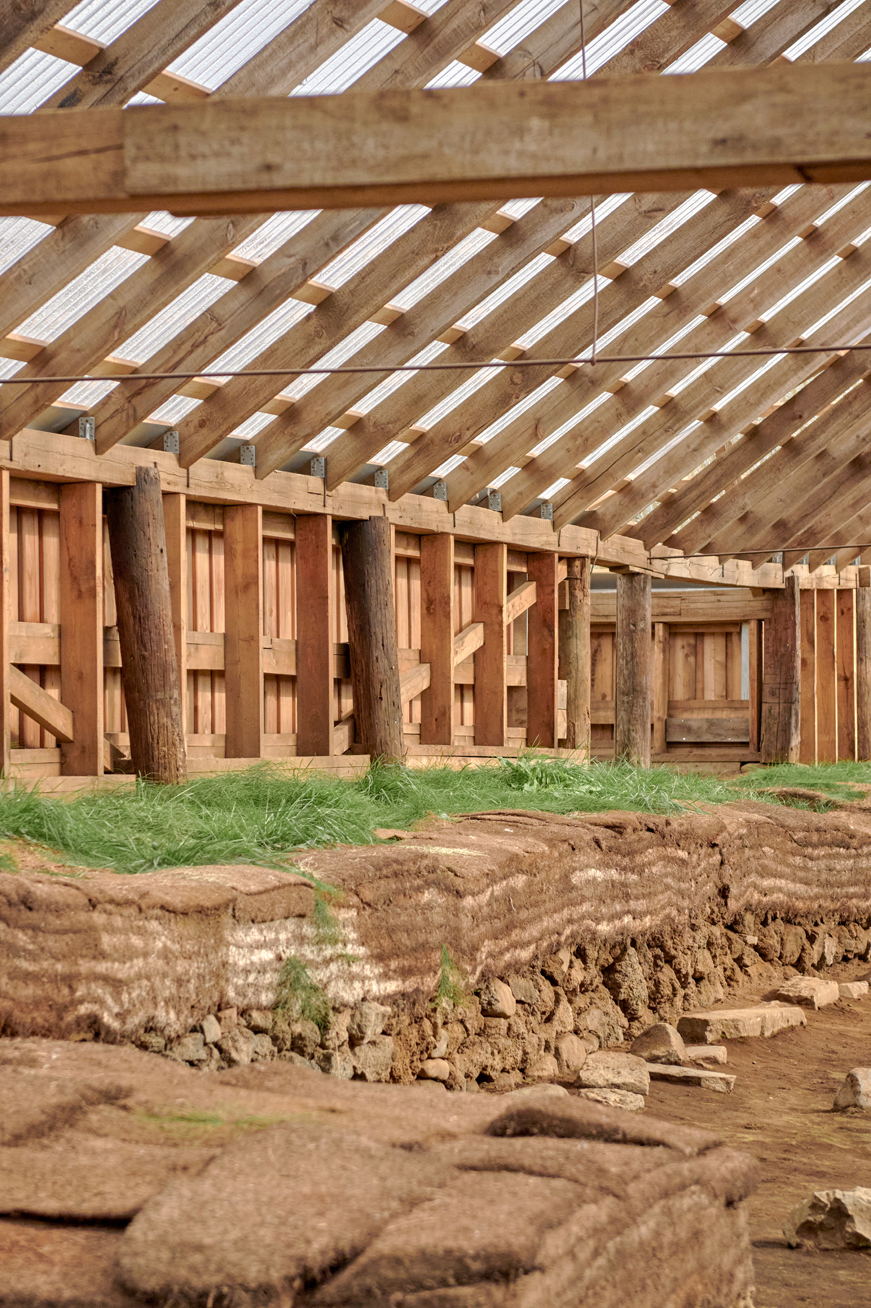

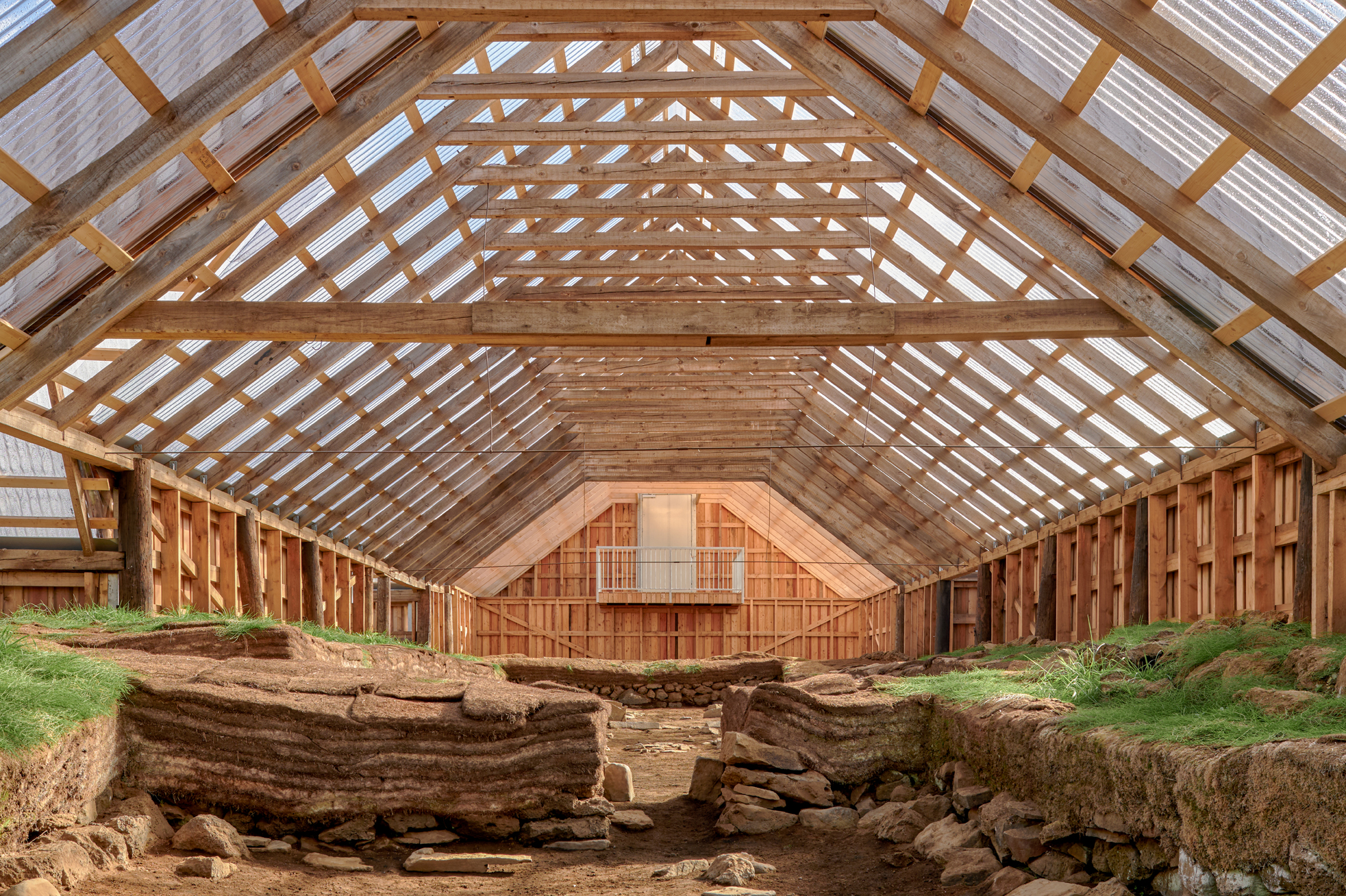

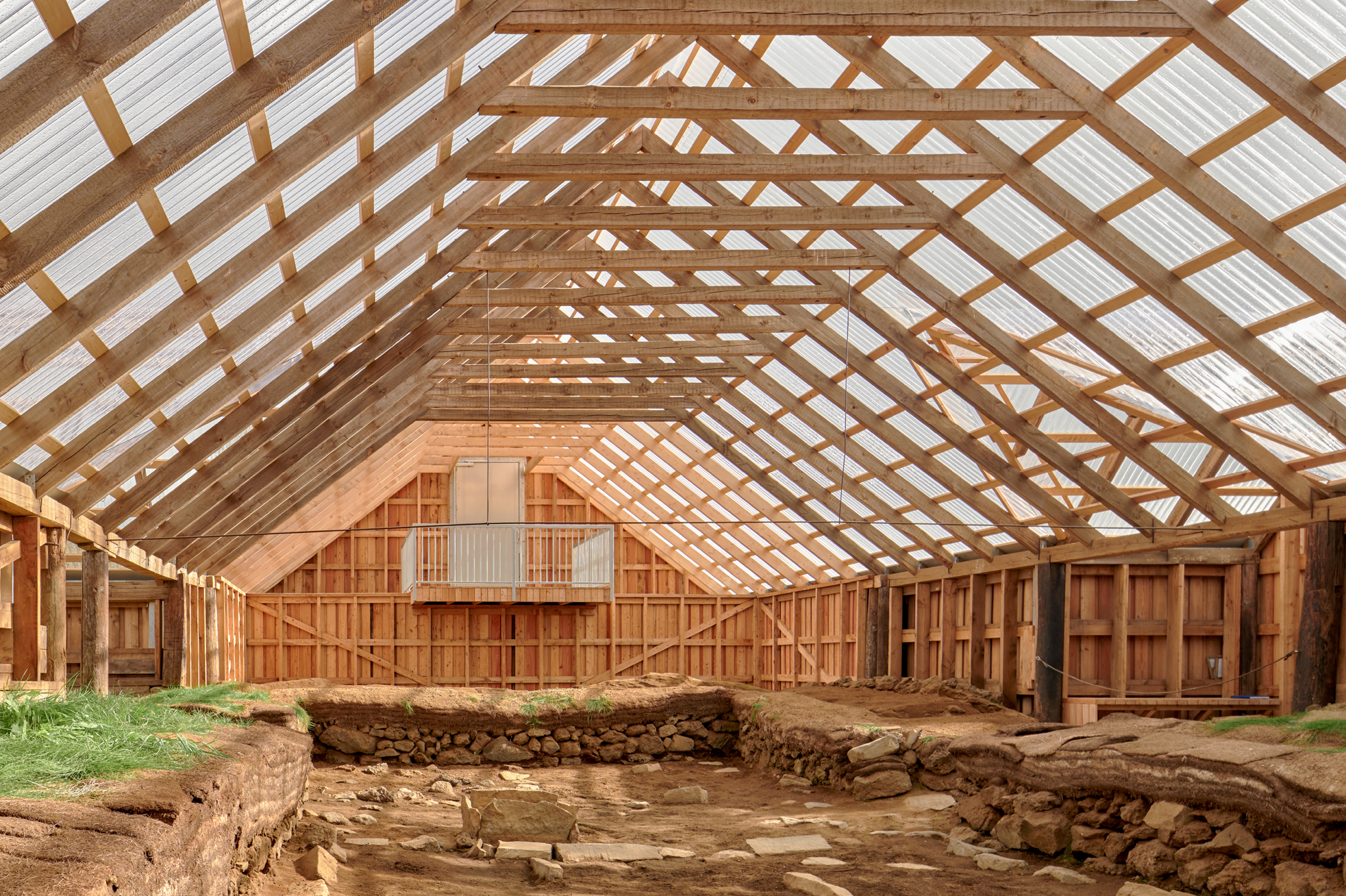

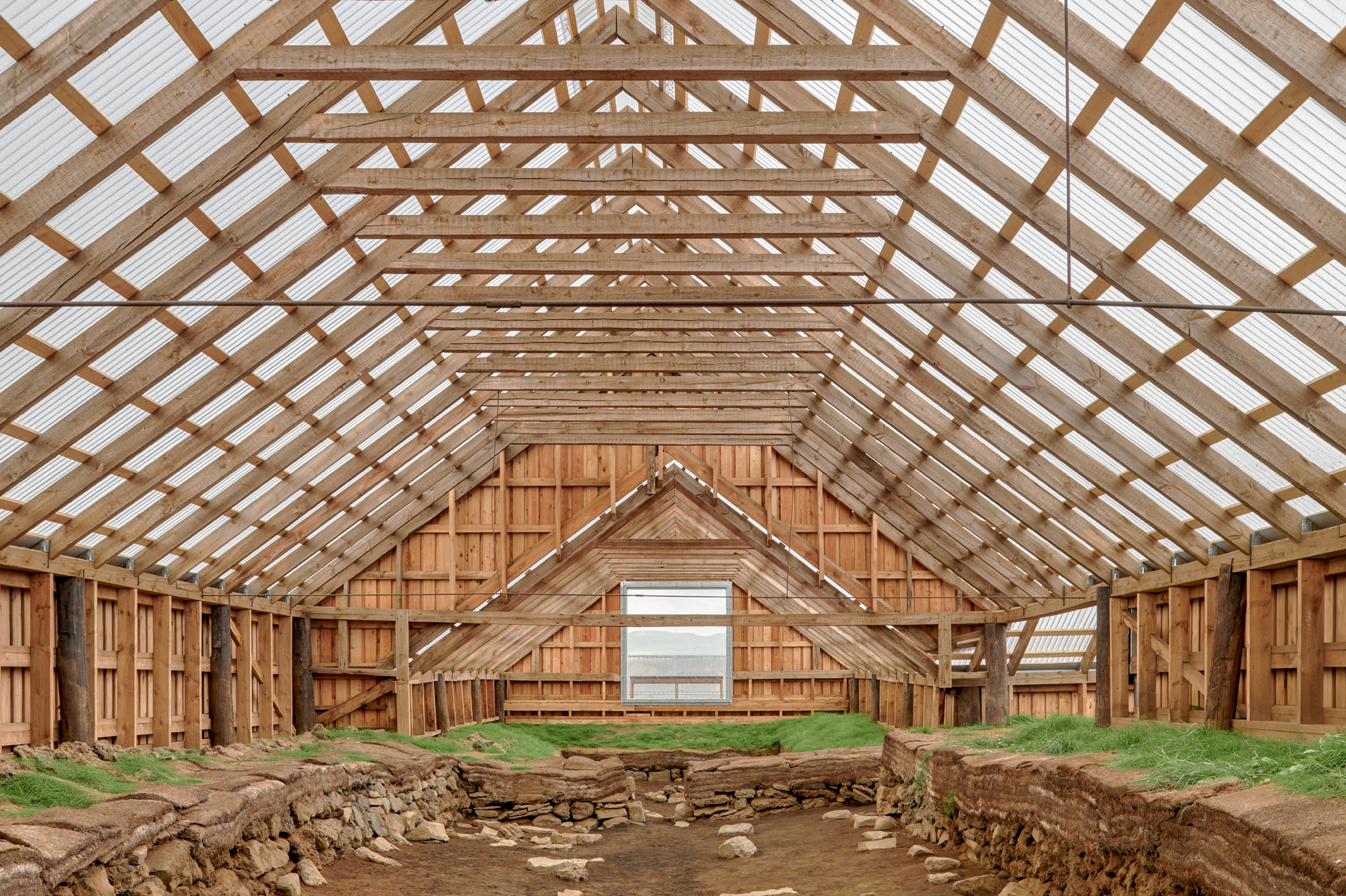

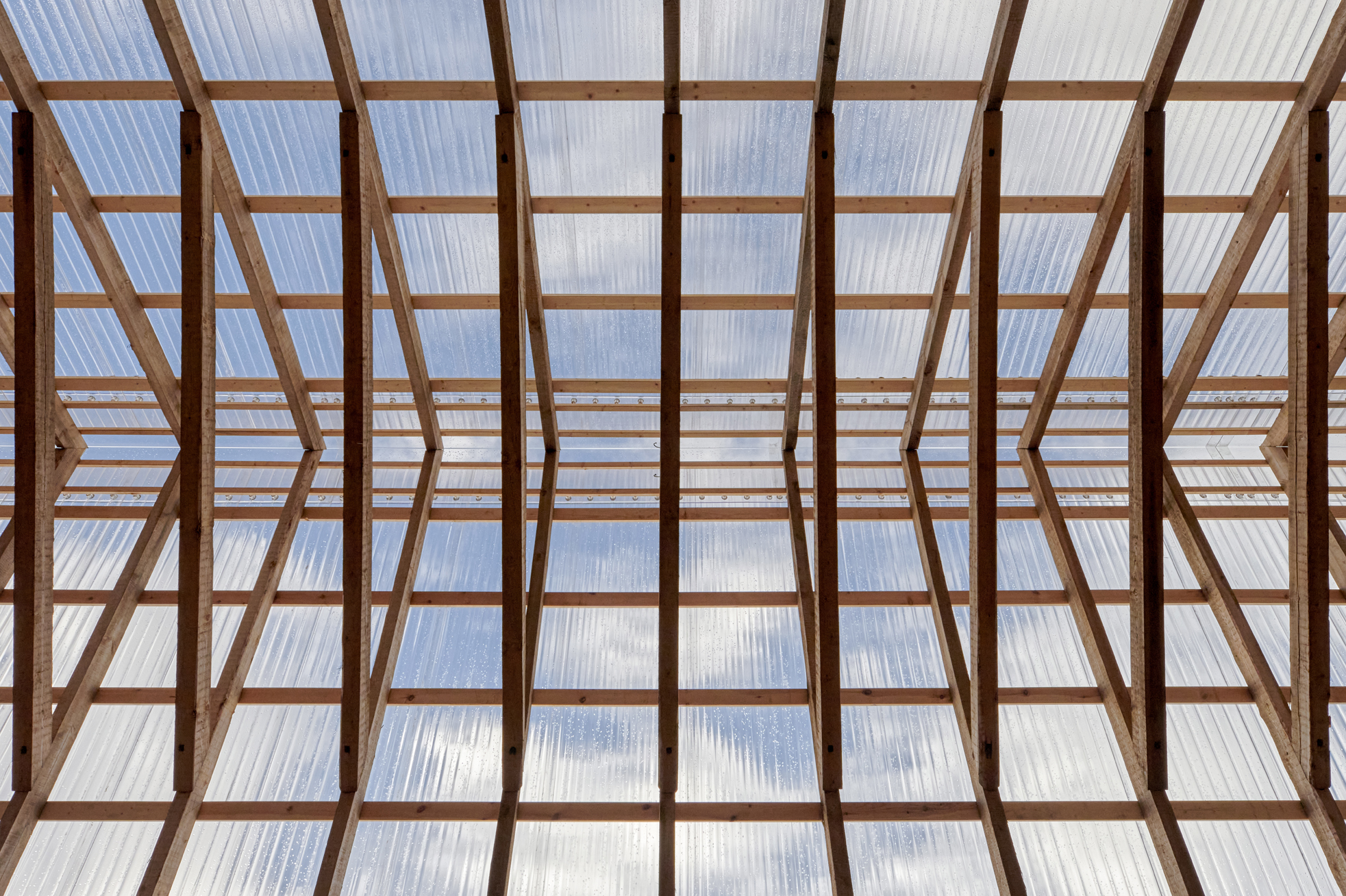

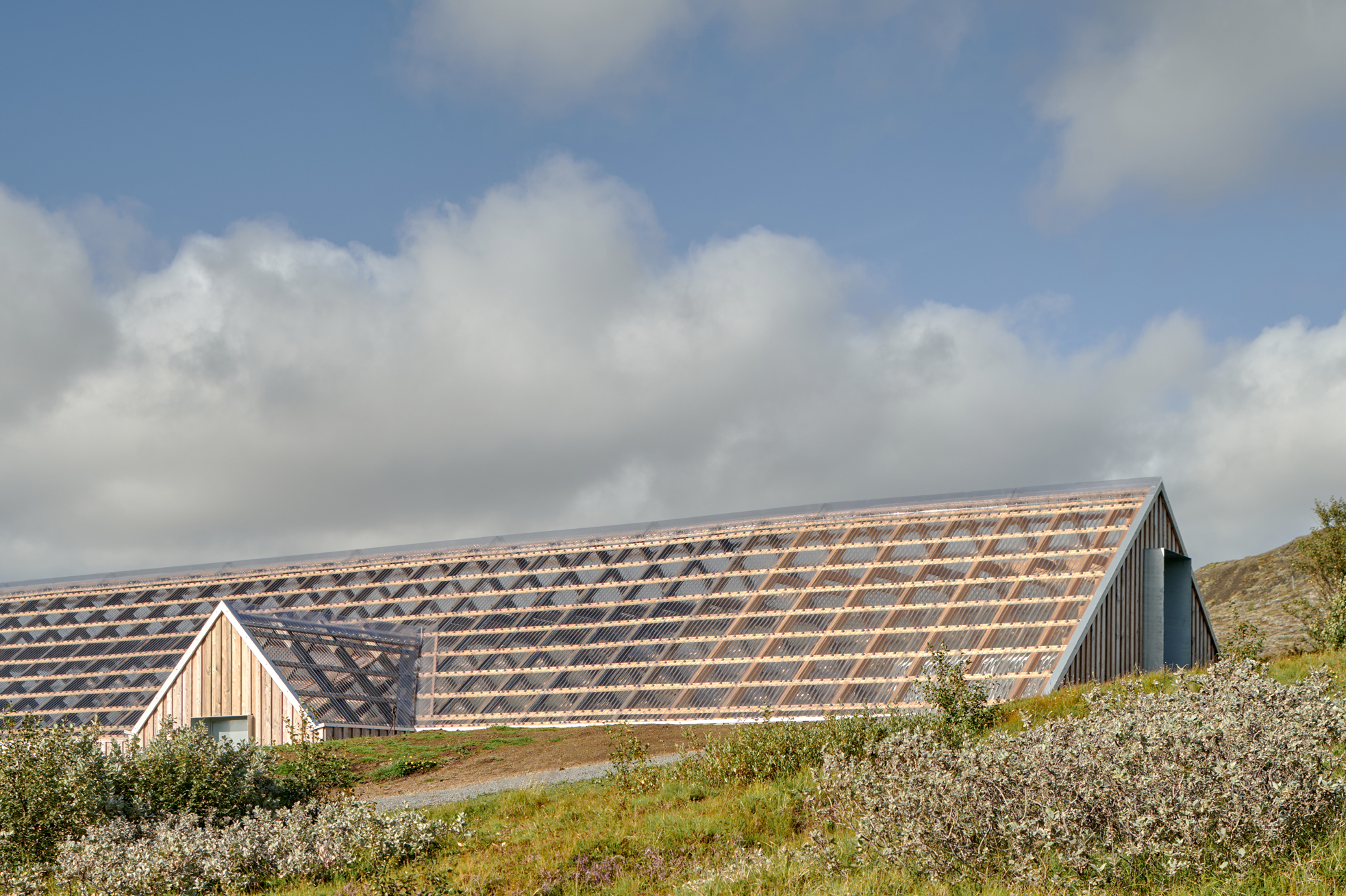

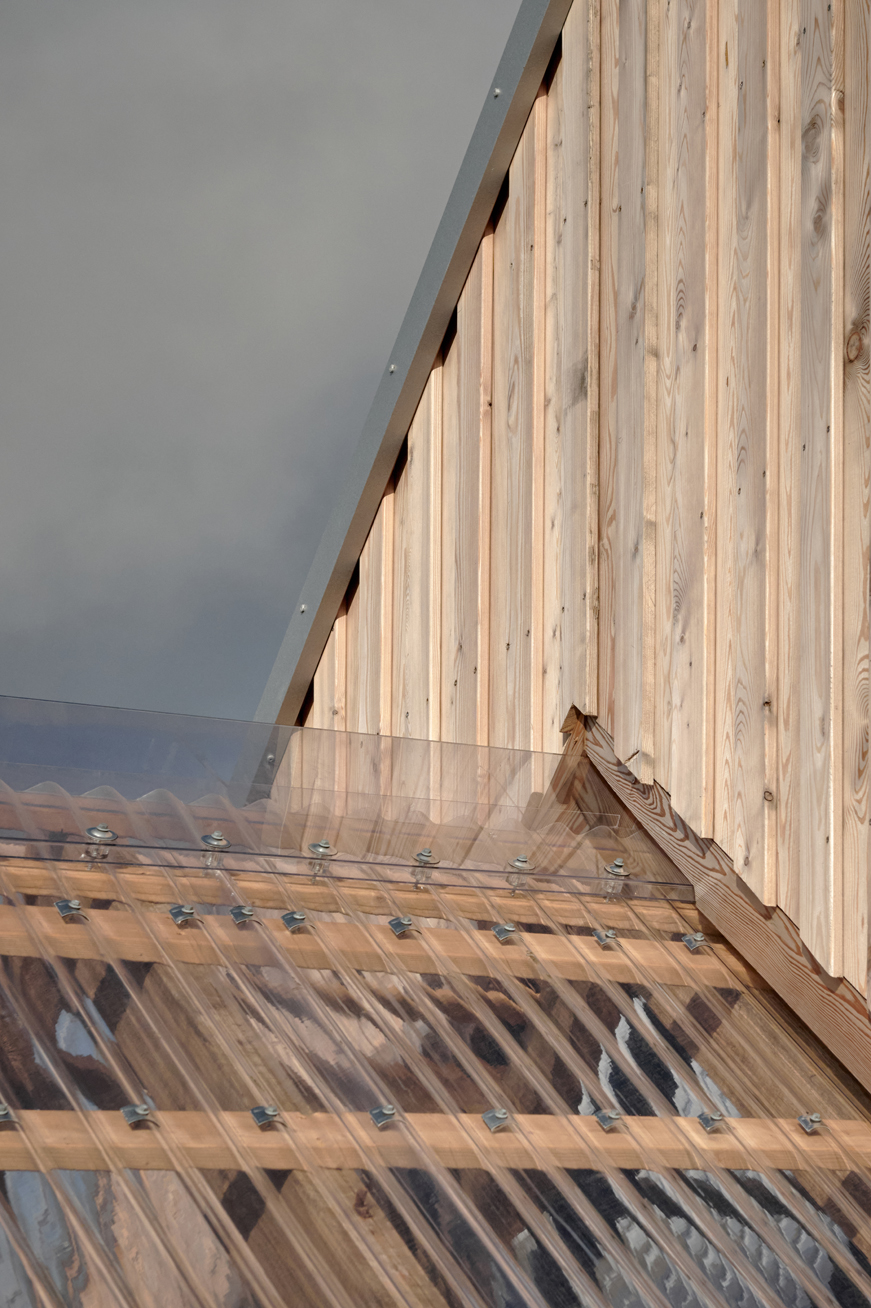

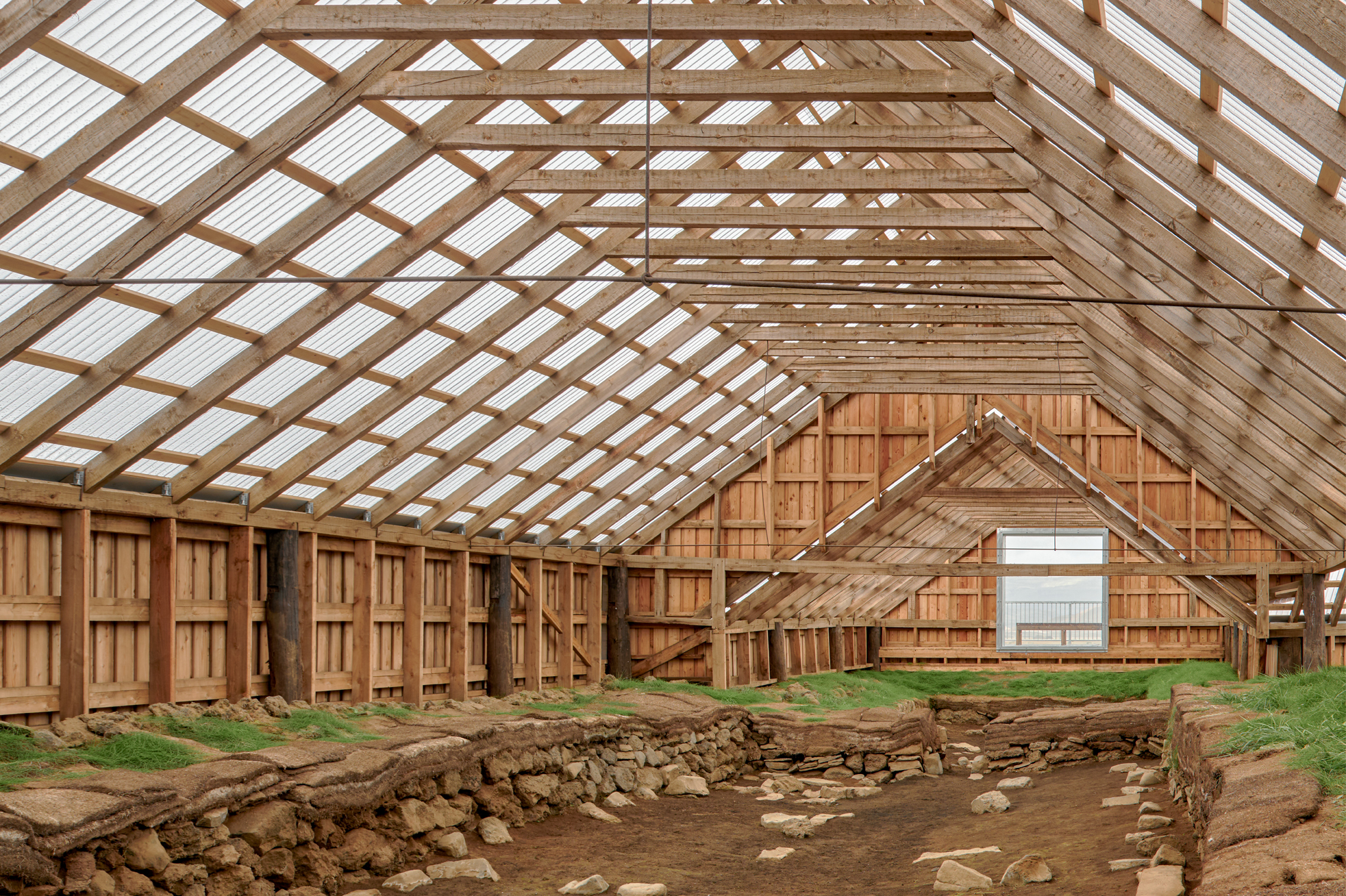

The project redefines the shelter through a precise synthesis of material performance, structural reuse, and environmental responsibility. The original timber frame, once a protective framework for the ruins, has been retained and reinforced as the primary structural system, conserving embodied carbon and minimizing resource use. New structural and cladding elements of untreated larch offer natural durability, dimensional stability, and resistance to decay without chemical treatment. A lightweight corrugated polycarbonate roof enhances insulation, allows natural ventilation, and is fully recyclable. The structure is designed for complete disassembly, allowing future reuse with minimal impact. Permeable gravel and bioswales manage stormwater passively, eliminating the need for hard drainage infrastructure. Operating entirely through passive systems, the shelter requires minimal maintenance. The result is an enduring architectural vision in which heritage and ecology are intertwined.

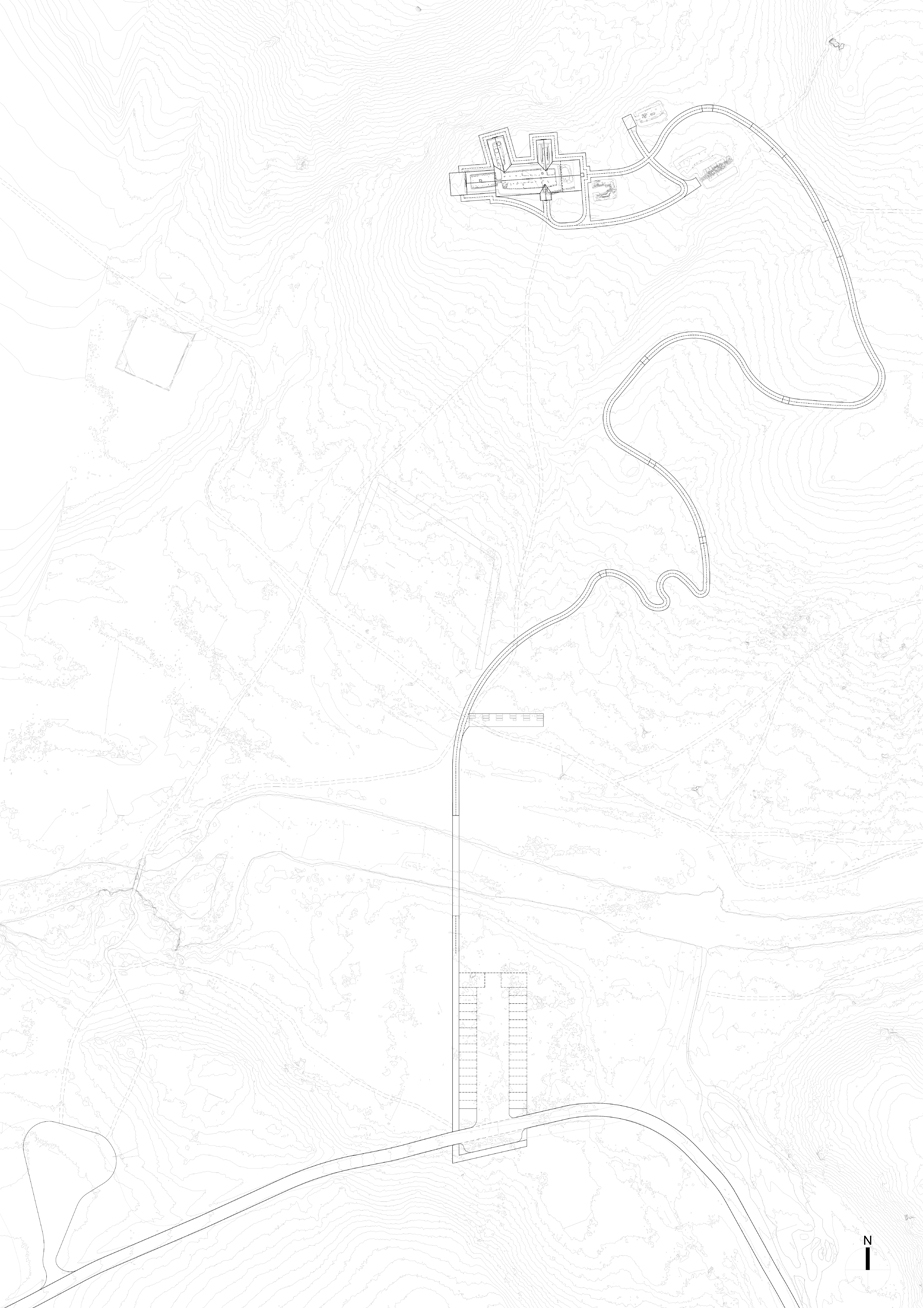

Situation Plan ©SP(R)INT STUDIO

Plan ©SP(R)INT STUDIO

Cross section ©SP(R)INT STUDIO

Longitudinal section ©SP(R)INT STUDIO

East facade ©SP(R)INT STUDIO

North facade ©SP(R)INT STUDIO

South facade ©SP(R)INT STUDIO

West facade ©SP(R)INT STUDIO
