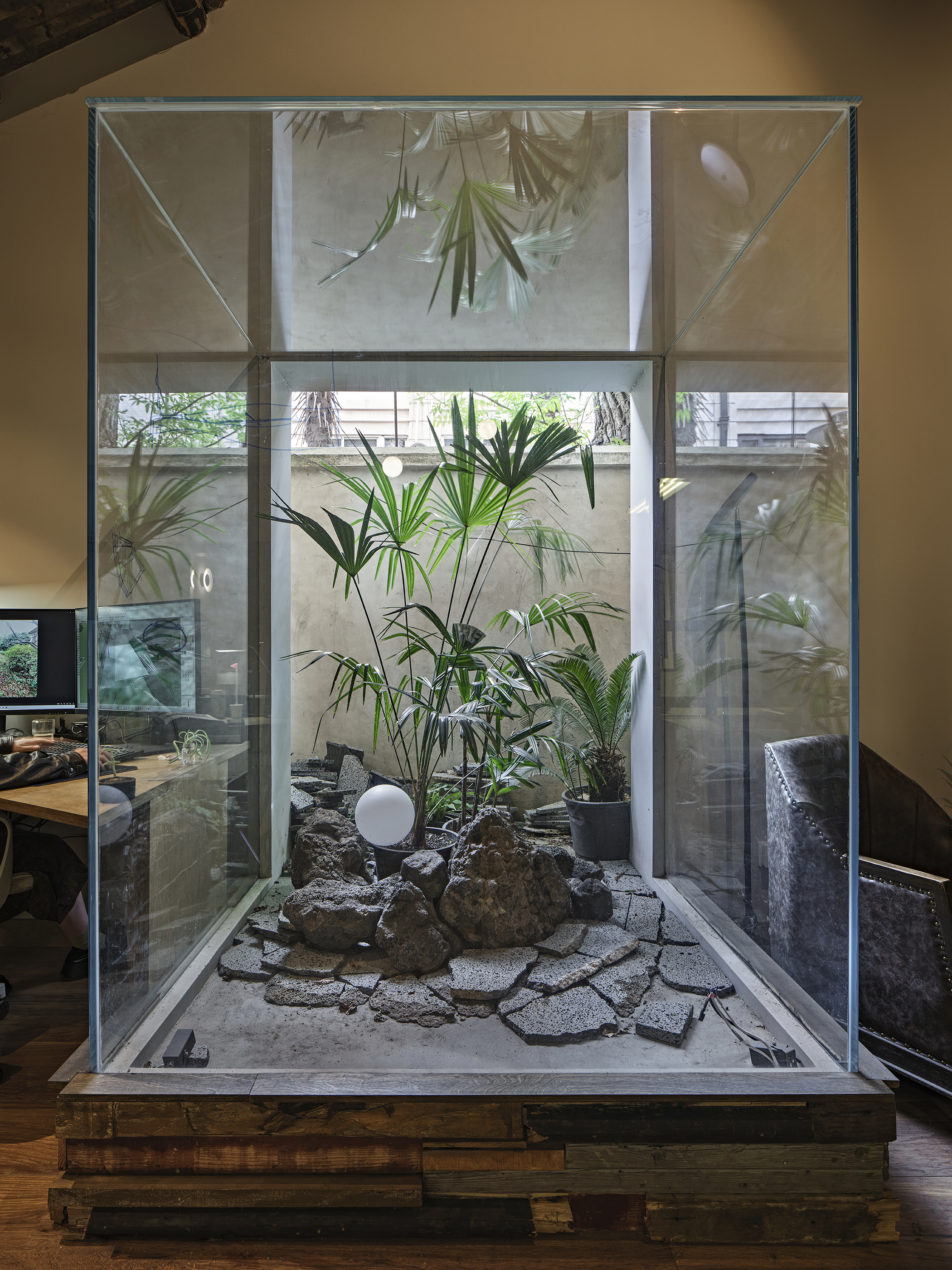

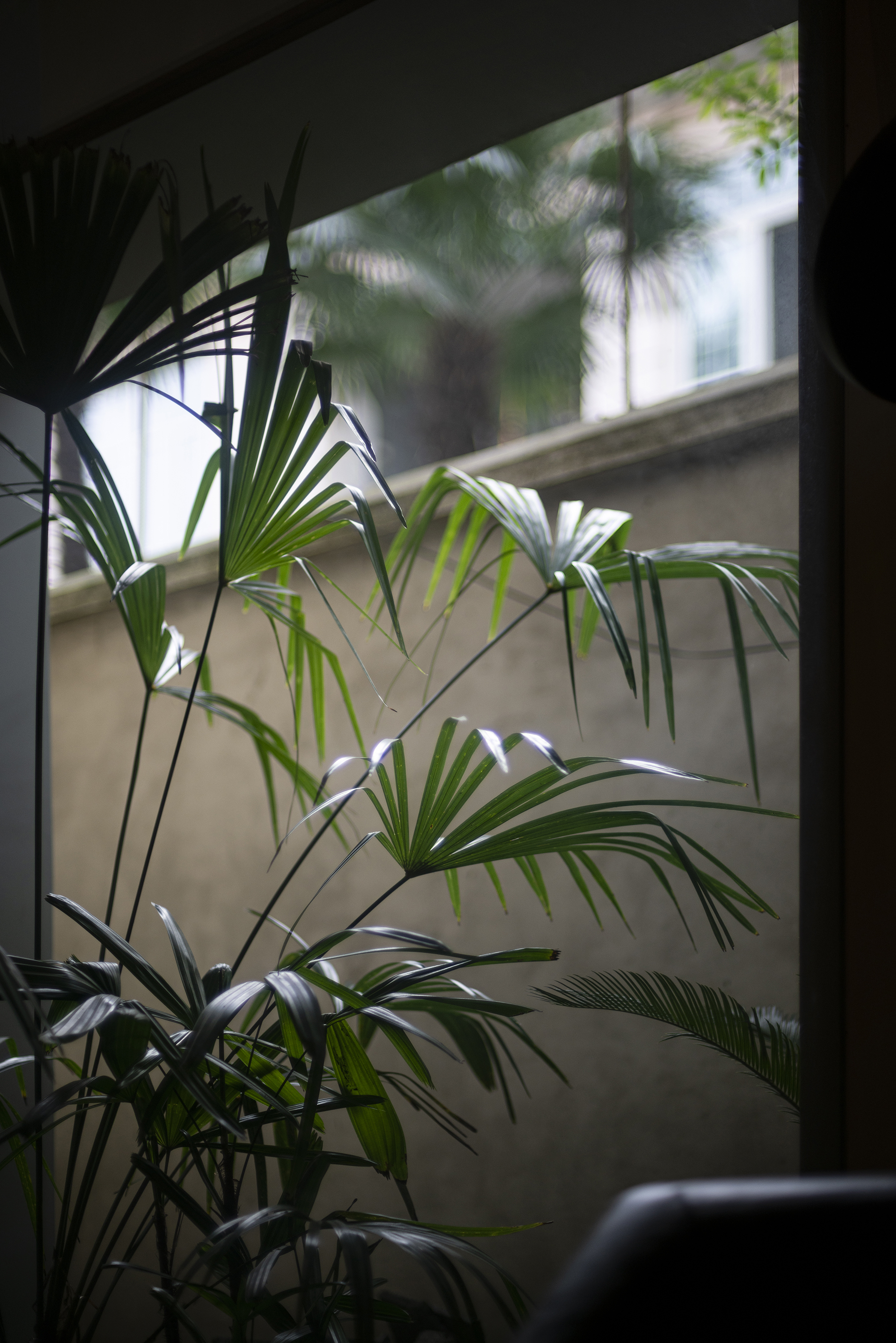

由嵌入的玻璃“天井”向外望©王善祥

Looking outward from the embedded glass "courtyard" © Wang Shanxiang

木屋架细部动图 Door and window movement diagram

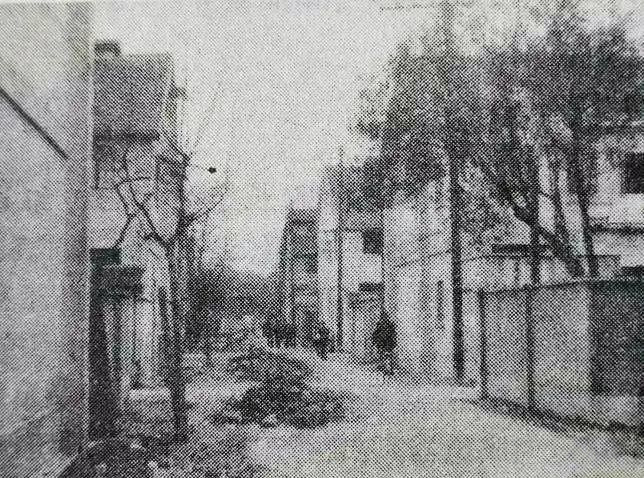

愚园路旧照（来源于网络）

Old photos of Yuyuan Road (sourced from the internet)

隐入尘烟

这是位于上海愚园路1293弄内的一个旧厂房的改造。愚园路，始建于清朝宣统三年（1911年），工部局越界填浜筑路，以当时著名园林“愚园”命名。这里每一条弄堂可能都有一段精彩的传奇故事。曾经的愚园路，当时上海滩的一众名流可能都曾有过来来去去甚至居住其间。位于本项目的南侧隔壁2号甲，一幢有围墙院子的三层西式小楼俭德坊，2015 年被列为上海市第五批优秀历史建筑，同盟会元老何遂与其子何康曾居住于此。被毛泽东称为密使一号的吴石是中国共产党打入国民党内部的最高情报官，他和副官聂曦经常来俭德坊传送重要军事情报，电视剧《潜伏》中余则成的原型就是吴石。时过境迁，如今的愚园路是上海最为时尚、繁华的一条商业街，尤其是来消费、打卡的年轻人络绎不绝，和平生活的信息通过当代手段仍然交流不止，怀旧与新潮同在，文化与商业共融。

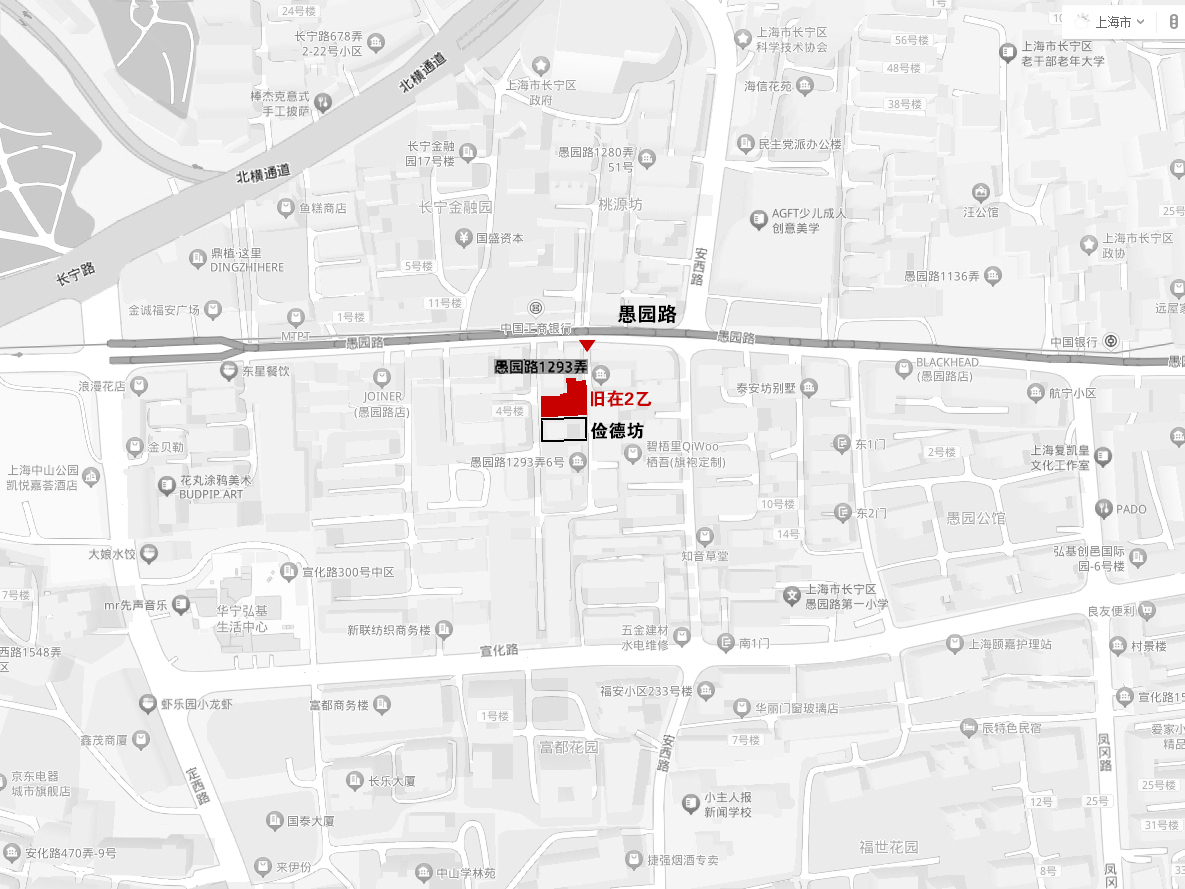

项目区位图 Project Area Map

Return to Dust

This is the renovation of an old factory located in Lane 1293, Yuyuan Road, Shanghai. Yuyuan Road was first built in the third year of the Xuantong reign of the Qing Dynasty (1911). The Ministry of Works crossed the border and built a road, named after the famous garden "Yuyuan" at that time. Every alley here may have a wonderful legendary story. The former Yuyuan Road may have been visited and even inhabited by a group of celebrities from Shanghai Beach at that time. Located in No. 2A, next to the south side of the project, a three storey western style small building with a walled yard, Jiande Square, was listed as the fifth batch of outstanding historical buildings in Shanghai in 2015. He Sui, the old man of the Alliance, and his son He Kang once lived here. Wu Shi, who Mao Zedong called the No.1 emissary, was the top intelligence officer of the CPC who had infiltrated the Kuomintang. He and his adjutant Nie Xi often came to Jiande Square to transmit important military information. The prototype of Yu Zecheng in the TV series "Lurk" was Wu Shi. Time has changed, and now Yuyuan Road is one of the most fashionable and bustling commercial streets in Shanghai, especially with a constant stream of young people coming to consume and check in. The information of peaceful life is still constantly exchanged through contemporary means, with nostalgia and novelty coexisting, and culture and commerce blending together.

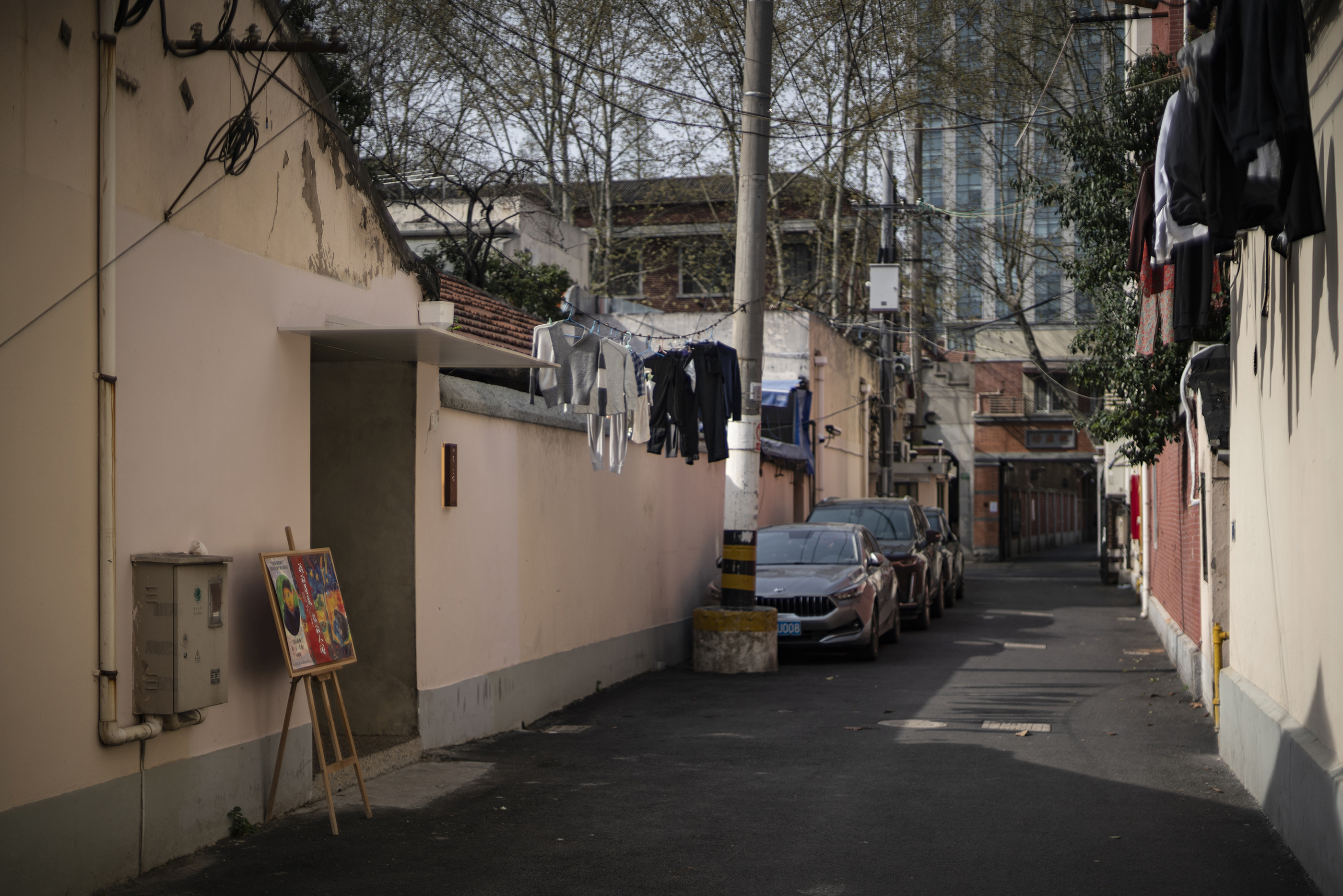

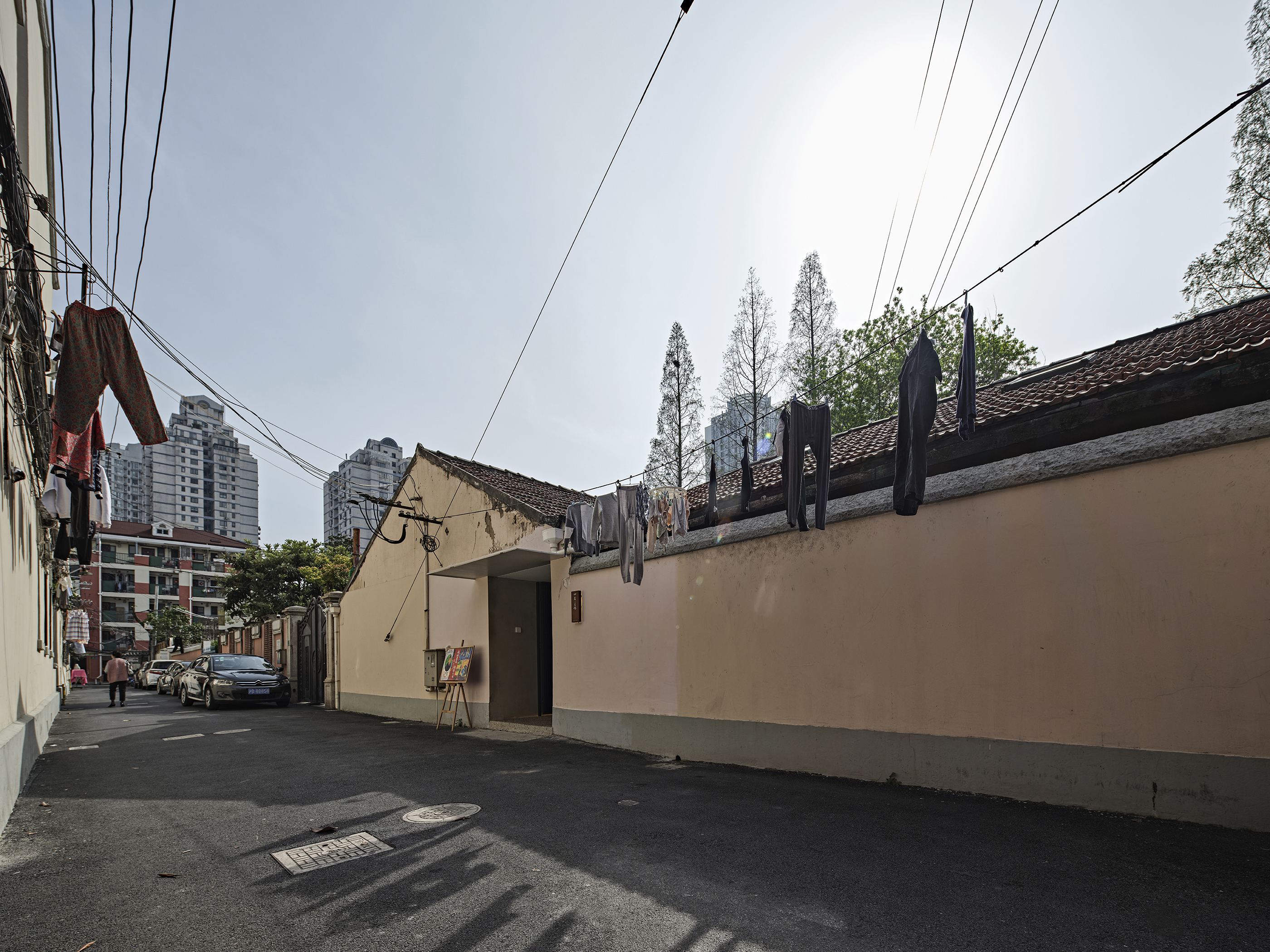

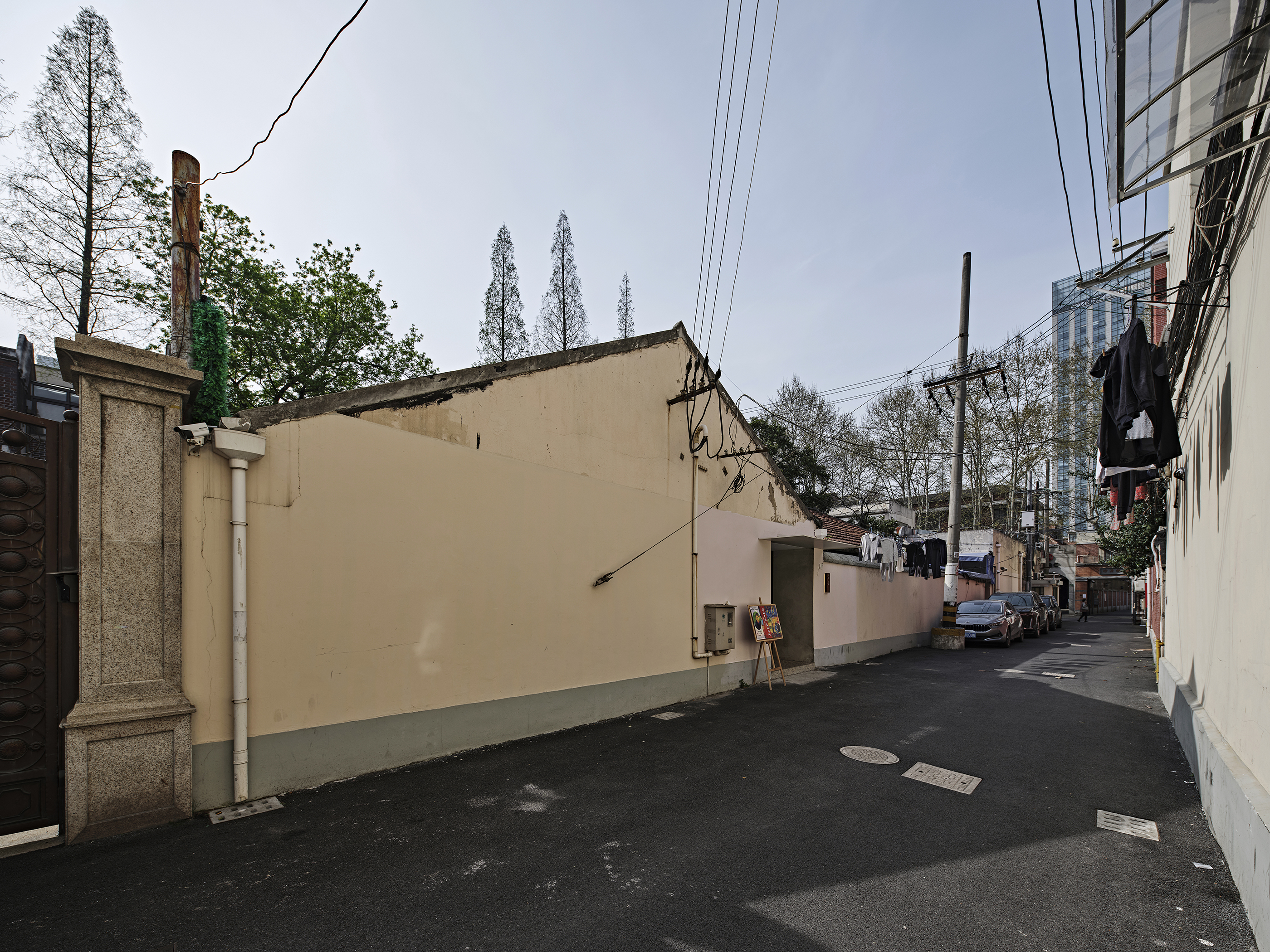

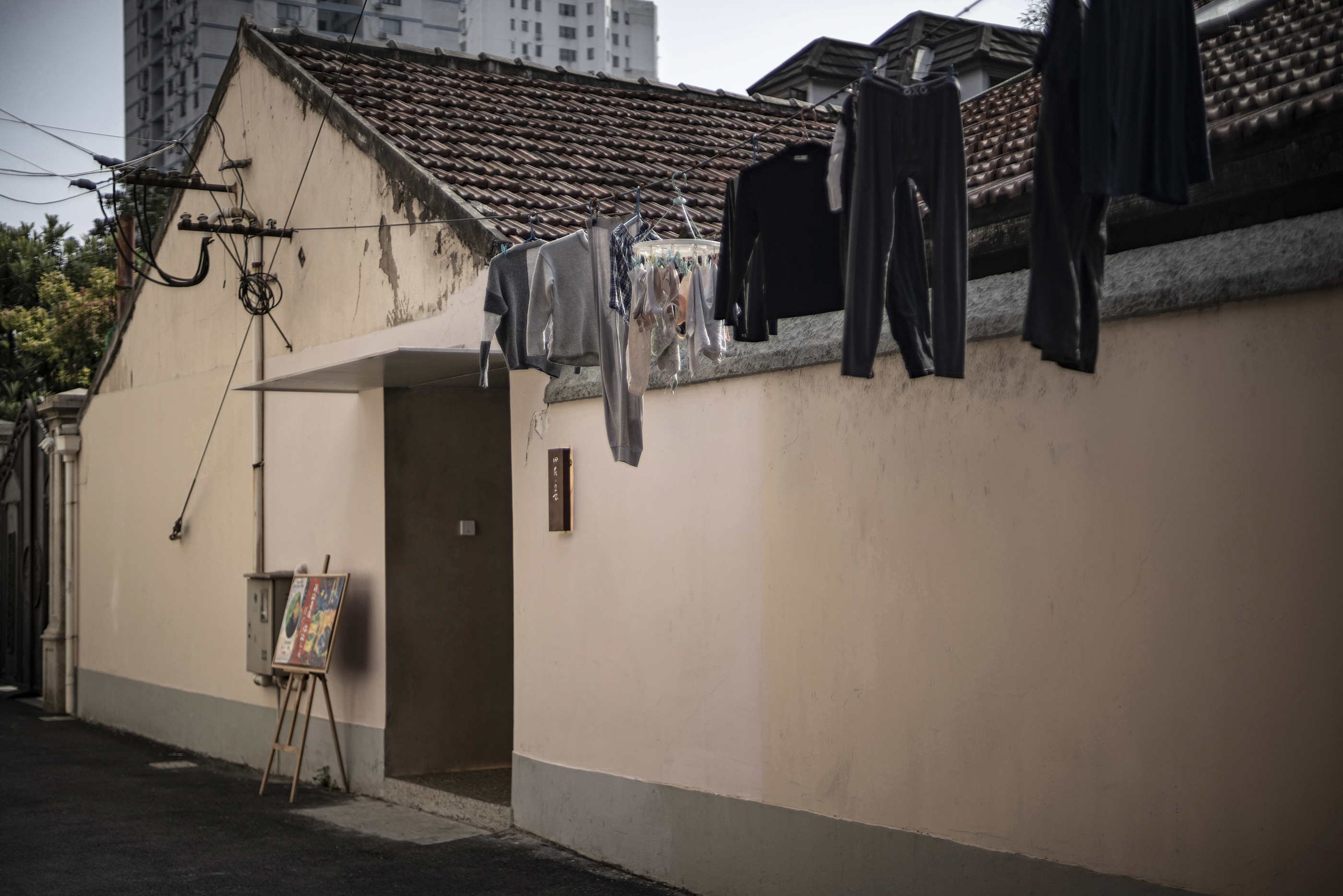

由弄堂看外立面©胡文杰

Looking at the exterior facade from the alley © Hu Wenjie由弄堂看外立面©王善祥

Looking at the exterior facade from the alley © Wang Shanxiang

由弄堂看外立面©胡文杰

Looking at the exterior facade from the alley © Hu Wenjie

由弄堂看外立面©王善祥

Looking at the exterior facade from the alley © Wang Shanxiang

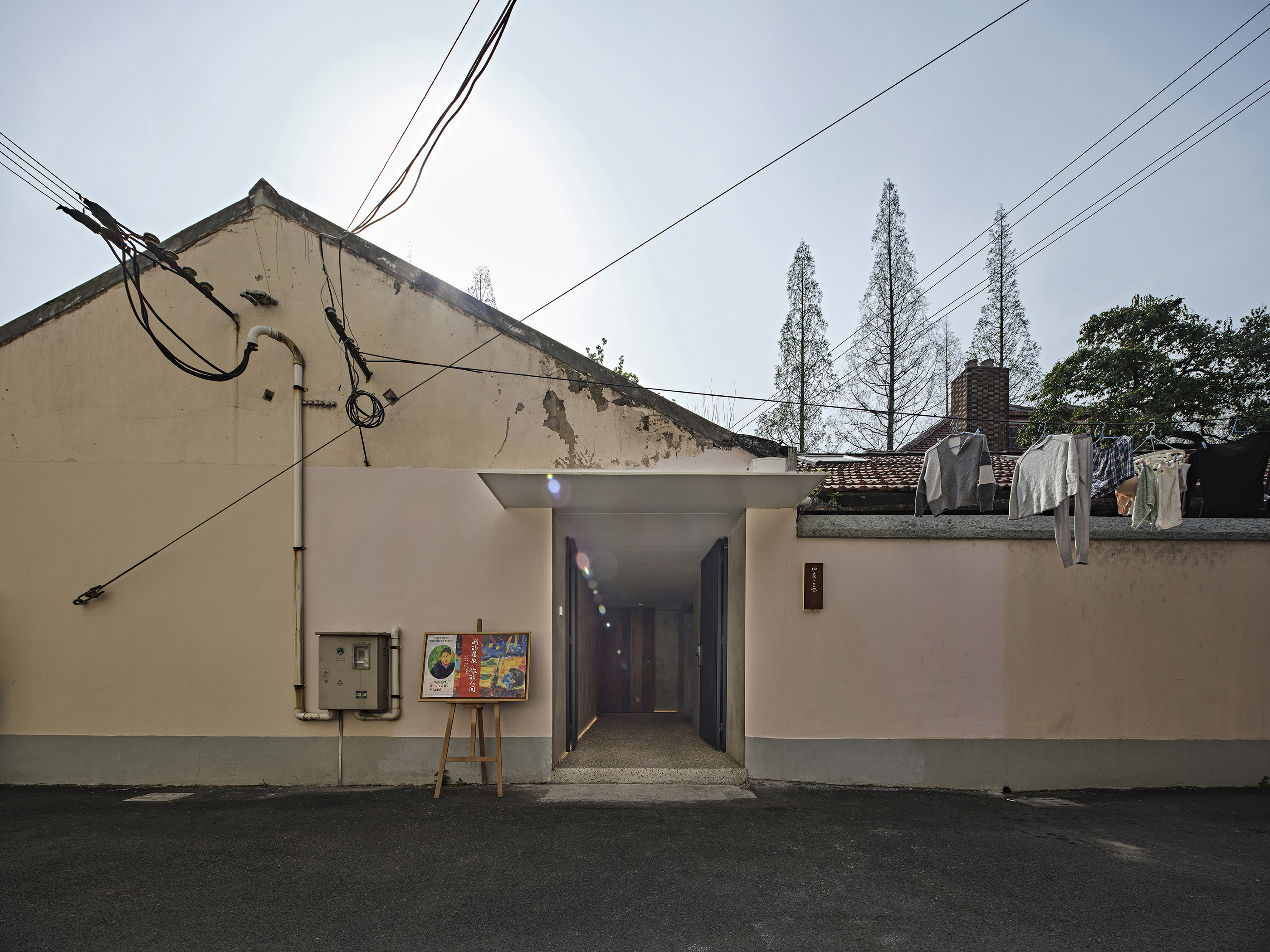

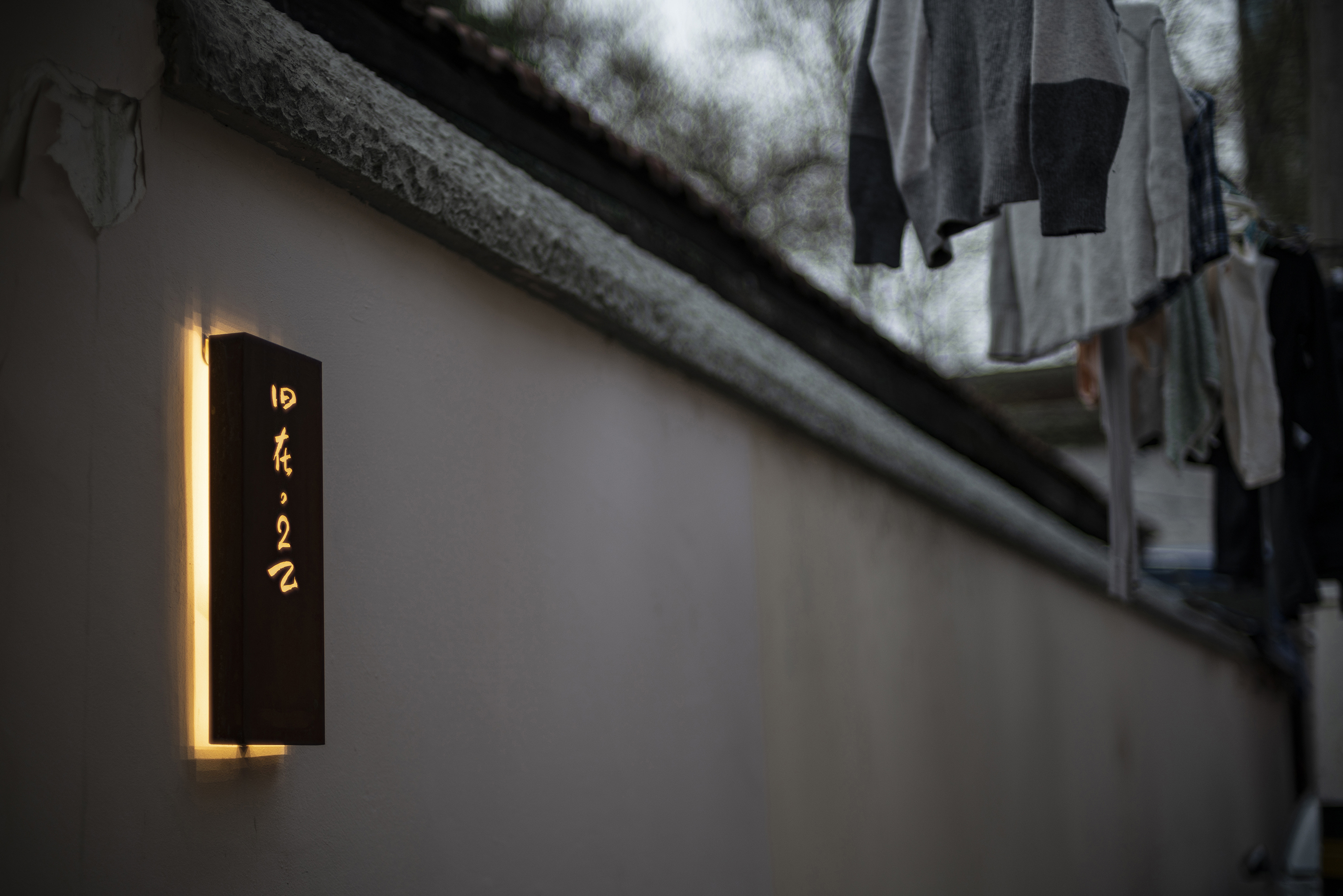

外立面©胡文杰 Facade © Hu Wenjie

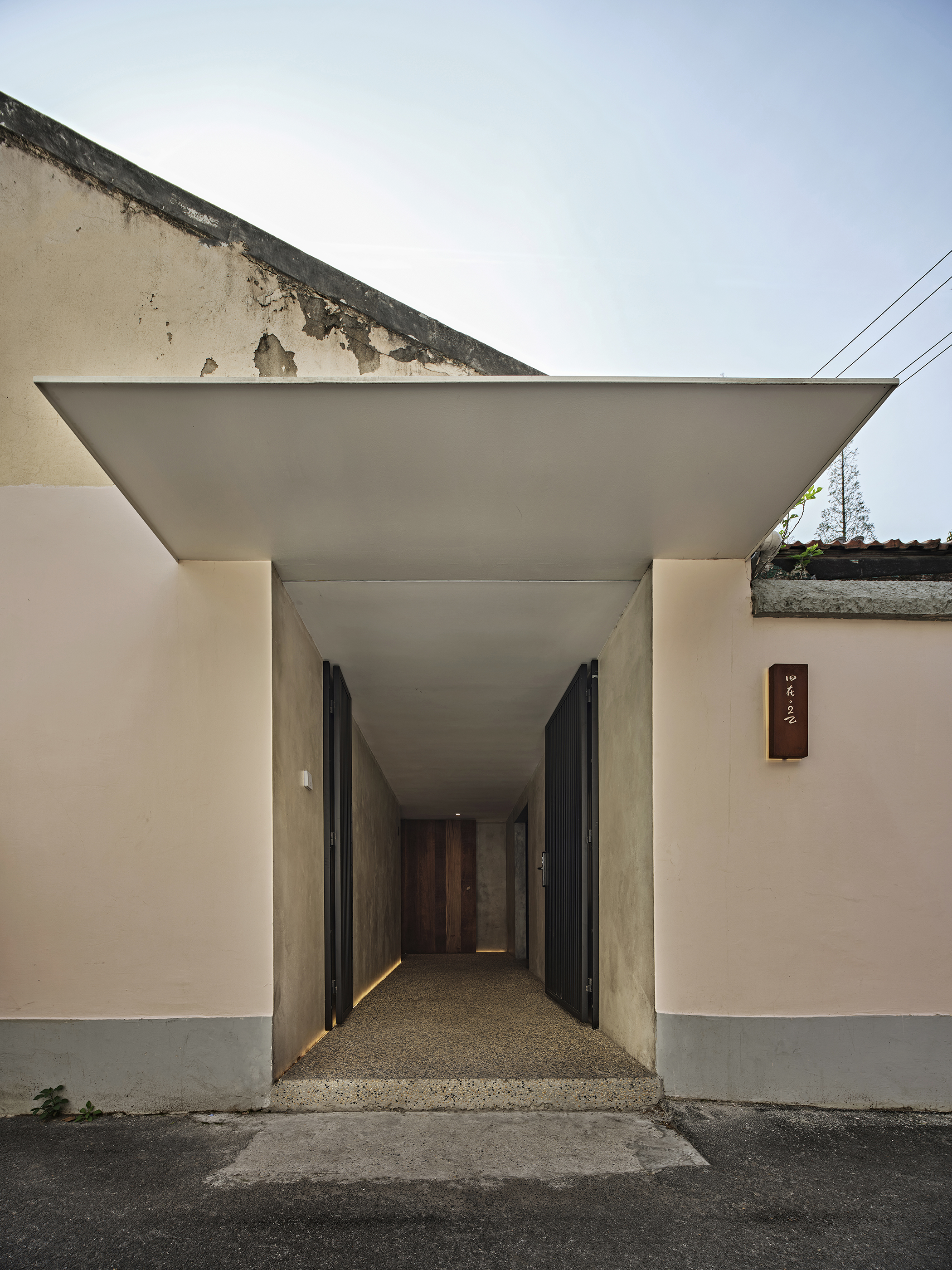

入口大门©胡文杰Entrance Gate © Hu Wenjie

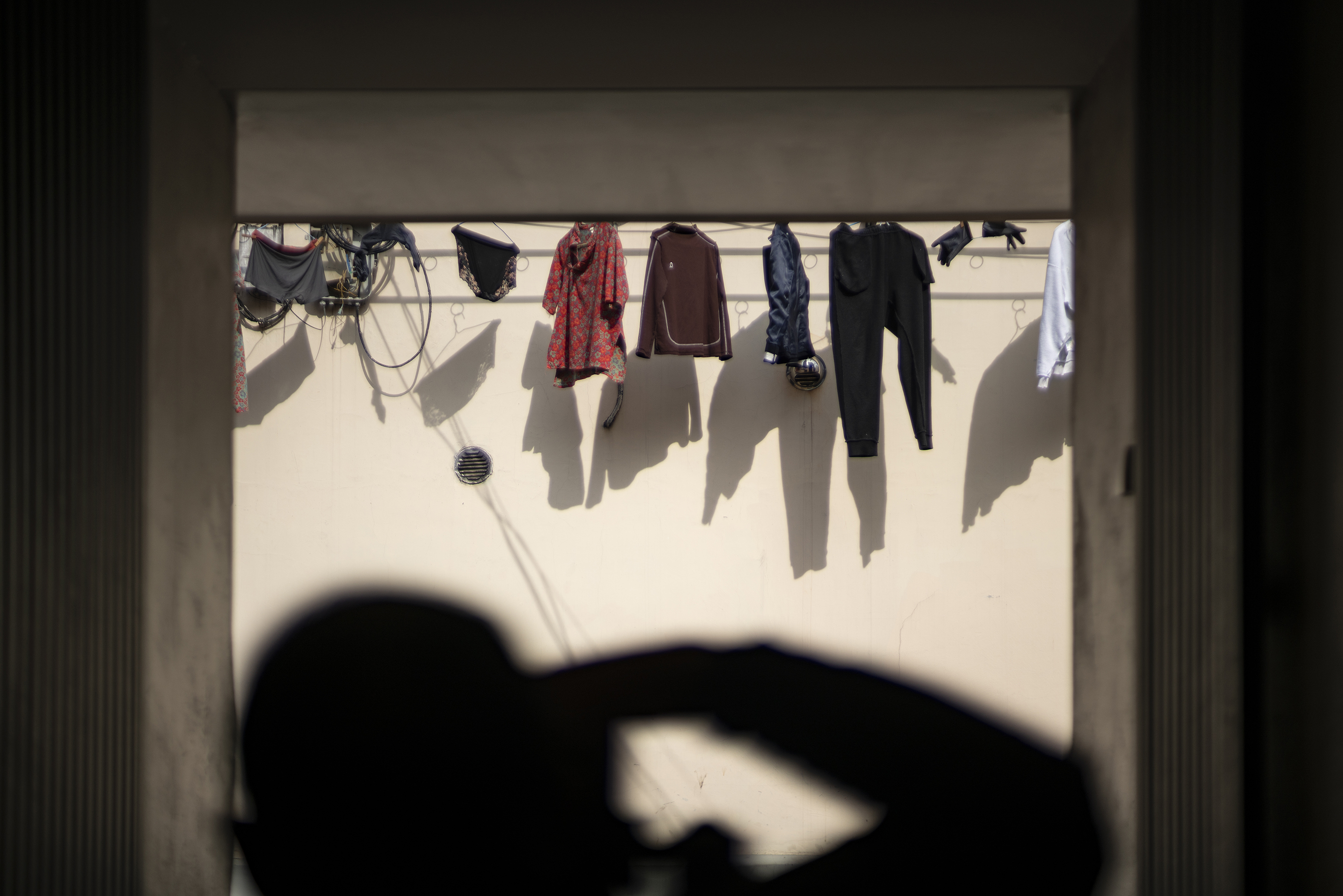

隐入尘烟©王善祥 Hidden dust© Wang Shanxiang

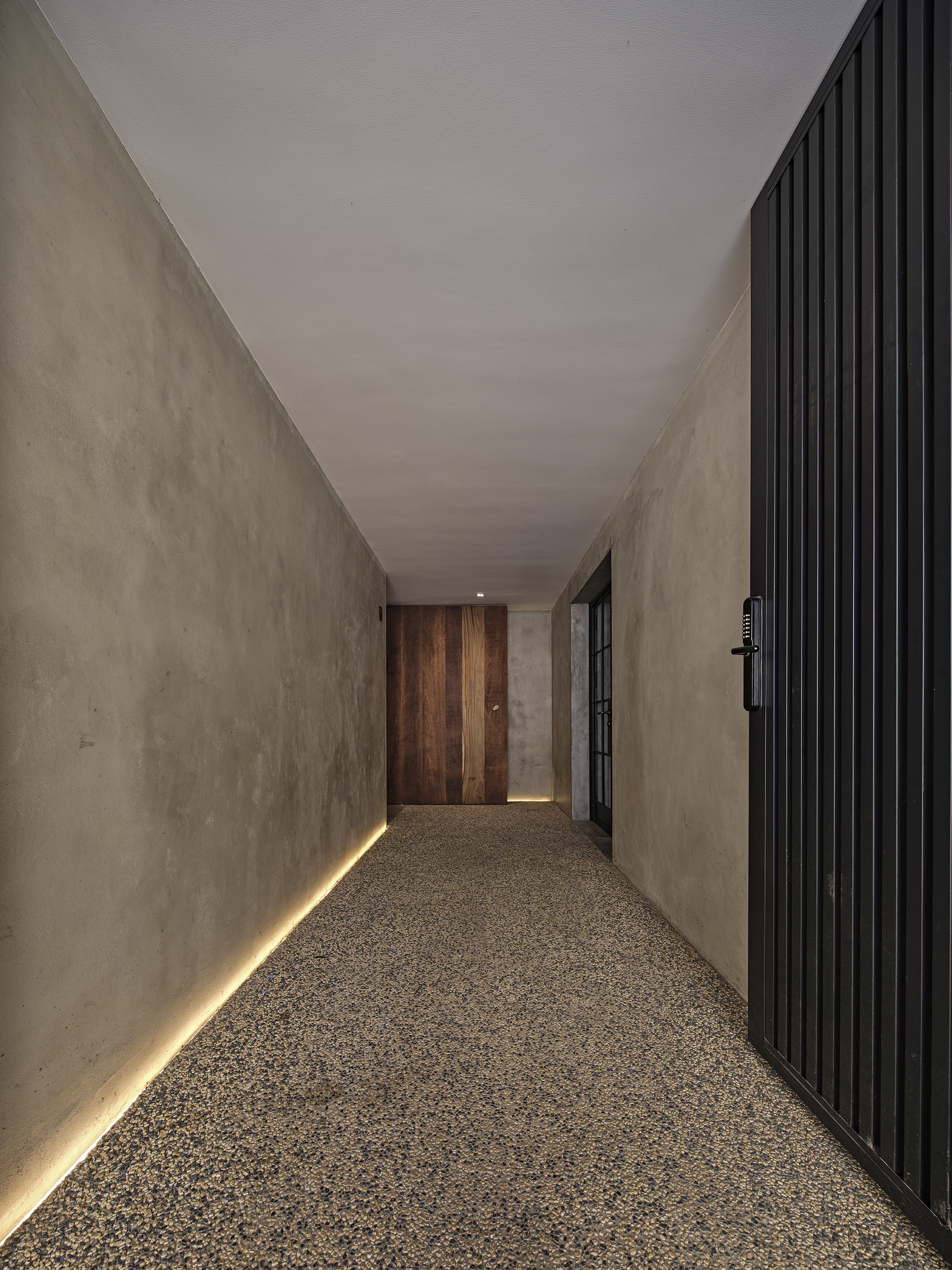

入口7米长的廊道将空间和居民区弄堂做了一点隔绝，以减少干扰©胡文杰

The 7-meter-long corridor at the entrance of provides some isolation between the space and the residential alleyway to reduce interference © Hu Wenjie

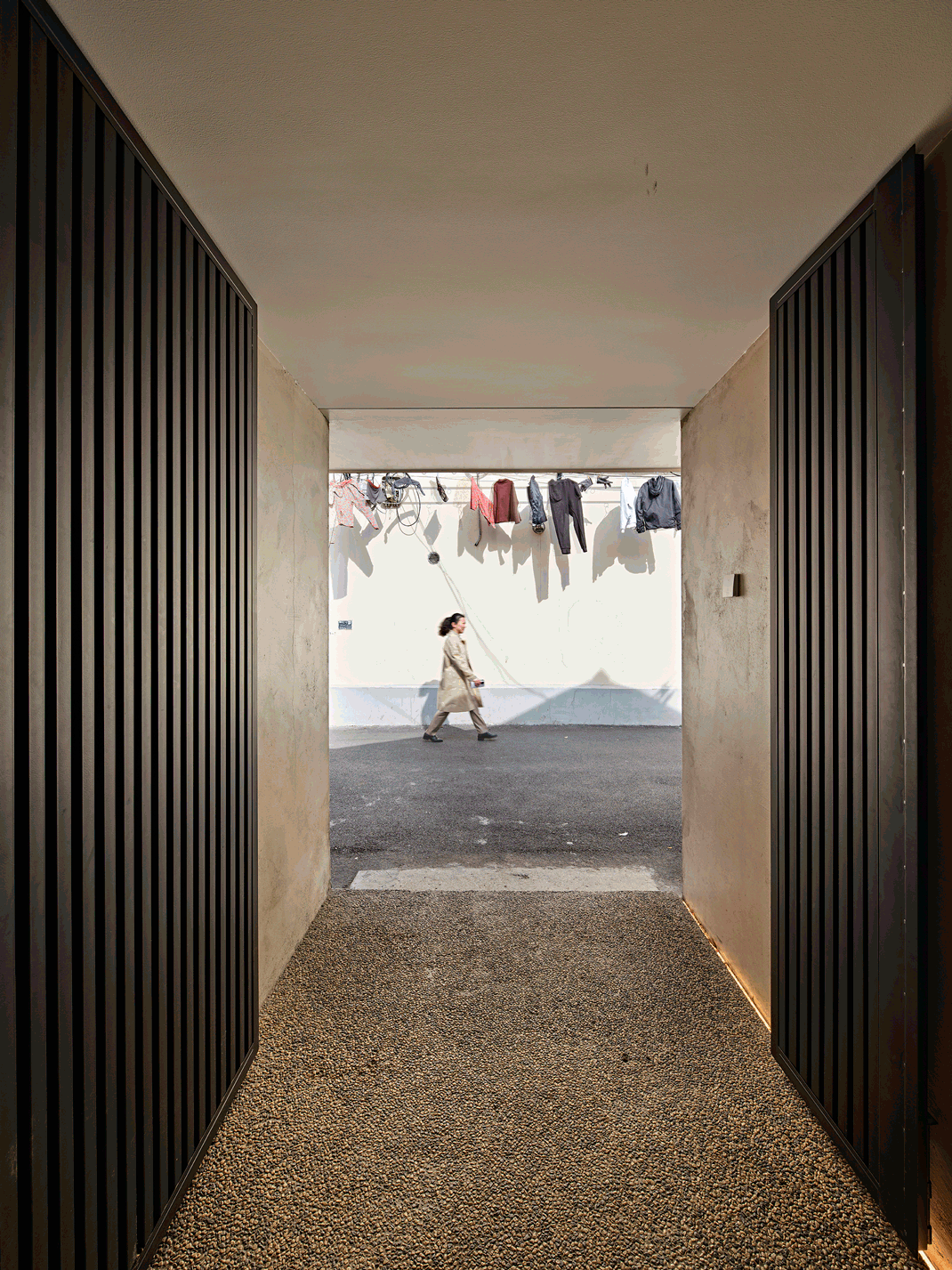

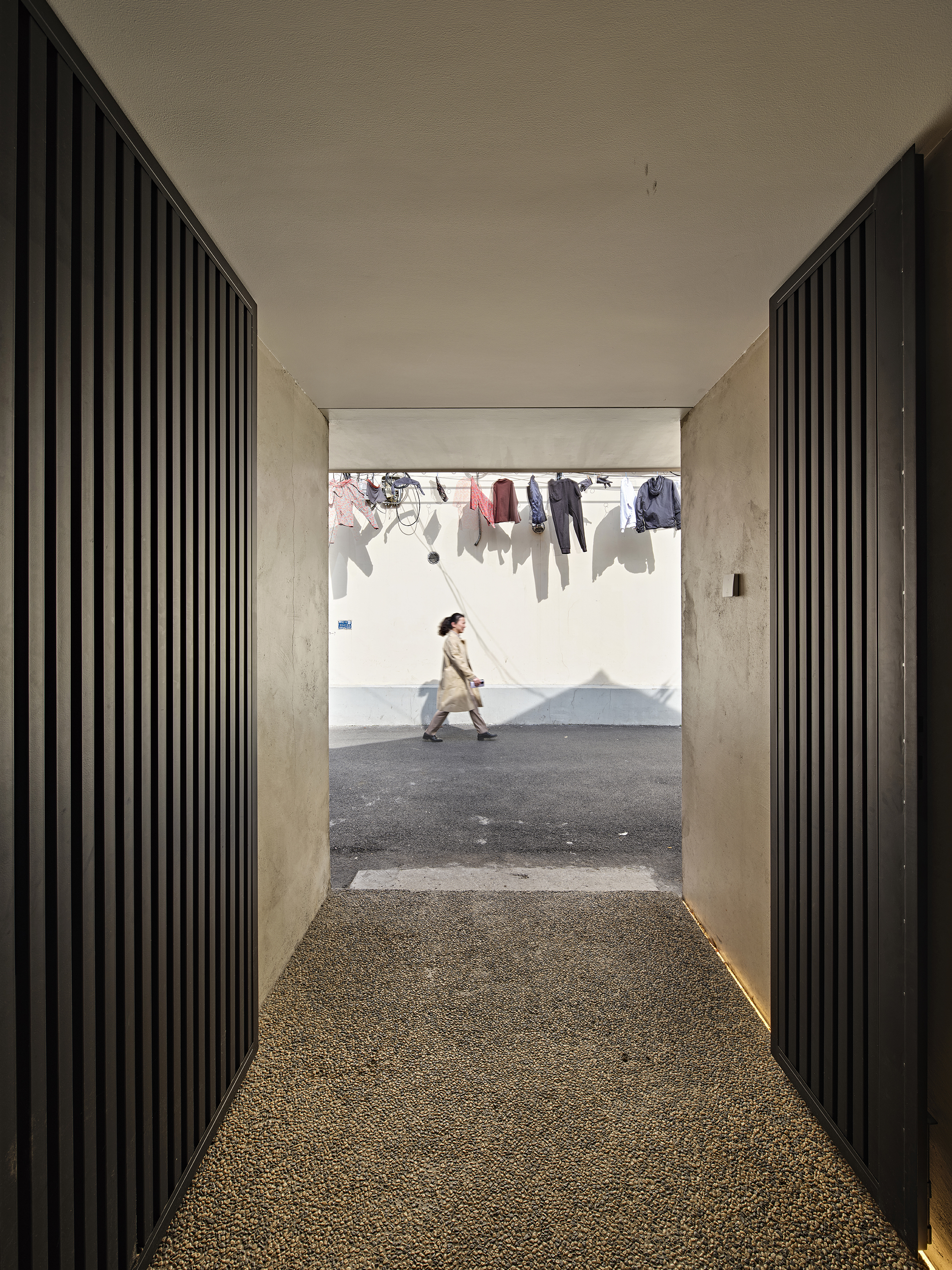

入口廊道往外看©胡文杰

Entrance Corridor Looking Outside © Hu Wenjie

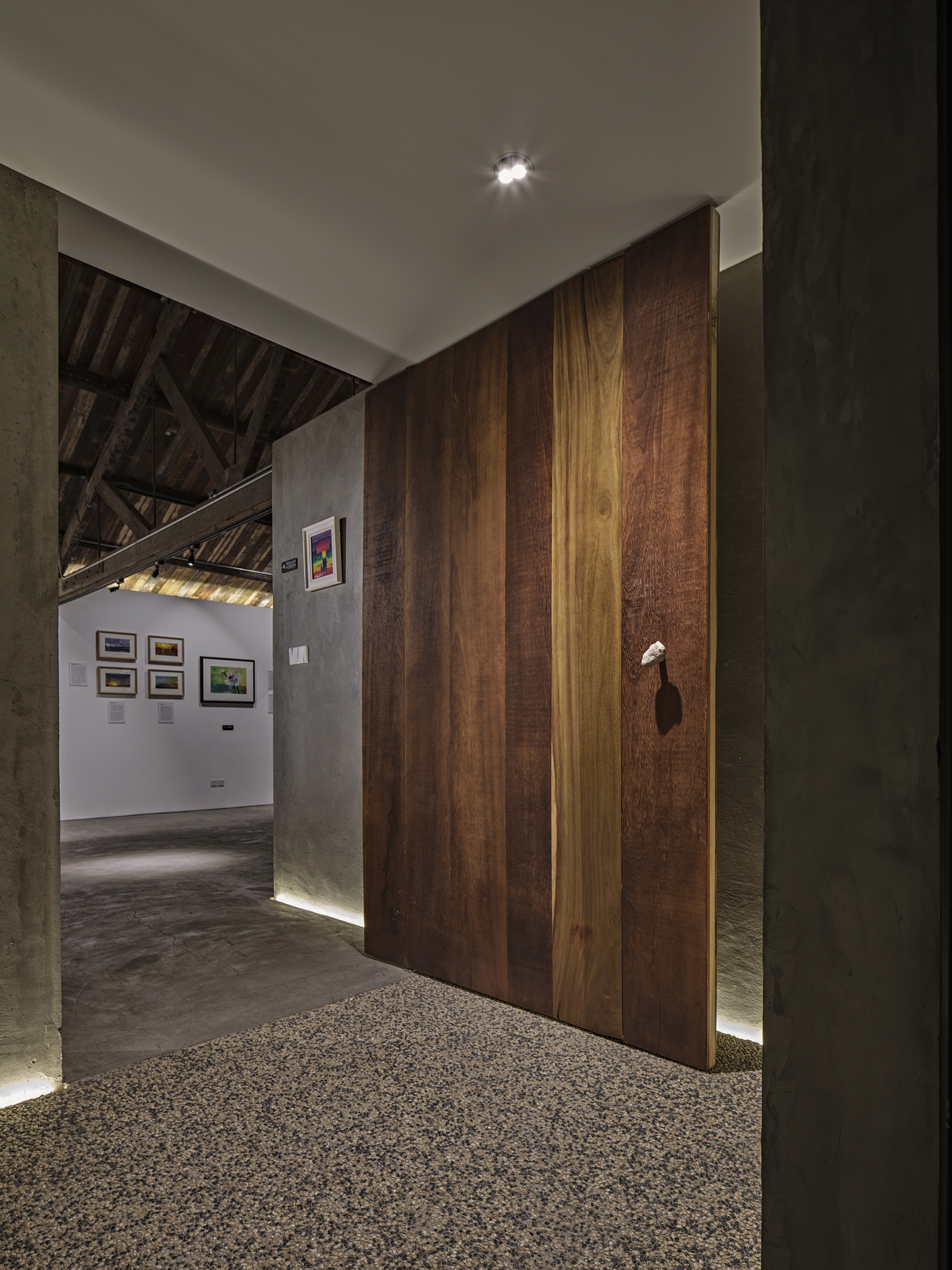

主展厅大门©胡文杰

Main Exhibition Hall Gate © Hu Wenjie

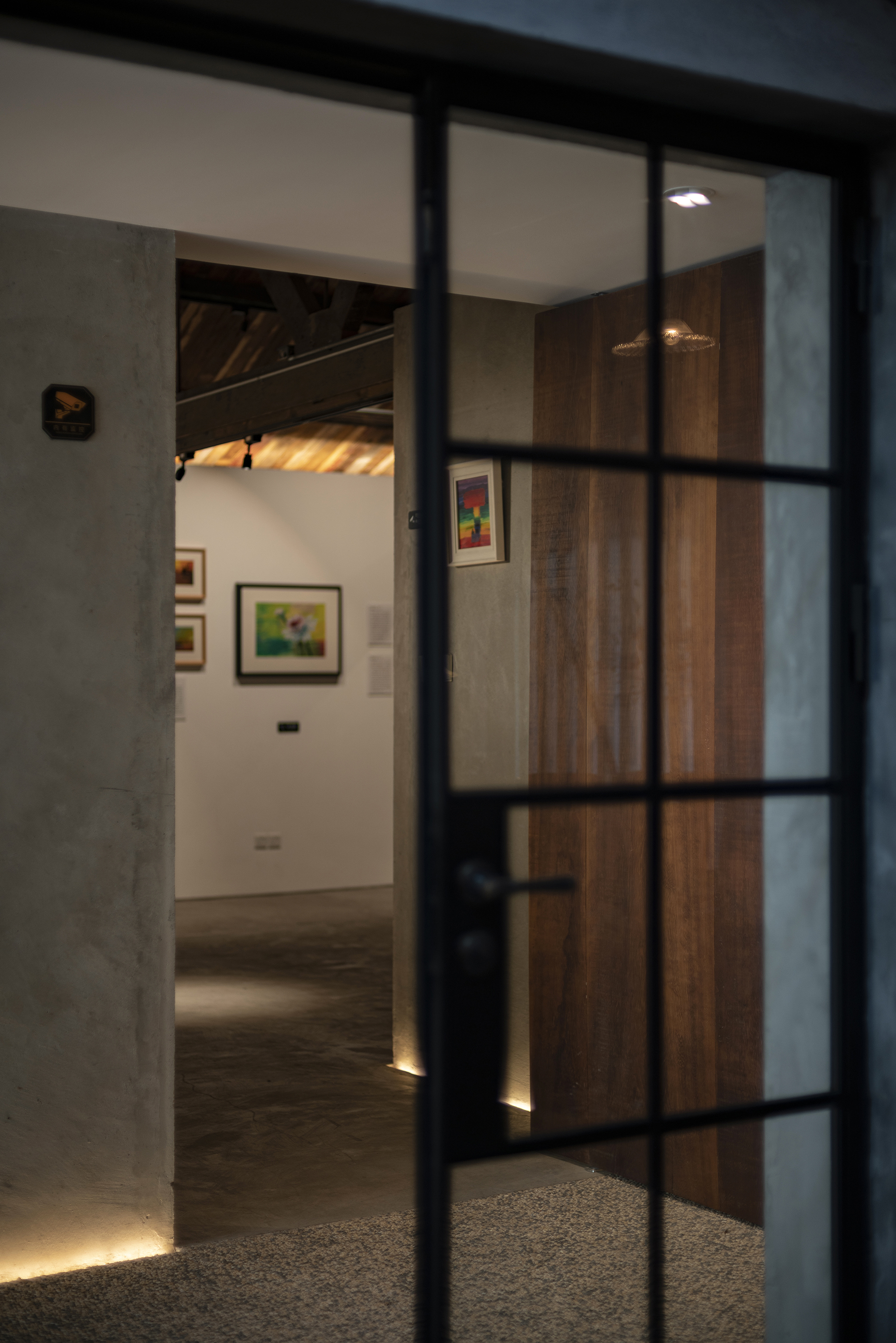

从咖啡厅的门看主展厅大门©王善祥

View the main exhibition hall entrance from the door of the lounge © Wang Shanxiang

主展厅大门©王善祥

Main Exhibition Hall Gate © Wang Shanxiang

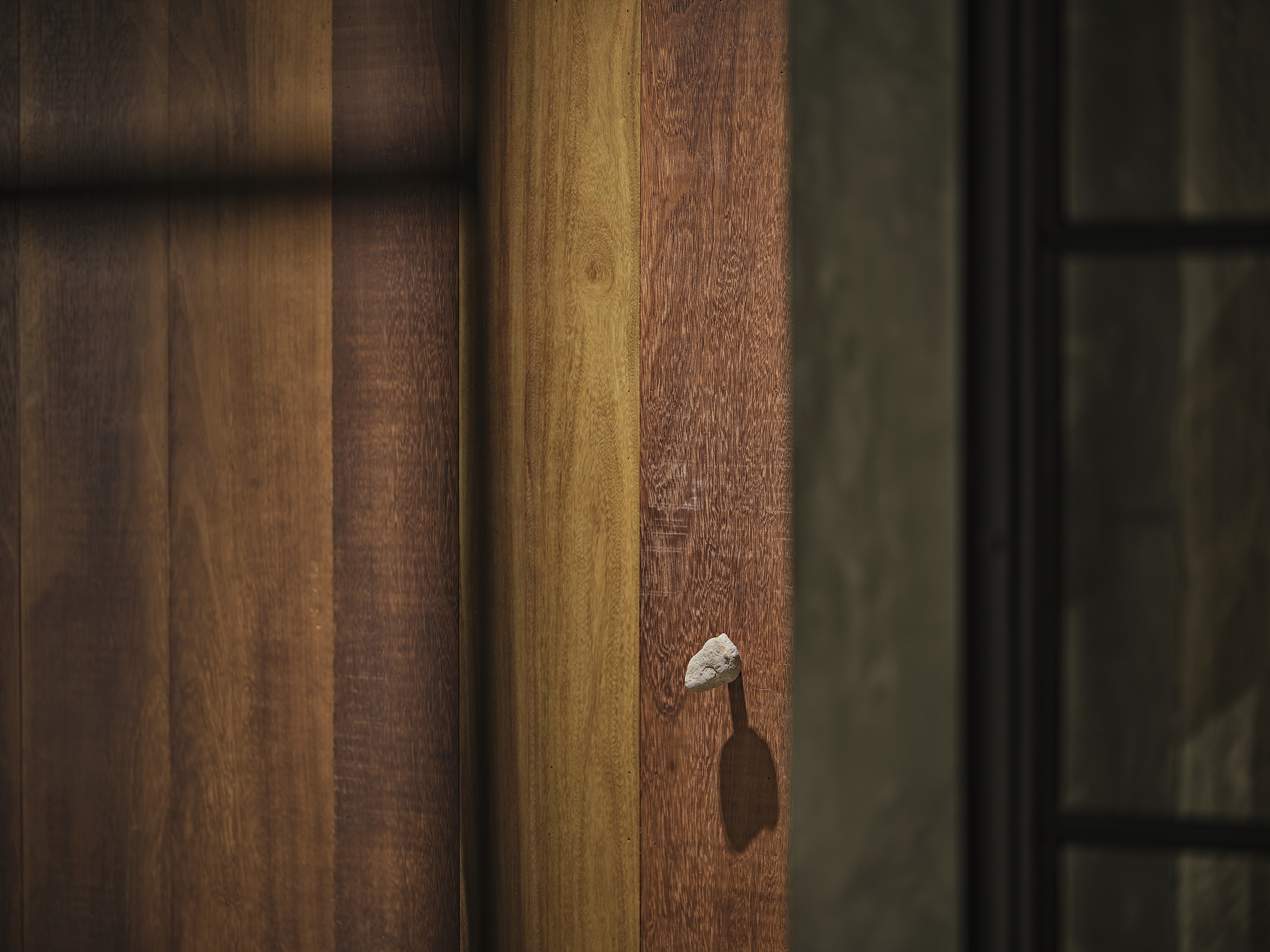

主展厅大门细部©王善祥

Main Exhibition Hall Gate Details © Wang Shanxiang

主展厅大门细部©胡文杰

Main Exhibition Hall Gate Details © Hu Wenjie

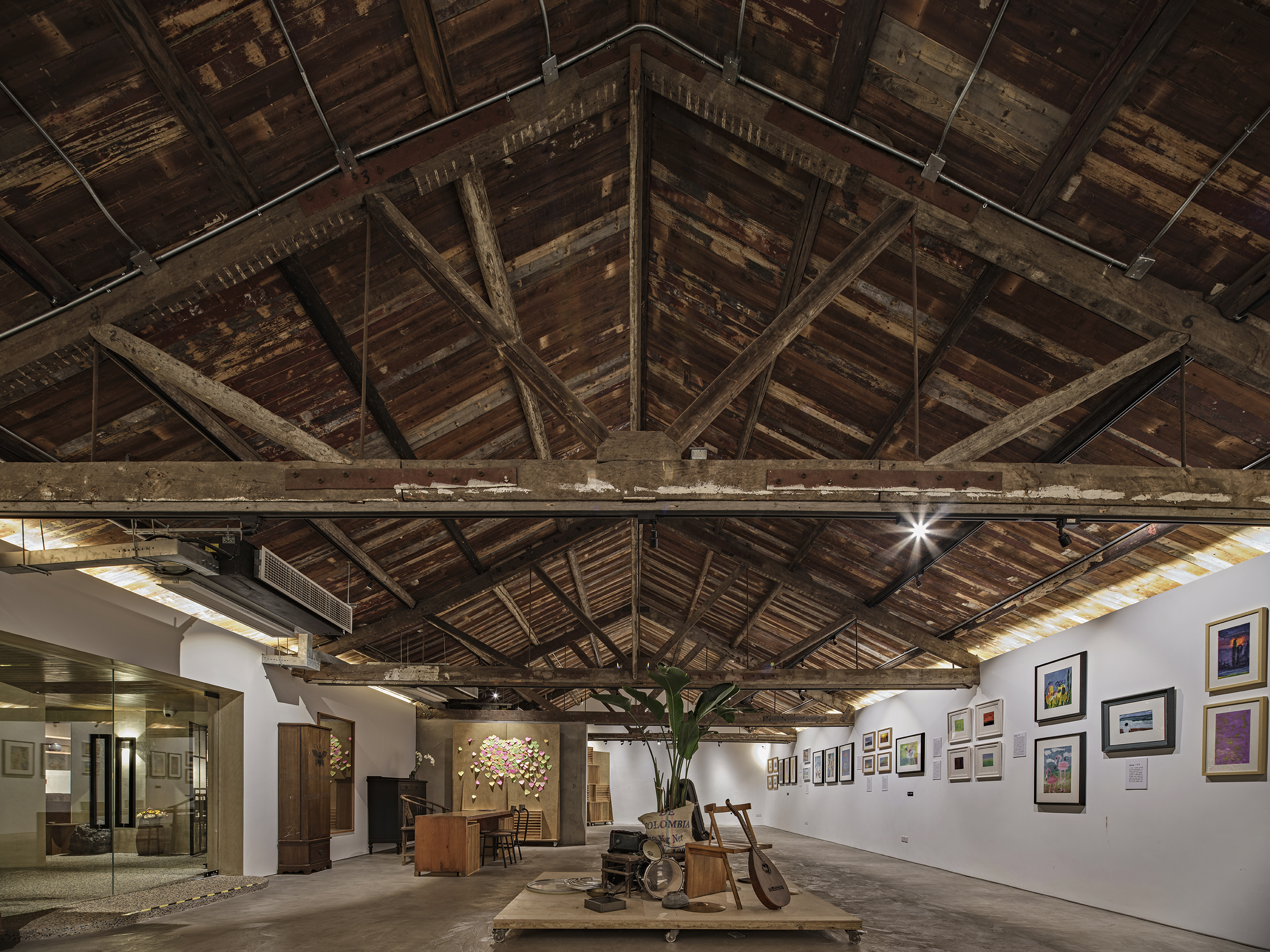

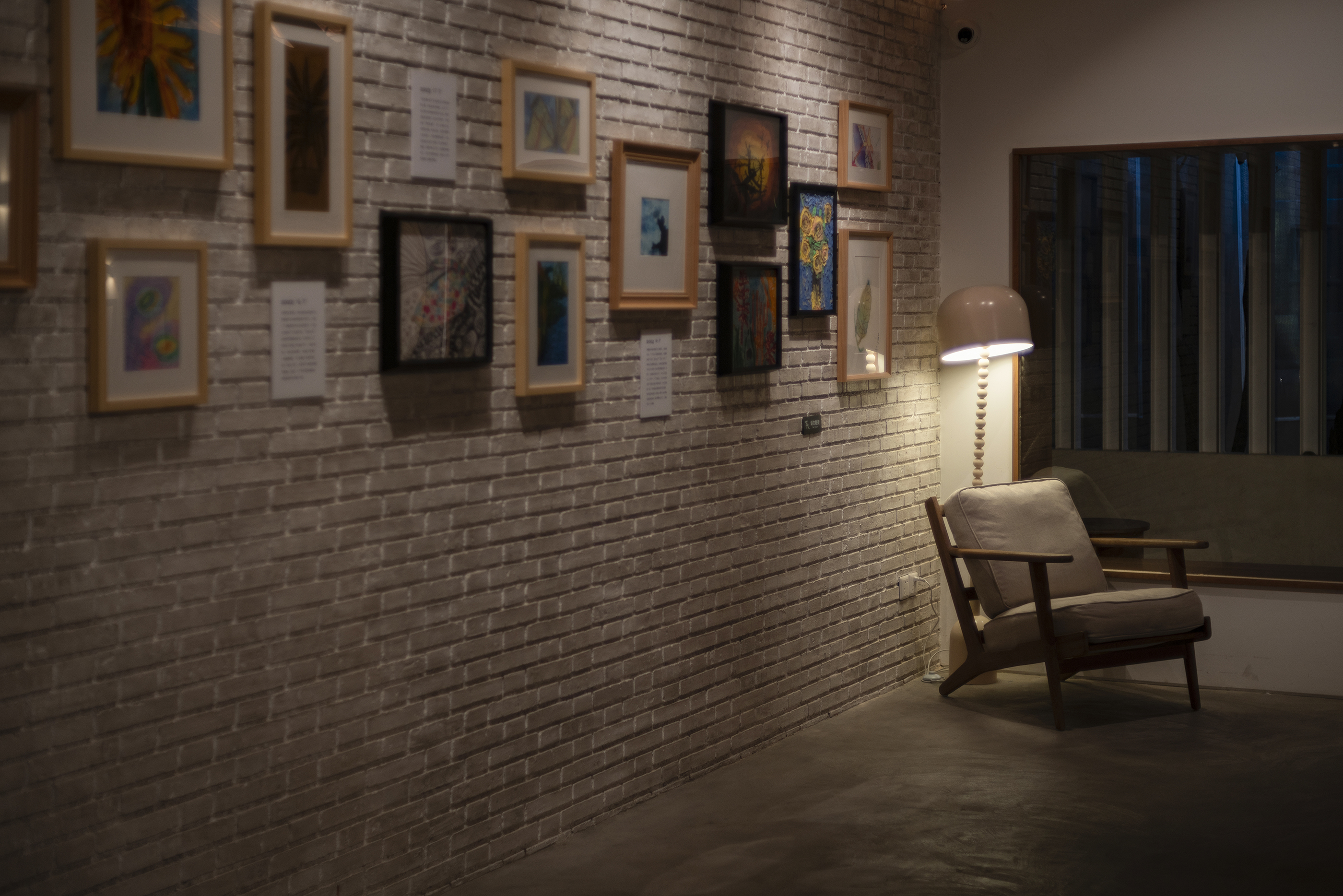

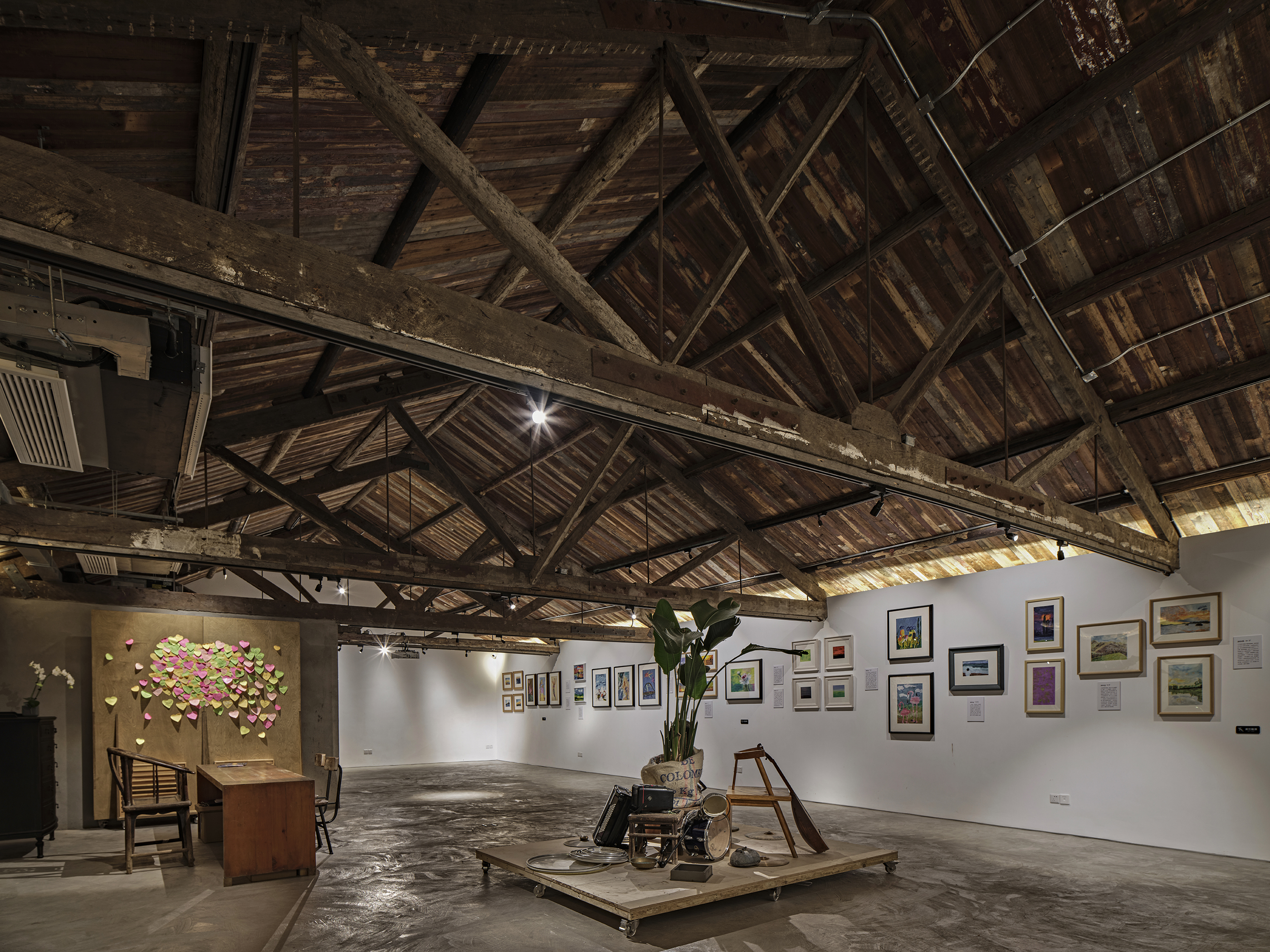

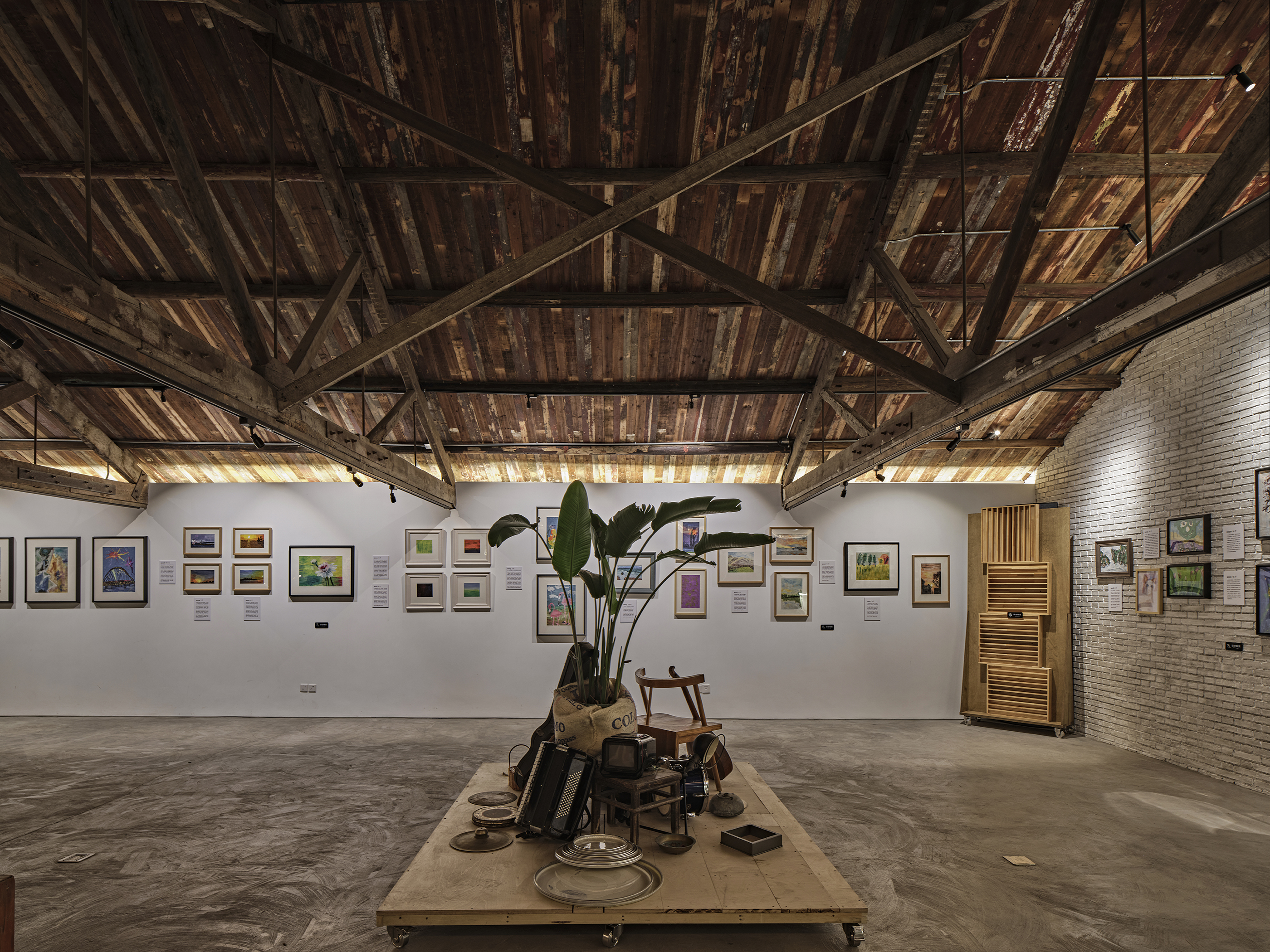

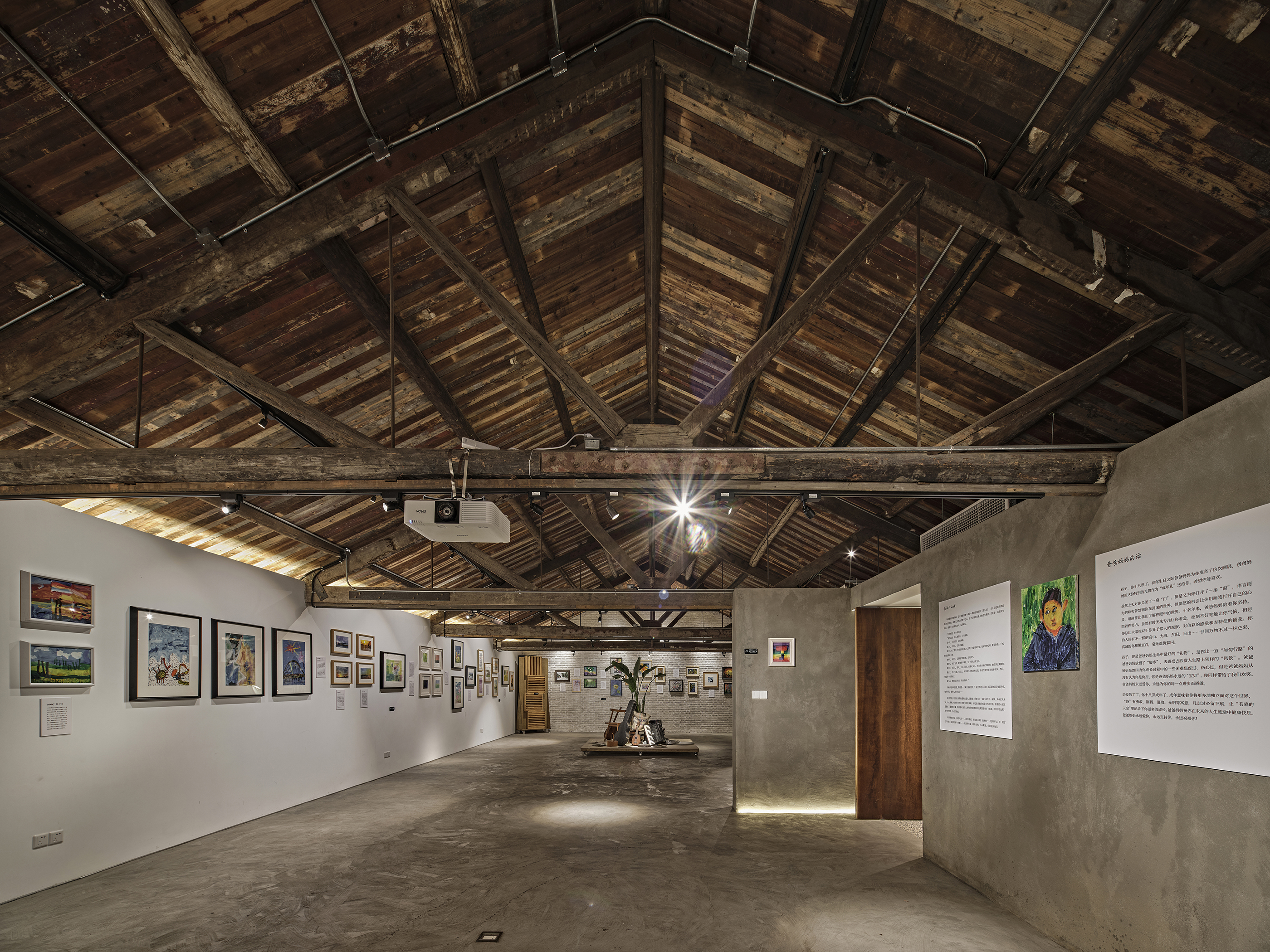

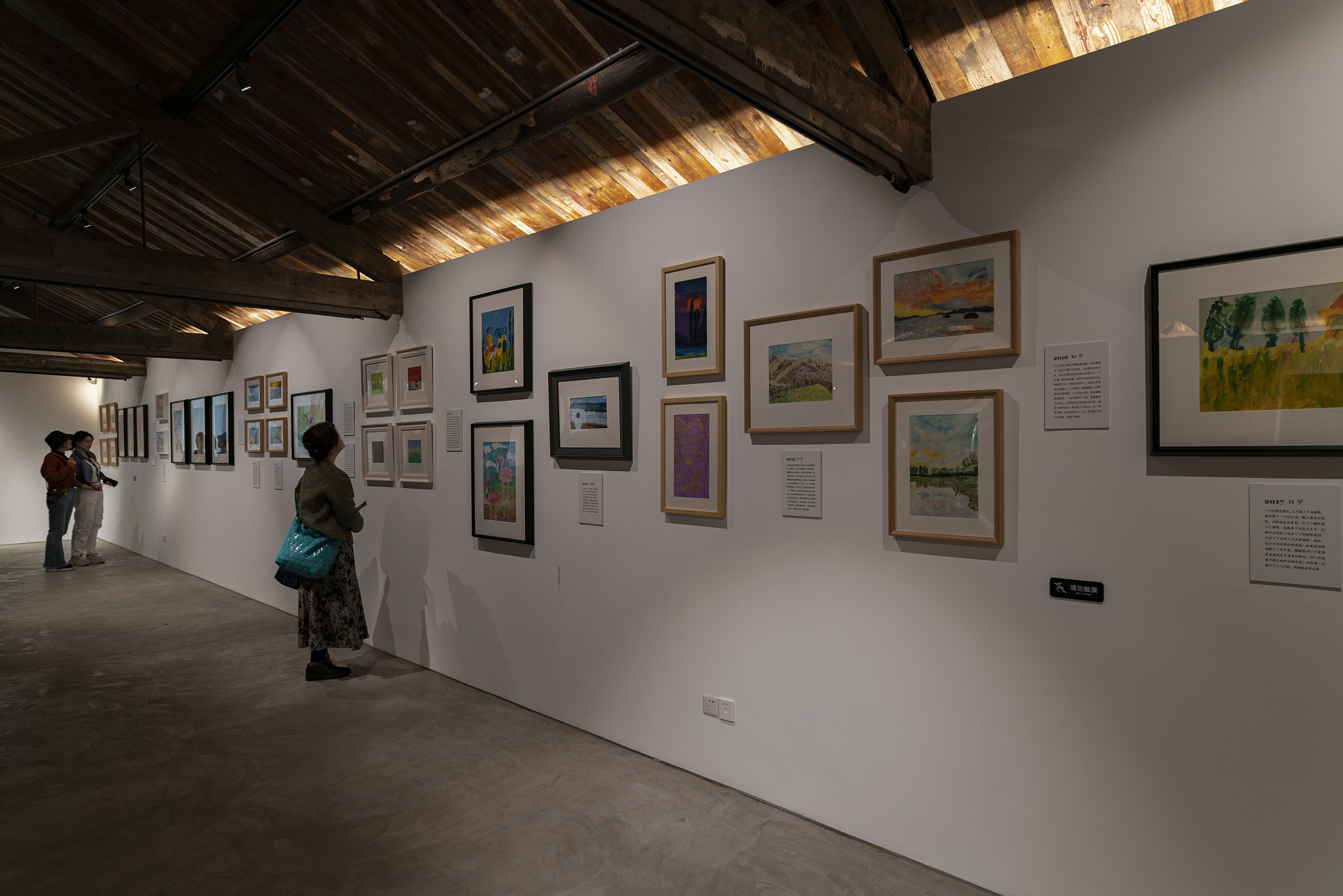

主展厅©胡文杰

Main Exhibition Hall © Hu Wenjie

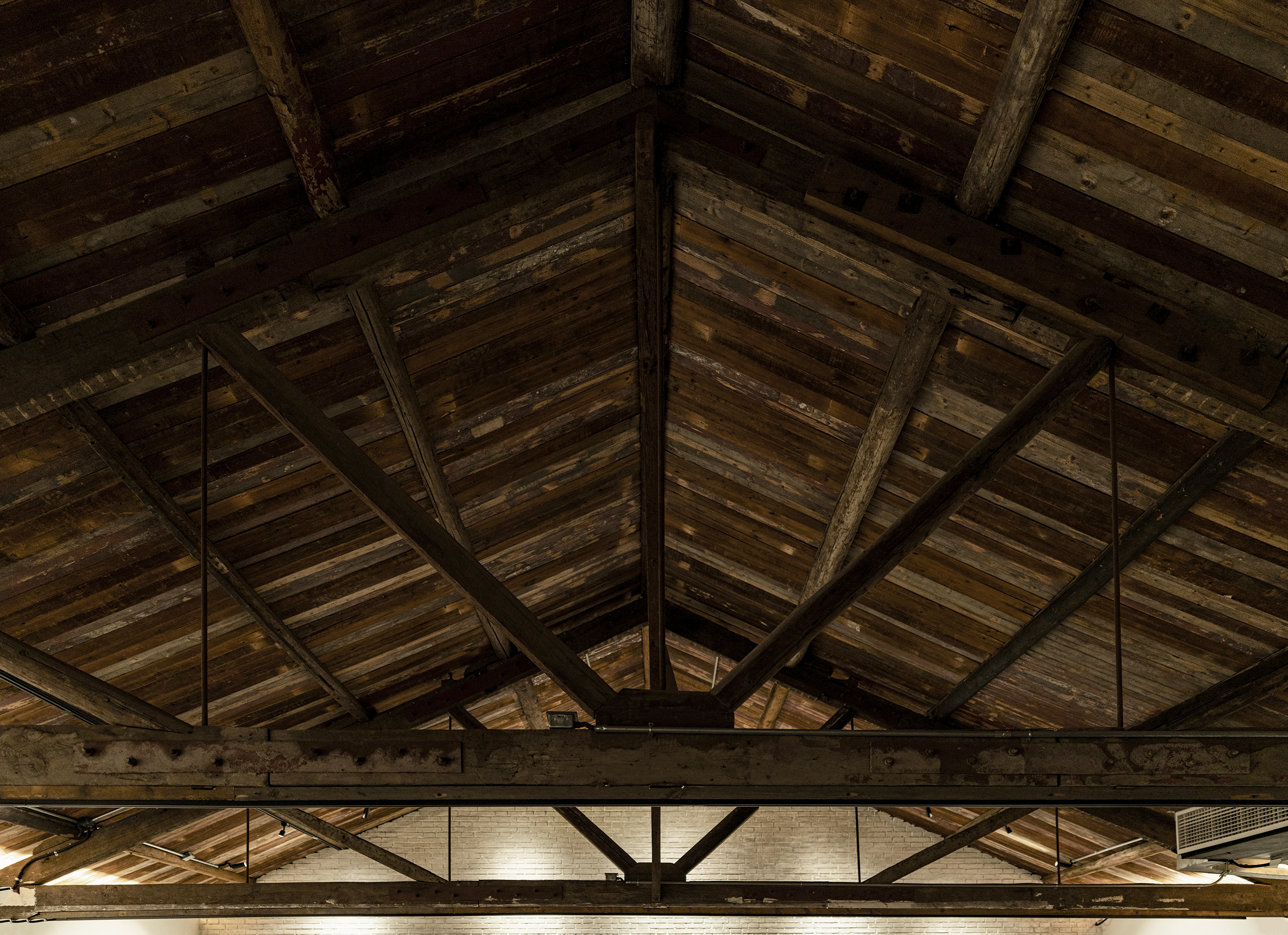

原有木梁架没做任何装饰，最大限度的外露出来©胡文杰

The original wooden beam frame of 010 was not decorated and was exposed to the maximum extent possible © Hu Wenjie

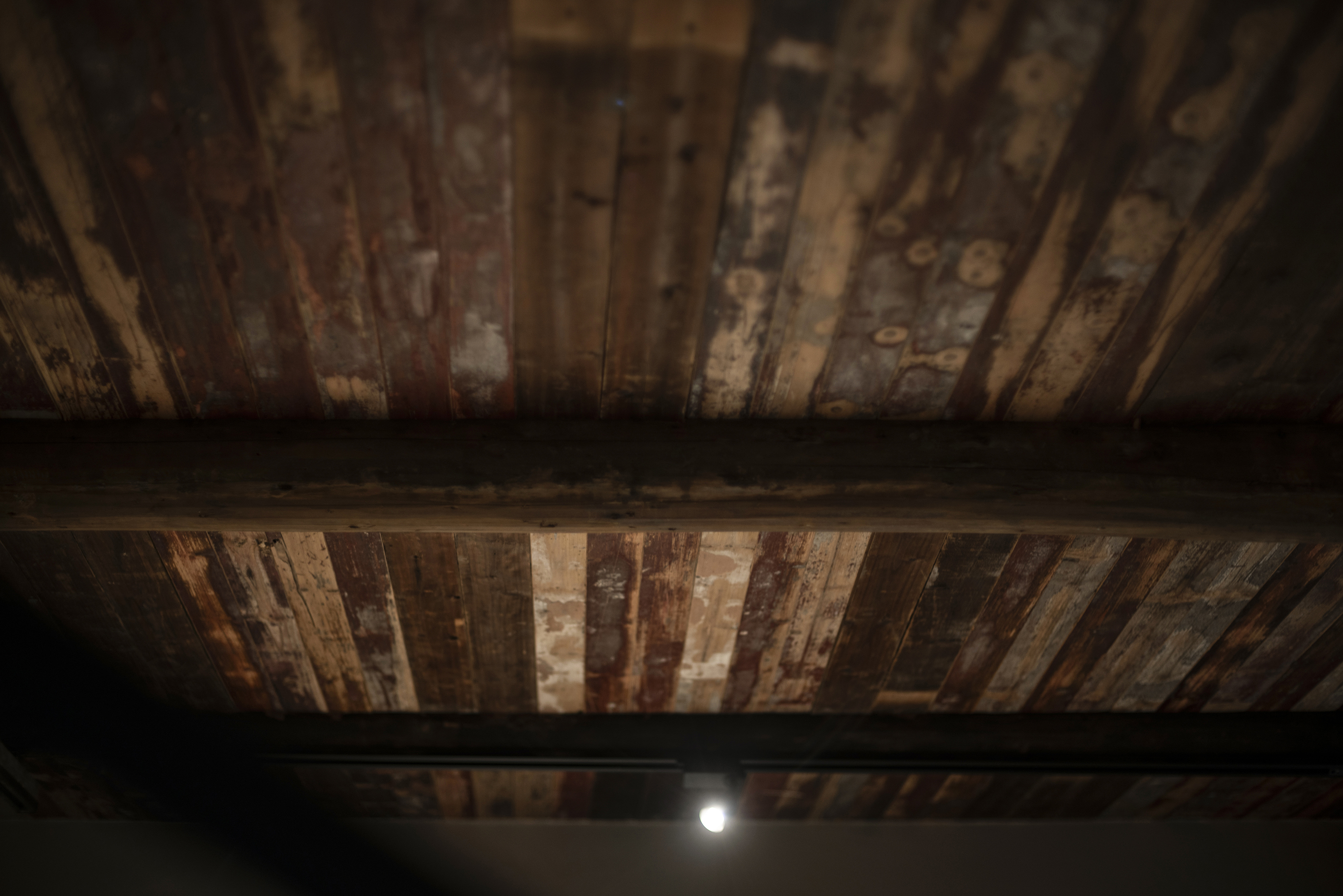

整体空间延续了木板屋面的侘寂风格©胡文杰

The overall space of 011 continues the quiet style of wooden roof © Hu Wenjie

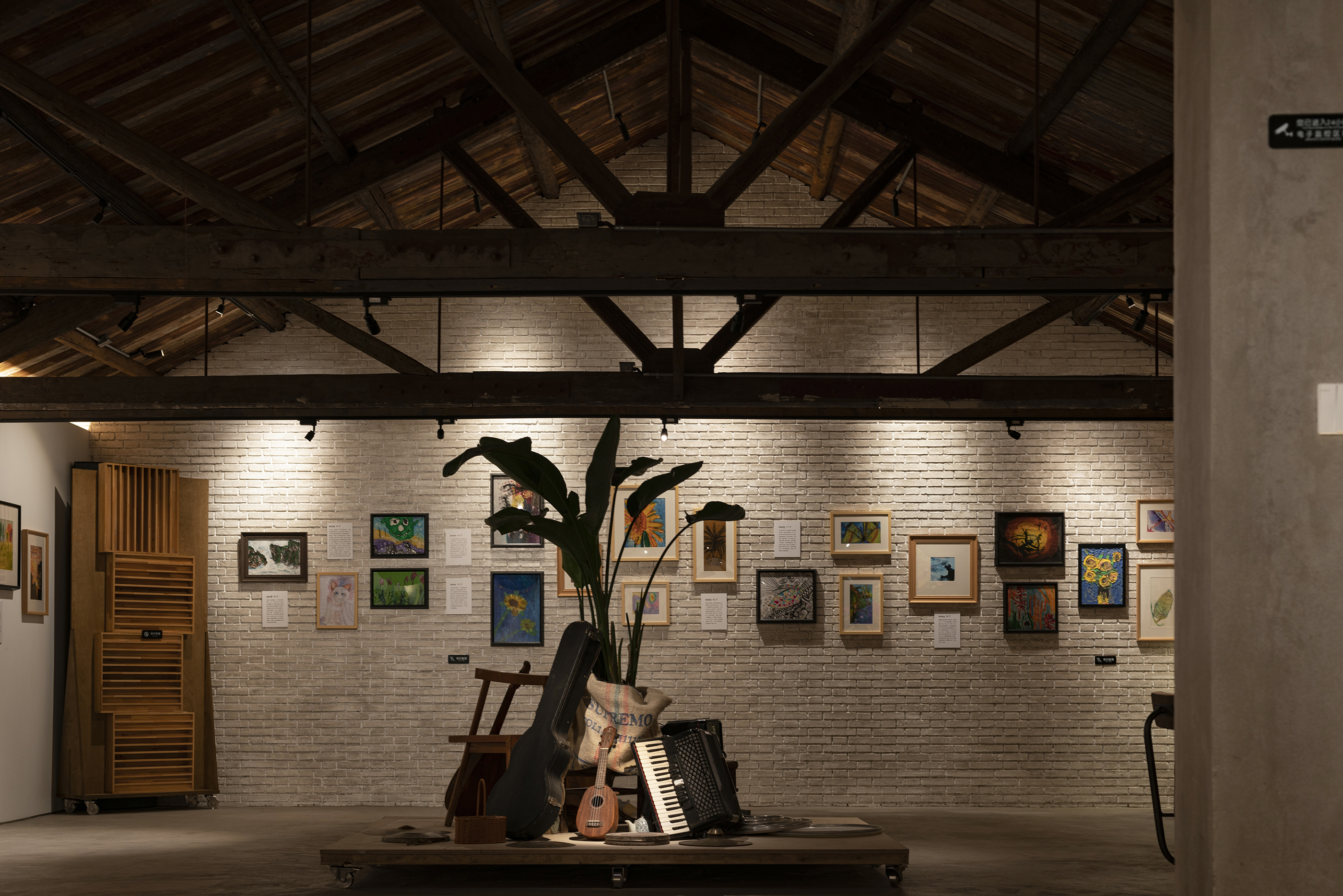

主展厅©胡文杰

Main Exhibition Hall © Hu Wenjie

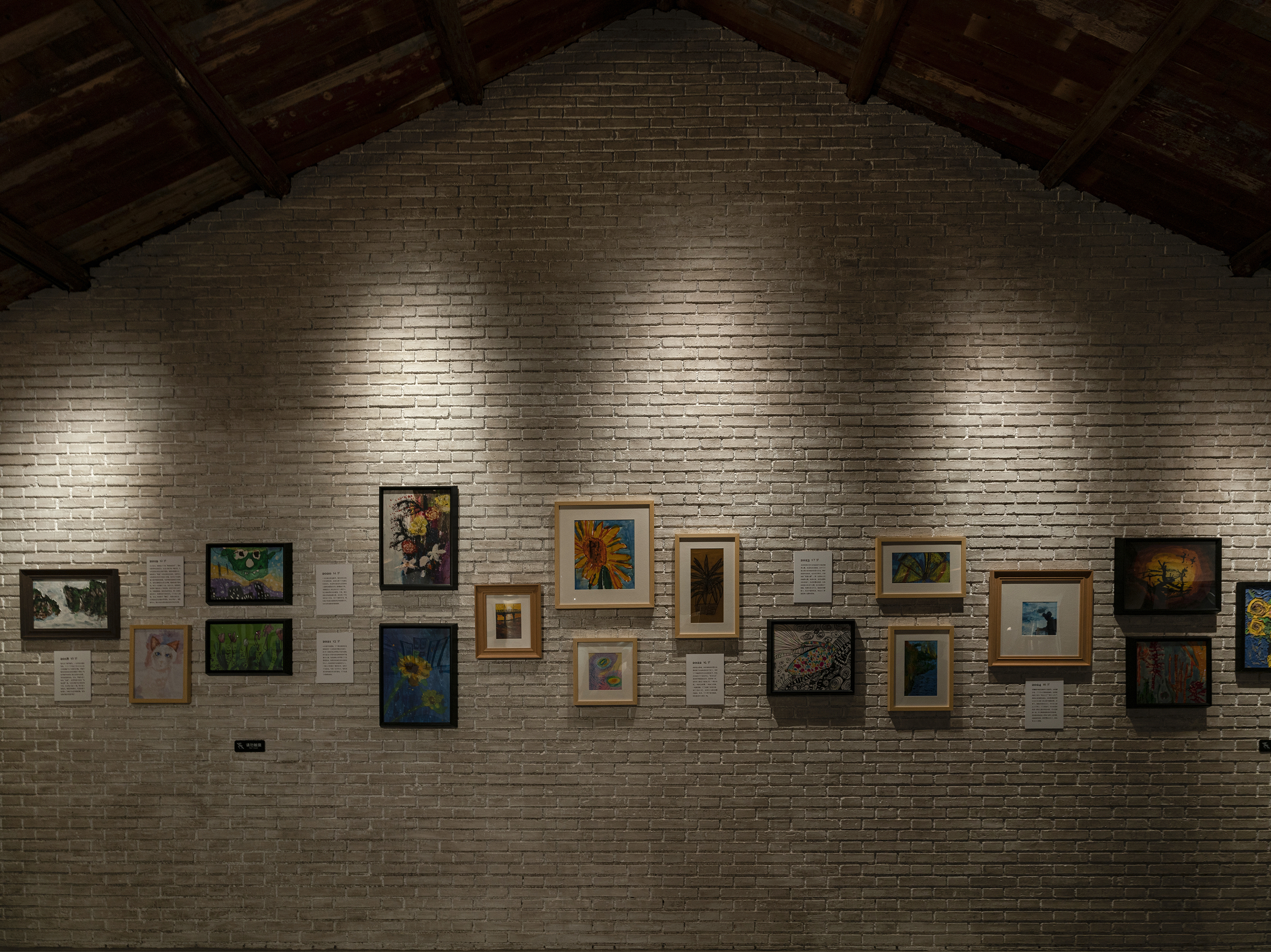

主展厅©王善祥

Main Exhibition Hall © Wang Shanxiang

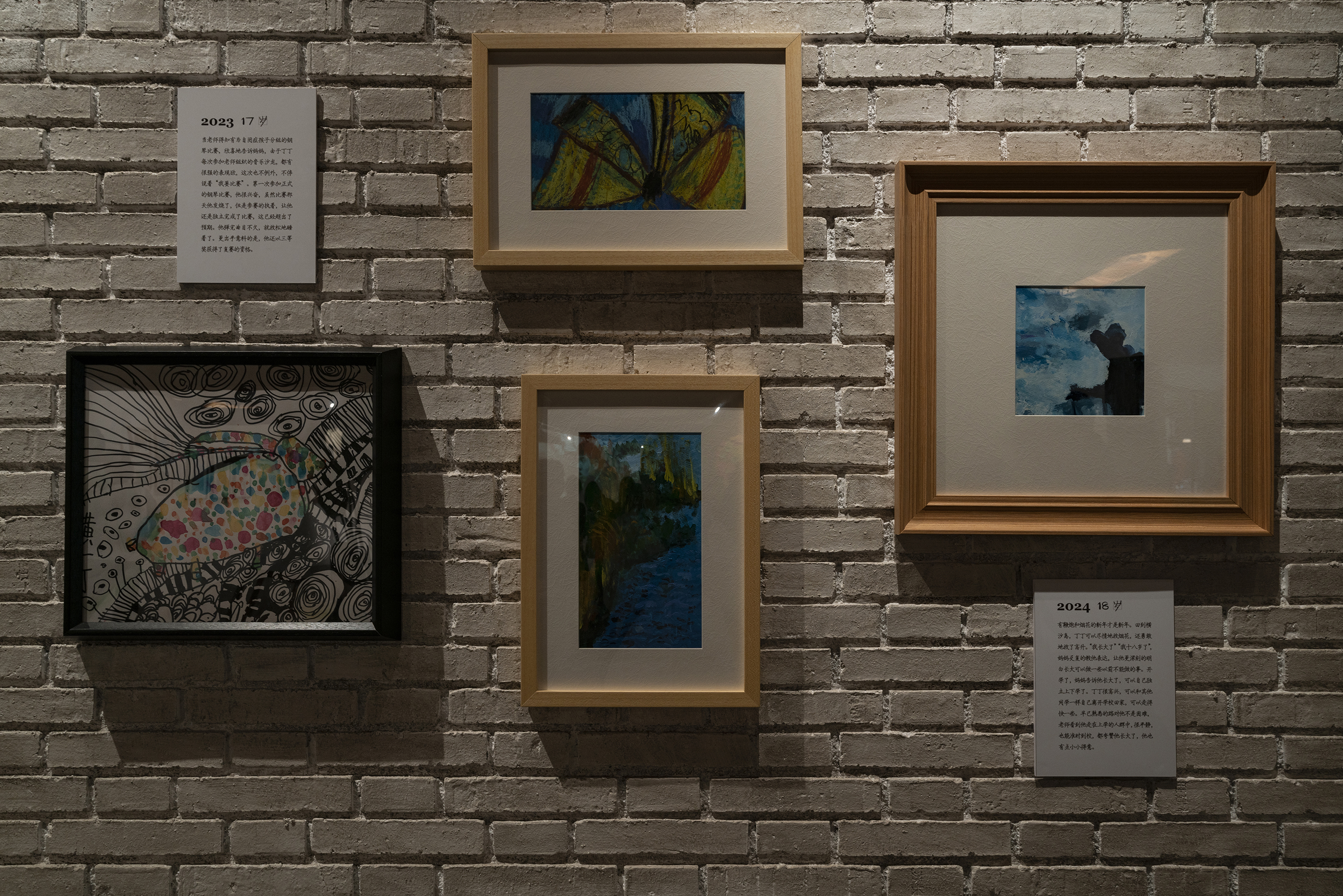

主展厅细部©王善祥

Main Exhibition Hall Details © Wang Shanxiang

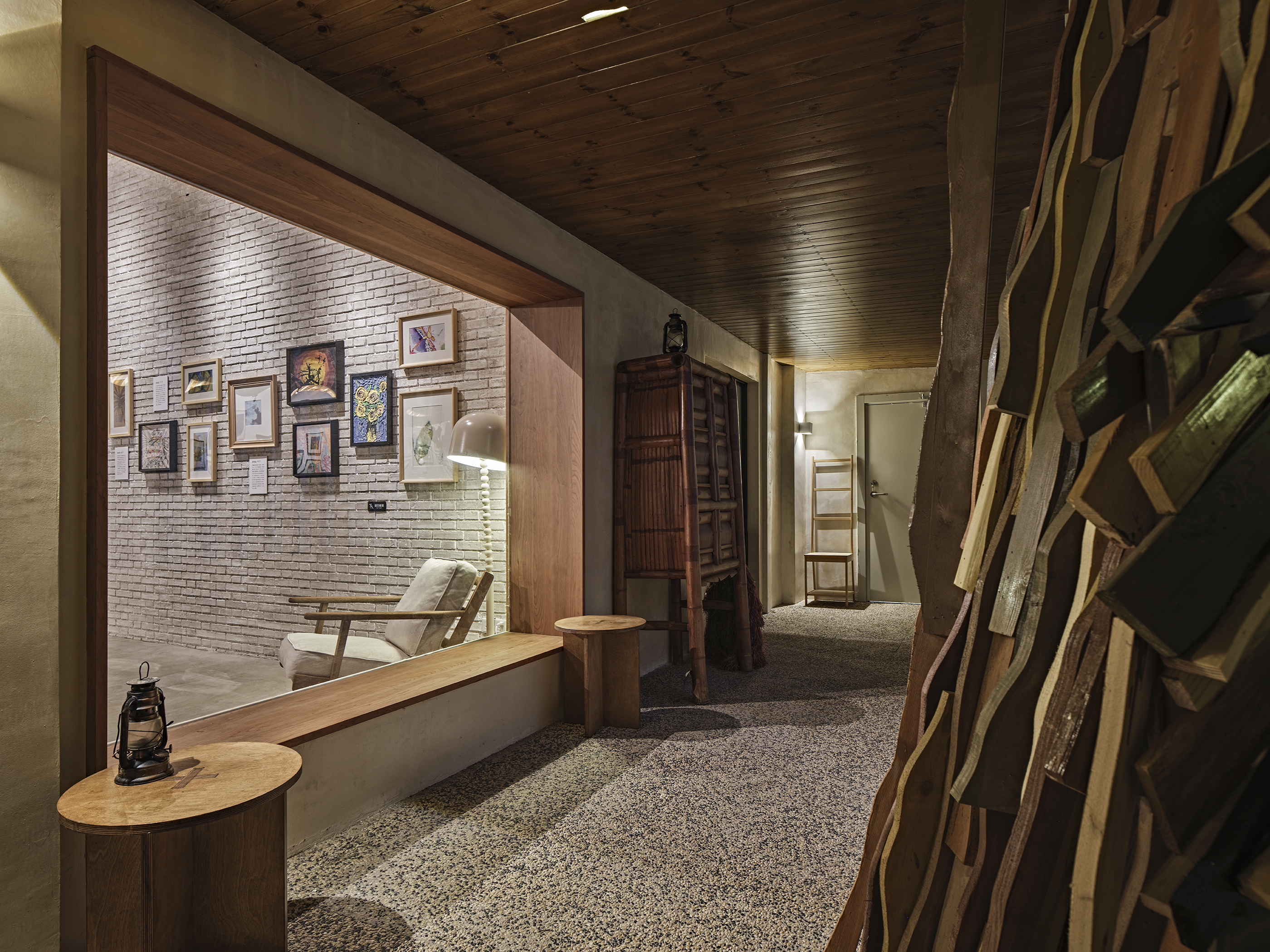

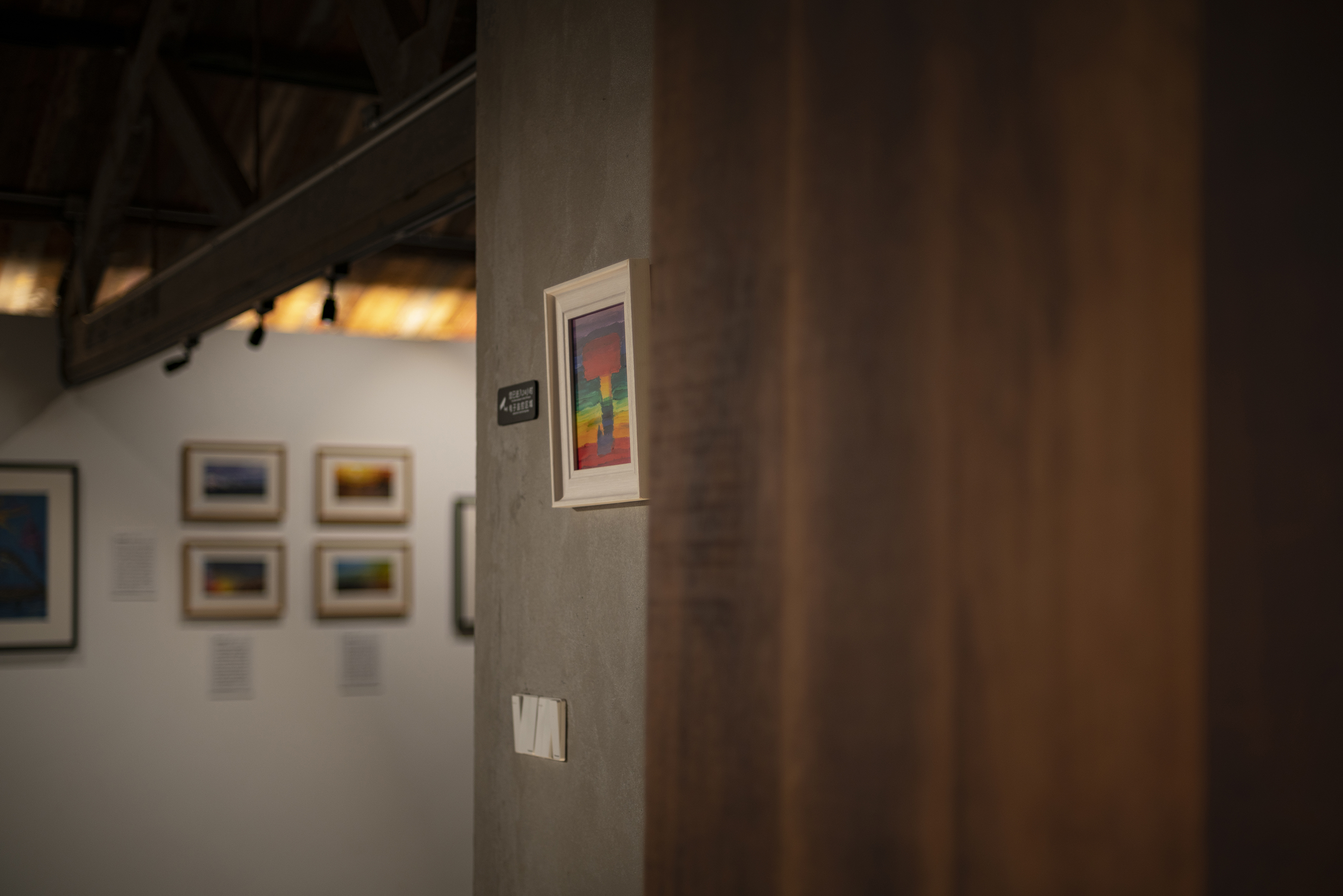

从内廊望向主展厅©王善祥

Looking from the inner corridor towards the main exhibition hall © Wang Shanxiang

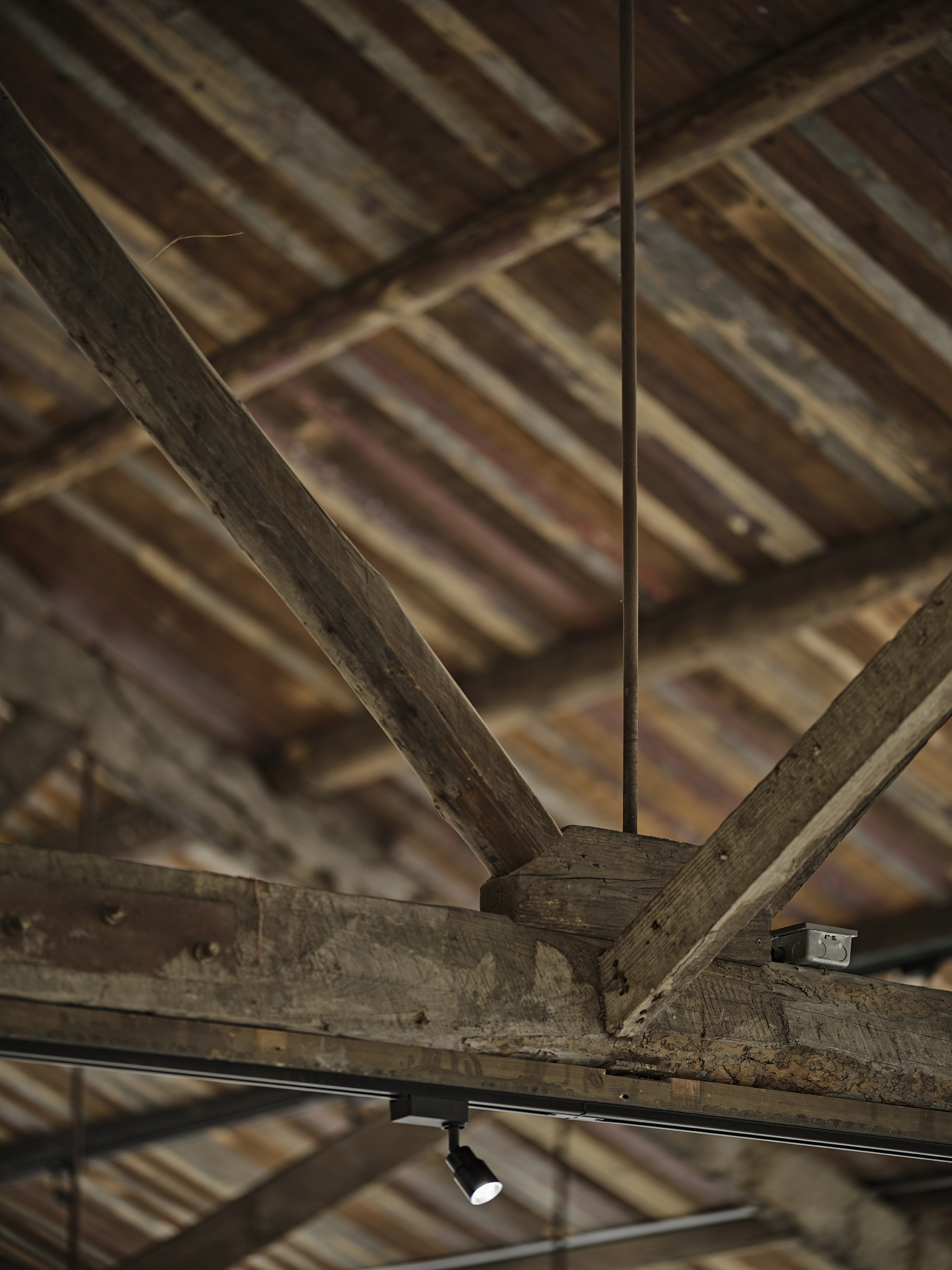

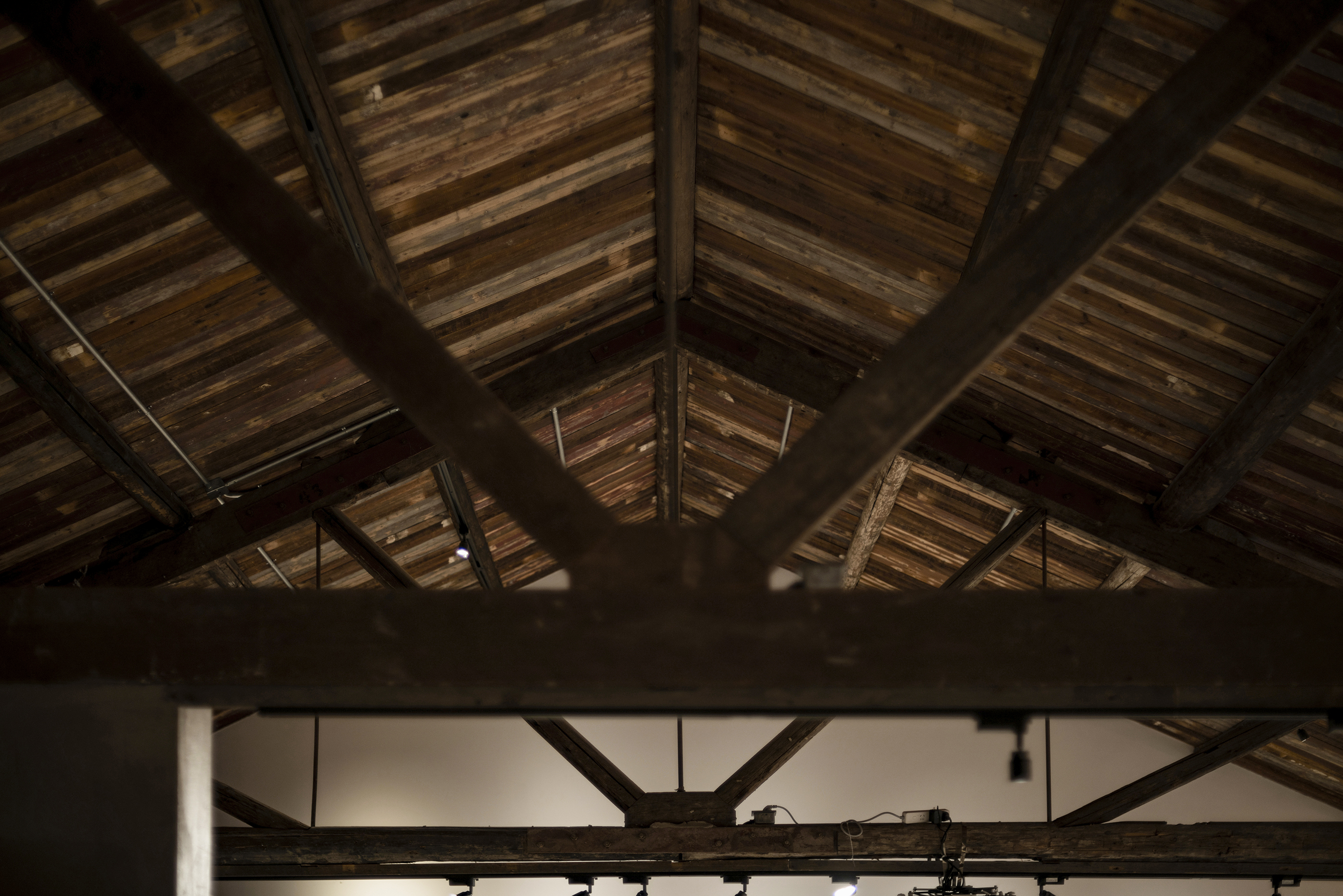

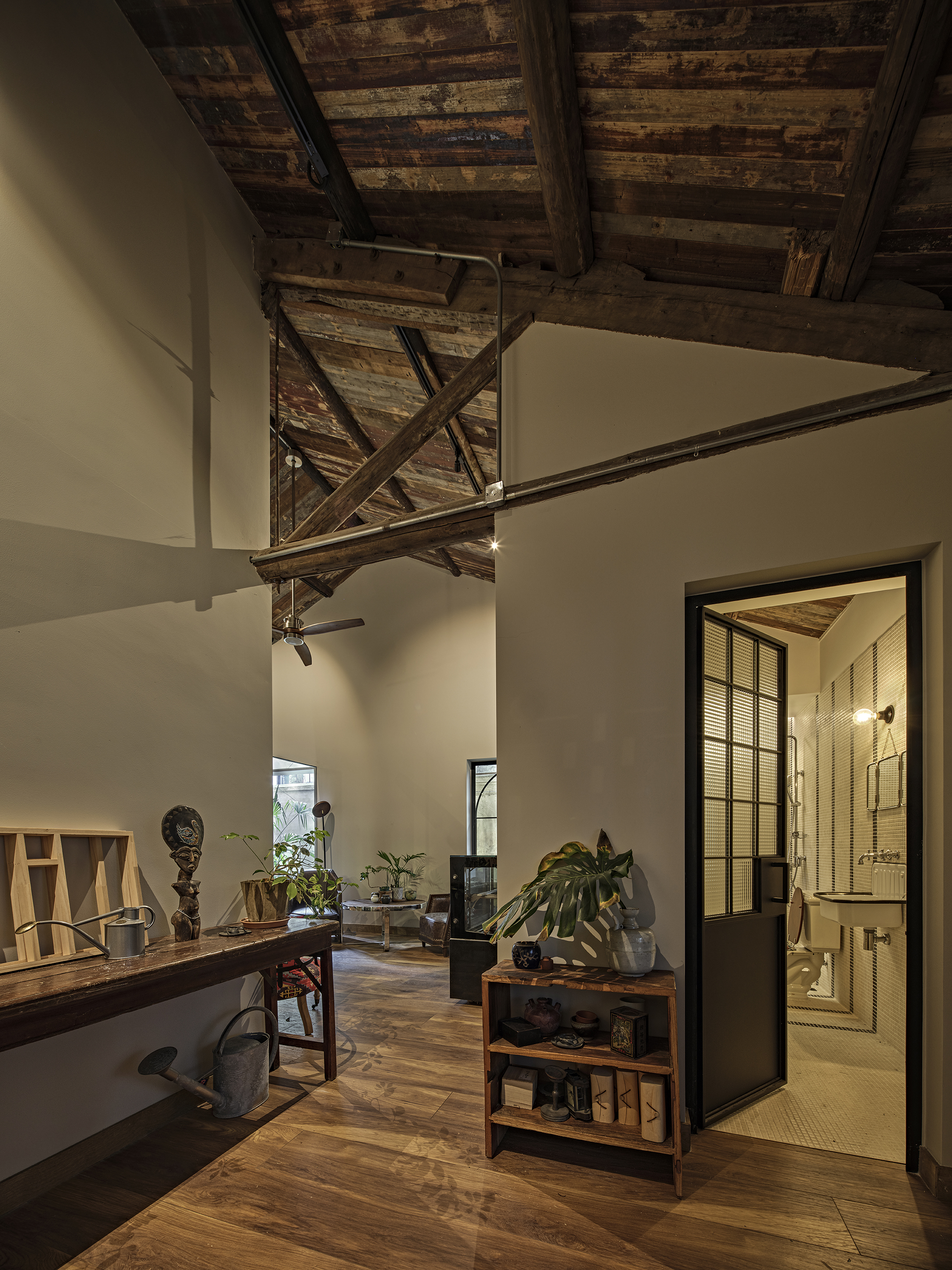

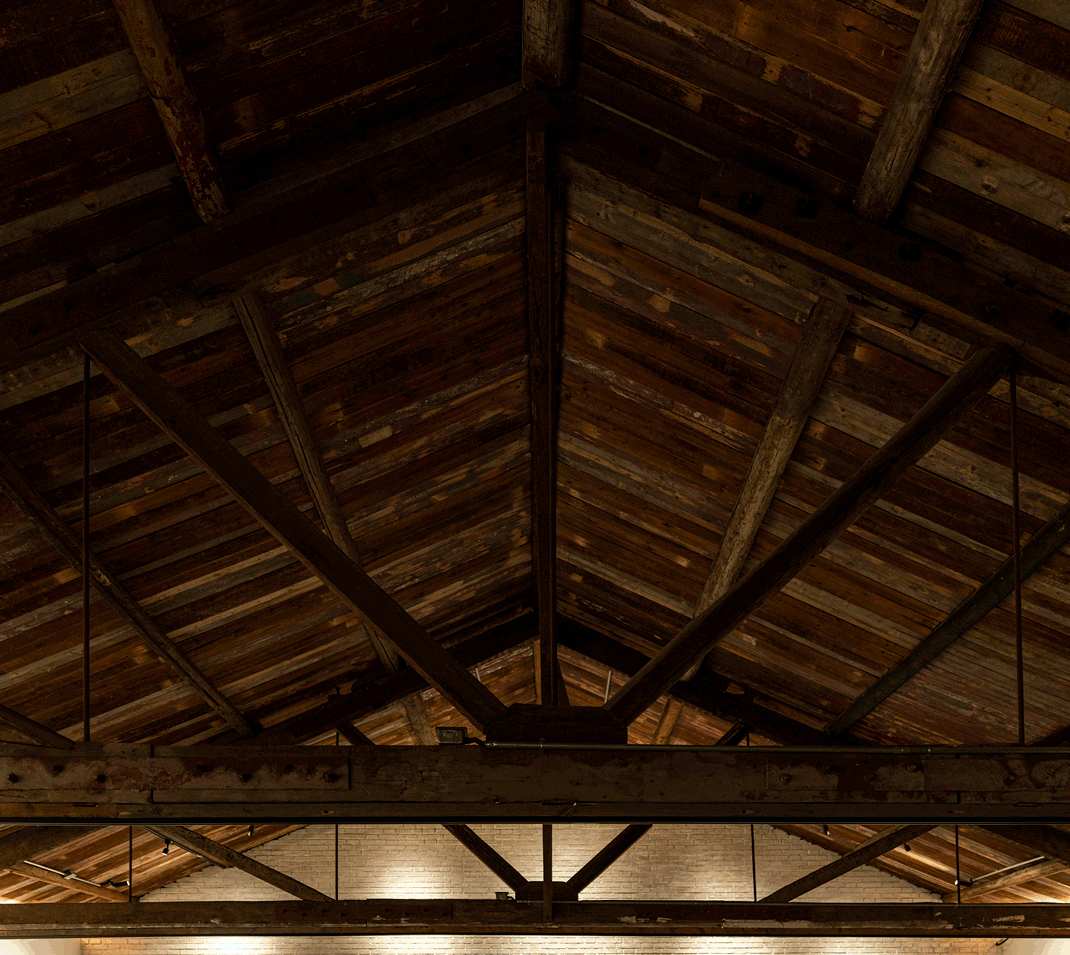

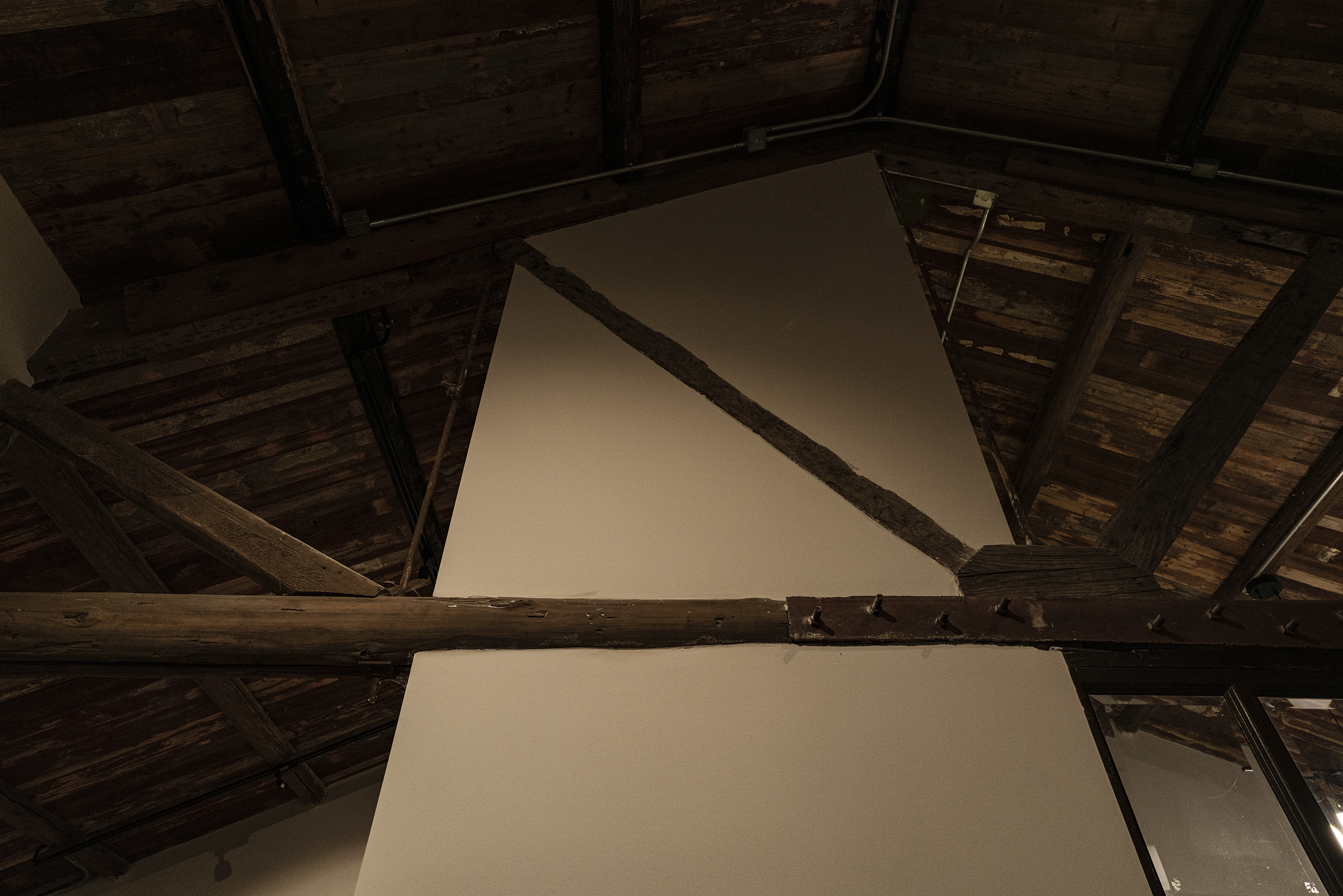

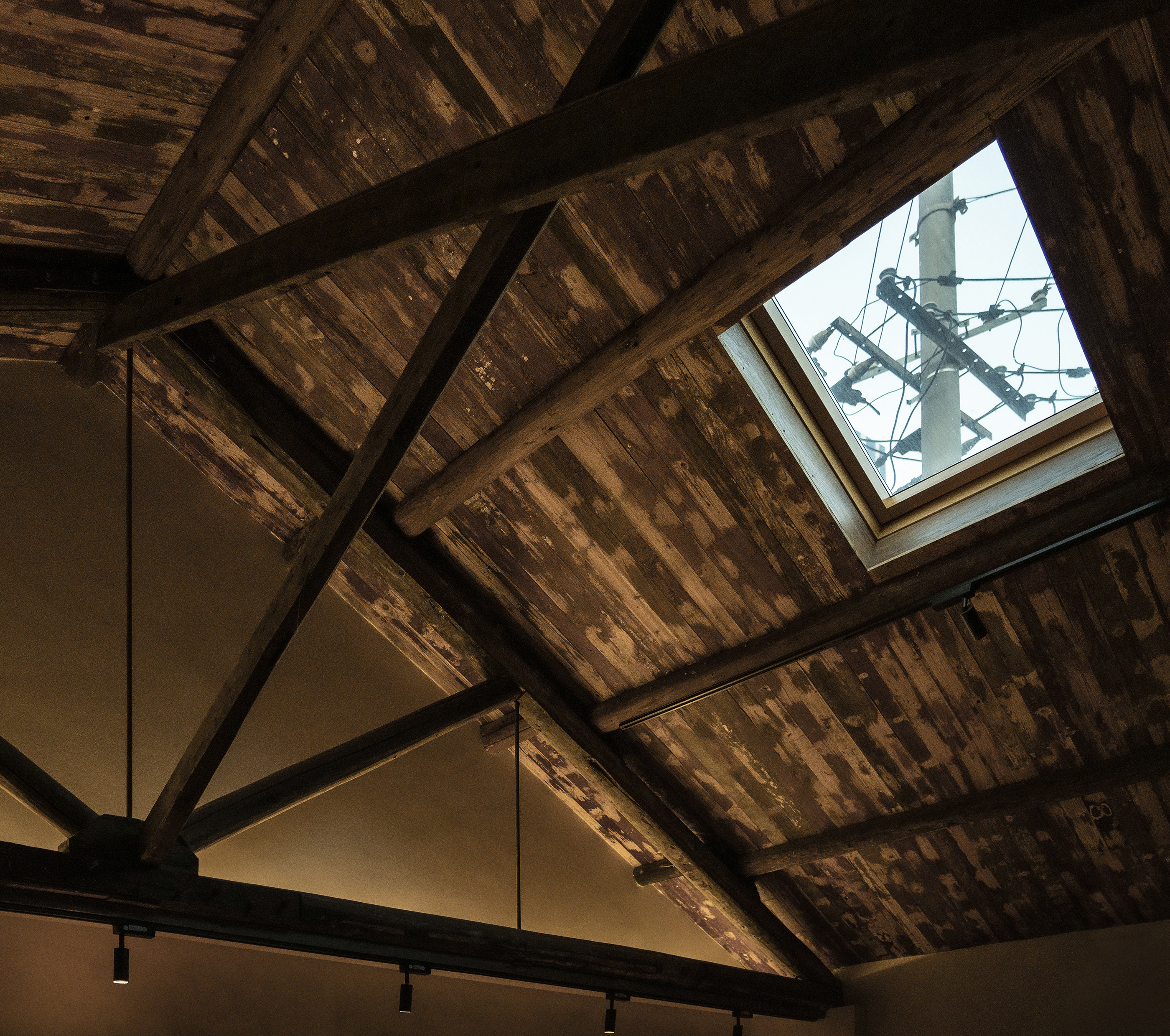

木屋架细部©王善祥

Wooden Frame Details © Wang Shanxiang

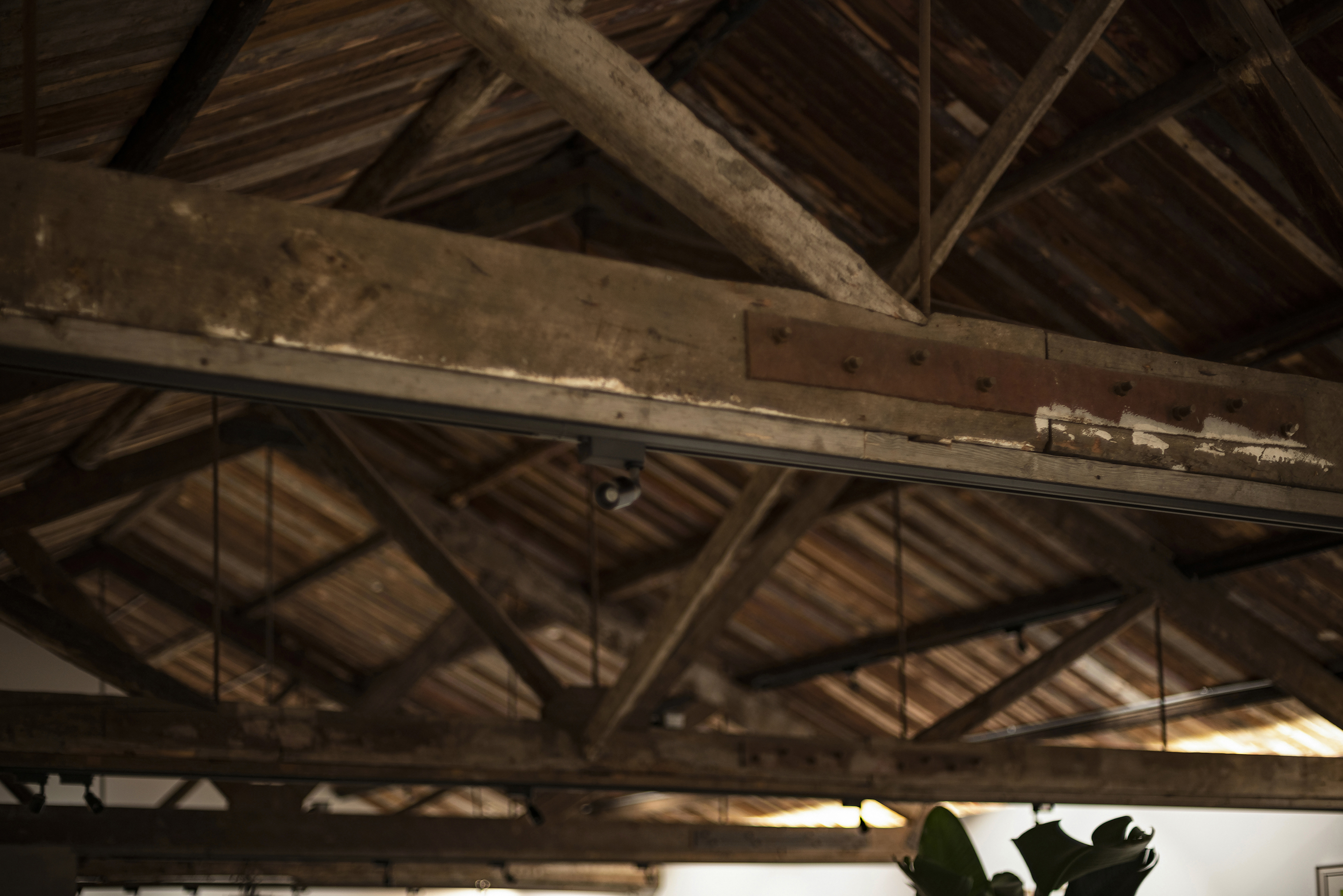

木屋架细部©胡文杰

Wooden Frame Details © Hu Wenjie

斯是陋室

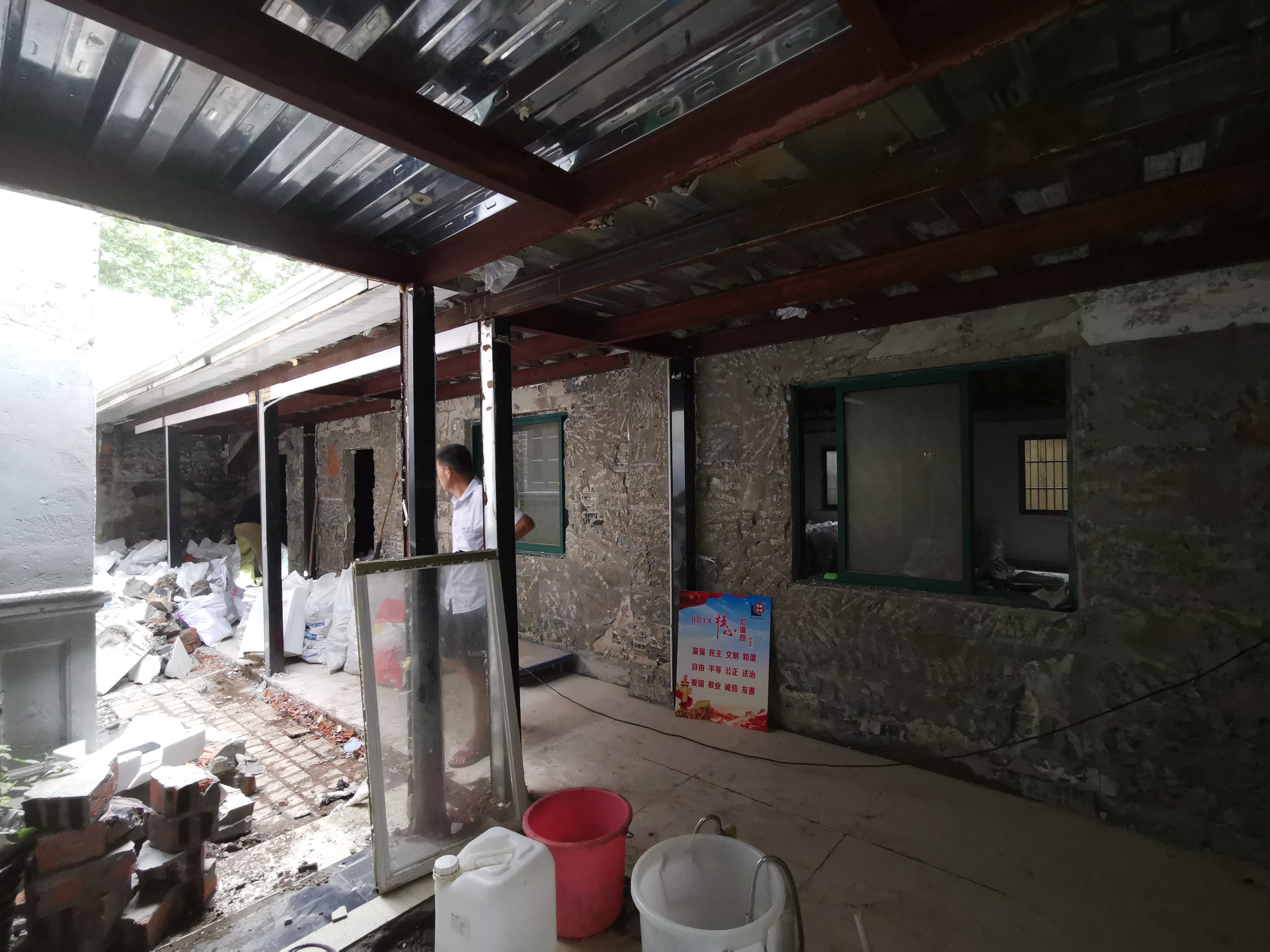

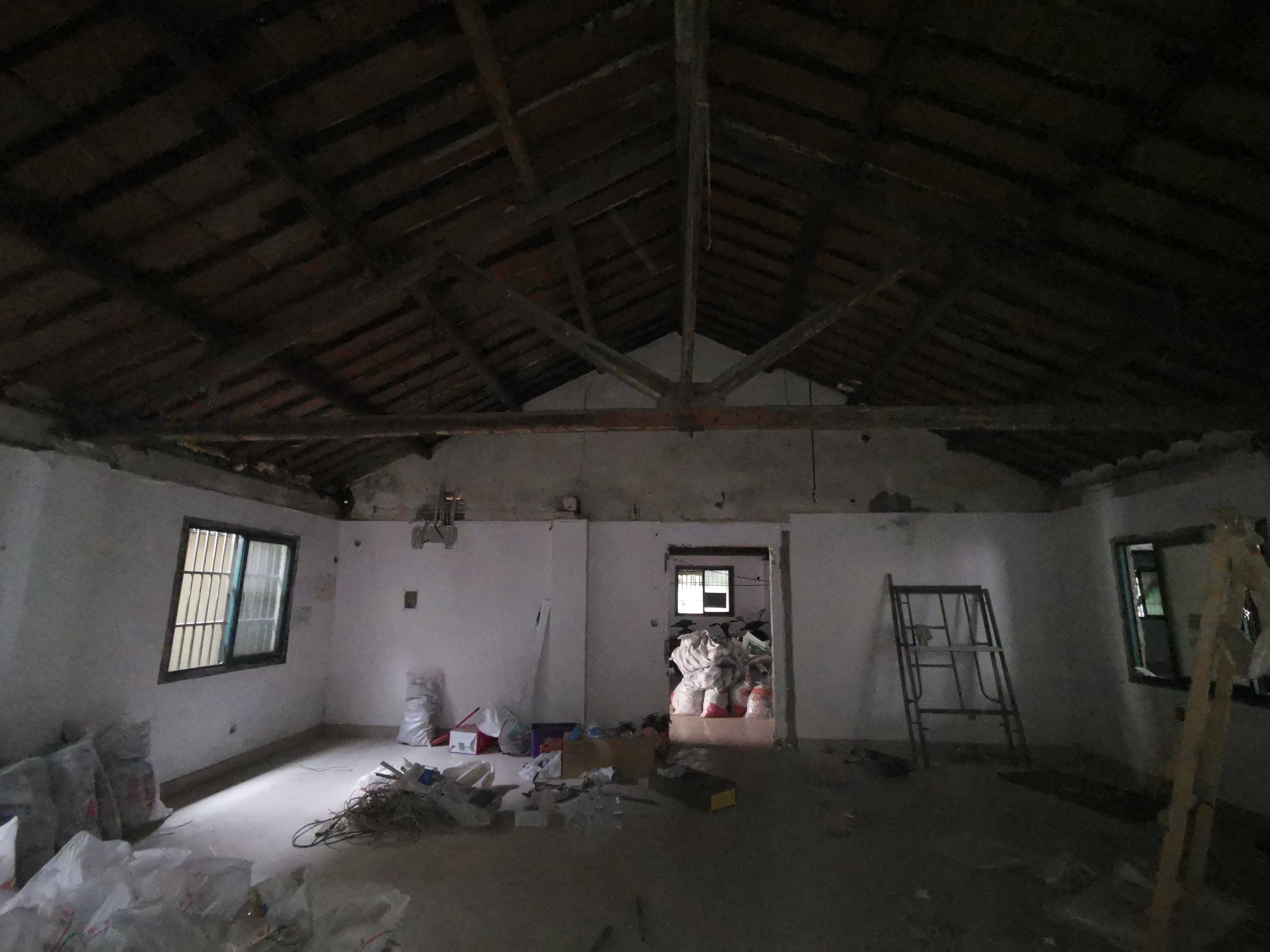

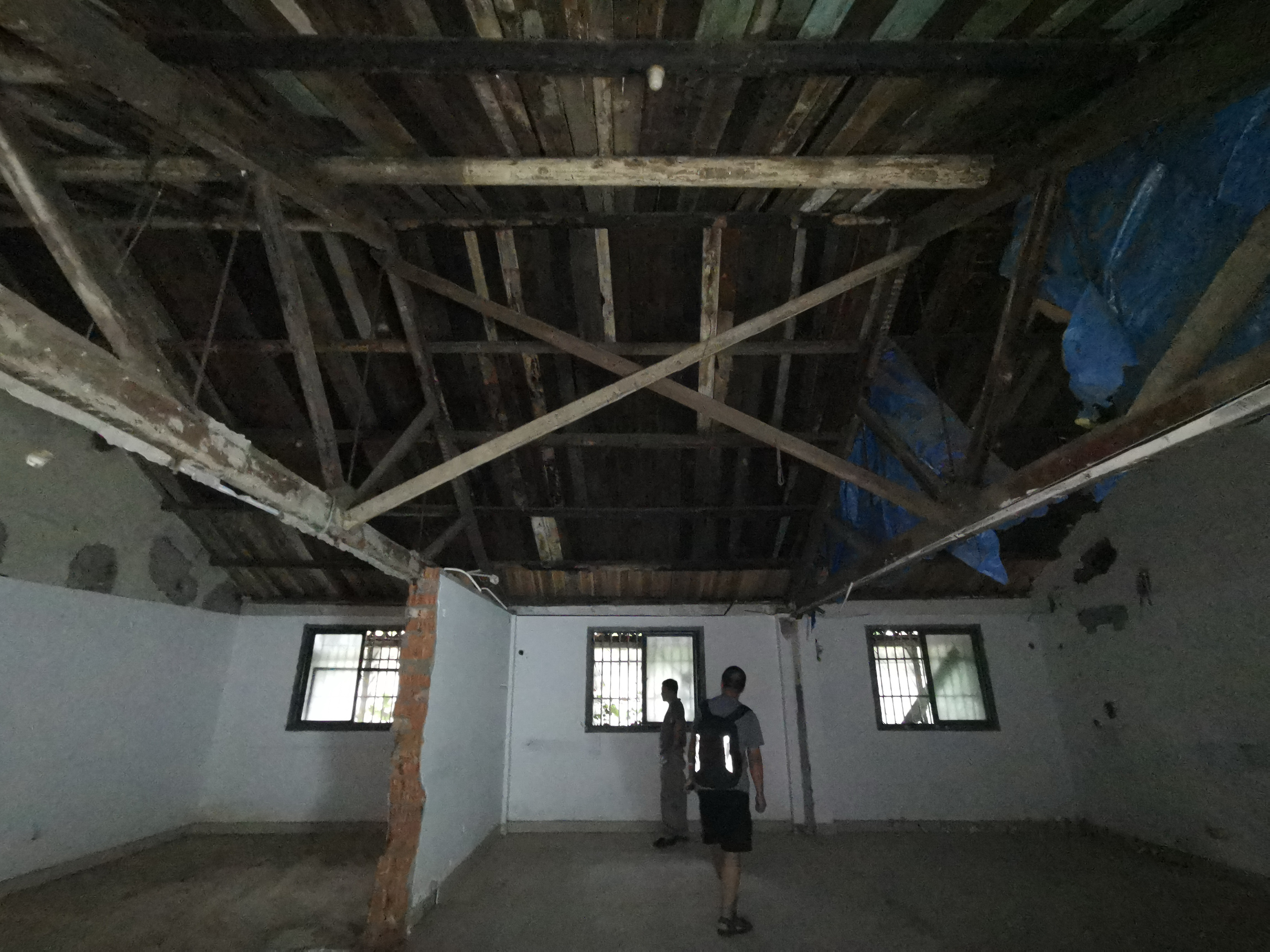

现有建筑位于弄堂内俭德坊的北侧，这个单层旧厂房大约建于1950年代初，当时采用极其简单朴素的方法建造，尤其是在洋房风格的弄堂内显得更是简陋。砖砌墙及柱子，连一点混凝土构造也没有，屋面是简易人字木梁架和木板以及纤维板上铺红瓦，也没有其它保温措施，夏天热冬天冷。室内地坪沉降不匀，东低西高。建筑外部只有一个门，十分低调毫不起眼。改造前原貌 Original appearance before renovation

A shabby house

The existing building is located on the north side of Jiande Fang in the alleyway. This single story old factory was built around the early 1950s using extremely simple and simple methods, especially in the western-style alleyway, which appears simple and inconspicuous. Brick walls and columns, with no concrete structure at all. The roof is made of simple herringbone wooden beams, wooden boards, and fiberboards covered with red tiles, without any other insulation measures. It is hot in summer and cold in winter. The indoor floor settlement is uneven, with low in the east and high in the west. The exterior of the building has only one door, which is very low-key and inconspicuous.咖啡厅也是尽量保留大量的破旧样貌©胡文杰

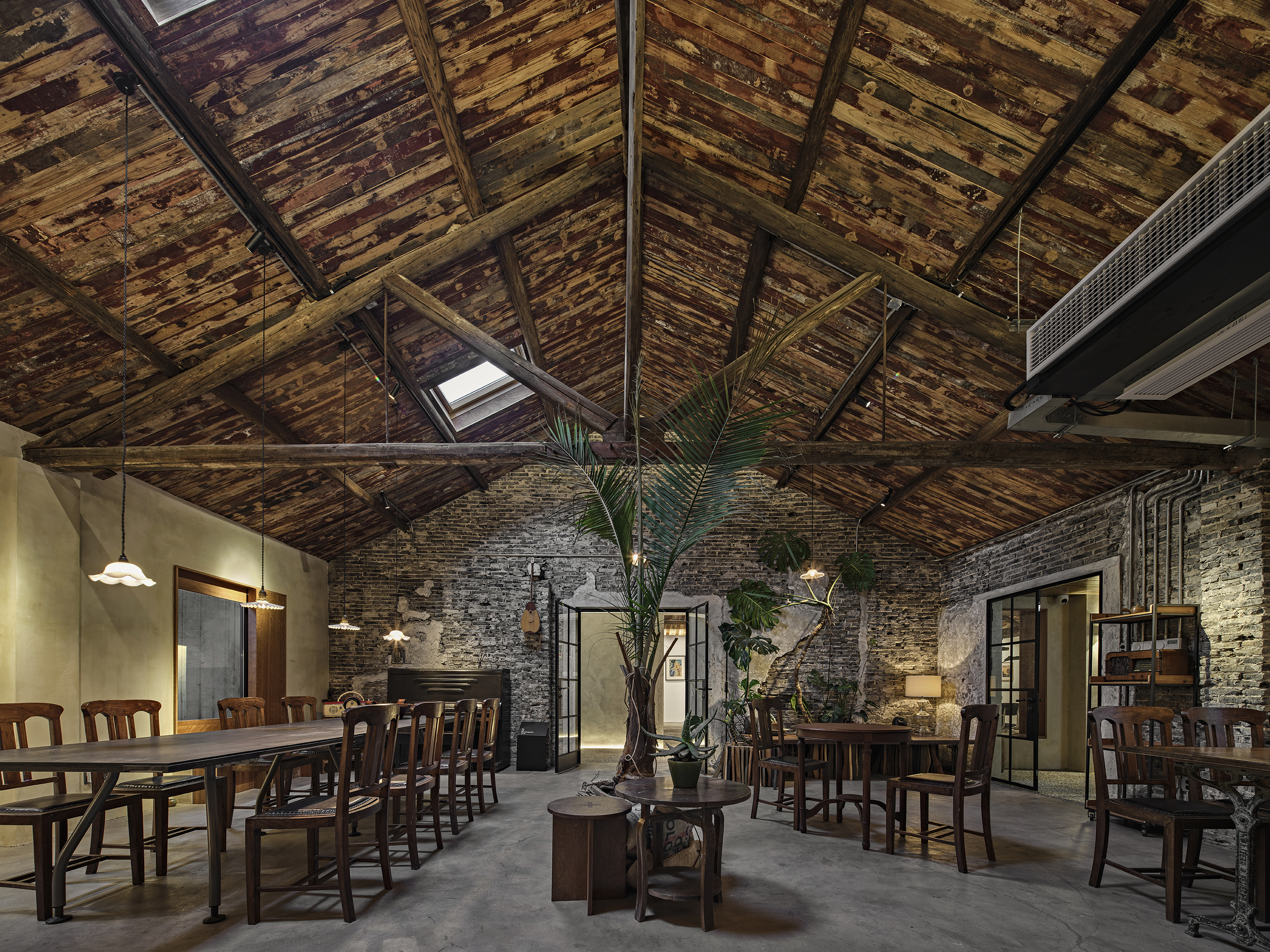

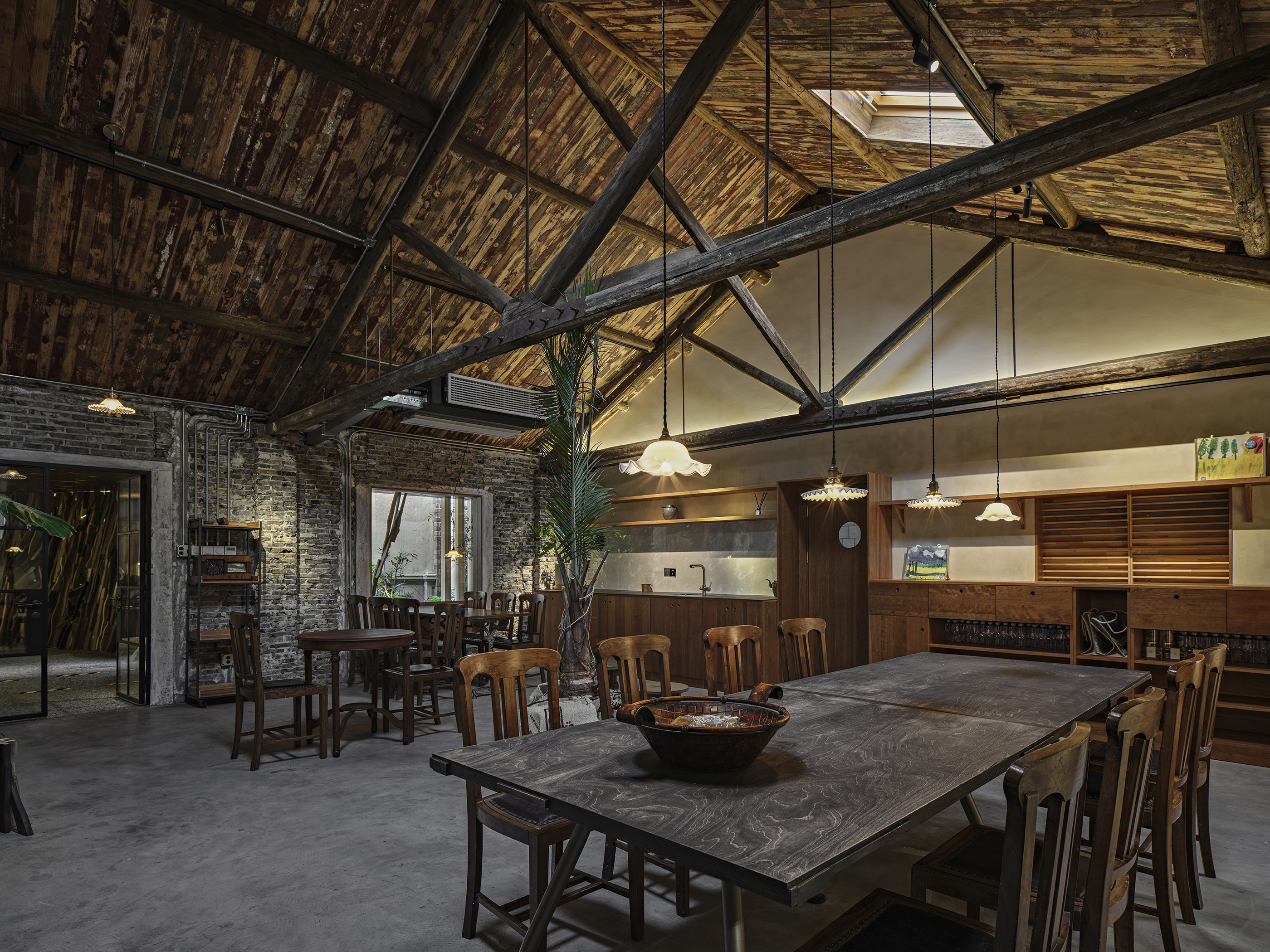

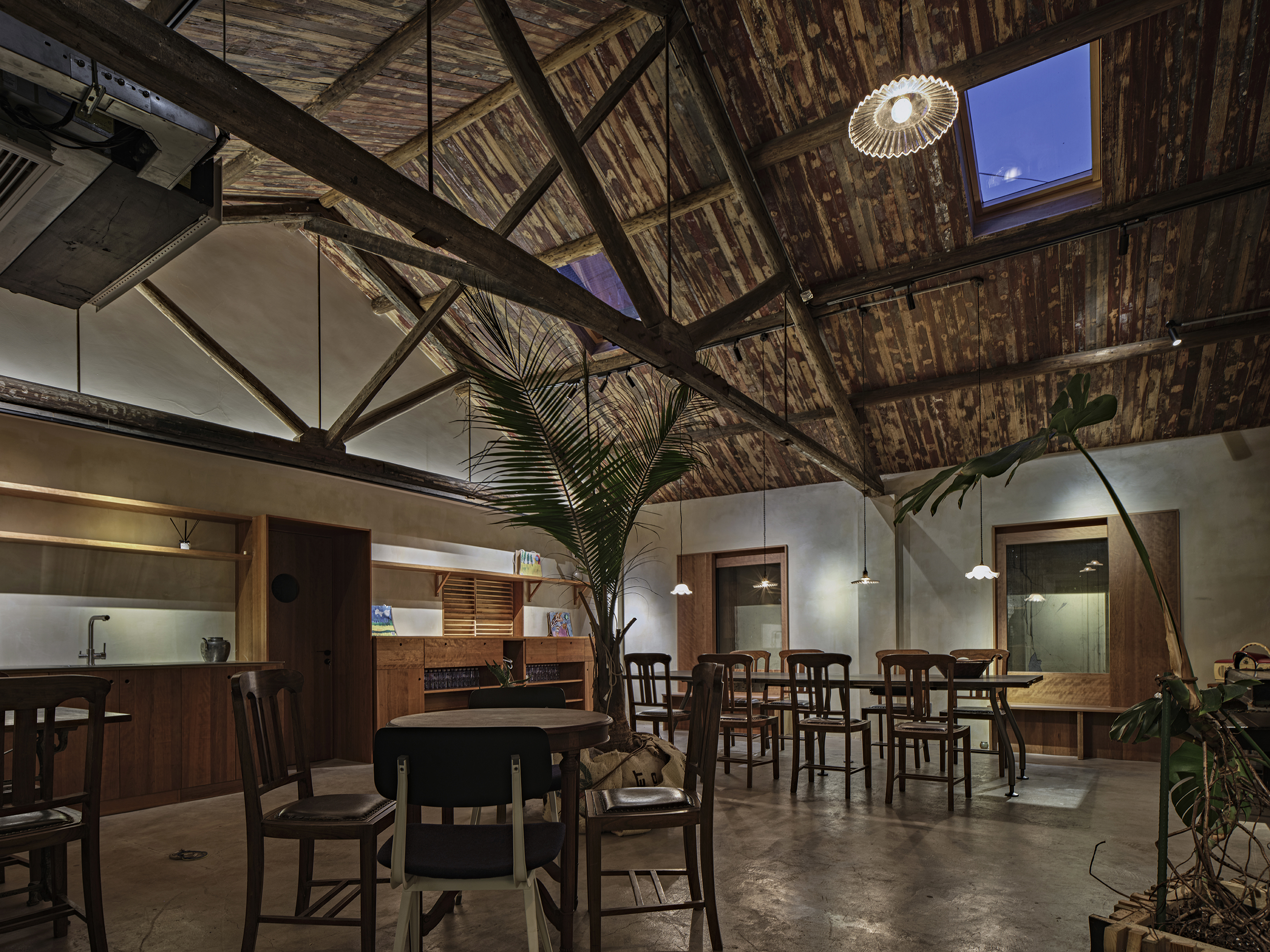

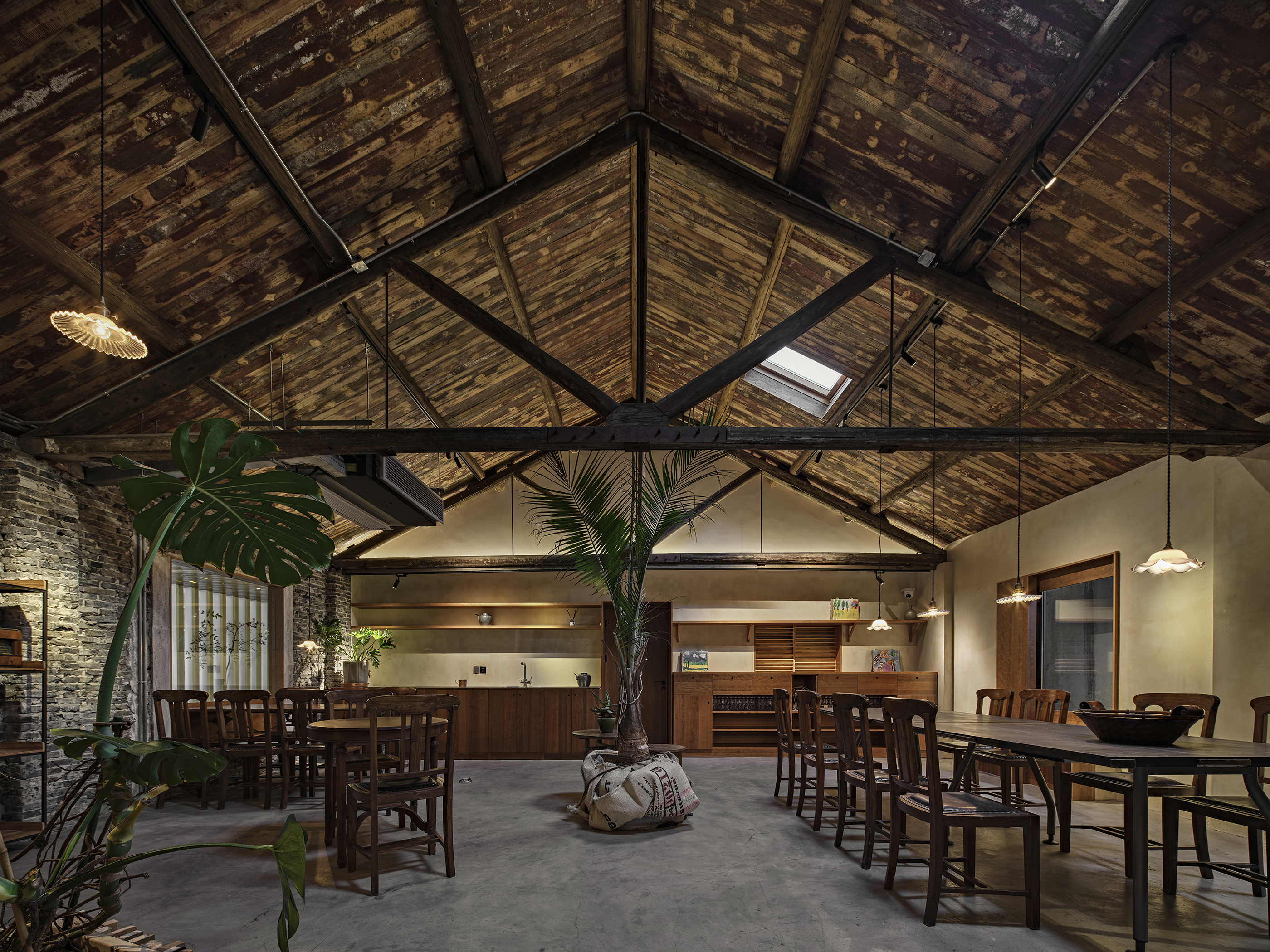

Caf é also tries to preserve a large amount of dilapidated appearance as much as possible © Hu Wenjie咖啡厅©胡文杰 Cafe © Hu Wenjie

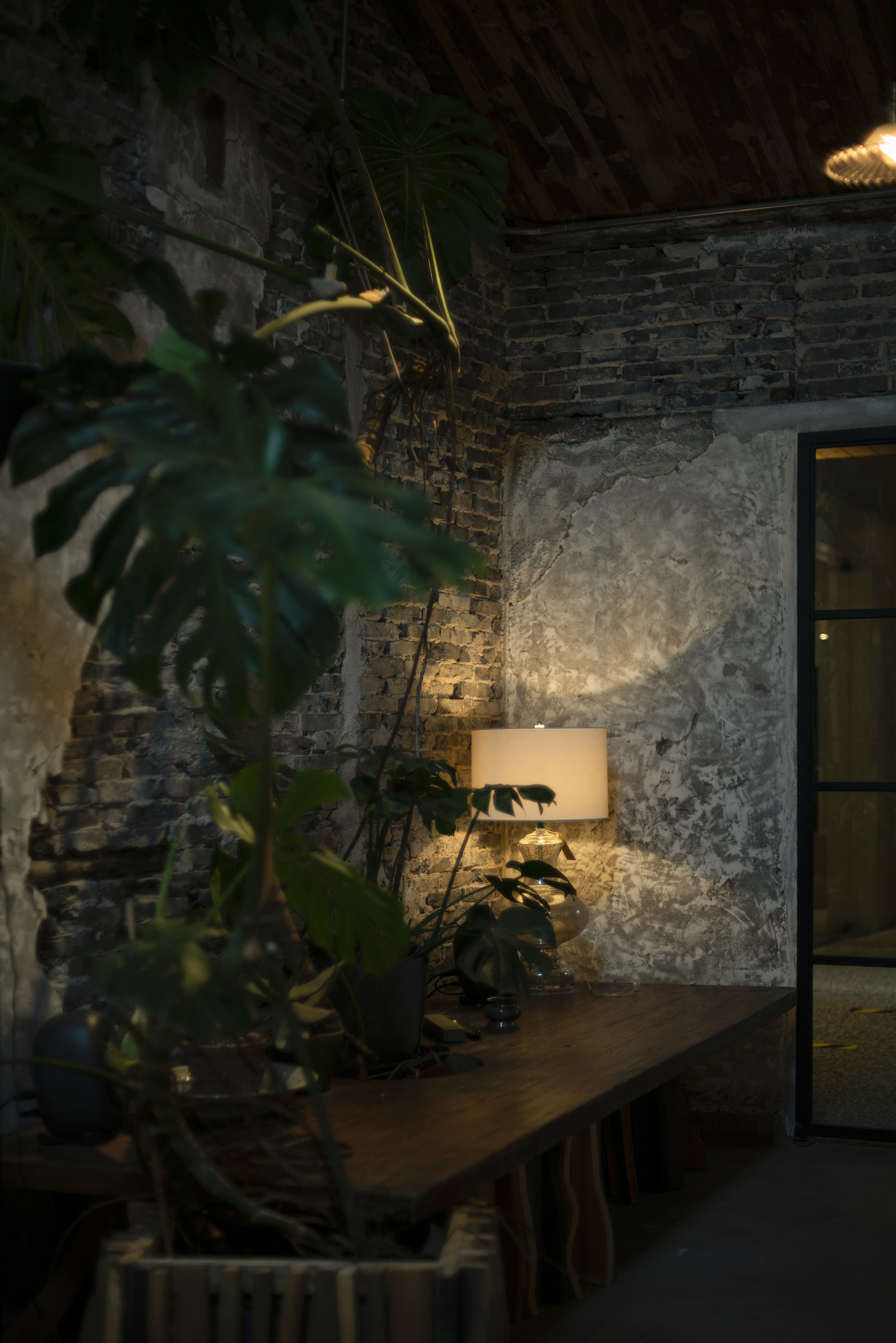

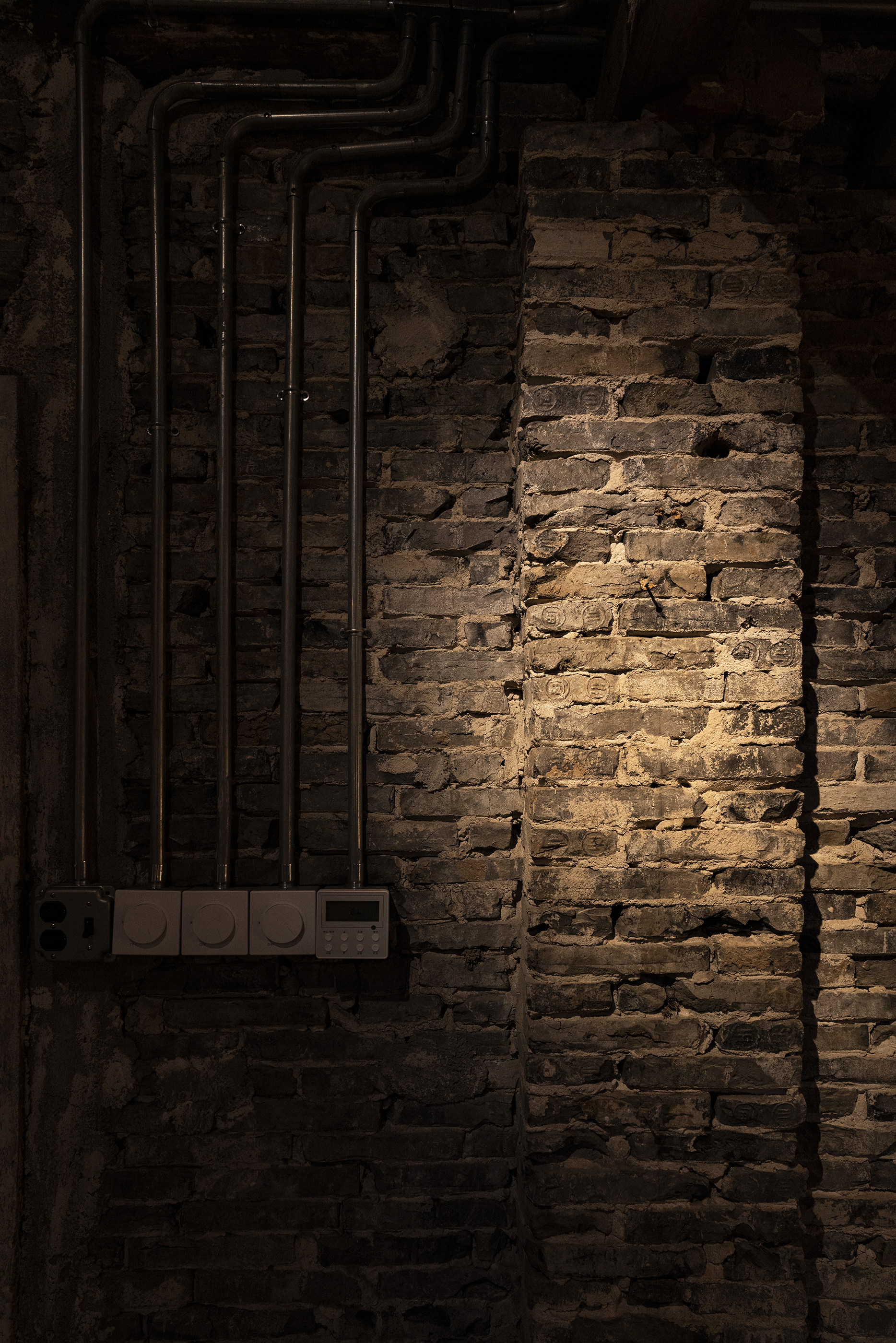

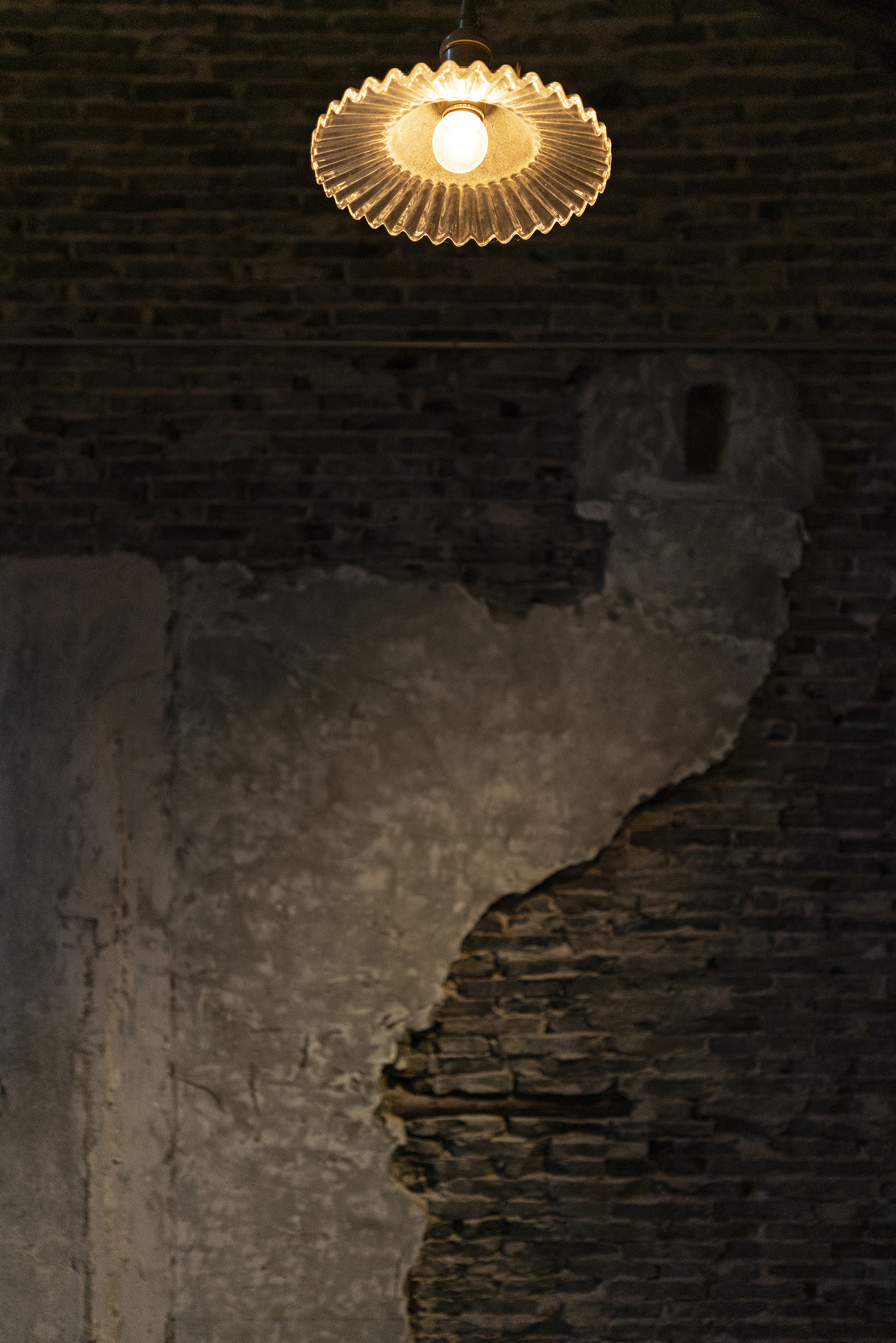

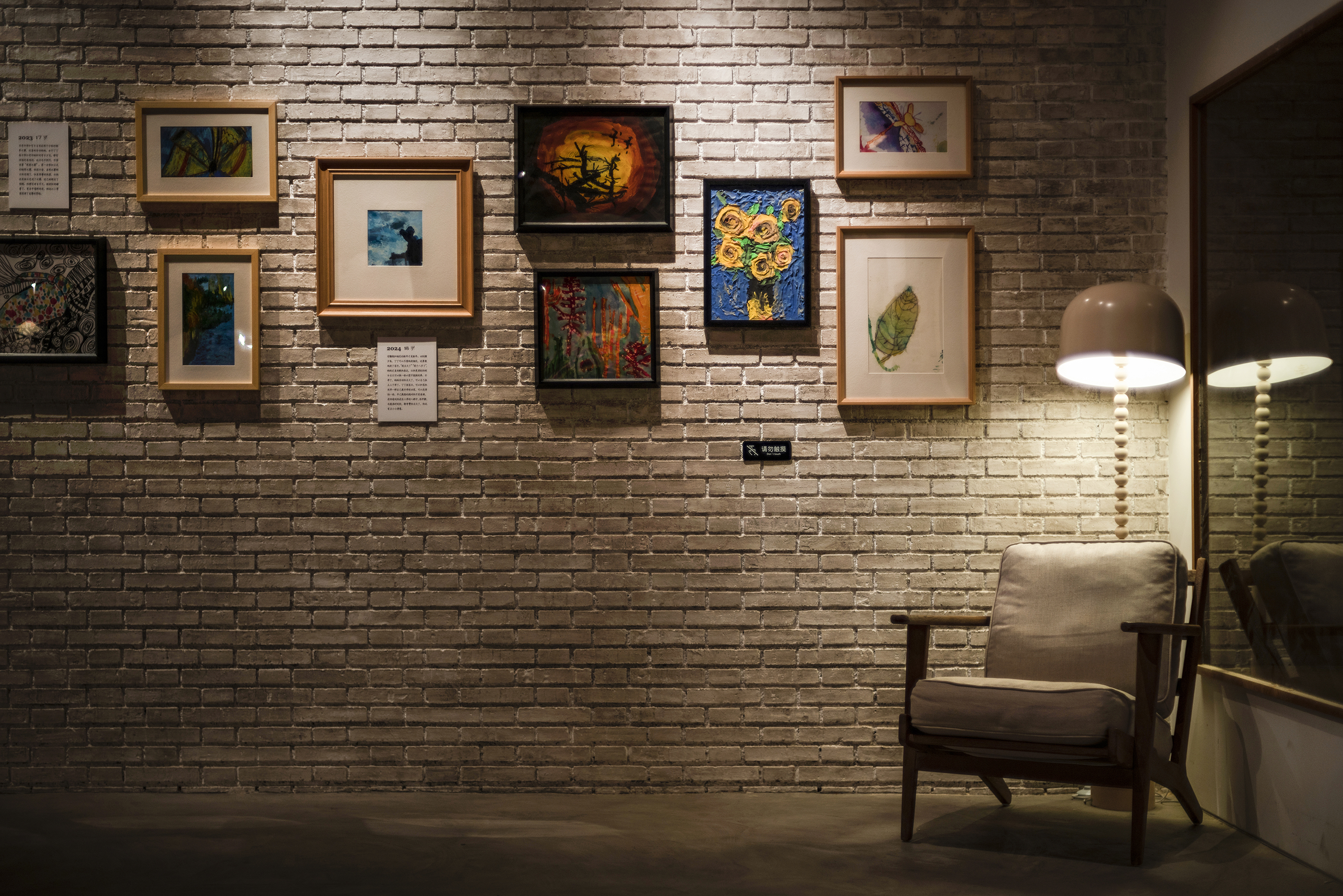

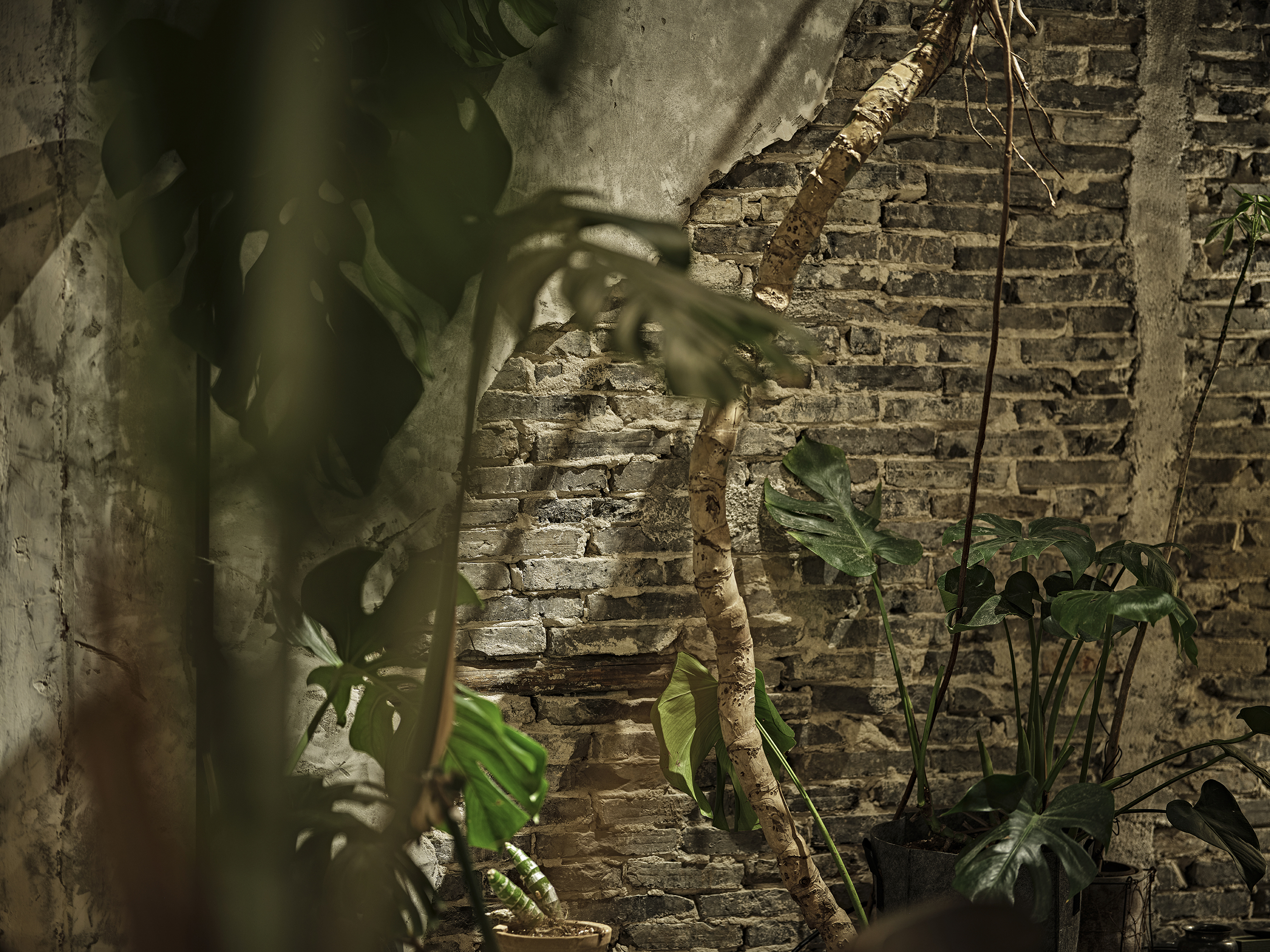

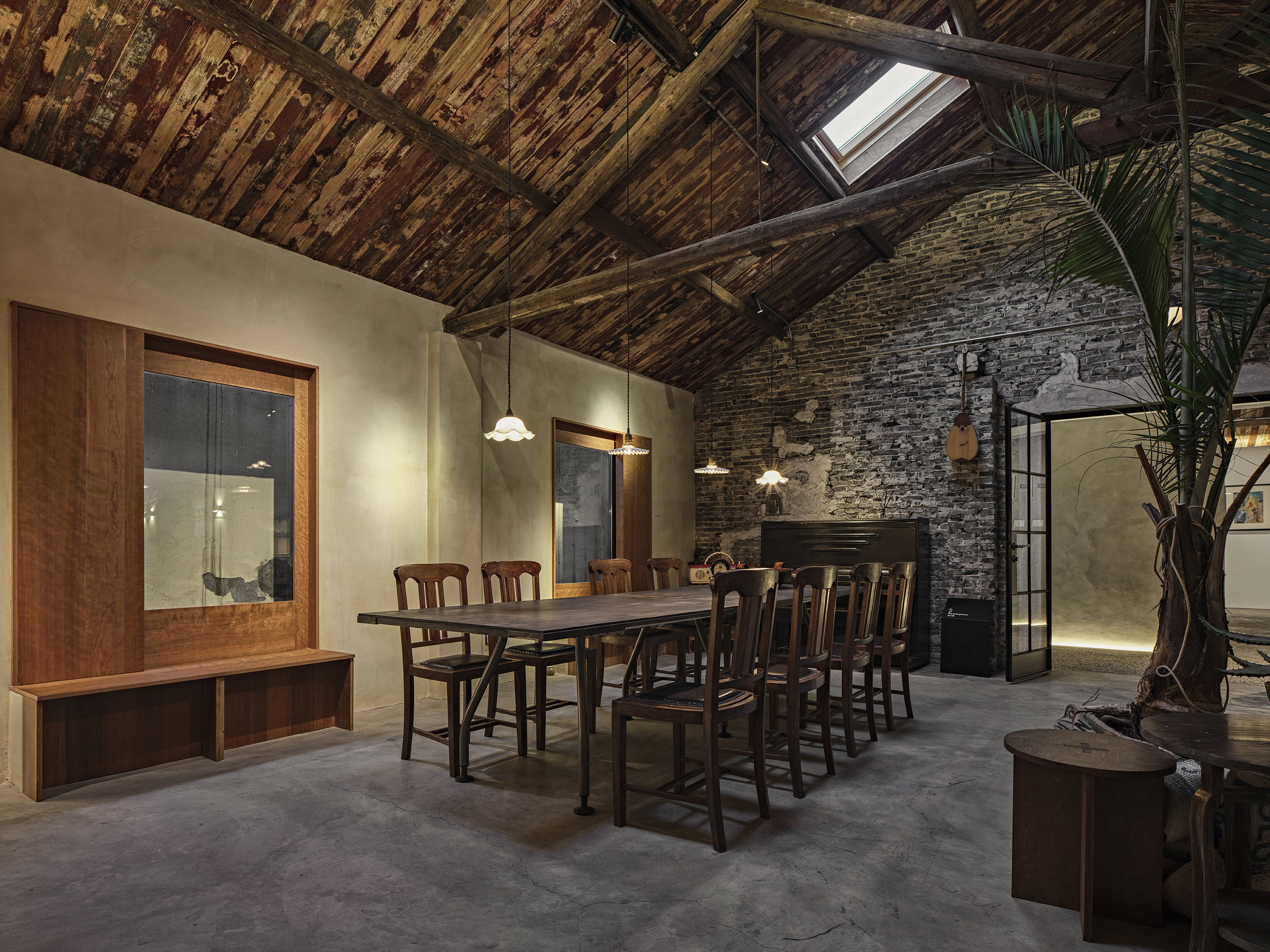

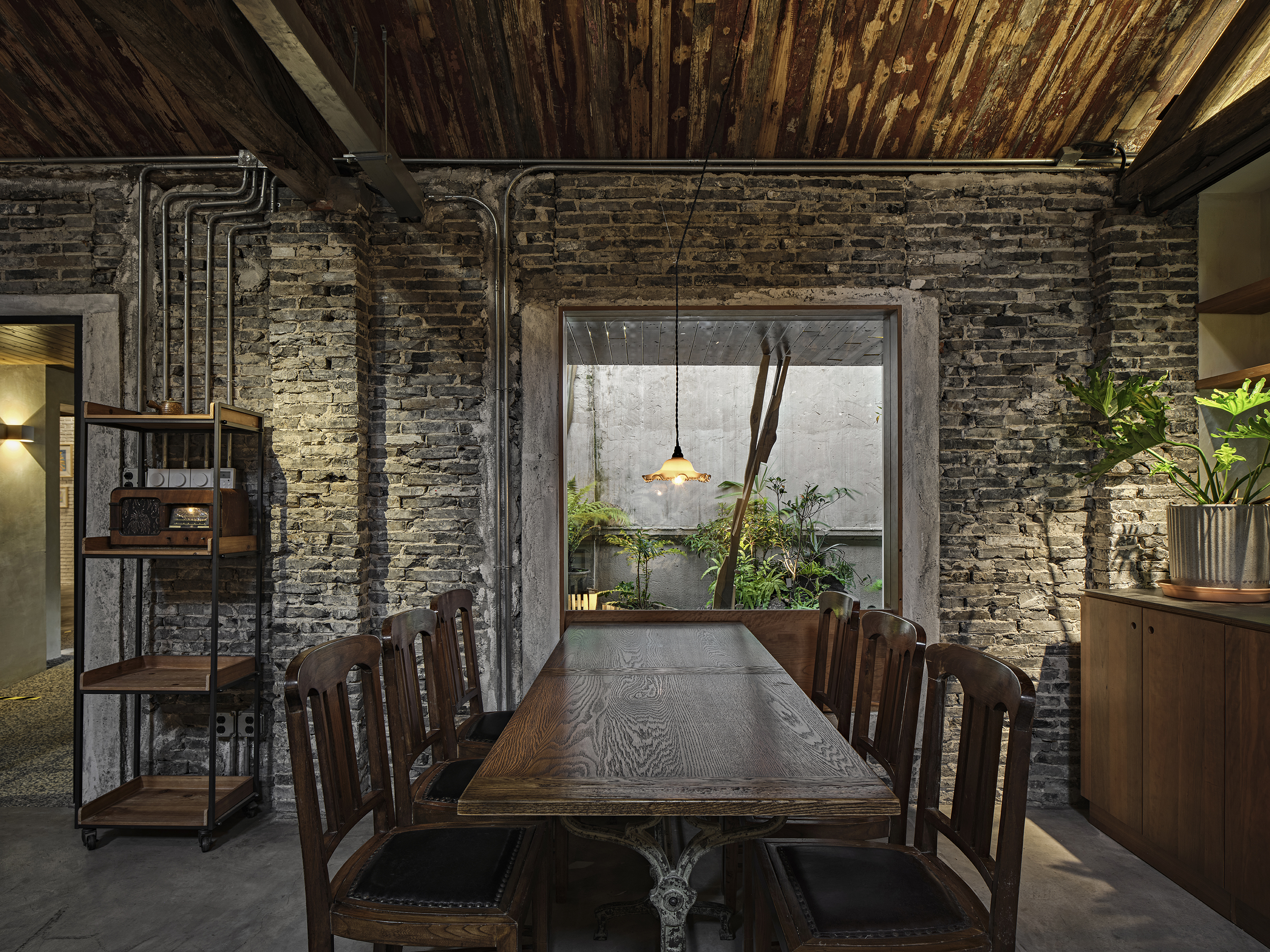

咖啡厅的墙则保留了原有青砖墙的破旧与斑驳，还原了一丝怀旧的氛围©胡文杰

The walls of the coffee shop retain the old and mottled green brick walls, restoring a touch of nostalgia atmosphere © Hu Wenjie

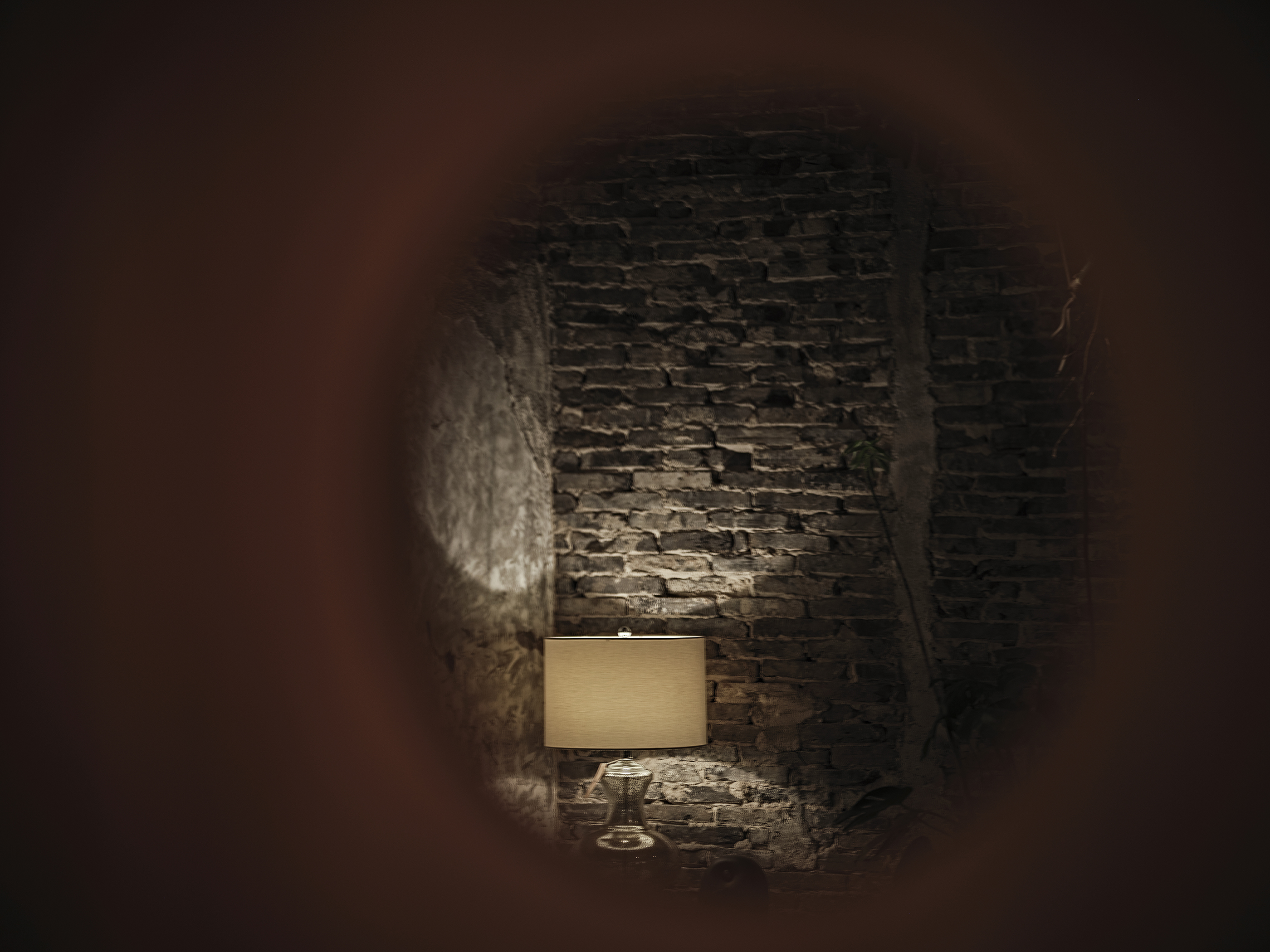

破旧与斑驳的侘寂©王善祥

Worn and mottled silence © Wang Shanxiang

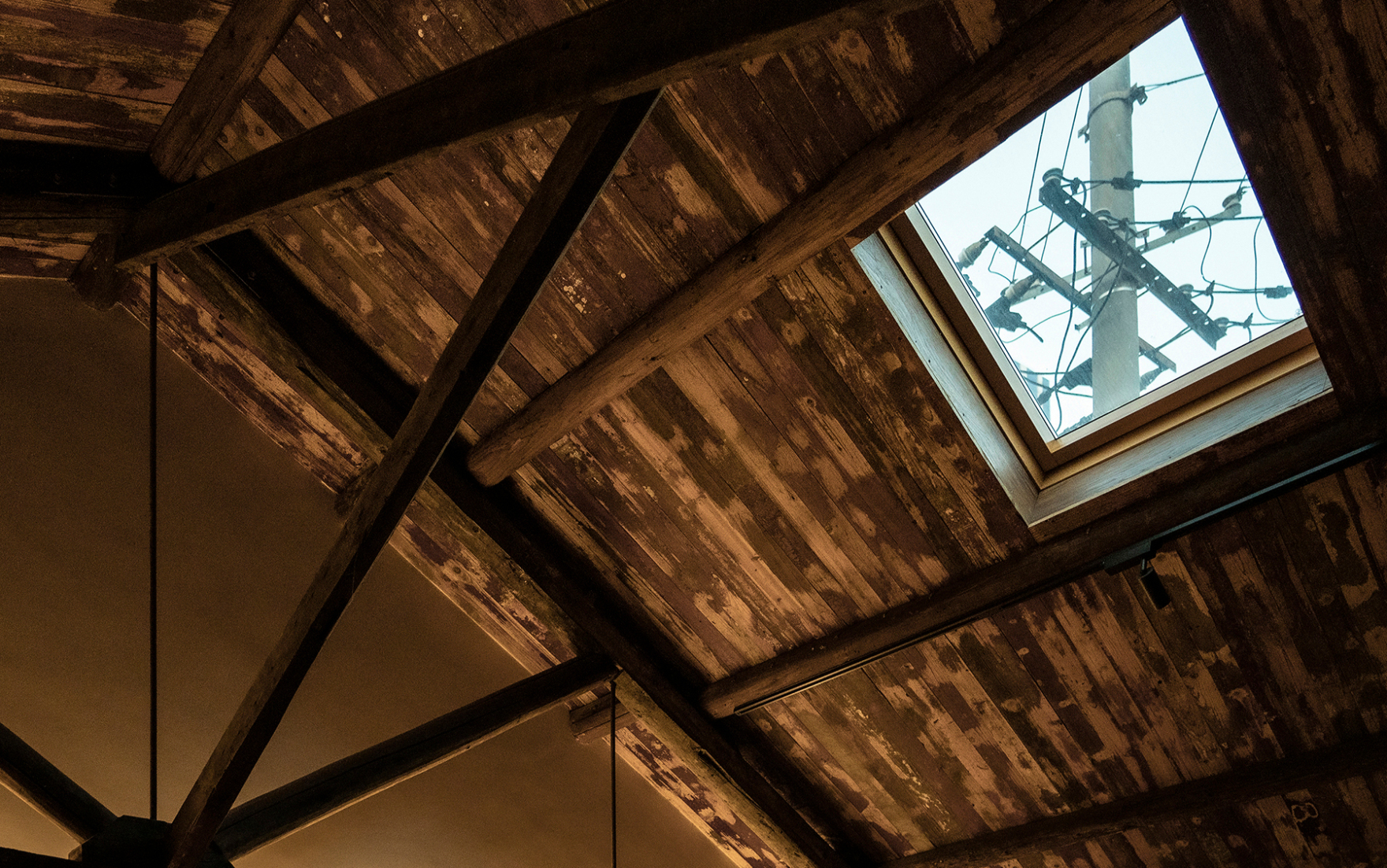

木屋架细部©王善祥

Wooden Frame Details © Wang Shanxiang

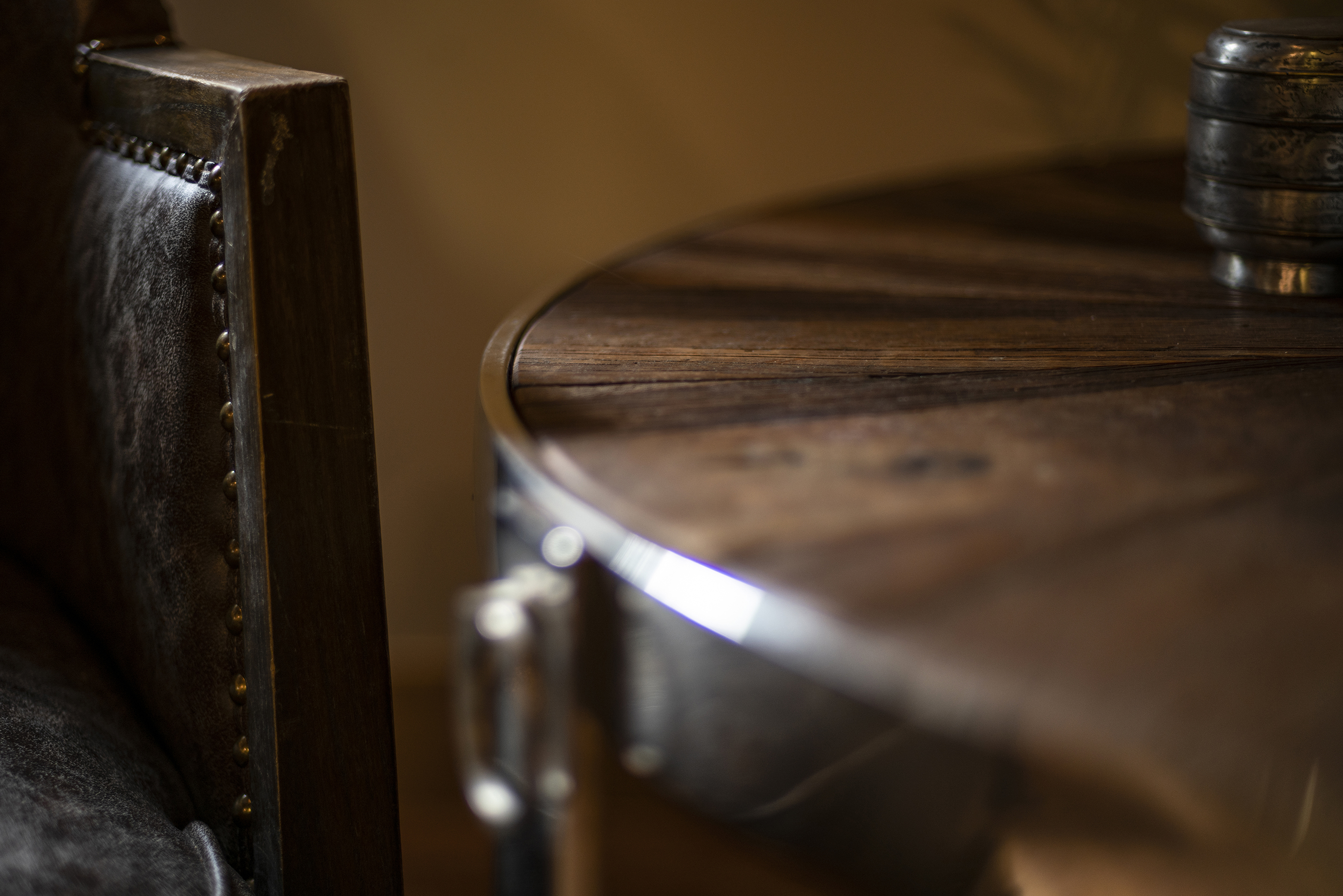

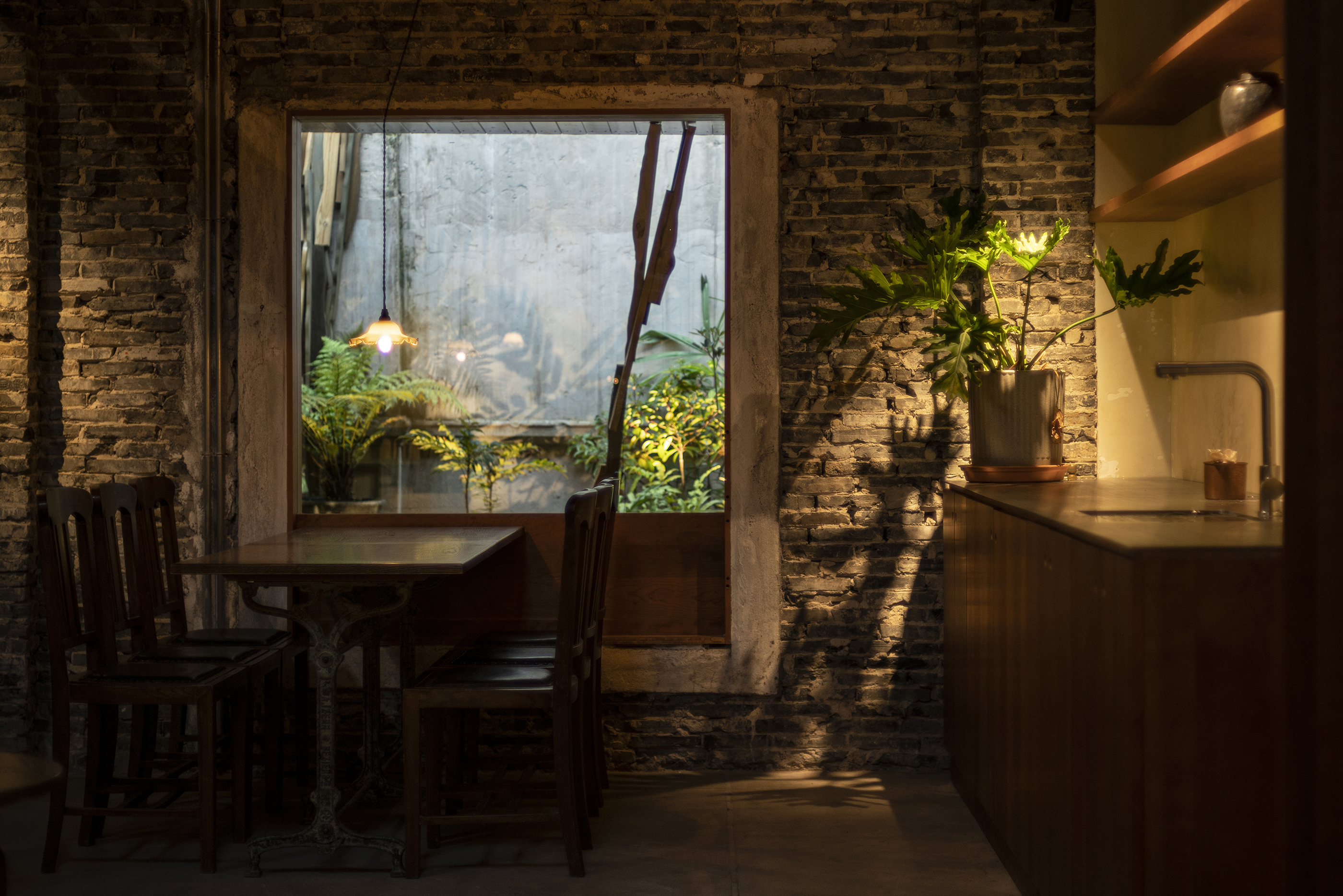

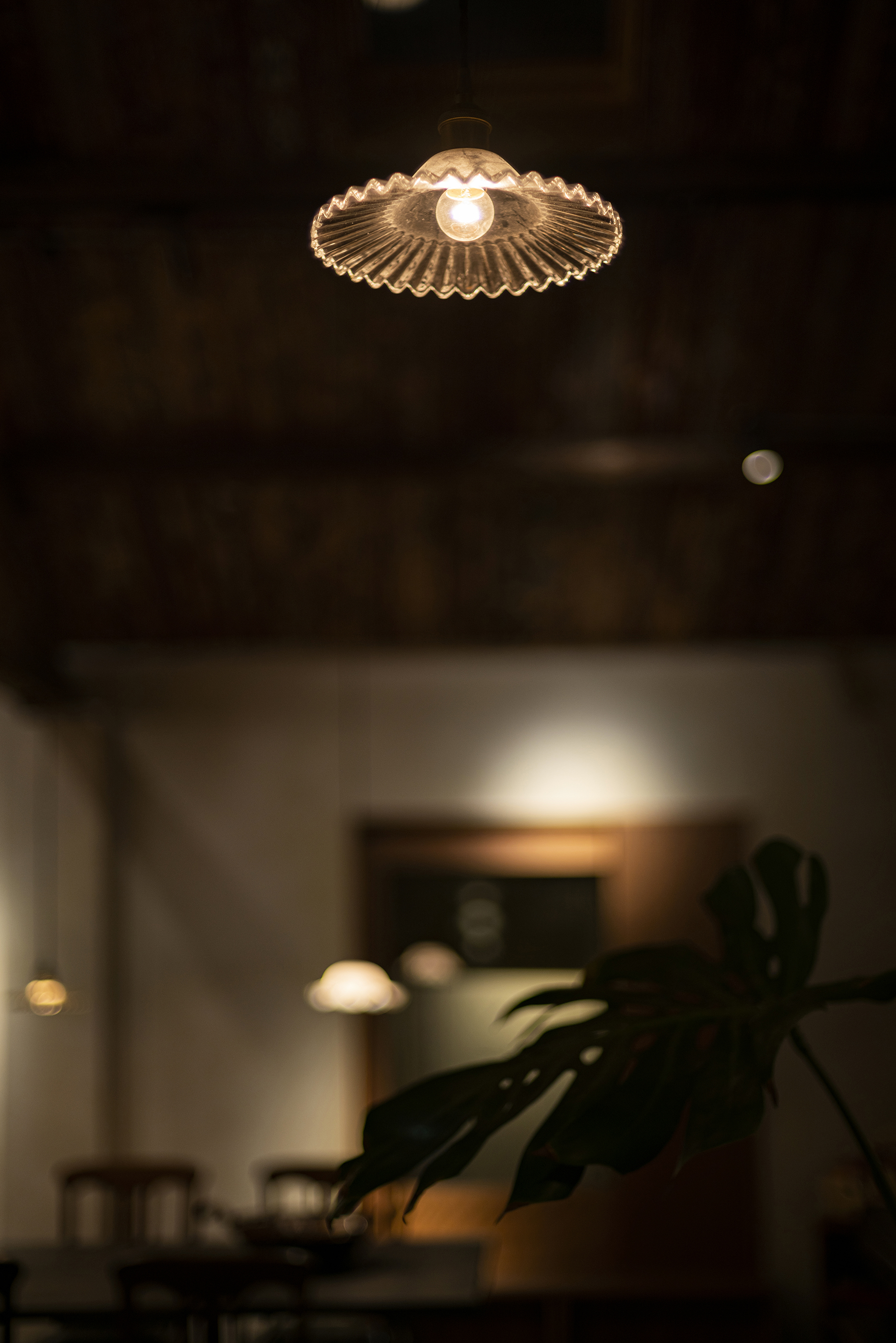

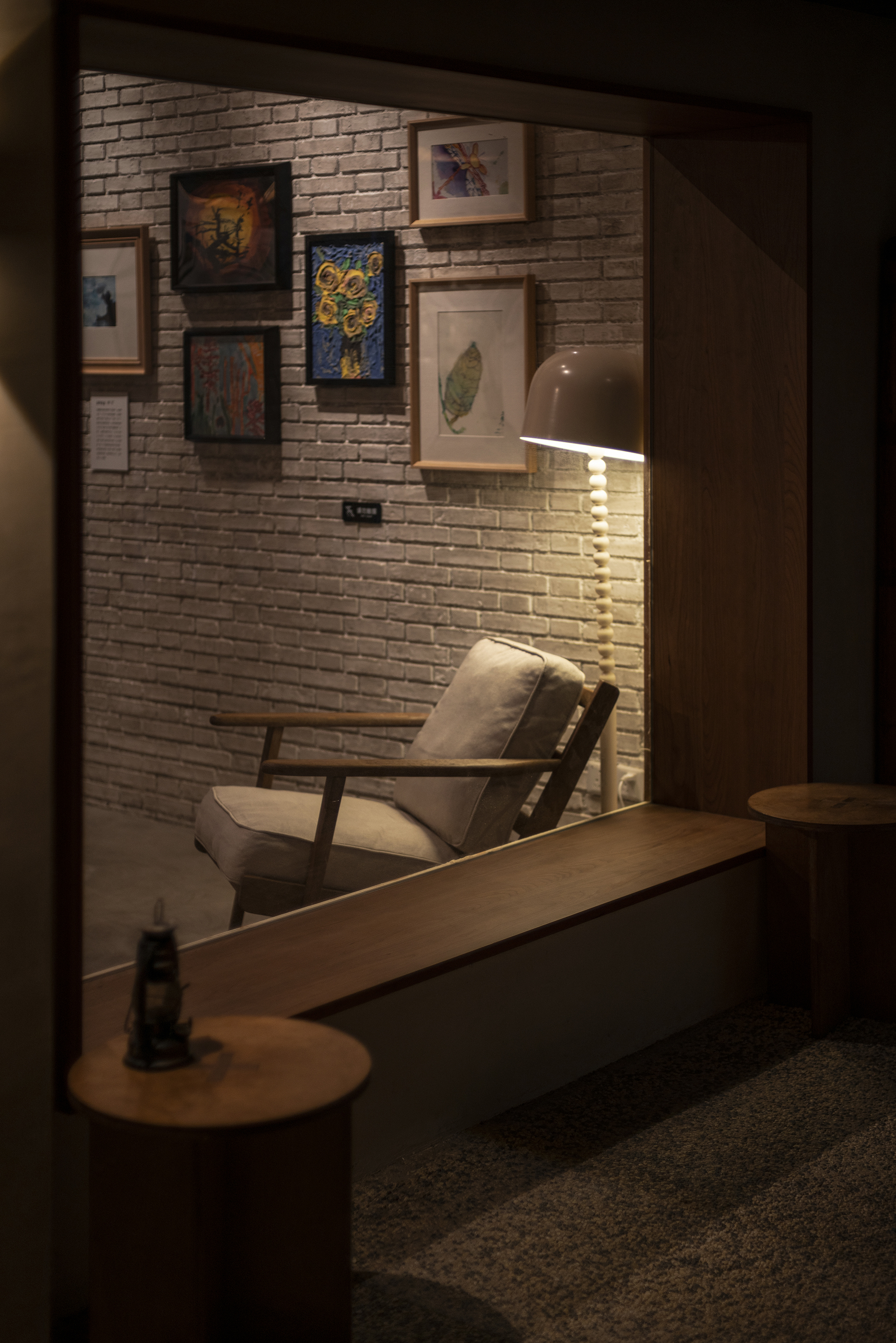

咖啡厅细部©王善祥

Coffee Shop Details © Wang Shanxiang

咖啡厅细部©胡文杰

Coffee Shop Details © Hu Wenjie

咖啡厅细部©王善祥

Coffee Shop Details © Wang Shanxiang

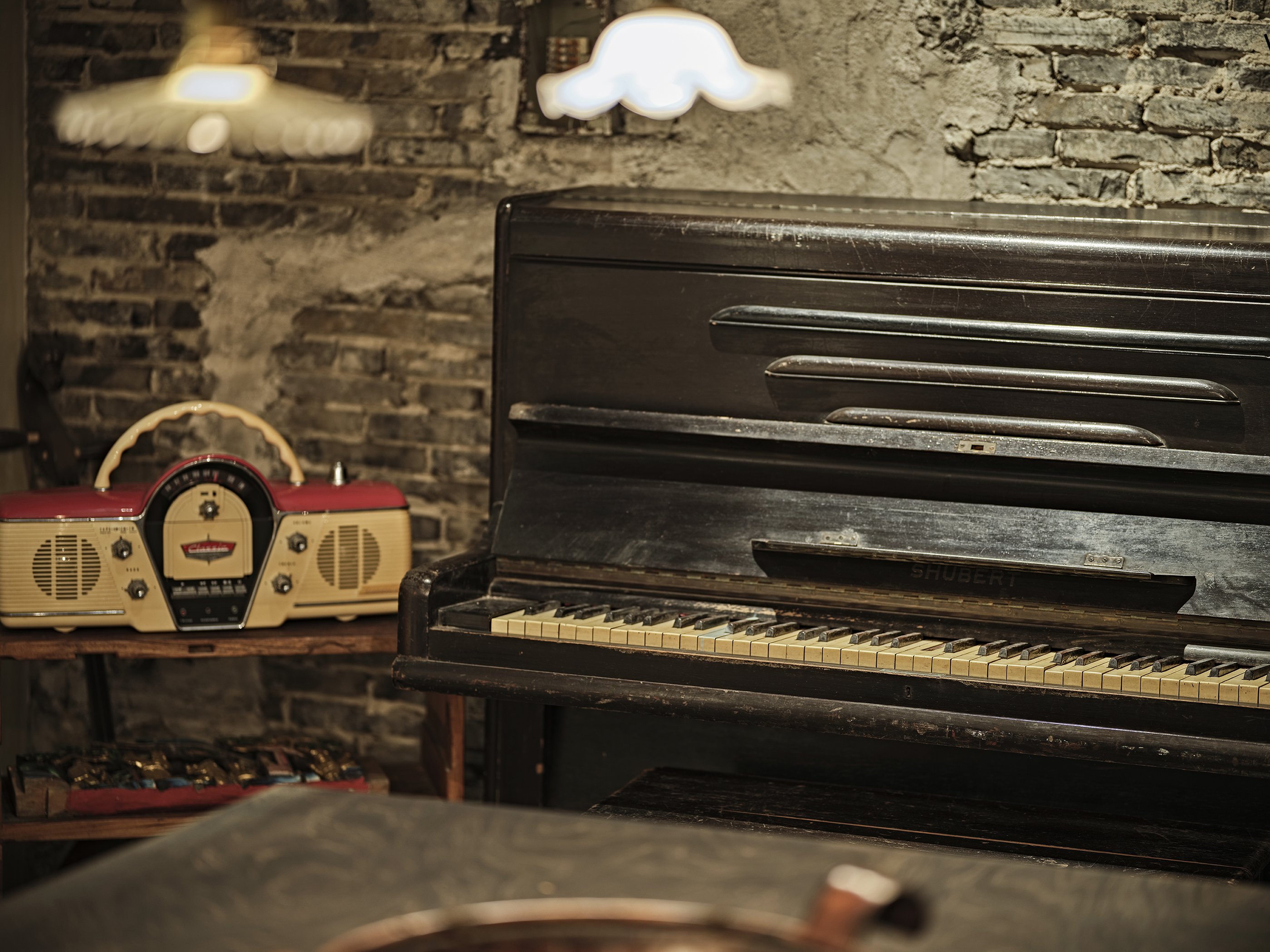

业主收藏的老乐器和音响©胡文杰

Old musical instruments and speakers collected by the owner © Hu Wenjie

咖啡厅细部©胡文杰

Coffee Shop Details © Hu Wenjie

门窗动图 Door and window movement diagram

都市侘寂

项目计划改造出一个综合空间，能做小型文化艺术展览的主展厅，一个可以聊天、会议沙龙的咖啡厅，还有一个景观设计工作室。业主和设计师都希望在加入当下元素的同时保持这种都市侘寂风。

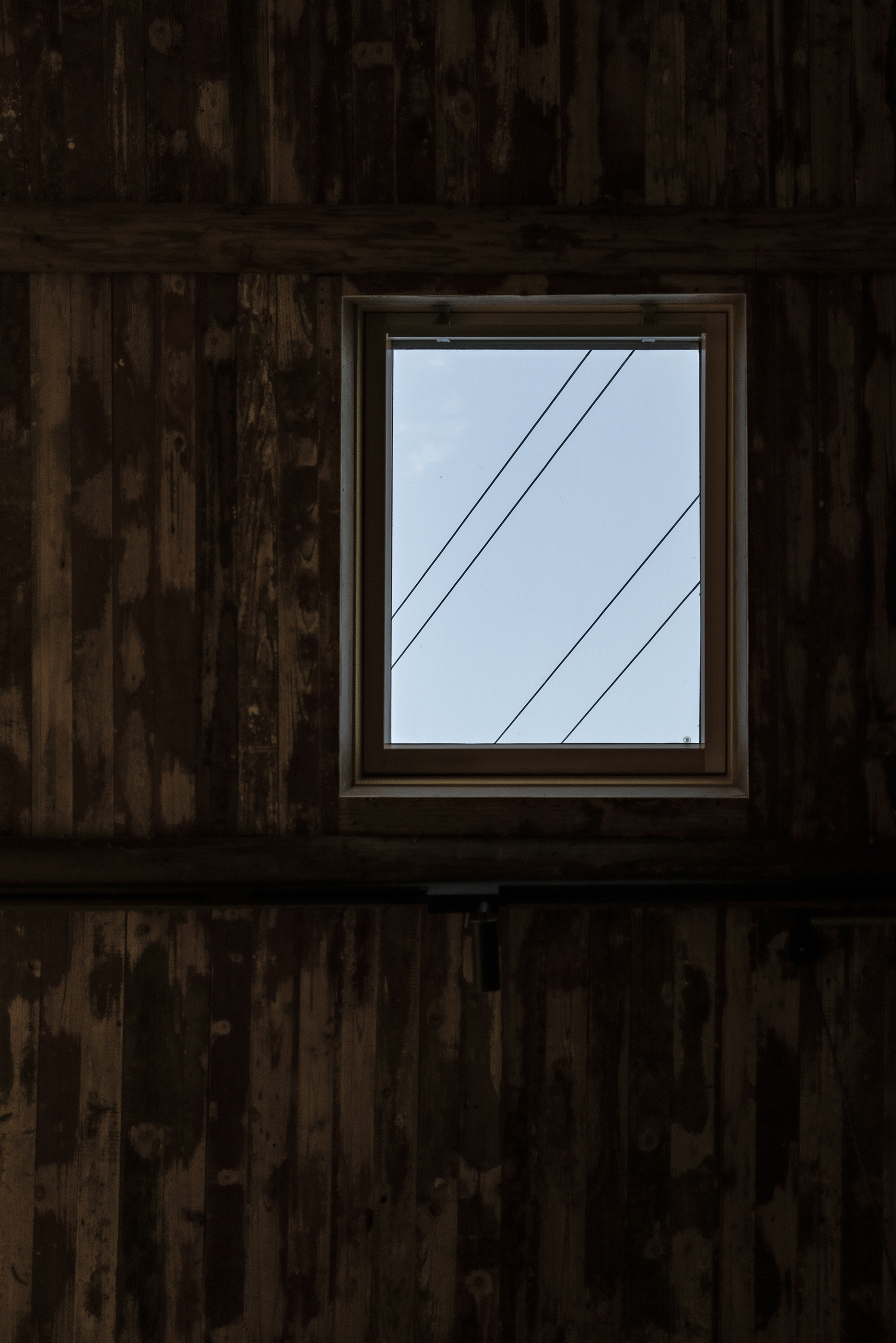

朝向1293弄的建筑外立面除了后加的钢板雨棚和一个小标牌之外没再做任何处理，尽量保持了这个空间的低调与朴素。从弄堂进入这个空间，首先是预留了一条7米长的通道，这条通道是弄堂和内部空间的过度，减弱了两者之间的相互干扰。建筑内部有一条L型的半开放走廊，是联系展厅、设计工作室、咖啡厅以及储藏、卫生间等的重要交通道路，还可以作为一个户外休闲、透气的内天井，在狭窄的仅有“一线天”的天井里，由植笔景观设计、种植了生机盎然的植物。空间内最大的一个特点就是破旧的木望板屋面和简易木梁架。屋面瓦经过修缮，不再漏雨，但是原有铺瓦的望板很多已经破损、腐烂，因此首先在这层木板下加了一层岩棉保温，再铺了一层旧木板，延续了这个木板屋面的侘寂风格，同时也得到了更好的保温效果。原有木屋架没做任何装饰，最大限度的外露出来。部分承重墙也做了加固处理。地面全部以混凝土重新找平。主展厅以简洁为主基调，墙面做了石膏板封平，除了隔潮还能更好的作为展示的背景。咖啡厅的部分墙面则还原了原有青砖墙的破旧与斑驳，保留了一丝怀旧的氛围，这里还在顶上开了天窗采光，能感受到一天中自然光的变化，增添了一丝松驰的生活气息。最内部的空间是上海植笔景观设计工作室，这里设计了一个向内部嵌入的玻璃“天井”，成为了这个区域的一个主要趣味元素。

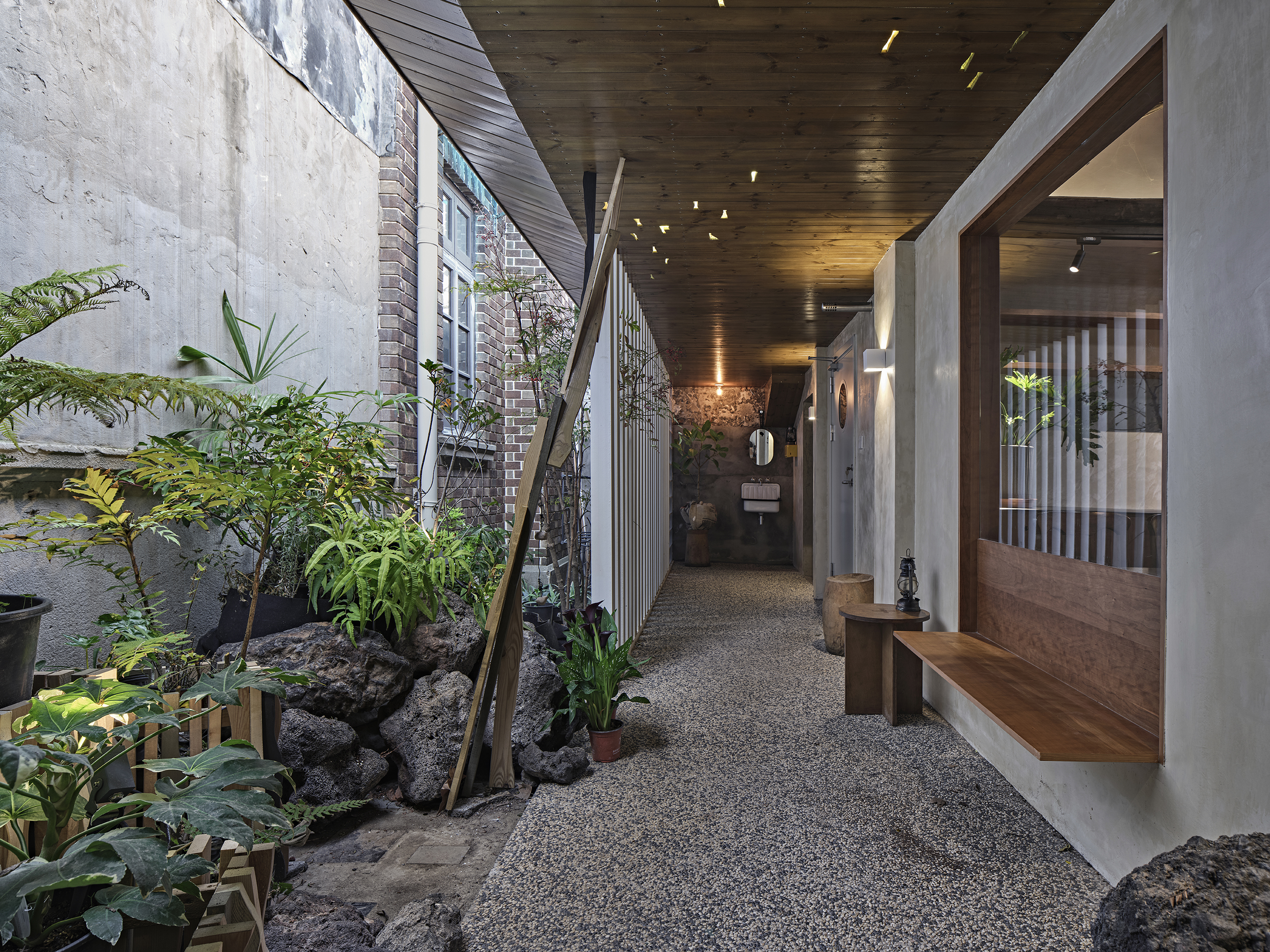

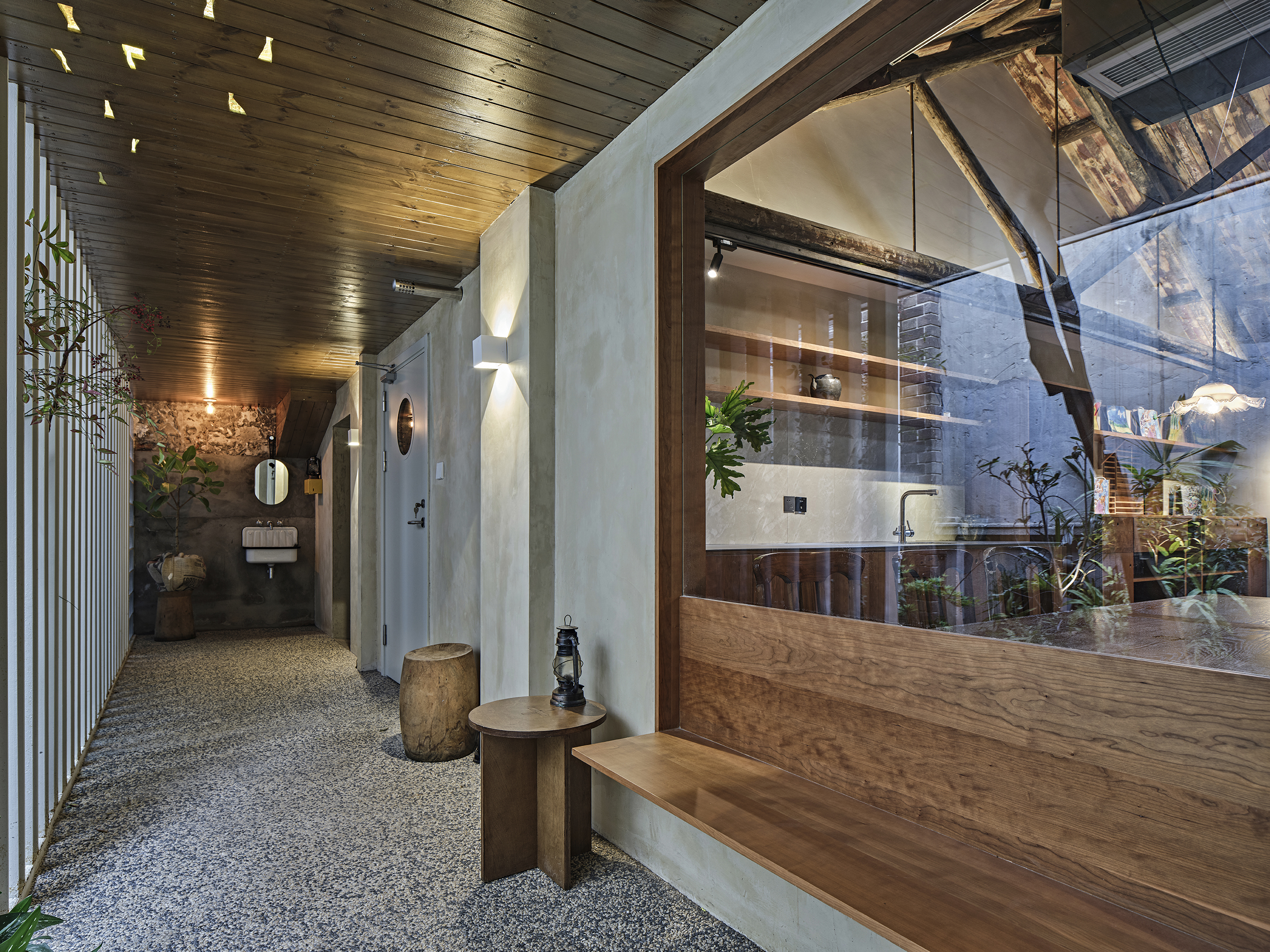

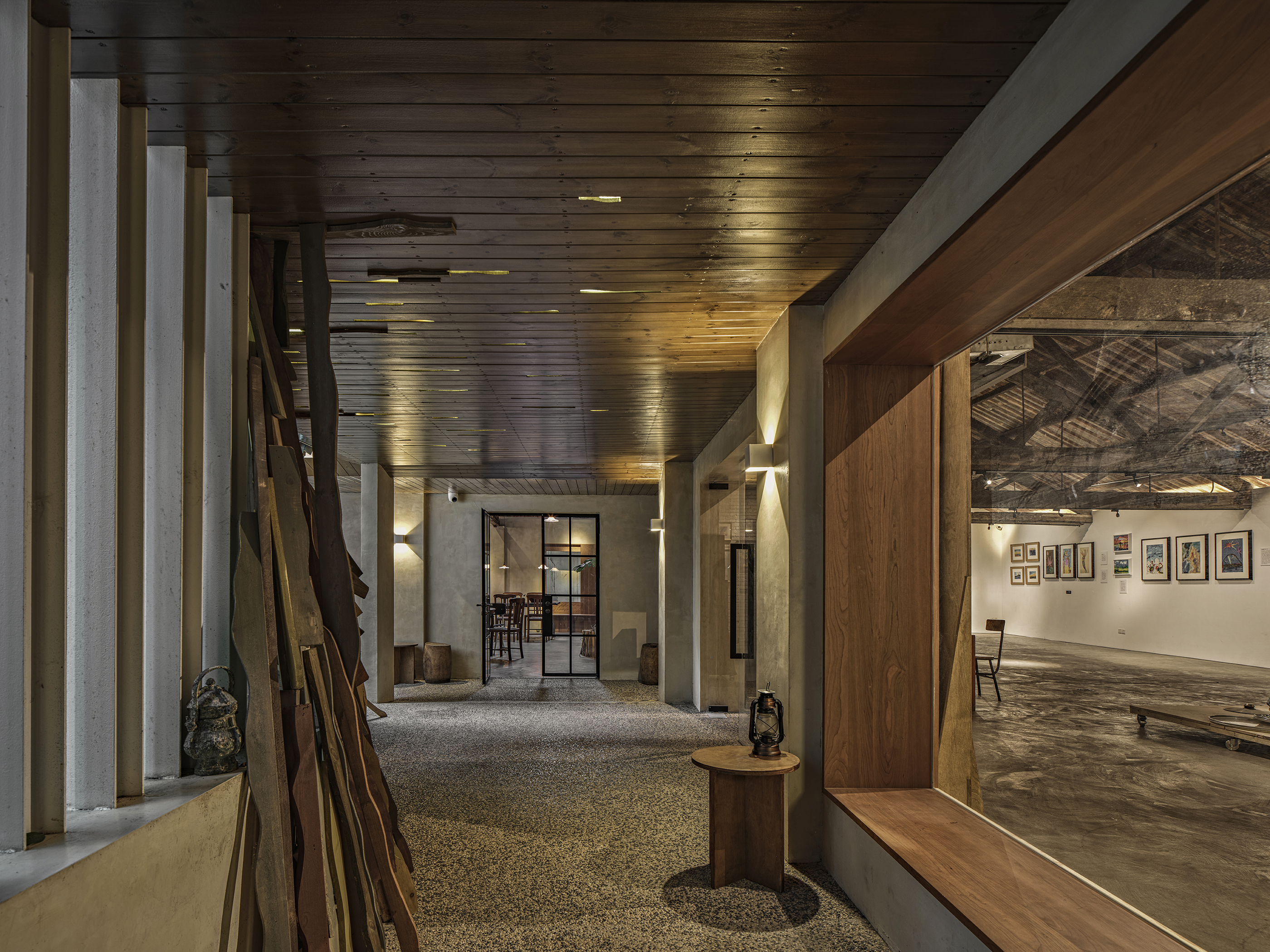

建筑内部有一条L型的半开放走廊，是联系展厅、设计工作室、休息厅以及储藏、卫生间等的重要交通道路©胡文杰

There is an L-shaped semi open corridor inside the 025 building, which is an important transportation road connecting exhibition halls, design studios, rest areas, storage, toilets, etc © Hu Wenjie

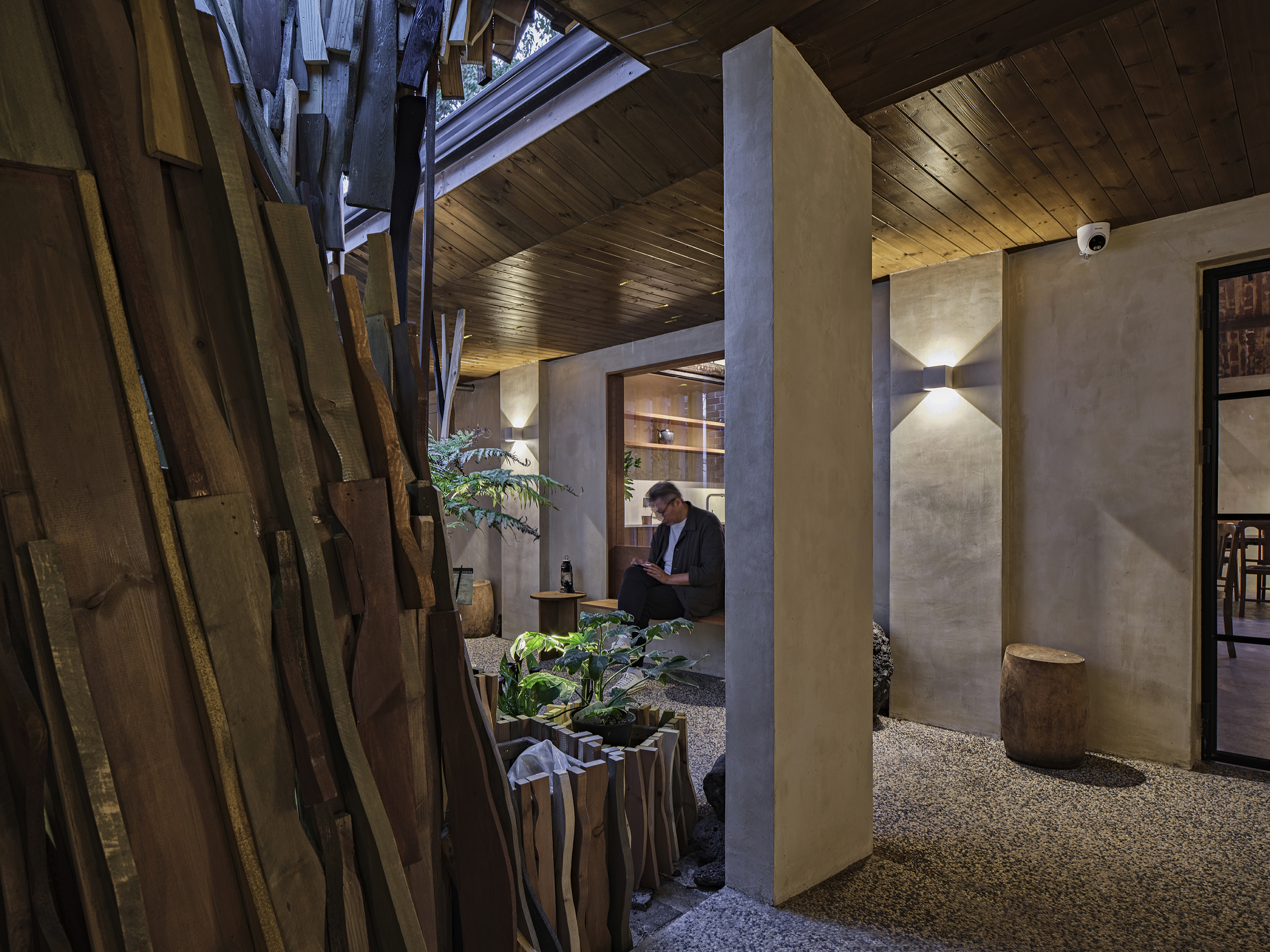

建筑内部的半开放走廊可以作为一个户外休闲、透气的内天井©胡文杰

The semi open corridor inside the 026 building can serve as an outdoor leisure and breathable inner courtyard © Hu Wenjie

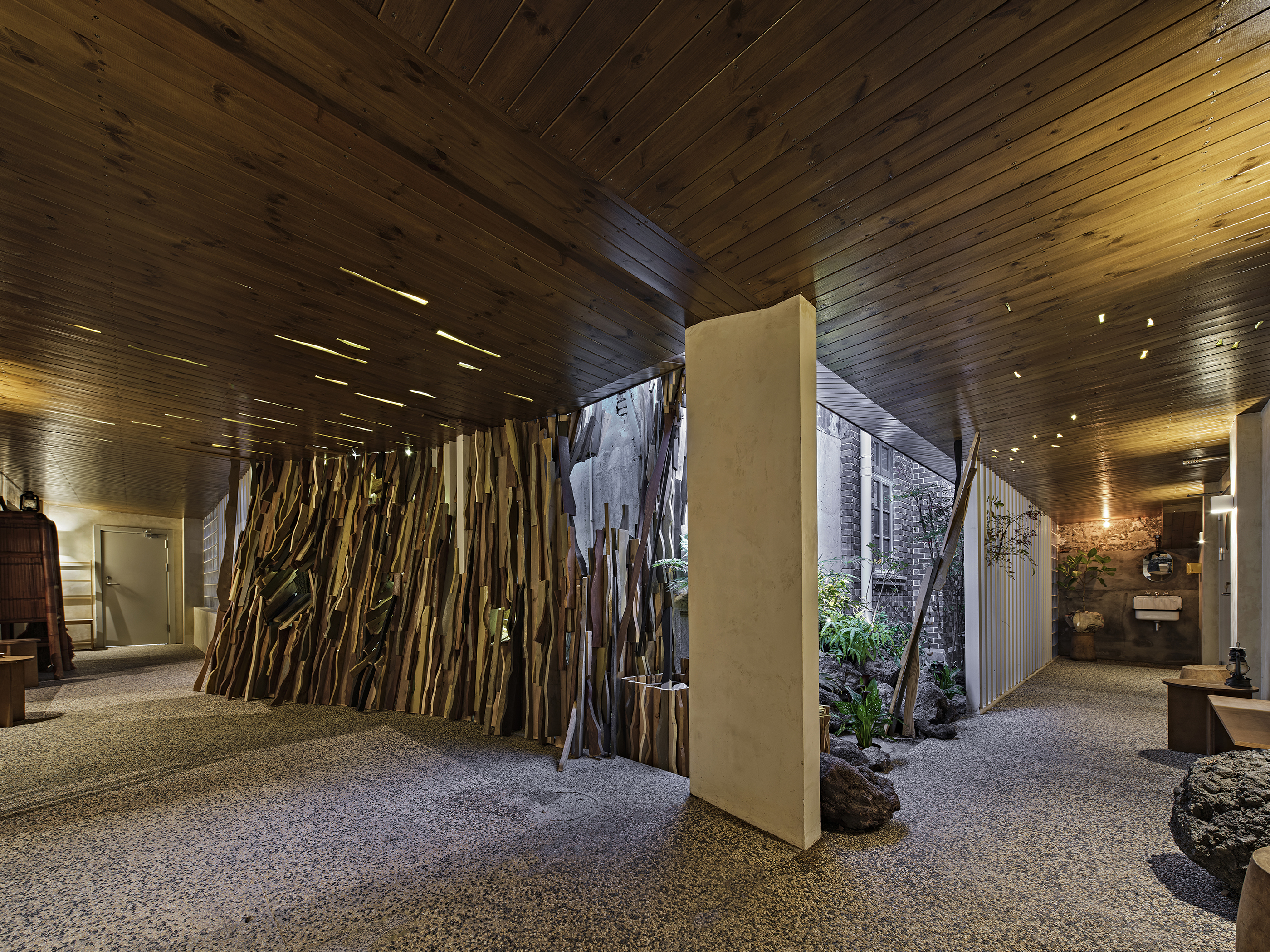

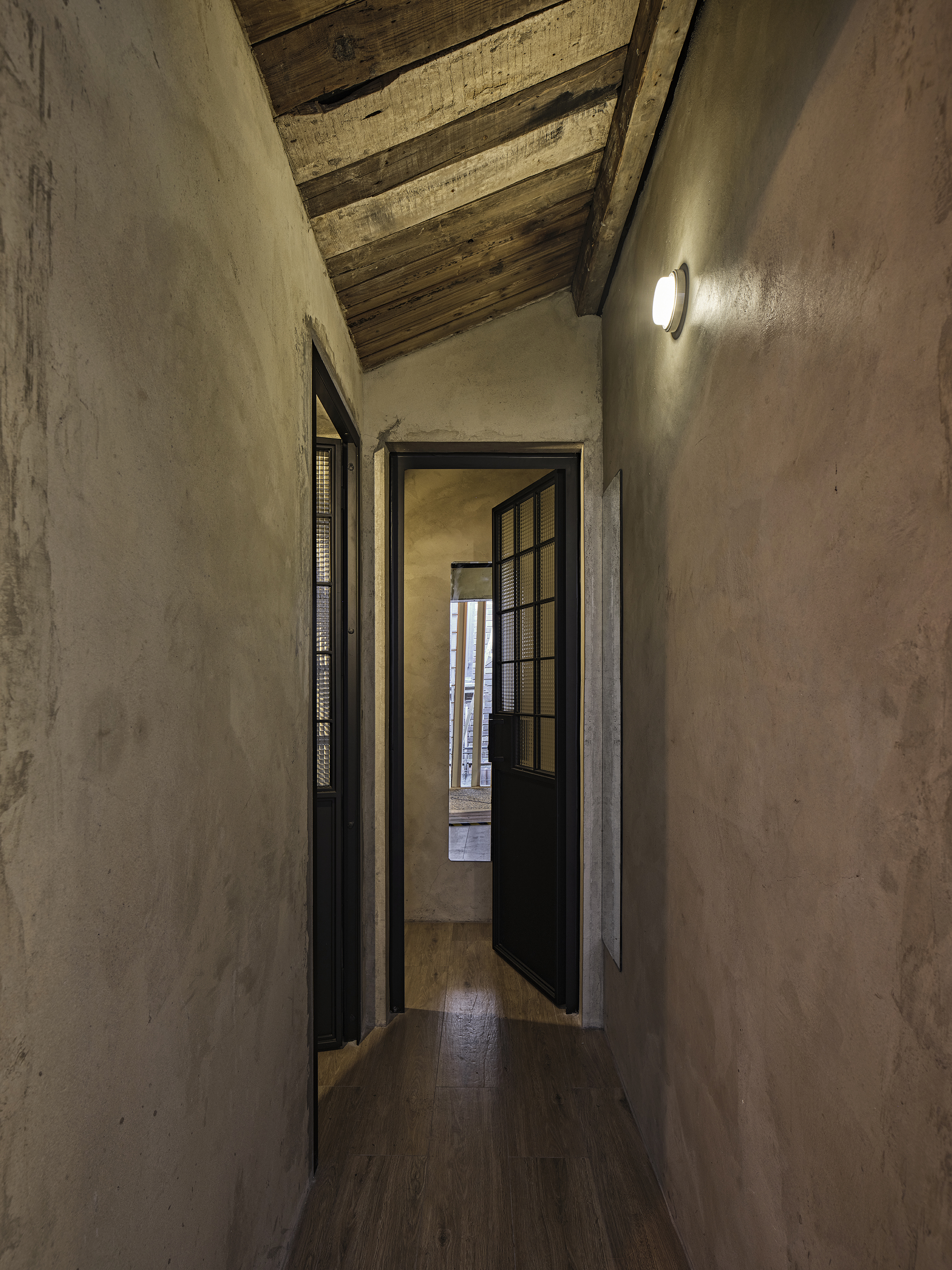

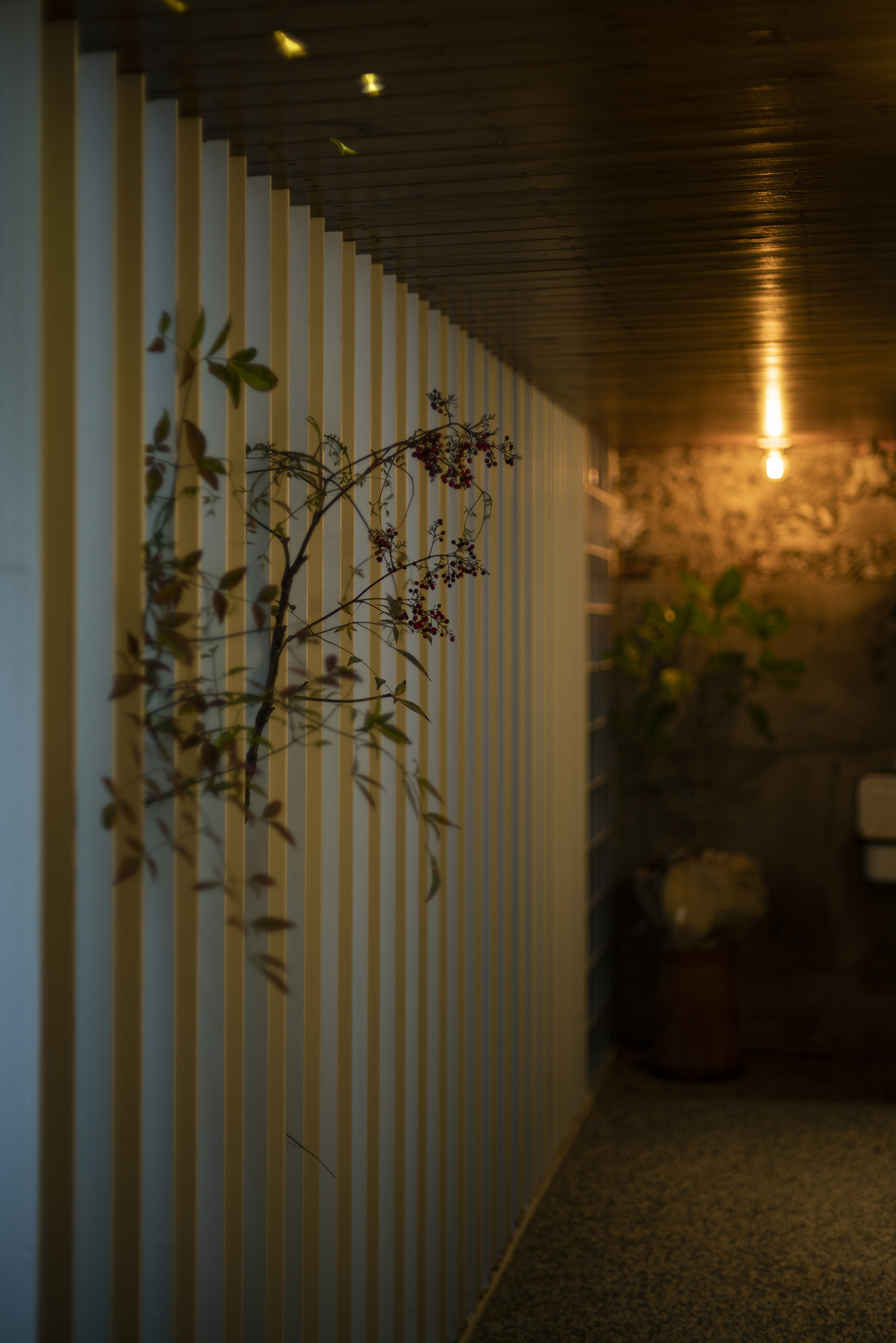

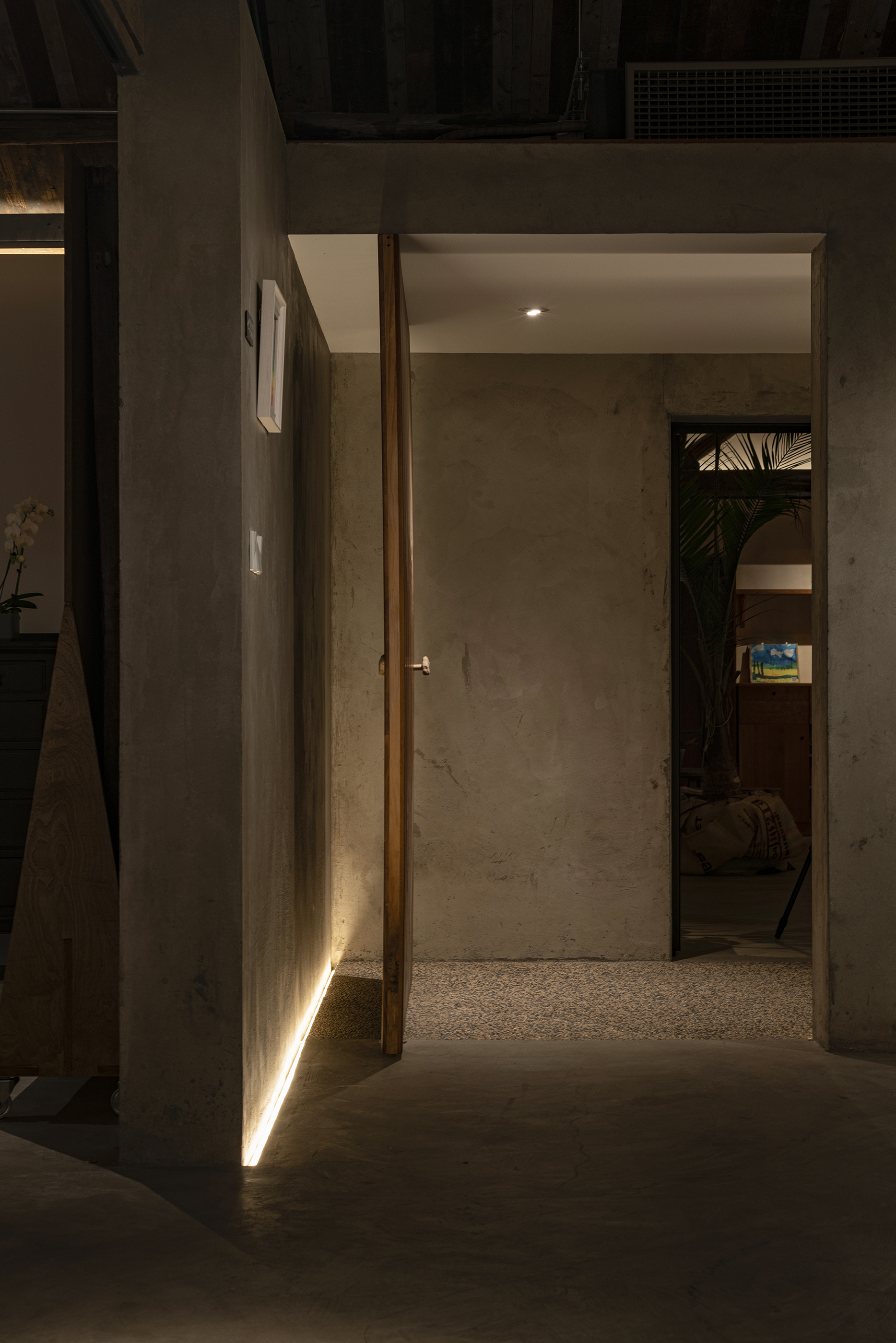

内廊空间©胡文杰

Inner Corridor Space © Hu Wenjie

内廊空间©胡文杰

Inner Corridor Space © Hu Wenjie

The semi open corridor inside the 031 building can serve as an outdoor leisure and breathable inner courtyard © Hu Wenjie

公共卫生间©胡文杰

内廊细部©胡文杰

内廊细部©王善祥

内廊细部©胡文杰

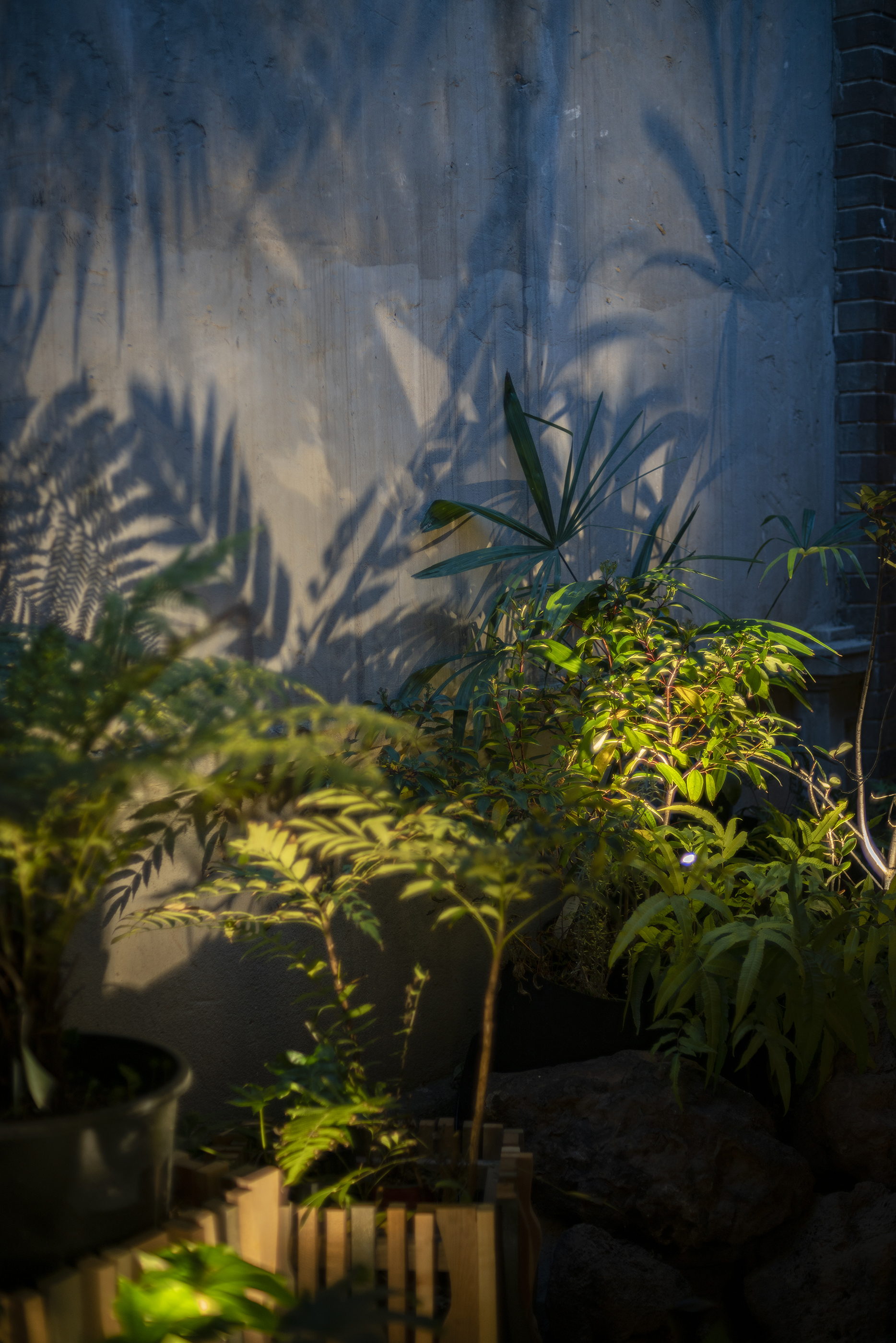

内廊绿植细部©王善祥

Urban wabi-sabi

The project plan is to transform a comprehensive space into a main exhibition hall for small-scale cultural and artistic exhibitions, a coffee shop for chatting and conference salons, and a landscape design studio. Both homeowners and designers hope to maintain this urban tranquility while incorporating current elements.

The exterior facade of the building facing Lane 1293 has not been treated except for the steel plate canopy and a small sign added at the back, trying to maintain the low-key and simple space. Entering this space from the alley, the first step is to reserve a 7-meter-long passage, which serves as a transition between the alley and the internal space, reducing mutual interference between the two. There is an L-shaped semi open corridor inside the building, which is an important transportation road connecting exhibition halls, design studios, cafes, storage, bathrooms, etc. It can also serve as an outdoor leisure and breathable inner courtyard. In the narrow courtyard with only a "line of sky", it is designed and planted with vibrant plants through landscape design. The biggest feature of the space is the dilapidated wooden watchboard roof and simple wooden beam frames. The roof tiles have been repaired and no longer leak rain, but many of the original tile boards have been damaged and decayed. Therefore, a layer of rock wool insulation was first added under this layer of wooden boards, followed by an old layer of wooden boards, continuing the quiet style of this wooden board roof and achieving better insulation effects. The original wooden frame was not decorated and was exposed to the maximum extent possible. Some load-bearing walls have also been reinforced. The ground is completely leveled with concrete. The main exhibition hall adopts a simple tone, with gypsum board sealing on the walls, which not only provides moisture resistance but also serves as a better background for the display. Part of the walls of the caf é have restored the old and mottled green brick walls, retaining a nostalgic atmosphere. A skylight has also been opened on the top for lighting, allowing you to feel the changes in natural light throughout the day and adding a touch of relaxed living atmosphere. The innermost space is the Shanghai Zhibi Landscape Design Studio, which features a glass "courtyard" embedded into the interior, becoming a major fun element in this area.

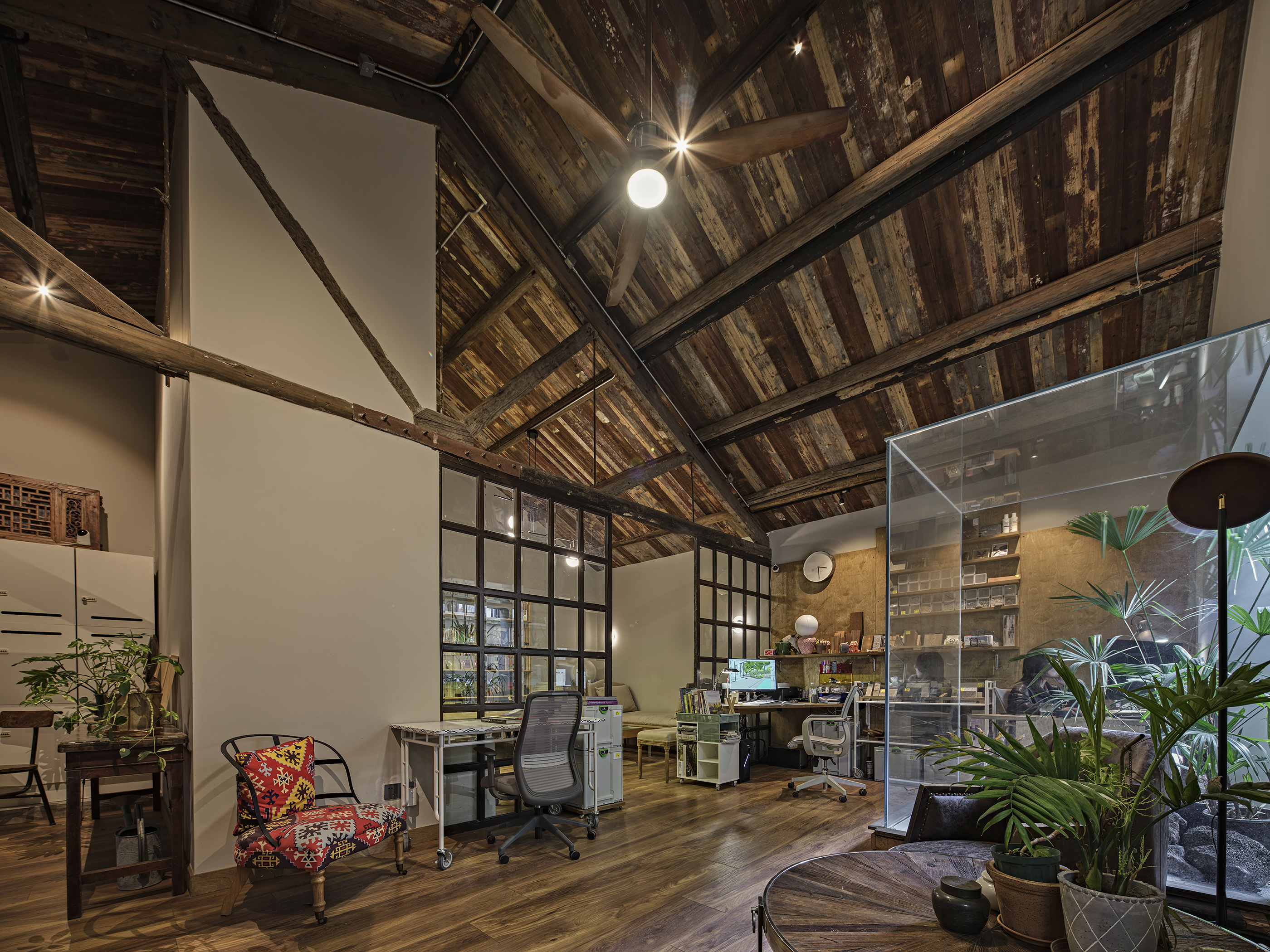

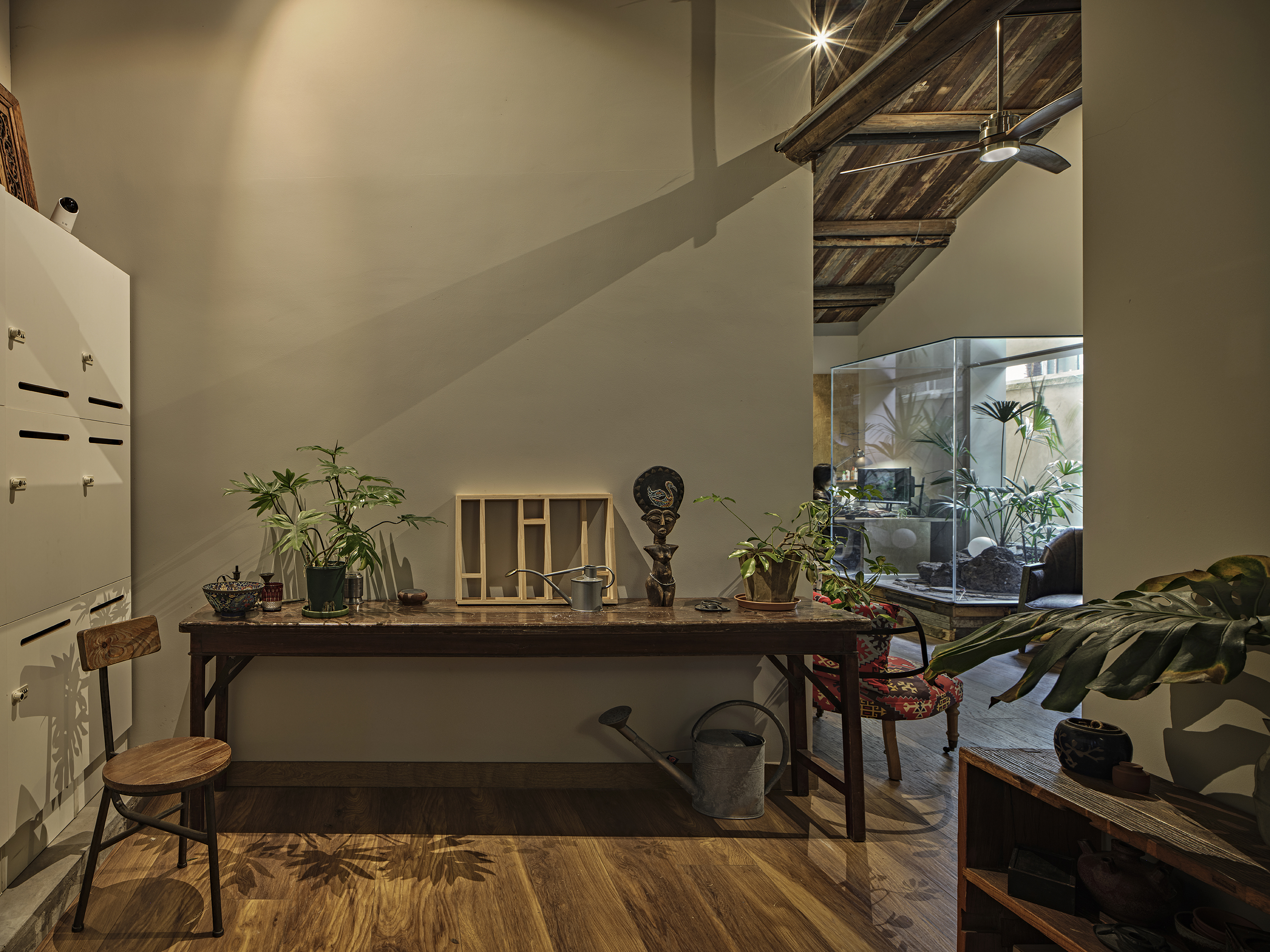

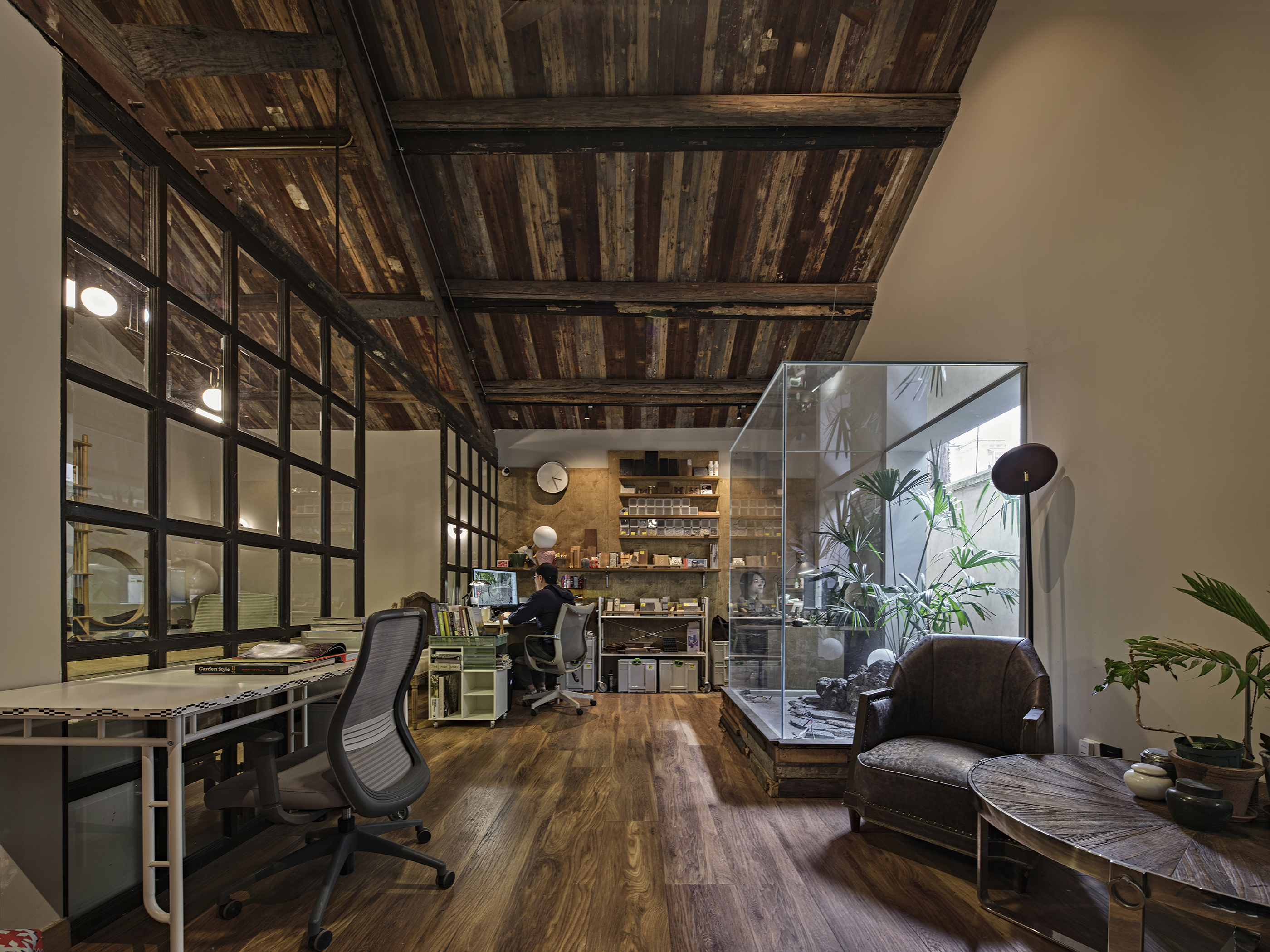

最内部的设计工作室©胡文杰

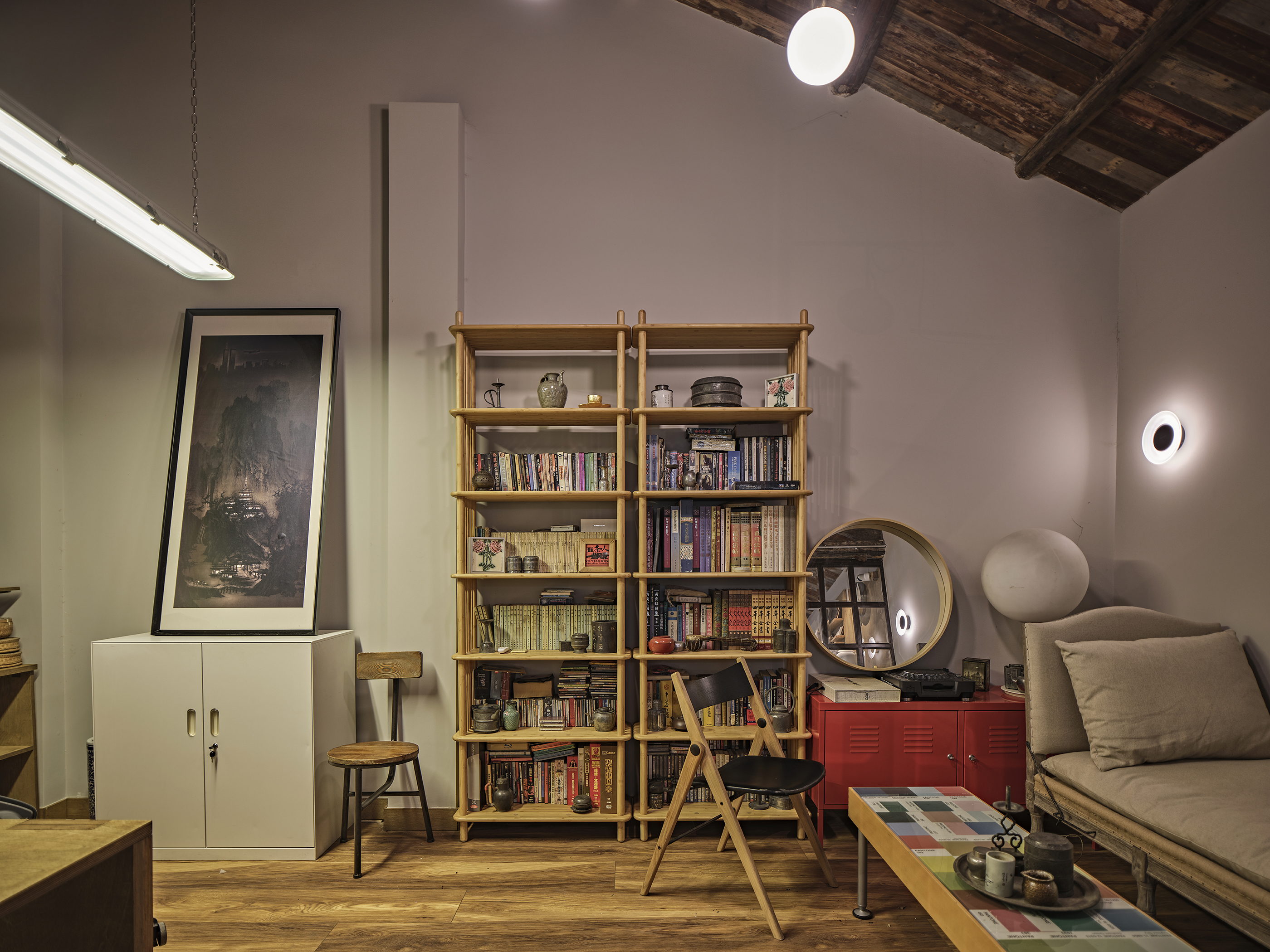

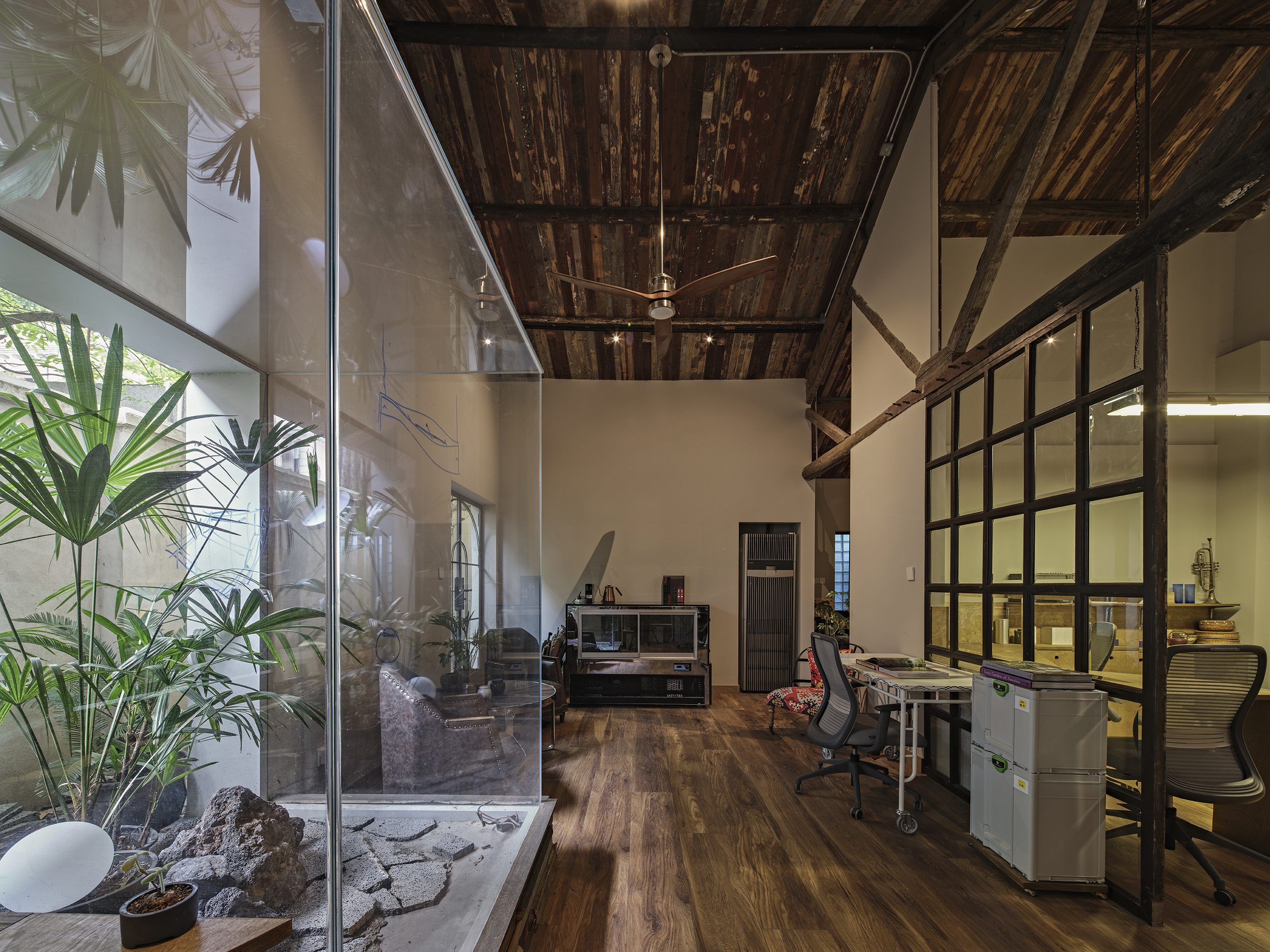

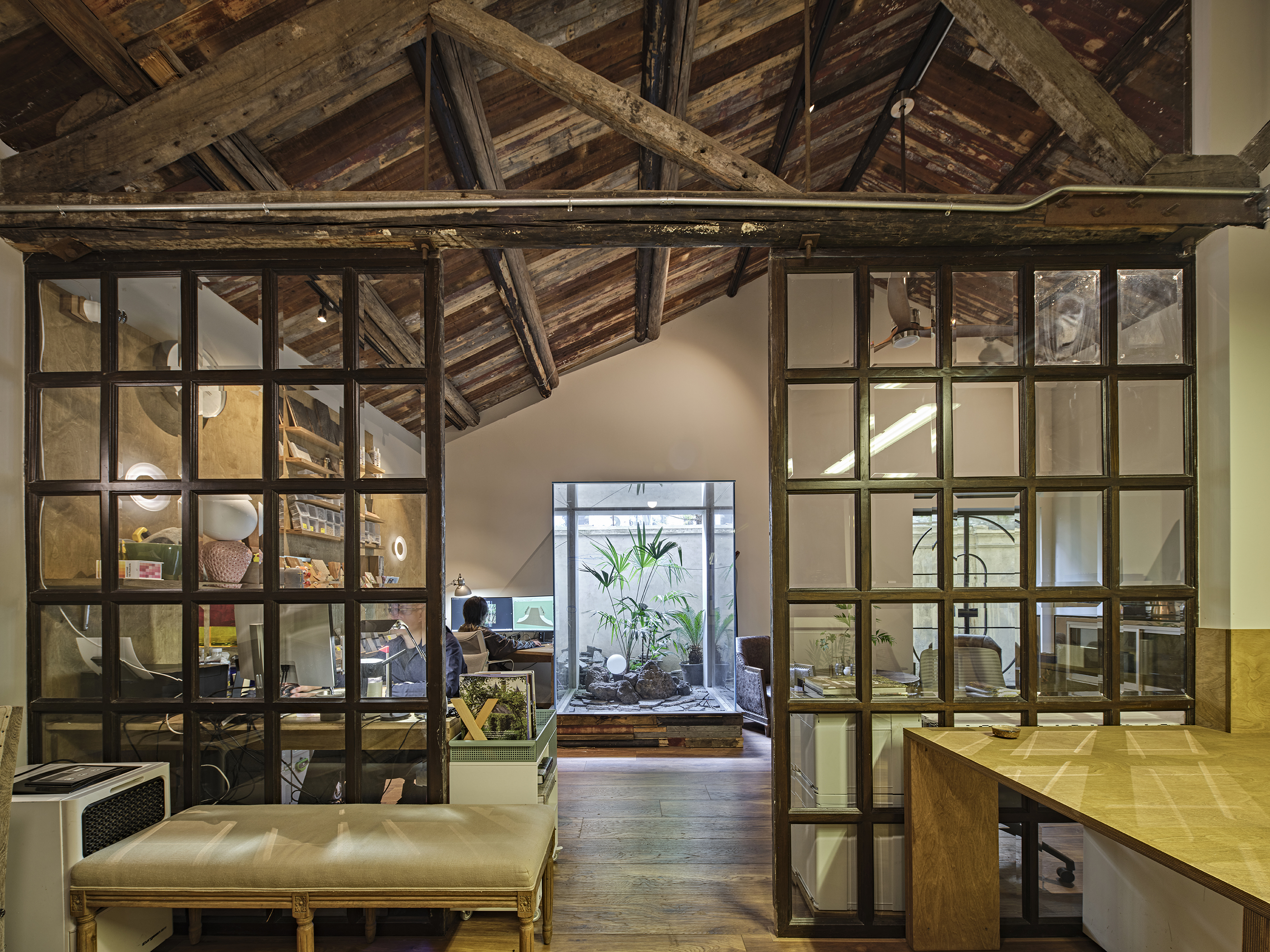

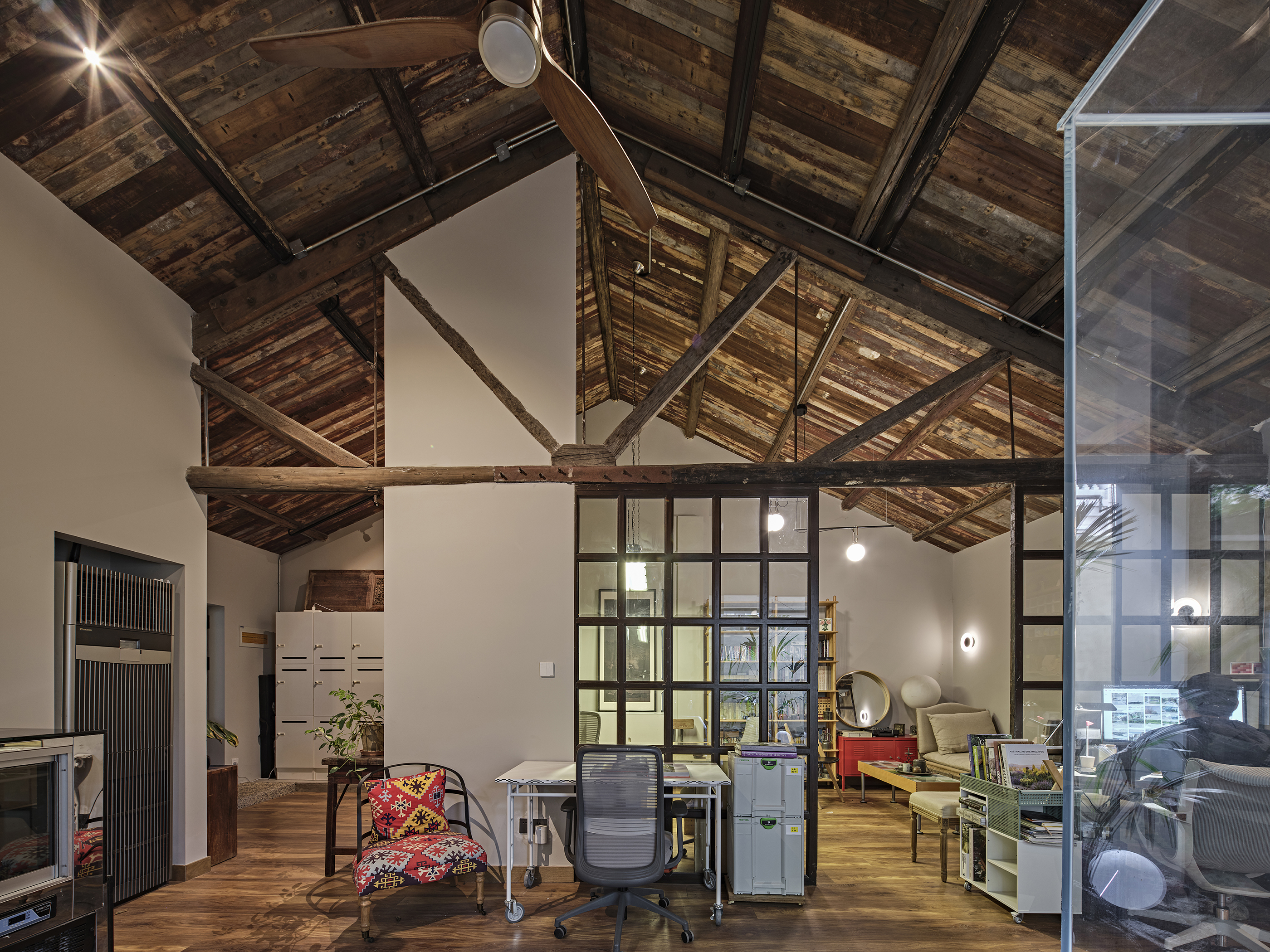

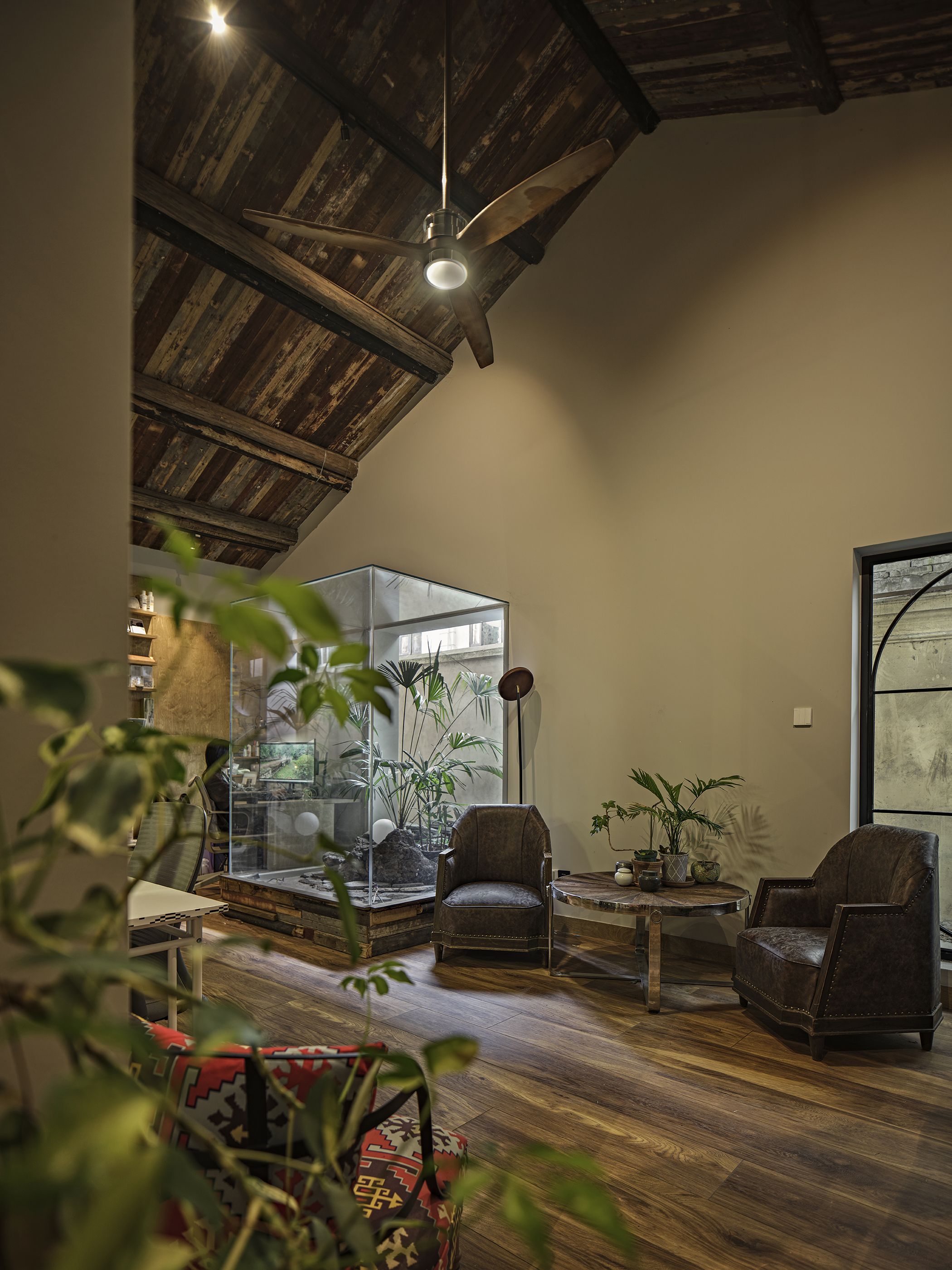

设计工作室©胡文杰

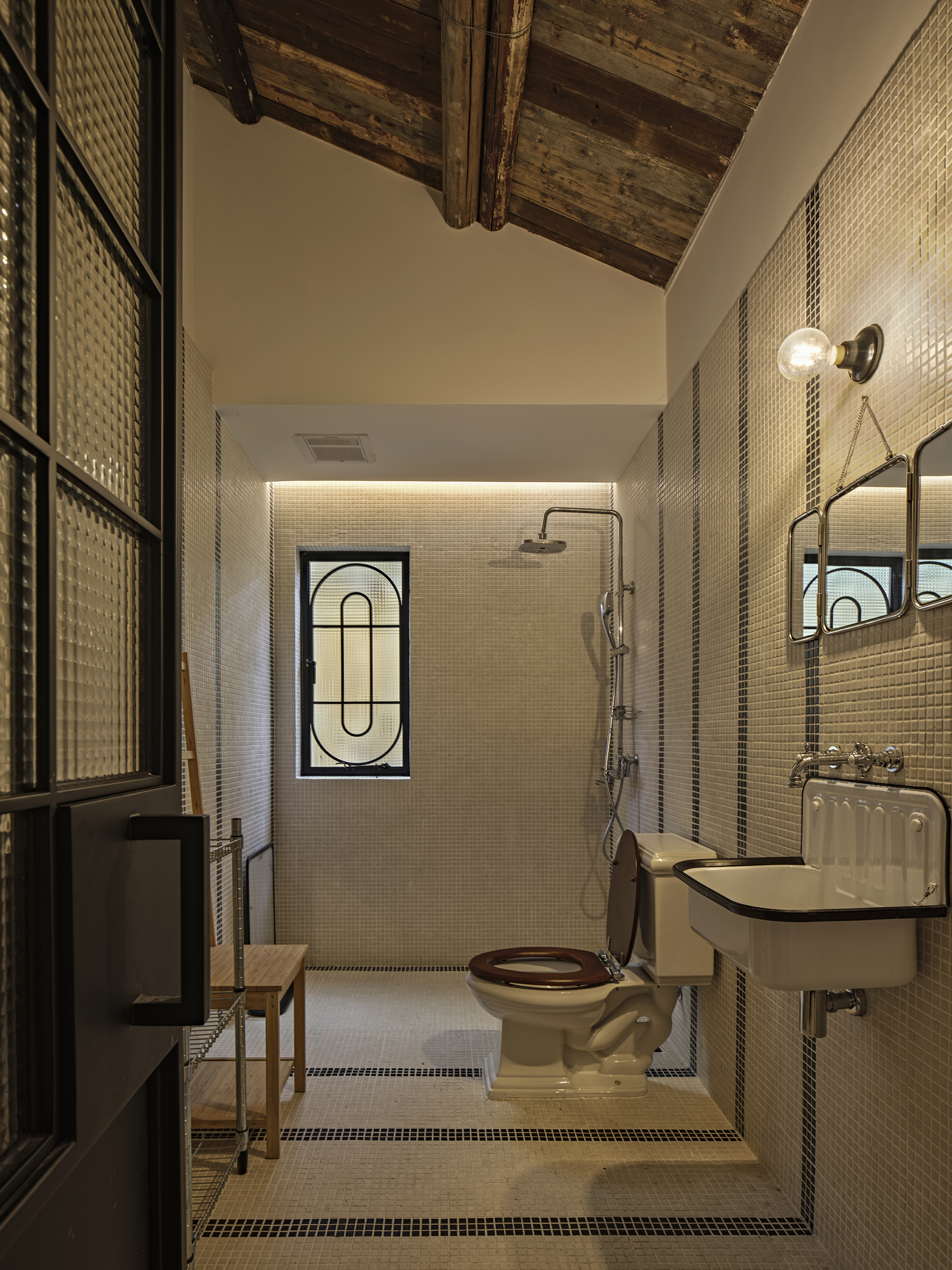

设计工作室的卫生间©胡文杰

木屋架细部©王善祥

设计工作室细部©王善祥

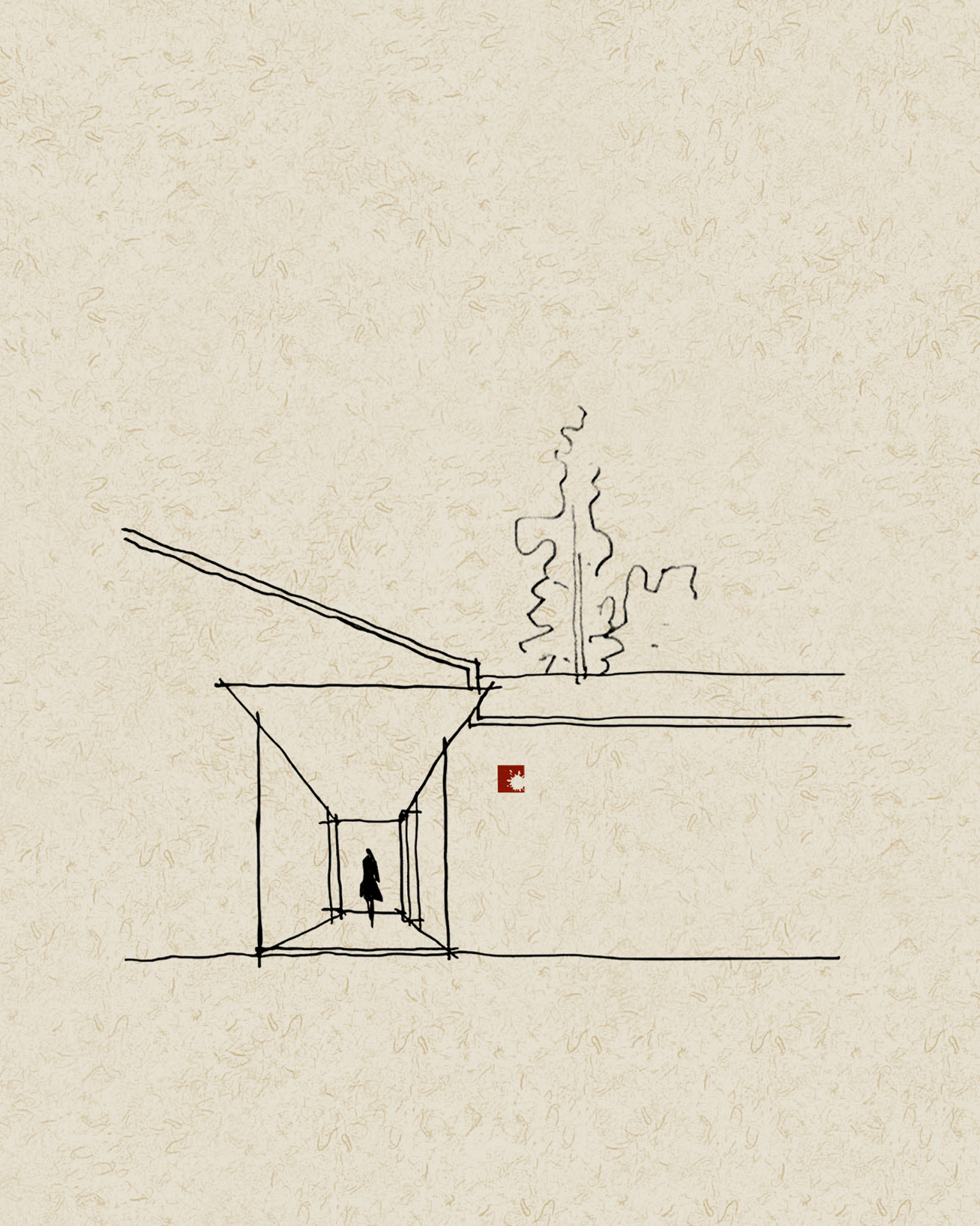

入口立面草图Entrance Facade Sketch

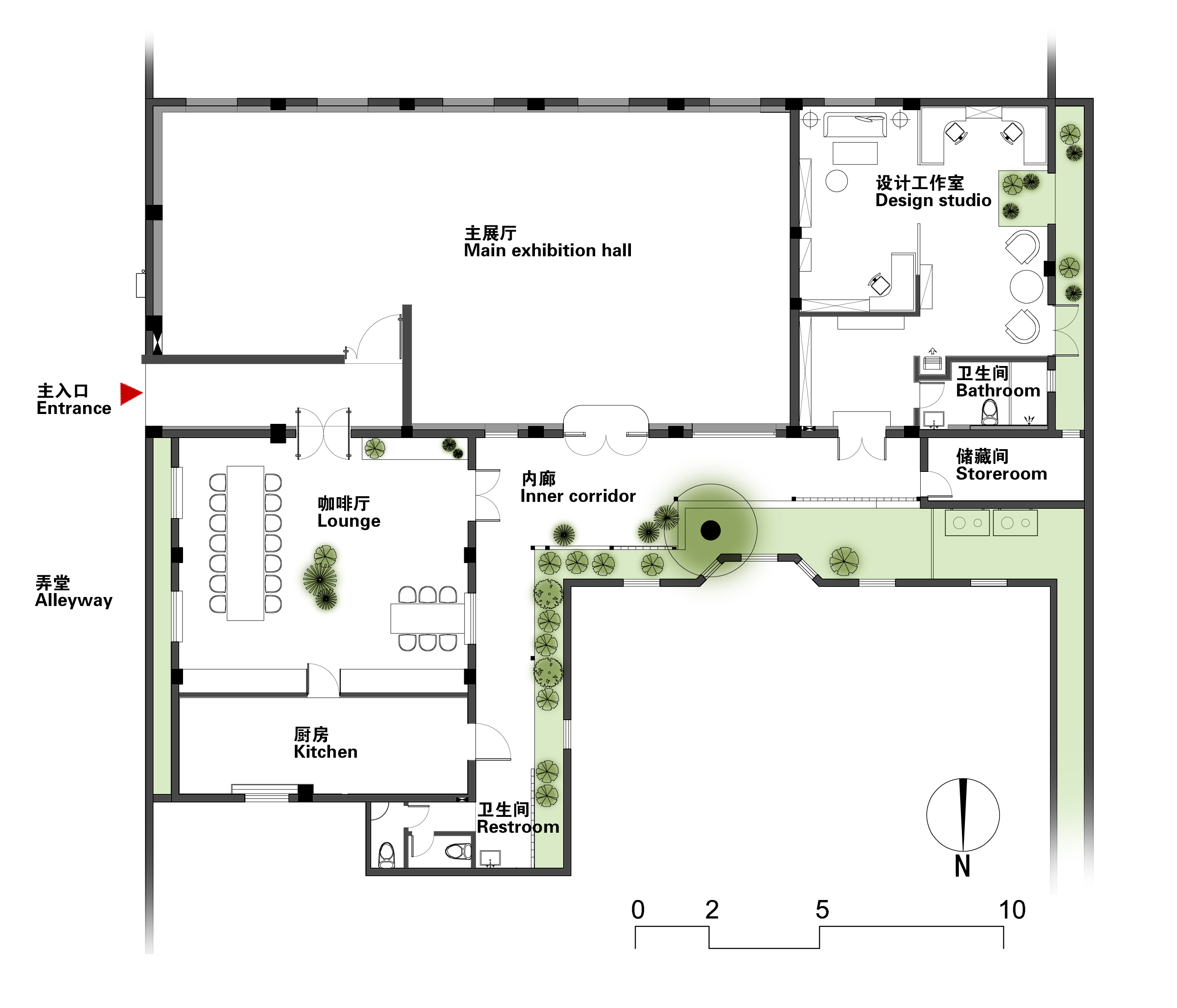

建筑平面Building Plan

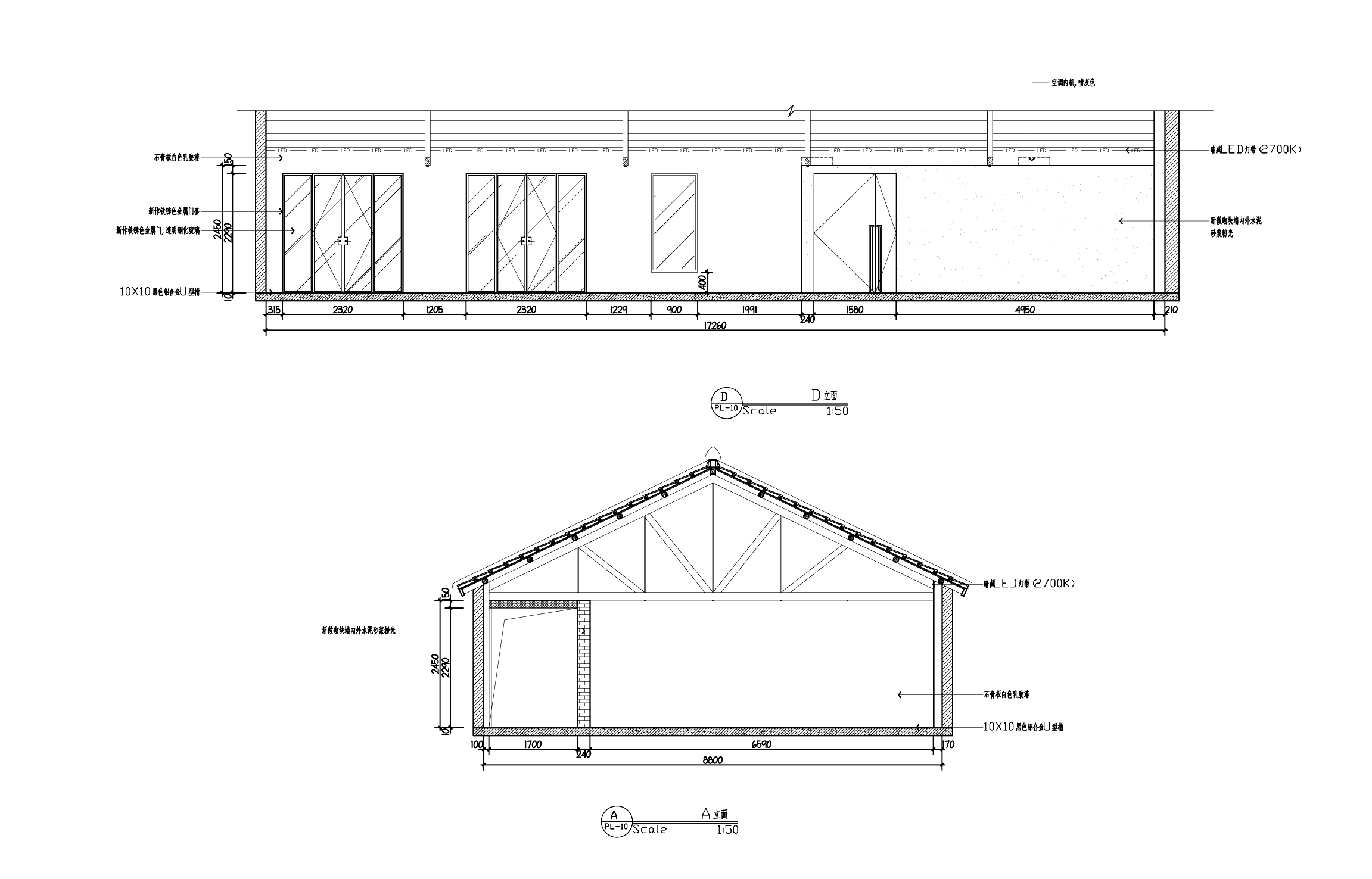

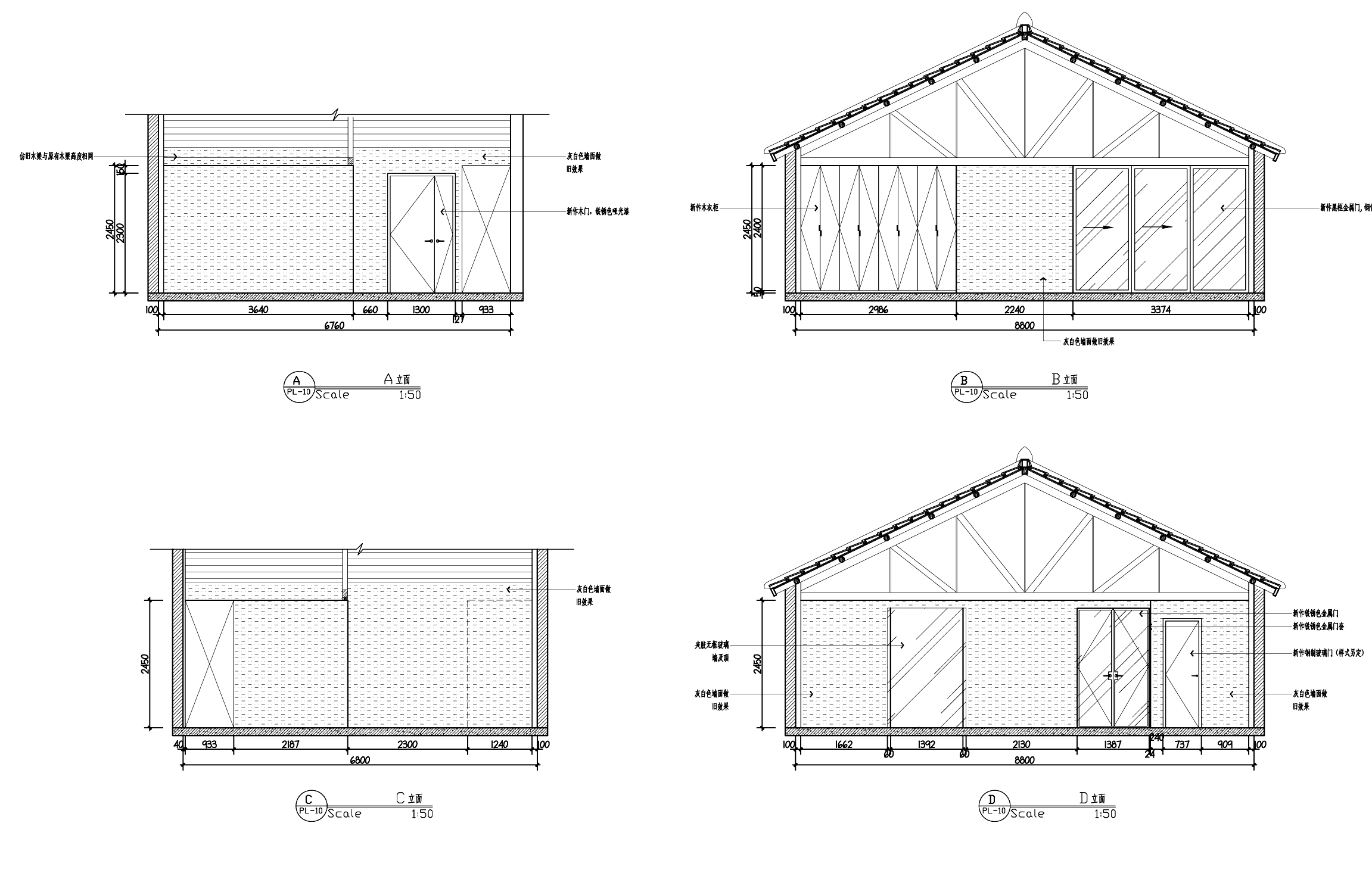

主展厅立面 Main exhibition hall elevation

设计工作室立面 Design Studio elevation

详图 Detail

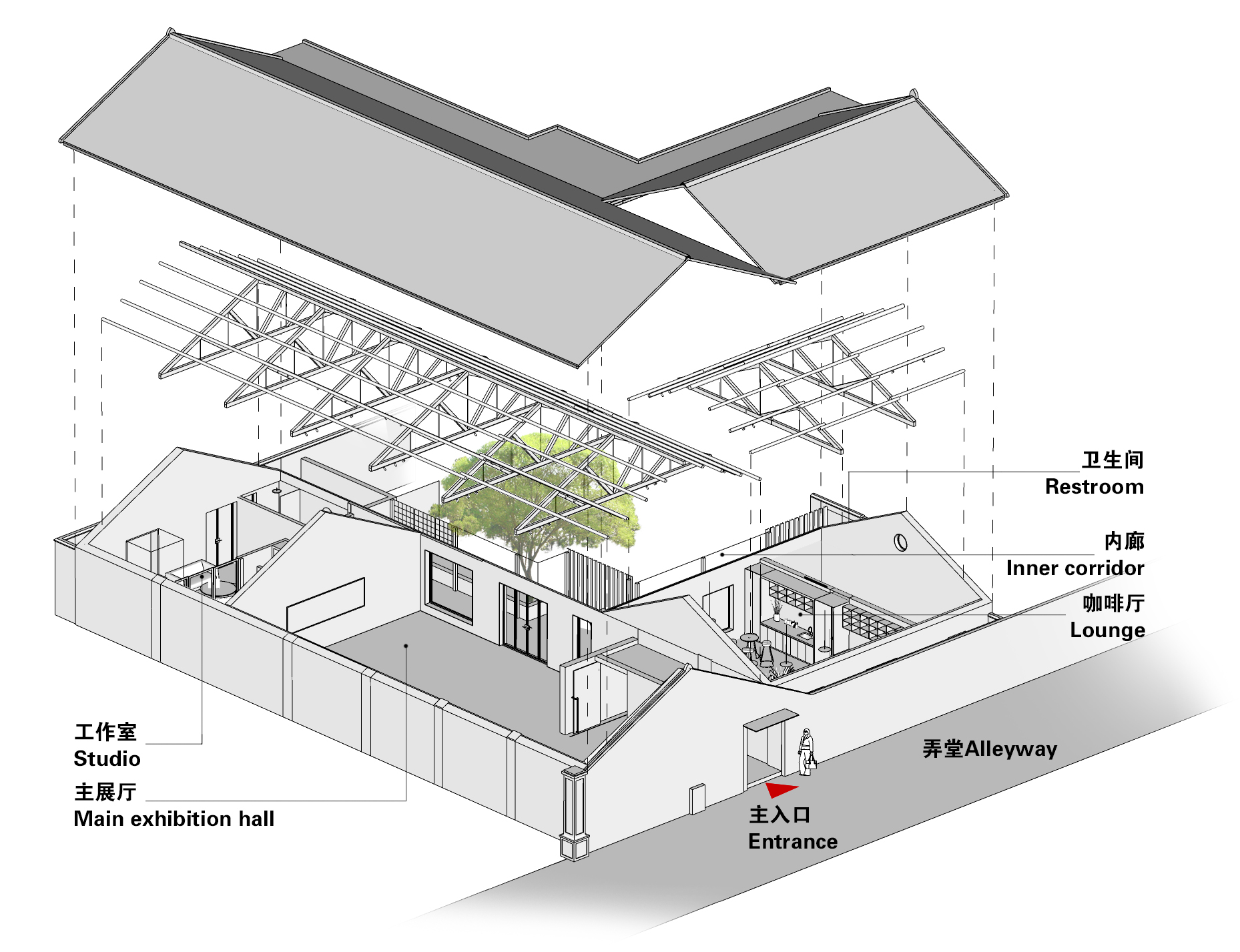

建筑空间轴测解析图Building Space Axonometric Analysis Diagram

细部动图Detail Movement Diagram
